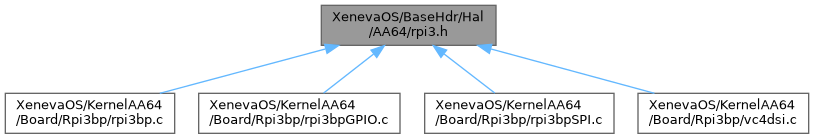

This graph shows which files directly or indirectly include this file:

Macros
#define	RPI_MMIO_BASE 0x3F000000

#define	GIC_DIST 0x40041000

#define	GIC_CPU 0x40042000

#define	GIC_V2M 0x40046000

#define	GIC_HYP 0x40044000

#define	GIC_VCPU 0x08040000

#define	GIC_ITS 0x08080000

#define	GIC_REDIST 0x080A0000

#define	GPIO (RPI_MMIO_BASE + 0x200000)

#define	SPI0 (RPI_MMIO_BASE + 0x204000)

#define	UART0 (RPI_MMIO_BASE + 0x201000)

#define	UART1 0x09040000

#define	RTC 0x09010000

#define	SMMU 0x09050000

#define	VIRT_MMIO 0x0a000000

#define	FW_CFG 0x09020000

#define	PCIE_MMIO 0x10000000

#define	PCIE_PIP 0x3eff0000

#define	PCIE_ECAM 0x3f000000

#define	UART0_IRQ 1

#define	RTC_IRQ 2

#define	PCIE_IRQ 3

#define	GPIO_IRQ 7

#define	UART1_IRQ 8

#define	ACPI_GED 9

#define	VIDEOCORE_MBOX (RPI_MMIO_BASE + 0x00b880)

#define	MBOX_RESPONSE 0x80000000

#define	MBOX_FULL 0x80000000

#define	MBOX_EMPTY 0x40000000

#define	MBOX_REQUEST 0

#define	MBOX_CH_POWER 0

#define	MBOX_CH_FB 1

#define	MBOX_CH_VUART 2

#define	MBOX_CH_VCHIQ 3

#define	MBOX_CH_LEDS 4

#define	MBOX_CH_BTNS 5

#define	MBOX_CH_TOUCH 6

#define	MBOX_CH_COUNT 7

#define	MBOX_CH_PROP 8

#define	MBOX_TAG_GETSERIAL 0x1004

#define	MBOX_TAG_SETCLKRATE 0x38002

#define	MBOX_TAG_LAST 0

#define	PCIE_ECAM 0x10000000ULL

#define	UART0_DR ((volatile uint32_t*)(UART0 + 0x00))

#define	UART0_FR ((volatile uint32_t*)(UART0 + 0x18))

Macro Definition Documentation

◆ ACPI_GED

#define ACPI_GED 9

◆ FW_CFG

#define FW_CFG 0x09020000

◆ GIC_CPU

#define GIC_CPU 0x40042000

◆ GIC_DIST

#define GIC_DIST 0x40041000

◆ GIC_HYP

#define GIC_HYP 0x40044000

◆ GIC_ITS

#define GIC_ITS 0x08080000

◆ GIC_REDIST

#define GIC_REDIST 0x080A0000

◆ GIC_V2M

#define GIC_V2M 0x40046000

◆ GIC_VCPU

#define GIC_VCPU 0x08040000

◆ GPIO

#define GPIO (RPI_MMIO_BASE + 0x200000)

◆ GPIO_IRQ

#define GPIO_IRQ 7

◆ MBOX_CH_BTNS

#define MBOX_CH_BTNS 5

◆ MBOX_CH_COUNT

#define MBOX_CH_COUNT 7

◆ MBOX_CH_FB

#define MBOX_CH_FB 1

◆ MBOX_CH_LEDS

#define MBOX_CH_LEDS 4

◆ MBOX_CH_POWER

#define MBOX_CH_POWER 0

◆ MBOX_CH_PROP

#define MBOX_CH_PROP 8

◆ MBOX_CH_TOUCH

#define MBOX_CH_TOUCH 6

◆ MBOX_CH_VCHIQ

#define MBOX_CH_VCHIQ 3

◆ MBOX_CH_VUART

#define MBOX_CH_VUART 2

◆ MBOX_EMPTY

#define MBOX_EMPTY 0x40000000

◆ MBOX_FULL

#define MBOX_FULL 0x80000000

◆ MBOX_REQUEST

#define MBOX_REQUEST 0

◆ MBOX_RESPONSE

#define MBOX_RESPONSE 0x80000000

◆ MBOX_TAG_GETSERIAL

#define MBOX_TAG_GETSERIAL 0x1004

◆ MBOX_TAG_LAST

#define MBOX_TAG_LAST 0

◆ MBOX_TAG_SETCLKRATE

#define MBOX_TAG_SETCLKRATE 0x38002

◆ PCIE_ECAM [1/2]

#define PCIE_ECAM 0x3f000000

◆ PCIE_ECAM [2/2]

#define PCIE_ECAM 0x10000000ULL

◆ PCIE_IRQ

#define PCIE_IRQ 3

◆ PCIE_MMIO

#define PCIE_MMIO 0x10000000

◆ PCIE_PIP

#define PCIE_PIP 0x3eff0000

◆ RPI_MMIO_BASE

#define RPI_MMIO_BASE 0x3F000000

BSD 2-Clause License

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

◆ RTC

#define RTC 0x09010000

◆ RTC_IRQ

#define RTC_IRQ 2

◆ SMMU

#define SMMU 0x09050000

◆ SPI0

#define SPI0 (RPI_MMIO_BASE + 0x204000)

◆ UART0

#define UART0 (RPI_MMIO_BASE + 0x201000)

◆ UART0_DR

#define UART0_DR ((volatile uint32_t*)(UART0 + 0x00))

◆ UART0_FR

#define UART0_FR ((volatile uint32_t*)(UART0 + 0x18))

◆ UART0_IRQ

#define UART0_IRQ 1

◆ UART1

#define UART1 0x09040000

◆ UART1_IRQ

#define UART1_IRQ 8

◆ VIDEOCORE_MBOX

#define VIDEOCORE_MBOX (RPI_MMIO_BASE + 0x00b880)

◆ VIRT_MMIO

#define VIRT_MMIO 0x0a000000
