#include <IndustryStandard/Acpi30.h>

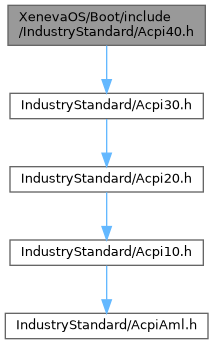

Include dependency graph for Acpi40.h:

This graph shows which files directly or indirectly include this file:

Classes
struct	EFI_ACPI_4_0_GENERIC_ADDRESS_STRUCTURE

struct	EFI_ACPI_4_0_ROOT_SYSTEM_DESCRIPTION_POINTER

struct	EFI_ACPI_4_0_COMMON_HEADER

struct	EFI_ACPI_4_0_FIXED_ACPI_DESCRIPTION_TABLE

struct	EFI_ACPI_4_0_FIRMWARE_ACPI_CONTROL_STRUCTURE

struct	EFI_ACPI_4_0_MULTIPLE_APIC_DESCRIPTION_TABLE_HEADER

struct	EFI_ACPI_4_0_PROCESSOR_LOCAL_APIC_STRUCTURE

struct	EFI_ACPI_4_0_IO_APIC_STRUCTURE

struct	EFI_ACPI_4_0_INTERRUPT_SOURCE_OVERRIDE_STRUCTURE

struct	EFI_ACPI_4_0_PLATFORM_INTERRUPT_APIC_STRUCTURE

struct	EFI_ACPI_4_0_NON_MASKABLE_INTERRUPT_SOURCE_STRUCTURE

struct	EFI_ACPI_4_0_LOCAL_APIC_NMI_STRUCTURE

struct	EFI_ACPI_4_0_LOCAL_APIC_ADDRESS_OVERRIDE_STRUCTURE

struct	EFI_ACPI_4_0_IO_SAPIC_STRUCTURE

struct	EFI_ACPI_4_0_PROCESSOR_LOCAL_SAPIC_STRUCTURE

struct	EFI_ACPI_4_0_PLATFORM_INTERRUPT_SOURCES_STRUCTURE

struct	EFI_ACPI_4_0_PROCESSOR_LOCAL_X2APIC_STRUCTURE

struct	EFI_ACPI_4_0_LOCAL_X2APIC_NMI_STRUCTURE

struct	EFI_ACPI_4_0_SMART_BATTERY_DESCRIPTION_TABLE

struct	EFI_ACPI_4_0_EMBEDDED_CONTROLLER_BOOT_RESOURCES_TABLE

struct	EFI_ACPI_4_0_SYSTEM_RESOURCE_AFFINITY_TABLE_HEADER

struct	EFI_ACPI_4_0_PROCESSOR_LOCAL_APIC_SAPIC_AFFINITY_STRUCTURE

struct	EFI_ACPI_4_0_MEMORY_AFFINITY_STRUCTURE

struct	EFI_ACPI_4_0_PROCESSOR_LOCAL_X2APIC_AFFINITY_STRUCTURE

struct	EFI_ACPI_4_0_SYSTEM_LOCALITY_DISTANCE_INFORMATION_TABLE_HEADER

struct	EFI_ACPI_4_0_CORRECTED_PLATFORM_ERROR_POLLING_TABLE_HEADER

struct	EFI_ACPI_4_0_CPEP_PROCESSOR_APIC_SAPIC_STRUCTURE

struct	EFI_ACPI_4_0_MAXIMUM_SYSTEM_CHARACTERISTICS_TABLE_HEADER

struct	EFI_ACPI_4_0_MAXIMUM_PROXIMITY_DOMAIN_INFORMATION_STRUCTURE

struct	EFI_ACPI_4_0_BOOT_ERROR_RECORD_TABLE_HEADER

struct	EFI_ACPI_4_0_ERROR_BLOCK_STATUS

struct	EFI_ACPI_4_0_BOOT_ERROR_REGION_STRUCTURE

struct	EFI_ACPI_4_0_GENERIC_ERROR_DATA_ENTRY_STRUCTURE

struct	EFI_ACPI_4_0_HARDWARE_ERROR_SOURCE_TABLE_HEADER

struct	EFI_ACPI_4_0_IA32_ARCHITECTURE_MACHINE_CHECK_EXCEPTION_STRUCTURE

struct	EFI_ACPI_4_0_IA32_ARCHITECTURE_MACHINE_CHECK_ERROR_BANK_STRUCTURE

struct	EFI_ACPI_4_0_HARDWARE_ERROR_NOTIFICATION_CONFIGURATION_WRITE_ENABLE_STRUCTURE

struct	EFI_ACPI_4_0_HARDWARE_ERROR_NOTIFICATION_STRUCTURE

struct	EFI_ACPI_4_0_IA32_ARCHITECTURE_CORRECTED_MACHINE_CHECK_STRUCTURE

struct	EFI_ACPI_4_0_IA32_ARCHITECTURE_NMI_ERROR_STRUCTURE

struct	EFI_ACPI_4_0_PCI_EXPRESS_ROOT_PORT_AER_STRUCTURE

struct	EFI_ACPI_4_0_PCI_EXPRESS_DEVICE_AER_STRUCTURE

struct	EFI_ACPI_4_0_PCI_EXPRESS_BRIDGE_AER_STRUCTURE

struct	EFI_ACPI_4_0_GENERIC_HARDWARE_ERROR_SOURCE_STRUCTURE

struct	EFI_ACPI_4_0_GENERIC_ERROR_STATUS_STRUCTURE

struct	EFI_ACPI_4_0_ERROR_RECORD_SERIALIZATION_TABLE_HEADER

struct	EFI_ACPI_4_0_ERST_SERIALIZATION_INSTRUCTION_ENTRY

struct	EFI_ACPI_4_0_ERROR_INJECTION_TABLE_HEADER

struct	EFI_ACPI_4_0_EINJ_INJECTION_INSTRUCTION_ENTRY

struct	EFI_ACPI_4_0_EINJ_TRIGGER_ACTION_TABLE

Macros
#define	EFI_ACPI_4_0_SYSTEM_MEMORY 0

#define	EFI_ACPI_4_0_SYSTEM_IO 1

#define	EFI_ACPI_4_0_PCI_CONFIGURATION_SPACE 2

#define	EFI_ACPI_4_0_EMBEDDED_CONTROLLER 3

#define	EFI_ACPI_4_0_SMBUS 4

#define	EFI_ACPI_4_0_FUNCTIONAL_FIXED_HARDWARE 0x7F

#define	EFI_ACPI_4_0_UNDEFINED 0

#define	EFI_ACPI_4_0_BYTE 1

#define	EFI_ACPI_4_0_WORD 2

#define	EFI_ACPI_4_0_DWORD 3

#define	EFI_ACPI_4_0_QWORD 4

#define	EFI_ACPI_4_0_ROOT_SYSTEM_DESCRIPTION_POINTER_REVISION 0x02
	ACPISpec (Revision 4.0a) says current value is 2.

#define	EFI_ACPI_4_0_ROOT_SYSTEM_DESCRIPTION_TABLE_REVISION 0x01

#define	EFI_ACPI_4_0_EXTENDED_SYSTEM_DESCRIPTION_TABLE_REVISION 0x01

#define	EFI_ACPI_4_0_FIXED_ACPI_DESCRIPTION_TABLE_REVISION 0x04

#define	EFI_ACPI_4_0_PM_PROFILE_UNSPECIFIED 0

#define	EFI_ACPI_4_0_PM_PROFILE_DESKTOP 1

#define	EFI_ACPI_4_0_PM_PROFILE_MOBILE 2

#define	EFI_ACPI_4_0_PM_PROFILE_WORKSTATION 3

#define	EFI_ACPI_4_0_PM_PROFILE_ENTERPRISE_SERVER 4

#define	EFI_ACPI_4_0_PM_PROFILE_SOHO_SERVER 5

#define	EFI_ACPI_4_0_PM_PROFILE_APPLIANCE_PC 6

#define	EFI_ACPI_4_0_PM_PROFILE_PERFORMANCE_SERVER 7

#define	EFI_ACPI_4_0_LEGACY_DEVICES BIT0

#define	EFI_ACPI_4_0_8042 BIT1

#define	EFI_ACPI_4_0_VGA_NOT_PRESENT BIT2

#define	EFI_ACPI_4_0_MSI_NOT_SUPPORTED BIT3

#define	EFI_ACPI_4_0_PCIE_ASPM_CONTROLS BIT4

#define	EFI_ACPI_4_0_WBINVD BIT0

#define	EFI_ACPI_4_0_WBINVD_FLUSH BIT1

#define	EFI_ACPI_4_0_PROC_C1 BIT2

#define	EFI_ACPI_4_0_P_LVL2_UP BIT3

#define	EFI_ACPI_4_0_PWR_BUTTON BIT4

#define	EFI_ACPI_4_0_SLP_BUTTON BIT5

#define	EFI_ACPI_4_0_FIX_RTC BIT6

#define	EFI_ACPI_4_0_RTC_S4 BIT7

#define	EFI_ACPI_4_0_TMR_VAL_EXT BIT8

#define	EFI_ACPI_4_0_DCK_CAP BIT9

#define	EFI_ACPI_4_0_RESET_REG_SUP BIT10

#define	EFI_ACPI_4_0_SEALED_CASE BIT11

#define	EFI_ACPI_4_0_HEADLESS BIT12

#define	EFI_ACPI_4_0_CPU_SW_SLP BIT13

#define	EFI_ACPI_4_0_PCI_EXP_WAK BIT14

#define	EFI_ACPI_4_0_USE_PLATFORM_CLOCK BIT15

#define	EFI_ACPI_4_0_S4_RTC_STS_VALID BIT16

#define	EFI_ACPI_4_0_REMOTE_POWER_ON_CAPABLE BIT17

#define	EFI_ACPI_4_0_FORCE_APIC_CLUSTER_MODEL BIT18

#define	EFI_ACPI_4_0_FORCE_APIC_PHYSICAL_DESTINATION_MODE BIT19

#define	EFI_ACPI_4_0_FIRMWARE_ACPI_CONTROL_STRUCTURE_VERSION 0x02

#define	EFI_ACPI_4_0_S4BIOS_F BIT0

#define	EFI_ACPI_4_0_64BIT_WAKE_SUPPORTED_F BIT1

#define	EFI_ACPI_4_0_OSPM_64BIT_WAKE__F BIT0

#define	EFI_ACPI_4_0_DIFFERENTIATED_SYSTEM_DESCRIPTION_TABLE_REVISION 0x02

#define	EFI_ACPI_4_0_SECONDARY_SYSTEM_DESCRIPTION_TABLE_REVISION 0x02

#define	EFI_ACPI_4_0_MULTIPLE_APIC_DESCRIPTION_TABLE_REVISION 0x03

#define	EFI_ACPI_4_0_PCAT_COMPAT BIT0

#define	EFI_ACPI_4_0_PROCESSOR_LOCAL_APIC 0x00

#define	EFI_ACPI_4_0_IO_APIC 0x01

#define	EFI_ACPI_4_0_INTERRUPT_SOURCE_OVERRIDE 0x02

#define	EFI_ACPI_4_0_NON_MASKABLE_INTERRUPT_SOURCE 0x03

#define	EFI_ACPI_4_0_LOCAL_APIC_NMI 0x04

#define	EFI_ACPI_4_0_LOCAL_APIC_ADDRESS_OVERRIDE 0x05

#define	EFI_ACPI_4_0_IO_SAPIC 0x06

#define	EFI_ACPI_4_0_LOCAL_SAPIC 0x07

#define	EFI_ACPI_4_0_PLATFORM_INTERRUPT_SOURCES 0x08

#define	EFI_ACPI_4_0_PROCESSOR_LOCAL_X2APIC 0x09

#define	EFI_ACPI_4_0_LOCAL_X2APIC_NMI 0x0A

#define	EFI_ACPI_4_0_LOCAL_APIC_ENABLED BIT0

#define	EFI_ACPI_4_0_POLARITY (3 << 0)

#define	EFI_ACPI_4_0_TRIGGER_MODE (3 << 2)

#define	EFI_ACPI_4_0_CPEI_PROCESSOR_OVERRIDE BIT0

#define	EFI_ACPI_4_0_SMART_BATTERY_DESCRIPTION_TABLE_REVISION 0x01

#define	EFI_ACPI_4_0_EMBEDDED_CONTROLLER_BOOT_RESOURCES_TABLE_REVISION 0x01

#define	EFI_ACPI_4_0_SYSTEM_RESOURCE_AFFINITY_TABLE_REVISION 0x03

#define	EFI_ACPI_4_0_PROCESSOR_LOCAL_APIC_SAPIC_AFFINITY 0x00

#define	EFI_ACPI_4_0_MEMORY_AFFINITY 0x01

#define	EFI_ACPI_4_0_PROCESSOR_LOCAL_X2APIC_AFFINITY 0x02

#define	EFI_ACPI_4_0_PROCESSOR_LOCAL_APIC_SAPIC_ENABLED (1 << 0)

#define	EFI_ACPI_4_0_MEMORY_ENABLED (1 << 0)

#define	EFI_ACPI_4_0_MEMORY_HOT_PLUGGABLE (1 << 1)

#define	EFI_ACPI_4_0_MEMORY_NONVOLATILE (1 << 2)

#define	EFI_ACPI_4_0_SYSTEM_LOCALITY_DISTANCE_INFORMATION_TABLE_REVISION 0x01

#define	EFI_ACPI_4_0_CORRECTED_PLATFORM_ERROR_POLLING_TABLE_REVISION 0x01

#define	EFI_ACPI_4_0_CPEP_PROCESSOR_APIC_SAPIC 0x00

#define	EFI_ACPI_4_0_MAXIMUM_SYSTEM_CHARACTERISTICS_TABLE_REVISION 0x01

#define	EFI_ACPI_4_0_BOOT_ERROR_RECORD_TABLE_REVISION 0x01

#define	EFI_ACPI_4_0_ERROR_SEVERITY_CORRECTABLE 0x00

#define	EFI_ACPI_4_0_ERROR_SEVERITY_FATAL 0x01

#define	EFI_ACPI_4_0_ERROR_SEVERITY_CORRECTED 0x02

#define	EFI_ACPI_4_0_ERROR_SEVERITY_NONE 0x03

#define	EFI_ACPI_4_0_GENERIC_ERROR_DATA_ENTRY_REVISION 0x0201

#define	EFI_ACPI_4_0_HARDWARE_ERROR_SOURCE_TABLE_REVISION 0x01

#define	EFI_ACPI_4_0_IA32_ARCHITECTURE_MACHINE_CHECK_EXCEPTION 0x00

#define	EFI_ACPI_4_0_IA32_ARCHITECTURE_CORRECTED_MACHINE_CHECK 0x01

#define	EFI_ACPI_4_0_IA32_ARCHITECTURE_NMI_ERROR 0x02

#define	EFI_ACPI_4_0_PCI_EXPRESS_ROOT_PORT_AER 0x06

#define	EFI_ACPI_4_0_PCI_EXPRESS_DEVICE_AER 0x07

#define	EFI_ACPI_4_0_PCI_EXPRESS_BRIDGE_AER 0x08

#define	EFI_ACPI_4_0_GENERIC_HARDWARE_ERROR 0x09

#define	EFI_ACPI_4_0_ERROR_SOURCE_FLAG_FIRMWARE_FIRST (1 << 0)

#define	EFI_ACPI_4_0_ERROR_SOURCE_FLAG_GLOBAL (1 << 1)

#define	EFI_ACPI_4_0_IA32_ARCHITECTURE_MACHINE_CHECK_ERROR_DATA_FORMAT_IA32 0x00

#define	EFI_ACPI_4_0_IA32_ARCHITECTURE_MACHINE_CHECK_ERROR_DATA_FORMAT_INTEL64 0x01

#define	EFI_ACPI_4_0_IA32_ARCHITECTURE_MACHINE_CHECK_ERROR_DATA_FORMAT_AMD64 0x02

#define	EFI_ACPI_4_0_HARDWARE_ERROR_NOTIFICATION_POLLED 0x00

#define	EFI_ACPI_4_0_HARDWARE_ERROR_NOTIFICATION_EXTERNAL_INTERRUPT 0x01

#define	EFI_ACPI_4_0_HARDWARE_ERROR_NOTIFICATION_LOCAL_INTERRUPT 0x02

#define	EFI_ACPI_4_0_HARDWARE_ERROR_NOTIFICATION_SCI 0x03

#define	EFI_ACPI_4_0_HARDWARE_ERROR_NOTIFICATION_NMI 0x04

#define	EFI_ACPI_4_0_ERROR_RECORD_SERIALIZATION_TABLE_REVISION 0x01

#define	EFI_ACPI_4_0_ERST_BEGIN_WRITE_OPERATION 0x00

#define	EFI_ACPI_4_0_ERST_BEGIN_READ_OPERATION 0x01

#define	EFI_ACPI_4_0_ERST_BEGIN_CLEAR_OPERATION 0x02

#define	EFI_ACPI_4_0_ERST_END_OPERATION 0x03

#define	EFI_ACPI_4_0_ERST_SET_RECORD_OFFSET 0x04

#define	EFI_ACPI_4_0_ERST_EXECUTE_OPERATION 0x05

#define	EFI_ACPI_4_0_ERST_CHECK_BUSY_STATUS 0x06

#define	EFI_ACPI_4_0_ERST_GET_COMMAND_STATUS 0x07

#define	EFI_ACPI_4_0_ERST_GET_RECORD_IDENTIFIER 0x08

#define	EFI_ACPI_4_0_ERST_SET_RECORD_IDENTIFIER 0x09

#define	EFI_ACPI_4_0_ERST_GET_RECORD_COUNT 0x0A

#define	EFI_ACPI_4_0_ERST_BEGIN_DUMMY_WRITE_OPERATION 0x0B

#define	EFI_ACPI_4_0_ERST_GET_ERROR_LOG_ADDRESS_RANGE 0x0D

#define	EFI_ACPI_4_0_ERST_GET_ERROR_LOG_ADDRESS_RANGE_LENGTH 0x0E

#define	EFI_ACPI_4_0_ERST_GET_ERROR_LOG_ADDRESS_RANGE_ATTRIBUTES 0x0F

#define	EFI_ACPI_4_0_EINJ_STATUS_SUCCESS 0x00

#define	EFI_ACPI_4_0_EINJ_STATUS_NOT_ENOUGH_SPACE 0x01

#define	EFI_ACPI_4_0_EINJ_STATUS_HARDWARE_NOT_AVAILABLE 0x02

#define	EFI_ACPI_4_0_EINJ_STATUS_FAILED 0x03

#define	EFI_ACPI_4_0_EINJ_STATUS_RECORD_STORE_EMPTY 0x04

#define	EFI_ACPI_4_0_EINJ_STATUS_RECORD_NOT_FOUND 0x05

#define	EFI_ACPI_4_0_ERST_READ_REGISTER 0x00

#define	EFI_ACPI_4_0_ERST_READ_REGISTER_VALUE 0x01

#define	EFI_ACPI_4_0_ERST_WRITE_REGISTER 0x02

#define	EFI_ACPI_4_0_ERST_WRITE_REGISTER_VALUE 0x03

#define	EFI_ACPI_4_0_ERST_NOOP 0x04

#define	EFI_ACPI_4_0_ERST_LOAD_VAR1 0x05

#define	EFI_ACPI_4_0_ERST_LOAD_VAR2 0x06

#define	EFI_ACPI_4_0_ERST_STORE_VAR1 0x07

#define	EFI_ACPI_4_0_ERST_ADD 0x08

#define	EFI_ACPI_4_0_ERST_SUBTRACT 0x09

#define	EFI_ACPI_4_0_ERST_ADD_VALUE 0x0A

#define	EFI_ACPI_4_0_ERST_SUBTRACT_VALUE 0x0B

#define	EFI_ACPI_4_0_ERST_STALL 0x0C

#define	EFI_ACPI_4_0_ERST_STALL_WHILE_TRUE 0x0D

#define	EFI_ACPI_4_0_ERST_SKIP_NEXT_INSTRUCTION_IF_TRUE 0x0E

#define	EFI_ACPI_4_0_ERST_GOTO 0x0F

#define	EFI_ACPI_4_0_ERST_SET_SRC_ADDRESS_BASE 0x10

#define	EFI_ACPI_4_0_ERST_SET_DST_ADDRESS_BASE 0x11

#define	EFI_ACPI_4_0_ERST_MOVE_DATA 0x12

#define	EFI_ACPI_4_0_ERST_PRESERVE_REGISTER 0x01

#define	EFI_ACPI_4_0_ERROR_INJECTION_TABLE_REVISION 0x01

#define	EFI_ACPI_4_0_EINJ_BEGIN_INJECTION_OPERATION 0x00

#define	EFI_ACPI_4_0_EINJ_GET_TRIGGER_ERROR_ACTION_TABLE 0x01

#define	EFI_ACPI_4_0_EINJ_SET_ERROR_TYPE 0x02

#define	EFI_ACPI_4_0_EINJ_GET_ERROR_TYPE 0x03

#define	EFI_ACPI_4_0_EINJ_END_OPERATION 0x04

#define	EFI_ACPI_4_0_EINJ_EXECUTE_OPERATION 0x05

#define	EFI_ACPI_4_0_EINJ_CHECK_BUSY_STATUS 0x06

#define	EFI_ACPI_4_0_EINJ_GET_COMMAND_STATUS 0x07

#define	EFI_ACPI_4_0_EINJ_TRIGGER_ERROR 0xFF

#define	EFI_ACPI_4_0_EINJ_STATUS_SUCCESS 0x00

#define	EFI_ACPI_4_0_EINJ_STATUS_UNKNOWN_FAILURE 0x01

#define	EFI_ACPI_4_0_EINJ_STATUS_INVALID_ACCESS 0x02

#define	EFI_ACPI_4_0_EINJ_ERROR_PROCESSOR_CORRECTABLE (1 << 0)

#define	EFI_ACPI_4_0_EINJ_ERROR_PROCESSOR_UNCORRECTABLE_NONFATAL (1 << 1)

#define	EFI_ACPI_4_0_EINJ_ERROR_PROCESSOR_UNCORRECTABLE_FATAL (1 << 2)

#define	EFI_ACPI_4_0_EINJ_ERROR_MEMORY_CORRECTABLE (1 << 3)

#define	EFI_ACPI_4_0_EINJ_ERROR_MEMORY_UNCORRECTABLE_NONFATAL (1 << 4)

#define	EFI_ACPI_4_0_EINJ_ERROR_MEMORY_UNCORRECTABLE_FATAL (1 << 5)

#define	EFI_ACPI_4_0_EINJ_ERROR_PCI_EXPRESS_CORRECTABLE (1 << 6)

#define	EFI_ACPI_4_0_EINJ_ERROR_PCI_EXPRESS_UNCORRECTABLE_NONFATAL (1 << 7)

#define	EFI_ACPI_4_0_EINJ_ERROR_PCI_EXPRESS_UNCORRECTABLE_FATAL (1 << 8)

#define	EFI_ACPI_4_0_EINJ_ERROR_PLATFORM_CORRECTABLE (1 << 9)

#define	EFI_ACPI_4_0_EINJ_ERROR_PLATFORM_UNCORRECTABLE_NONFATAL (1 << 10)

#define	EFI_ACPI_4_0_EINJ_ERROR_PLATFORM_UNCORRECTABLE_FATAL (1 << 11)

#define	EFI_ACPI_4_0_EINJ_READ_REGISTER 0x00

#define	EFI_ACPI_4_0_EINJ_READ_REGISTER_VALUE 0x01

#define	EFI_ACPI_4_0_EINJ_WRITE_REGISTER 0x02

#define	EFI_ACPI_4_0_EINJ_WRITE_REGISTER_VALUE 0x03

#define	EFI_ACPI_4_0_EINJ_NOOP 0x04

#define	EFI_ACPI_4_0_EINJ_PRESERVE_REGISTER 0x01

#define	EFI_ACPI_4_0_ROOT_SYSTEM_DESCRIPTION_POINTER_SIGNATURE SIGNATURE_64('R', 'S', 'D', ' ', 'P', 'T', 'R', ' ')

#define	EFI_ACPI_4_0_MULTIPLE_APIC_DESCRIPTION_TABLE_SIGNATURE SIGNATURE_32('A', 'P', 'I', 'C')

#define	EFI_ACPI_4_0_BOOT_ERROR_RECORD_TABLE_SIGNATURE SIGNATURE_32('B', 'E', 'R', 'T')

#define	EFI_ACPI_4_0_CORRECTED_PLATFORM_ERROR_POLLING_TABLE_SIGNATURE SIGNATURE_32('C', 'P', 'E', 'P')

#define	EFI_ACPI_4_0_DIFFERENTIATED_SYSTEM_DESCRIPTION_TABLE_SIGNATURE SIGNATURE_32('D', 'S', 'D', 'T')

#define	EFI_ACPI_4_0_EMBEDDED_CONTROLLER_BOOT_RESOURCES_TABLE_SIGNATURE SIGNATURE_32('E', 'C', 'D', 'T')

#define	EFI_ACPI_4_0_ERROR_INJECTION_TABLE_SIGNATURE SIGNATURE_32('E', 'I', 'N', 'J')

#define	EFI_ACPI_4_0_ERROR_RECORD_SERIALIZATION_TABLE_SIGNATURE SIGNATURE_32('E', 'R', 'S', 'T')

#define	EFI_ACPI_4_0_FIXED_ACPI_DESCRIPTION_TABLE_SIGNATURE SIGNATURE_32('F', 'A', 'C', 'P')

#define	EFI_ACPI_4_0_FIRMWARE_ACPI_CONTROL_STRUCTURE_SIGNATURE SIGNATURE_32('F', 'A', 'C', 'S')

#define	EFI_ACPI_4_0_HARDWARE_ERROR_SOURCE_TABLE_SIGNATURE SIGNATURE_32('H', 'E', 'S', 'T')

#define	EFI_ACPI_4_0_MAXIMUM_SYSTEM_CHARACTERISTICS_TABLE_SIGNATURE SIGNATURE_32('M', 'S', 'C', 'T')

#define	EFI_ACPI_4_0_PERSISTENT_SYSTEM_DESCRIPTION_TABLE_SIGNATURE SIGNATURE_32('P', 'S', 'D', 'T')

#define	EFI_ACPI_4_0_ROOT_SYSTEM_DESCRIPTION_TABLE_SIGNATURE SIGNATURE_32('R', 'S', 'D', 'T')

#define	EFI_ACPI_4_0_SMART_BATTERY_SPECIFICATION_TABLE_SIGNATURE SIGNATURE_32('S', 'B', 'S', 'T')

#define	EFI_ACPI_4_0_SYSTEM_LOCALITY_INFORMATION_TABLE_SIGNATURE SIGNATURE_32('S', 'L', 'I', 'T')

#define	EFI_ACPI_4_0_SYSTEM_RESOURCE_AFFINITY_TABLE_SIGNATURE SIGNATURE_32('S', 'R', 'A', 'T')

#define	EFI_ACPI_4_0_SECONDARY_SYSTEM_DESCRIPTION_TABLE_SIGNATURE SIGNATURE_32('S', 'S', 'D', 'T')

#define	EFI_ACPI_4_0_EXTENDED_SYSTEM_DESCRIPTION_TABLE_SIGNATURE SIGNATURE_32('X', 'S', 'D', 'T')

#define	EFI_ACPI_4_0_SIMPLE_BOOT_FLAG_TABLE_SIGNATURE SIGNATURE_32('B', 'O', 'O', 'T')

#define	EFI_ACPI_4_0_DEBUG_PORT_TABLE_SIGNATURE SIGNATURE_32('D', 'B', 'G', 'P')

#define	EFI_ACPI_4_0_DMA_REMAPPING_TABLE_SIGNATURE SIGNATURE_32('D', 'M', 'A', 'R')

#define	EFI_ACPI_4_0_EVENT_TIMER_DESCRIPTION_TABLE_SIGNATURE SIGNATURE_32('E', 'T', 'D', 'T')

#define	EFI_ACPI_4_0_HIGH_PRECISION_EVENT_TIMER_TABLE_SIGNATURE SIGNATURE_32('H', 'P', 'E', 'T')

#define	EFI_ACPI_4_0_ISCSI_BOOT_FIRMWARE_TABLE_SIGNATURE SIGNATURE_32('i', 'B', 'F', 'T')

#define	EFI_ACPI_4_0_IO_VIRTUALIZATION_REPORTING_STRUCTURE_SIGNATURE SIGNATURE_32('I', 'V', 'R', 'S')

#define	EFI_ACPI_4_0_PCI_EXPRESS_MEMORY_MAPPED_CONFIGURATION_SPACE_BASE_ADDRESS_DESCRIPTION_TABLE_SIGNATURE SIGNATURE_32('M', 'C', 'F', 'G')

#define	EFI_ACPI_4_0_MANAGEMENT_CONTROLLER_HOST_INTERFACE_TABLE_SIGNATURE SIGNATURE_32('M', 'C', 'H', 'I')

#define	EFI_ACPI_4_0_SERIAL_PORT_CONSOLE_REDIRECTION_TABLE_SIGNATURE SIGNATURE_32('S', 'P', 'C', 'R')

#define	EFI_ACPI_4_0_SERVER_PLATFORM_MANAGEMENT_INTERFACE_TABLE_SIGNATURE SIGNATURE_32('S', 'P', 'M', 'I')

#define	EFI_ACPI_4_0_TRUSTED_COMPUTING_PLATFORM_ALLIANCE_CAPABILITIES_TABLE_SIGNATURE SIGNATURE_32('T', 'C', 'P', 'A')

#define	EFI_ACPI_4_0_UEFI_ACPI_DATA_TABLE_SIGNATURE SIGNATURE_32('U', 'E', 'F', 'I')

#define	EFI_ACPI_4_0_WINDOWS_ACPI_ENLIGHTENMENT_TABLE_SIGNATURE SIGNATURE_32('W', 'A', 'E', 'T')

#define	EFI_ACPI_4_0_WATCHDOG_ACTION_TABLE_SIGNATURE SIGNATURE_32('W', 'D', 'A', 'T')

#define	EFI_ACPI_4_0_WATCHDOG_RESOURCE_TABLE_SIGNATURE SIGNATURE_32('W', 'D', 'R', 'T')

Detailed Description

ACPI 4.0 definitions from the ACPI Specification Revision 4.0a April 5, 2010

Copyright (c) 2010 - 2018, Intel Corporation. All rights reserved.
This program and the accompanying materials are licensed and made available under the terms and conditions of the BSD License which accompanies this distribution. The full text of the license may be found at http://opensource.org/licenses/bsd-license.php

THE PROGRAM IS DISTRIBUTED UNDER THE BSD LICENSE ON AN "AS IS" BASIS, WITHOUT WARRANTIES OR REPRESENTATIONS OF ANY KIND, EITHER EXPRESS OR IMPLIED.

Macro Definition Documentation

◆ EFI_ACPI_4_0_64BIT_WAKE_SUPPORTED_F

#define EFI_ACPI_4_0_64BIT_WAKE_SUPPORTED_F BIT1

◆ EFI_ACPI_4_0_8042

#define EFI_ACPI_4_0_8042 BIT1

◆ EFI_ACPI_4_0_BOOT_ERROR_RECORD_TABLE_REVISION

#define EFI_ACPI_4_0_BOOT_ERROR_RECORD_TABLE_REVISION 0x01

BERT Version (as defined in ACPI 4.0 spec.)

◆ EFI_ACPI_4_0_BOOT_ERROR_RECORD_TABLE_SIGNATURE

#define EFI_ACPI_4_0_BOOT_ERROR_RECORD_TABLE_SIGNATURE SIGNATURE_32('B', 'E', 'R', 'T')

"BERT" Boot Error Record Table

◆ EFI_ACPI_4_0_BYTE

#define EFI_ACPI_4_0_BYTE 1

◆ EFI_ACPI_4_0_CORRECTED_PLATFORM_ERROR_POLLING_TABLE_REVISION

#define EFI_ACPI_4_0_CORRECTED_PLATFORM_ERROR_POLLING_TABLE_REVISION 0x01

CPEP Version (as defined in ACPI 4.0 spec.)

◆ EFI_ACPI_4_0_CORRECTED_PLATFORM_ERROR_POLLING_TABLE_SIGNATURE

#define EFI_ACPI_4_0_CORRECTED_PLATFORM_ERROR_POLLING_TABLE_SIGNATURE SIGNATURE_32('C', 'P', 'E', 'P')

"CPEP" Corrected Platform Error Polling Table

◆ EFI_ACPI_4_0_CPEI_PROCESSOR_OVERRIDE

#define EFI_ACPI_4_0_CPEI_PROCESSOR_OVERRIDE BIT0

Platform Interrupt Source Flags. All other bits are reserved and must be set to 0.

◆ EFI_ACPI_4_0_CPEP_PROCESSOR_APIC_SAPIC

#define EFI_ACPI_4_0_CPEP_PROCESSOR_APIC_SAPIC 0x00

◆ EFI_ACPI_4_0_CPU_SW_SLP

#define EFI_ACPI_4_0_CPU_SW_SLP BIT13

◆ EFI_ACPI_4_0_DCK_CAP

#define EFI_ACPI_4_0_DCK_CAP BIT9

◆ EFI_ACPI_4_0_DEBUG_PORT_TABLE_SIGNATURE

#define EFI_ACPI_4_0_DEBUG_PORT_TABLE_SIGNATURE SIGNATURE_32('D', 'B', 'G', 'P')

"DBGP" MS Debug Port Spec

◆ EFI_ACPI_4_0_DIFFERENTIATED_SYSTEM_DESCRIPTION_TABLE_REVISION

#define EFI_ACPI_4_0_DIFFERENTIATED_SYSTEM_DESCRIPTION_TABLE_REVISION 0x02

◆ EFI_ACPI_4_0_DIFFERENTIATED_SYSTEM_DESCRIPTION_TABLE_SIGNATURE

#define EFI_ACPI_4_0_DIFFERENTIATED_SYSTEM_DESCRIPTION_TABLE_SIGNATURE SIGNATURE_32('D', 'S', 'D', 'T')

"DSDT" Differentiated System Description Table

◆ EFI_ACPI_4_0_DMA_REMAPPING_TABLE_SIGNATURE

#define EFI_ACPI_4_0_DMA_REMAPPING_TABLE_SIGNATURE SIGNATURE_32('D', 'M', 'A', 'R')

"DMAR" DMA Remapping Table

◆ EFI_ACPI_4_0_DWORD

#define EFI_ACPI_4_0_DWORD 3

◆ EFI_ACPI_4_0_EINJ_BEGIN_INJECTION_OPERATION

#define EFI_ACPI_4_0_EINJ_BEGIN_INJECTION_OPERATION 0x00

EINJ Error Injection Actions

◆ EFI_ACPI_4_0_EINJ_CHECK_BUSY_STATUS

#define EFI_ACPI_4_0_EINJ_CHECK_BUSY_STATUS 0x06

◆ EFI_ACPI_4_0_EINJ_END_OPERATION

#define EFI_ACPI_4_0_EINJ_END_OPERATION 0x04

◆ EFI_ACPI_4_0_EINJ_ERROR_MEMORY_CORRECTABLE

#define EFI_ACPI_4_0_EINJ_ERROR_MEMORY_CORRECTABLE (1 << 3)

◆ EFI_ACPI_4_0_EINJ_ERROR_MEMORY_UNCORRECTABLE_FATAL

#define EFI_ACPI_4_0_EINJ_ERROR_MEMORY_UNCORRECTABLE_FATAL (1 << 5)

◆ EFI_ACPI_4_0_EINJ_ERROR_MEMORY_UNCORRECTABLE_NONFATAL

#define EFI_ACPI_4_0_EINJ_ERROR_MEMORY_UNCORRECTABLE_NONFATAL (1 << 4)

◆ EFI_ACPI_4_0_EINJ_ERROR_PCI_EXPRESS_CORRECTABLE

#define EFI_ACPI_4_0_EINJ_ERROR_PCI_EXPRESS_CORRECTABLE (1 << 6)

◆ EFI_ACPI_4_0_EINJ_ERROR_PCI_EXPRESS_UNCORRECTABLE_FATAL

#define EFI_ACPI_4_0_EINJ_ERROR_PCI_EXPRESS_UNCORRECTABLE_FATAL (1 << 8)

◆ EFI_ACPI_4_0_EINJ_ERROR_PCI_EXPRESS_UNCORRECTABLE_NONFATAL

#define EFI_ACPI_4_0_EINJ_ERROR_PCI_EXPRESS_UNCORRECTABLE_NONFATAL (1 << 7)

◆ EFI_ACPI_4_0_EINJ_ERROR_PLATFORM_CORRECTABLE

#define EFI_ACPI_4_0_EINJ_ERROR_PLATFORM_CORRECTABLE (1 << 9)

◆ EFI_ACPI_4_0_EINJ_ERROR_PLATFORM_UNCORRECTABLE_FATAL

#define EFI_ACPI_4_0_EINJ_ERROR_PLATFORM_UNCORRECTABLE_FATAL (1 << 11)

◆ EFI_ACPI_4_0_EINJ_ERROR_PLATFORM_UNCORRECTABLE_NONFATAL

#define EFI_ACPI_4_0_EINJ_ERROR_PLATFORM_UNCORRECTABLE_NONFATAL (1 << 10)

◆ EFI_ACPI_4_0_EINJ_ERROR_PROCESSOR_CORRECTABLE

#define EFI_ACPI_4_0_EINJ_ERROR_PROCESSOR_CORRECTABLE (1 << 0)

EINJ Error Type Definition

◆ EFI_ACPI_4_0_EINJ_ERROR_PROCESSOR_UNCORRECTABLE_FATAL

#define EFI_ACPI_4_0_EINJ_ERROR_PROCESSOR_UNCORRECTABLE_FATAL (1 << 2)

◆ EFI_ACPI_4_0_EINJ_ERROR_PROCESSOR_UNCORRECTABLE_NONFATAL

#define EFI_ACPI_4_0_EINJ_ERROR_PROCESSOR_UNCORRECTABLE_NONFATAL (1 << 1)

◆ EFI_ACPI_4_0_EINJ_EXECUTE_OPERATION

#define EFI_ACPI_4_0_EINJ_EXECUTE_OPERATION 0x05

◆ EFI_ACPI_4_0_EINJ_GET_COMMAND_STATUS

#define EFI_ACPI_4_0_EINJ_GET_COMMAND_STATUS 0x07

◆ EFI_ACPI_4_0_EINJ_GET_ERROR_TYPE

#define EFI_ACPI_4_0_EINJ_GET_ERROR_TYPE 0x03

◆ EFI_ACPI_4_0_EINJ_GET_TRIGGER_ERROR_ACTION_TABLE

#define EFI_ACPI_4_0_EINJ_GET_TRIGGER_ERROR_ACTION_TABLE 0x01

◆ EFI_ACPI_4_0_EINJ_NOOP

#define EFI_ACPI_4_0_EINJ_NOOP 0x04

◆ EFI_ACPI_4_0_EINJ_PRESERVE_REGISTER

#define EFI_ACPI_4_0_EINJ_PRESERVE_REGISTER 0x01

EINJ Instruction Flags

◆ EFI_ACPI_4_0_EINJ_READ_REGISTER

#define EFI_ACPI_4_0_EINJ_READ_REGISTER 0x00

EINJ Injection Instructions

◆ EFI_ACPI_4_0_EINJ_READ_REGISTER_VALUE

#define EFI_ACPI_4_0_EINJ_READ_REGISTER_VALUE 0x01

◆ EFI_ACPI_4_0_EINJ_SET_ERROR_TYPE

#define EFI_ACPI_4_0_EINJ_SET_ERROR_TYPE 0x02

◆ EFI_ACPI_4_0_EINJ_STATUS_FAILED

#define EFI_ACPI_4_0_EINJ_STATUS_FAILED 0x03

◆ EFI_ACPI_4_0_EINJ_STATUS_HARDWARE_NOT_AVAILABLE

#define EFI_ACPI_4_0_EINJ_STATUS_HARDWARE_NOT_AVAILABLE 0x02

◆ EFI_ACPI_4_0_EINJ_STATUS_INVALID_ACCESS

#define EFI_ACPI_4_0_EINJ_STATUS_INVALID_ACCESS 0x02

◆ EFI_ACPI_4_0_EINJ_STATUS_NOT_ENOUGH_SPACE

#define EFI_ACPI_4_0_EINJ_STATUS_NOT_ENOUGH_SPACE 0x01

◆ EFI_ACPI_4_0_EINJ_STATUS_RECORD_NOT_FOUND

#define EFI_ACPI_4_0_EINJ_STATUS_RECORD_NOT_FOUND 0x05

◆ EFI_ACPI_4_0_EINJ_STATUS_RECORD_STORE_EMPTY

#define EFI_ACPI_4_0_EINJ_STATUS_RECORD_STORE_EMPTY 0x04

◆ EFI_ACPI_4_0_EINJ_STATUS_SUCCESS [1/2]

#define EFI_ACPI_4_0_EINJ_STATUS_SUCCESS 0x00

ERST Action Command Status

EINJ Action Command Status

◆ EFI_ACPI_4_0_EINJ_STATUS_SUCCESS [2/2]

#define EFI_ACPI_4_0_EINJ_STATUS_SUCCESS 0x00

ERST Action Command Status

EINJ Action Command Status

◆ EFI_ACPI_4_0_EINJ_STATUS_UNKNOWN_FAILURE

#define EFI_ACPI_4_0_EINJ_STATUS_UNKNOWN_FAILURE 0x01

◆ EFI_ACPI_4_0_EINJ_TRIGGER_ERROR

#define EFI_ACPI_4_0_EINJ_TRIGGER_ERROR 0xFF

◆ EFI_ACPI_4_0_EINJ_WRITE_REGISTER

#define EFI_ACPI_4_0_EINJ_WRITE_REGISTER 0x02

◆ EFI_ACPI_4_0_EINJ_WRITE_REGISTER_VALUE

#define EFI_ACPI_4_0_EINJ_WRITE_REGISTER_VALUE 0x03

◆ EFI_ACPI_4_0_EMBEDDED_CONTROLLER

#define EFI_ACPI_4_0_EMBEDDED_CONTROLLER 3

◆ EFI_ACPI_4_0_EMBEDDED_CONTROLLER_BOOT_RESOURCES_TABLE_REVISION

#define EFI_ACPI_4_0_EMBEDDED_CONTROLLER_BOOT_RESOURCES_TABLE_REVISION 0x01

ECDT Version (as defined in ACPI 4.0 spec.)

◆ EFI_ACPI_4_0_EMBEDDED_CONTROLLER_BOOT_RESOURCES_TABLE_SIGNATURE

#define EFI_ACPI_4_0_EMBEDDED_CONTROLLER_BOOT_RESOURCES_TABLE_SIGNATURE SIGNATURE_32('E', 'C', 'D', 'T')

"ECDT" Embedded Controller Boot Resources Table

◆ EFI_ACPI_4_0_ERROR_INJECTION_TABLE_REVISION

#define EFI_ACPI_4_0_ERROR_INJECTION_TABLE_REVISION 0x01

EINJ Version (as defined in ACPI 4.0 spec.)

◆ EFI_ACPI_4_0_ERROR_INJECTION_TABLE_SIGNATURE

#define EFI_ACPI_4_0_ERROR_INJECTION_TABLE_SIGNATURE SIGNATURE_32('E', 'I', 'N', 'J')

"EINJ" Error Injection Table

◆ EFI_ACPI_4_0_ERROR_RECORD_SERIALIZATION_TABLE_REVISION

#define EFI_ACPI_4_0_ERROR_RECORD_SERIALIZATION_TABLE_REVISION 0x01

ERST Version (as defined in ACPI 4.0 spec.)

◆ EFI_ACPI_4_0_ERROR_RECORD_SERIALIZATION_TABLE_SIGNATURE

#define EFI_ACPI_4_0_ERROR_RECORD_SERIALIZATION_TABLE_SIGNATURE SIGNATURE_32('E', 'R', 'S', 'T')

"ERST" Error Record Serialization Table

◆ EFI_ACPI_4_0_ERROR_SEVERITY_CORRECTABLE

#define EFI_ACPI_4_0_ERROR_SEVERITY_CORRECTABLE 0x00

◆ EFI_ACPI_4_0_ERROR_SEVERITY_CORRECTED

#define EFI_ACPI_4_0_ERROR_SEVERITY_CORRECTED 0x02

◆ EFI_ACPI_4_0_ERROR_SEVERITY_FATAL

#define EFI_ACPI_4_0_ERROR_SEVERITY_FATAL 0x01

◆ EFI_ACPI_4_0_ERROR_SEVERITY_NONE

#define EFI_ACPI_4_0_ERROR_SEVERITY_NONE 0x03

◆ EFI_ACPI_4_0_ERROR_SOURCE_FLAG_FIRMWARE_FIRST

#define EFI_ACPI_4_0_ERROR_SOURCE_FLAG_FIRMWARE_FIRST (1 << 0)

◆ EFI_ACPI_4_0_ERROR_SOURCE_FLAG_GLOBAL

#define EFI_ACPI_4_0_ERROR_SOURCE_FLAG_GLOBAL (1 << 1)

◆ EFI_ACPI_4_0_ERST_ADD

#define EFI_ACPI_4_0_ERST_ADD 0x08

◆ EFI_ACPI_4_0_ERST_ADD_VALUE

#define EFI_ACPI_4_0_ERST_ADD_VALUE 0x0A

◆ EFI_ACPI_4_0_ERST_BEGIN_CLEAR_OPERATION

#define EFI_ACPI_4_0_ERST_BEGIN_CLEAR_OPERATION 0x02

◆ EFI_ACPI_4_0_ERST_BEGIN_DUMMY_WRITE_OPERATION

#define EFI_ACPI_4_0_ERST_BEGIN_DUMMY_WRITE_OPERATION 0x0B

◆ EFI_ACPI_4_0_ERST_BEGIN_READ_OPERATION

#define EFI_ACPI_4_0_ERST_BEGIN_READ_OPERATION 0x01

◆ EFI_ACPI_4_0_ERST_BEGIN_WRITE_OPERATION

#define EFI_ACPI_4_0_ERST_BEGIN_WRITE_OPERATION 0x00

ERST Serialization Actions

◆ EFI_ACPI_4_0_ERST_CHECK_BUSY_STATUS

#define EFI_ACPI_4_0_ERST_CHECK_BUSY_STATUS 0x06

◆ EFI_ACPI_4_0_ERST_END_OPERATION

#define EFI_ACPI_4_0_ERST_END_OPERATION 0x03

◆ EFI_ACPI_4_0_ERST_EXECUTE_OPERATION

#define EFI_ACPI_4_0_ERST_EXECUTE_OPERATION 0x05

◆ EFI_ACPI_4_0_ERST_GET_COMMAND_STATUS

#define EFI_ACPI_4_0_ERST_GET_COMMAND_STATUS 0x07

◆ EFI_ACPI_4_0_ERST_GET_ERROR_LOG_ADDRESS_RANGE

#define EFI_ACPI_4_0_ERST_GET_ERROR_LOG_ADDRESS_RANGE 0x0D

◆ EFI_ACPI_4_0_ERST_GET_ERROR_LOG_ADDRESS_RANGE_ATTRIBUTES

#define EFI_ACPI_4_0_ERST_GET_ERROR_LOG_ADDRESS_RANGE_ATTRIBUTES 0x0F

◆ EFI_ACPI_4_0_ERST_GET_ERROR_LOG_ADDRESS_RANGE_LENGTH

#define EFI_ACPI_4_0_ERST_GET_ERROR_LOG_ADDRESS_RANGE_LENGTH 0x0E

◆ EFI_ACPI_4_0_ERST_GET_RECORD_COUNT

#define EFI_ACPI_4_0_ERST_GET_RECORD_COUNT 0x0A

◆ EFI_ACPI_4_0_ERST_GET_RECORD_IDENTIFIER

#define EFI_ACPI_4_0_ERST_GET_RECORD_IDENTIFIER 0x08

◆ EFI_ACPI_4_0_ERST_GOTO

#define EFI_ACPI_4_0_ERST_GOTO 0x0F

◆ EFI_ACPI_4_0_ERST_LOAD_VAR1

#define EFI_ACPI_4_0_ERST_LOAD_VAR1 0x05

◆ EFI_ACPI_4_0_ERST_LOAD_VAR2

#define EFI_ACPI_4_0_ERST_LOAD_VAR2 0x06

◆ EFI_ACPI_4_0_ERST_MOVE_DATA

#define EFI_ACPI_4_0_ERST_MOVE_DATA 0x12

◆ EFI_ACPI_4_0_ERST_NOOP

#define EFI_ACPI_4_0_ERST_NOOP 0x04

◆ EFI_ACPI_4_0_ERST_PRESERVE_REGISTER

#define EFI_ACPI_4_0_ERST_PRESERVE_REGISTER 0x01

ERST Instruction Flags

◆ EFI_ACPI_4_0_ERST_READ_REGISTER

#define EFI_ACPI_4_0_ERST_READ_REGISTER 0x00

ERST Serialization Instructions

◆ EFI_ACPI_4_0_ERST_READ_REGISTER_VALUE

#define EFI_ACPI_4_0_ERST_READ_REGISTER_VALUE 0x01

◆ EFI_ACPI_4_0_ERST_SET_DST_ADDRESS_BASE

#define EFI_ACPI_4_0_ERST_SET_DST_ADDRESS_BASE 0x11

◆ EFI_ACPI_4_0_ERST_SET_RECORD_IDENTIFIER

#define EFI_ACPI_4_0_ERST_SET_RECORD_IDENTIFIER 0x09

◆ EFI_ACPI_4_0_ERST_SET_RECORD_OFFSET

#define EFI_ACPI_4_0_ERST_SET_RECORD_OFFSET 0x04

◆ EFI_ACPI_4_0_ERST_SET_SRC_ADDRESS_BASE

#define EFI_ACPI_4_0_ERST_SET_SRC_ADDRESS_BASE 0x10

◆ EFI_ACPI_4_0_ERST_SKIP_NEXT_INSTRUCTION_IF_TRUE

#define EFI_ACPI_4_0_ERST_SKIP_NEXT_INSTRUCTION_IF_TRUE 0x0E

◆ EFI_ACPI_4_0_ERST_STALL

#define EFI_ACPI_4_0_ERST_STALL 0x0C

◆ EFI_ACPI_4_0_ERST_STALL_WHILE_TRUE

#define EFI_ACPI_4_0_ERST_STALL_WHILE_TRUE 0x0D

◆ EFI_ACPI_4_0_ERST_STORE_VAR1

#define EFI_ACPI_4_0_ERST_STORE_VAR1 0x07

◆ EFI_ACPI_4_0_ERST_SUBTRACT

#define EFI_ACPI_4_0_ERST_SUBTRACT 0x09

◆ EFI_ACPI_4_0_ERST_SUBTRACT_VALUE

#define EFI_ACPI_4_0_ERST_SUBTRACT_VALUE 0x0B

◆ EFI_ACPI_4_0_ERST_WRITE_REGISTER

#define EFI_ACPI_4_0_ERST_WRITE_REGISTER 0x02

◆ EFI_ACPI_4_0_ERST_WRITE_REGISTER_VALUE

#define EFI_ACPI_4_0_ERST_WRITE_REGISTER_VALUE 0x03

◆ EFI_ACPI_4_0_EVENT_TIMER_DESCRIPTION_TABLE_SIGNATURE

#define EFI_ACPI_4_0_EVENT_TIMER_DESCRIPTION_TABLE_SIGNATURE SIGNATURE_32('E', 'T', 'D', 'T')

"ETDT" Event Timer Description Table

◆ EFI_ACPI_4_0_EXTENDED_SYSTEM_DESCRIPTION_TABLE_REVISION

#define EFI_ACPI_4_0_EXTENDED_SYSTEM_DESCRIPTION_TABLE_REVISION 0x01

XSDT Revision (as defined in ACPI 4.0 spec.)

◆ EFI_ACPI_4_0_EXTENDED_SYSTEM_DESCRIPTION_TABLE_SIGNATURE

#define EFI_ACPI_4_0_EXTENDED_SYSTEM_DESCRIPTION_TABLE_SIGNATURE SIGNATURE_32('X', 'S', 'D', 'T')

"XSDT" Extended System Description Table

◆ EFI_ACPI_4_0_FIRMWARE_ACPI_CONTROL_STRUCTURE_SIGNATURE

#define EFI_ACPI_4_0_FIRMWARE_ACPI_CONTROL_STRUCTURE_SIGNATURE SIGNATURE_32('F', 'A', 'C', 'S')

"FACS" Firmware ACPI Control Structure

◆ EFI_ACPI_4_0_FIRMWARE_ACPI_CONTROL_STRUCTURE_VERSION

#define EFI_ACPI_4_0_FIRMWARE_ACPI_CONTROL_STRUCTURE_VERSION 0x02

FACS Version (as defined in ACPI 4.0 spec.)

◆ EFI_ACPI_4_0_FIX_RTC

#define EFI_ACPI_4_0_FIX_RTC BIT6

◆ EFI_ACPI_4_0_FIXED_ACPI_DESCRIPTION_TABLE_REVISION

#define EFI_ACPI_4_0_FIXED_ACPI_DESCRIPTION_TABLE_REVISION 0x04

FADT Version (as defined in ACPI 4.0 spec.)

◆ EFI_ACPI_4_0_FIXED_ACPI_DESCRIPTION_TABLE_SIGNATURE

#define EFI_ACPI_4_0_FIXED_ACPI_DESCRIPTION_TABLE_SIGNATURE SIGNATURE_32('F', 'A', 'C', 'P')

"FACP" Fixed ACPI Description Table

◆ EFI_ACPI_4_0_FORCE_APIC_CLUSTER_MODEL

#define EFI_ACPI_4_0_FORCE_APIC_CLUSTER_MODEL BIT18

◆ EFI_ACPI_4_0_FORCE_APIC_PHYSICAL_DESTINATION_MODE

#define EFI_ACPI_4_0_FORCE_APIC_PHYSICAL_DESTINATION_MODE BIT19

◆ EFI_ACPI_4_0_FUNCTIONAL_FIXED_HARDWARE

#define EFI_ACPI_4_0_FUNCTIONAL_FIXED_HARDWARE 0x7F

◆ EFI_ACPI_4_0_GENERIC_ERROR_DATA_ENTRY_REVISION

#define EFI_ACPI_4_0_GENERIC_ERROR_DATA_ENTRY_REVISION 0x0201

Generic Error Data Entry Version (as defined in ACPI 4.0 spec.)

◆ EFI_ACPI_4_0_GENERIC_HARDWARE_ERROR

#define EFI_ACPI_4_0_GENERIC_HARDWARE_ERROR 0x09

◆ EFI_ACPI_4_0_HARDWARE_ERROR_NOTIFICATION_EXTERNAL_INTERRUPT

#define EFI_ACPI_4_0_HARDWARE_ERROR_NOTIFICATION_EXTERNAL_INTERRUPT 0x01

◆ EFI_ACPI_4_0_HARDWARE_ERROR_NOTIFICATION_LOCAL_INTERRUPT

#define EFI_ACPI_4_0_HARDWARE_ERROR_NOTIFICATION_LOCAL_INTERRUPT 0x02

◆ EFI_ACPI_4_0_HARDWARE_ERROR_NOTIFICATION_NMI

#define EFI_ACPI_4_0_HARDWARE_ERROR_NOTIFICATION_NMI 0x04

◆ EFI_ACPI_4_0_HARDWARE_ERROR_NOTIFICATION_POLLED

#define EFI_ACPI_4_0_HARDWARE_ERROR_NOTIFICATION_POLLED 0x00

◆ EFI_ACPI_4_0_HARDWARE_ERROR_NOTIFICATION_SCI

#define EFI_ACPI_4_0_HARDWARE_ERROR_NOTIFICATION_SCI 0x03

◆ EFI_ACPI_4_0_HARDWARE_ERROR_SOURCE_TABLE_REVISION

#define EFI_ACPI_4_0_HARDWARE_ERROR_SOURCE_TABLE_REVISION 0x01

HEST Version (as defined in ACPI 4.0 spec.)

◆ EFI_ACPI_4_0_HARDWARE_ERROR_SOURCE_TABLE_SIGNATURE

#define EFI_ACPI_4_0_HARDWARE_ERROR_SOURCE_TABLE_SIGNATURE SIGNATURE_32('H', 'E', 'S', 'T')

"HEST" Hardware Error Source Table

◆ EFI_ACPI_4_0_HEADLESS

#define EFI_ACPI_4_0_HEADLESS BIT12

◆ EFI_ACPI_4_0_HIGH_PRECISION_EVENT_TIMER_TABLE_SIGNATURE

#define EFI_ACPI_4_0_HIGH_PRECISION_EVENT_TIMER_TABLE_SIGNATURE SIGNATURE_32('H', 'P', 'E', 'T')

"HPET" IA-PC High Precision Event Timer Table

◆ EFI_ACPI_4_0_IA32_ARCHITECTURE_CORRECTED_MACHINE_CHECK

#define EFI_ACPI_4_0_IA32_ARCHITECTURE_CORRECTED_MACHINE_CHECK 0x01

◆ EFI_ACPI_4_0_IA32_ARCHITECTURE_MACHINE_CHECK_ERROR_DATA_FORMAT_AMD64

#define EFI_ACPI_4_0_IA32_ARCHITECTURE_MACHINE_CHECK_ERROR_DATA_FORMAT_AMD64 0x02

◆ EFI_ACPI_4_0_IA32_ARCHITECTURE_MACHINE_CHECK_ERROR_DATA_FORMAT_IA32

#define EFI_ACPI_4_0_IA32_ARCHITECTURE_MACHINE_CHECK_ERROR_DATA_FORMAT_IA32 0x00

IA-32 Architecture Machine Check Bank Structure MCA data format

◆ EFI_ACPI_4_0_IA32_ARCHITECTURE_MACHINE_CHECK_ERROR_DATA_FORMAT_INTEL64

#define EFI_ACPI_4_0_IA32_ARCHITECTURE_MACHINE_CHECK_ERROR_DATA_FORMAT_INTEL64 0x01

◆ EFI_ACPI_4_0_IA32_ARCHITECTURE_MACHINE_CHECK_EXCEPTION

#define EFI_ACPI_4_0_IA32_ARCHITECTURE_MACHINE_CHECK_EXCEPTION 0x00

◆ EFI_ACPI_4_0_IA32_ARCHITECTURE_NMI_ERROR

#define EFI_ACPI_4_0_IA32_ARCHITECTURE_NMI_ERROR 0x02

◆ EFI_ACPI_4_0_INTERRUPT_SOURCE_OVERRIDE

#define EFI_ACPI_4_0_INTERRUPT_SOURCE_OVERRIDE 0x02

◆ EFI_ACPI_4_0_IO_APIC

#define EFI_ACPI_4_0_IO_APIC 0x01

◆ EFI_ACPI_4_0_IO_SAPIC

#define EFI_ACPI_4_0_IO_SAPIC 0x06

◆ EFI_ACPI_4_0_IO_VIRTUALIZATION_REPORTING_STRUCTURE_SIGNATURE

#define EFI_ACPI_4_0_IO_VIRTUALIZATION_REPORTING_STRUCTURE_SIGNATURE SIGNATURE_32('I', 'V', 'R', 'S')

"IVRS" I/O Virtualization Reporting Structure

◆ EFI_ACPI_4_0_ISCSI_BOOT_FIRMWARE_TABLE_SIGNATURE

#define EFI_ACPI_4_0_ISCSI_BOOT_FIRMWARE_TABLE_SIGNATURE SIGNATURE_32('i', 'B', 'F', 'T')

"iBFT" iSCSI Boot Firmware Table

◆ EFI_ACPI_4_0_LEGACY_DEVICES

#define EFI_ACPI_4_0_LEGACY_DEVICES BIT0

◆ EFI_ACPI_4_0_LOCAL_APIC_ADDRESS_OVERRIDE

#define EFI_ACPI_4_0_LOCAL_APIC_ADDRESS_OVERRIDE 0x05

◆ EFI_ACPI_4_0_LOCAL_APIC_ENABLED

#define EFI_ACPI_4_0_LOCAL_APIC_ENABLED BIT0

Local APIC Flags. All other bits are reserved and must be 0.

◆ EFI_ACPI_4_0_LOCAL_APIC_NMI

#define EFI_ACPI_4_0_LOCAL_APIC_NMI 0x04

◆ EFI_ACPI_4_0_LOCAL_SAPIC

#define EFI_ACPI_4_0_LOCAL_SAPIC 0x07

◆ EFI_ACPI_4_0_LOCAL_X2APIC_NMI

#define EFI_ACPI_4_0_LOCAL_X2APIC_NMI 0x0A

◆ EFI_ACPI_4_0_MANAGEMENT_CONTROLLER_HOST_INTERFACE_TABLE_SIGNATURE

#define EFI_ACPI_4_0_MANAGEMENT_CONTROLLER_HOST_INTERFACE_TABLE_SIGNATURE SIGNATURE_32('M', 'C', 'H', 'I')

"MCHI" Management Controller Host Interface Table

◆ EFI_ACPI_4_0_MAXIMUM_SYSTEM_CHARACTERISTICS_TABLE_REVISION

#define EFI_ACPI_4_0_MAXIMUM_SYSTEM_CHARACTERISTICS_TABLE_REVISION 0x01

MSCT Version (as defined in ACPI 4.0 spec.)

◆ EFI_ACPI_4_0_MAXIMUM_SYSTEM_CHARACTERISTICS_TABLE_SIGNATURE

#define EFI_ACPI_4_0_MAXIMUM_SYSTEM_CHARACTERISTICS_TABLE_SIGNATURE SIGNATURE_32('M', 'S', 'C', 'T')

"MSCT" Maximum System Characteristics Table

◆ EFI_ACPI_4_0_MEMORY_AFFINITY

#define EFI_ACPI_4_0_MEMORY_AFFINITY 0x01

◆ EFI_ACPI_4_0_MEMORY_ENABLED

#define EFI_ACPI_4_0_MEMORY_ENABLED (1 << 0)

◆ EFI_ACPI_4_0_MEMORY_HOT_PLUGGABLE

#define EFI_ACPI_4_0_MEMORY_HOT_PLUGGABLE (1 << 1)

◆ EFI_ACPI_4_0_MEMORY_NONVOLATILE

#define EFI_ACPI_4_0_MEMORY_NONVOLATILE (1 << 2)

◆ EFI_ACPI_4_0_MSI_NOT_SUPPORTED

#define EFI_ACPI_4_0_MSI_NOT_SUPPORTED BIT3

◆ EFI_ACPI_4_0_MULTIPLE_APIC_DESCRIPTION_TABLE_REVISION

#define EFI_ACPI_4_0_MULTIPLE_APIC_DESCRIPTION_TABLE_REVISION 0x03

MADT Revision (as defined in ACPI 4.0 spec.)

◆ EFI_ACPI_4_0_MULTIPLE_APIC_DESCRIPTION_TABLE_SIGNATURE

#define EFI_ACPI_4_0_MULTIPLE_APIC_DESCRIPTION_TABLE_SIGNATURE SIGNATURE_32('A', 'P', 'I', 'C')

"APIC" Multiple APIC Description Table

◆ EFI_ACPI_4_0_NON_MASKABLE_INTERRUPT_SOURCE

#define EFI_ACPI_4_0_NON_MASKABLE_INTERRUPT_SOURCE 0x03

◆ EFI_ACPI_4_0_OSPM_64BIT_WAKE__F

#define EFI_ACPI_4_0_OSPM_64BIT_WAKE__F BIT0

OSPM Enabled Firmware Control Structure Flags All other bits are reserved and must be set to 0.

◆ EFI_ACPI_4_0_P_LVL2_UP

#define EFI_ACPI_4_0_P_LVL2_UP BIT3

◆ EFI_ACPI_4_0_PCAT_COMPAT

#define EFI_ACPI_4_0_PCAT_COMPAT BIT0

Multiple APIC Flags All other bits are reserved and must be set to 0.

◆ EFI_ACPI_4_0_PCI_CONFIGURATION_SPACE

#define EFI_ACPI_4_0_PCI_CONFIGURATION_SPACE 2

◆ EFI_ACPI_4_0_PCI_EXP_WAK

#define EFI_ACPI_4_0_PCI_EXP_WAK BIT14

◆ EFI_ACPI_4_0_PCI_EXPRESS_BRIDGE_AER

#define EFI_ACPI_4_0_PCI_EXPRESS_BRIDGE_AER 0x08

◆ EFI_ACPI_4_0_PCI_EXPRESS_DEVICE_AER

#define EFI_ACPI_4_0_PCI_EXPRESS_DEVICE_AER 0x07

◆ EFI_ACPI_4_0_PCI_EXPRESS_MEMORY_MAPPED_CONFIGURATION_SPACE_BASE_ADDRESS_DESCRIPTION_TABLE_SIGNATURE

#define EFI_ACPI_4_0_PCI_EXPRESS_MEMORY_MAPPED_CONFIGURATION_SPACE_BASE_ADDRESS_DESCRIPTION_TABLE_SIGNATURE SIGNATURE_32('M', 'C', 'F', 'G')

"MCFG" PCI Express Memory Mapped Configuration Space Base Address Description Table

◆ EFI_ACPI_4_0_PCI_EXPRESS_ROOT_PORT_AER

#define EFI_ACPI_4_0_PCI_EXPRESS_ROOT_PORT_AER 0x06

◆ EFI_ACPI_4_0_PCIE_ASPM_CONTROLS

#define EFI_ACPI_4_0_PCIE_ASPM_CONTROLS BIT4

◆ EFI_ACPI_4_0_PERSISTENT_SYSTEM_DESCRIPTION_TABLE_SIGNATURE

#define EFI_ACPI_4_0_PERSISTENT_SYSTEM_DESCRIPTION_TABLE_SIGNATURE SIGNATURE_32('P', 'S', 'D', 'T')

"PSDT" Persistent System Description Table

◆ EFI_ACPI_4_0_PLATFORM_INTERRUPT_SOURCES

#define EFI_ACPI_4_0_PLATFORM_INTERRUPT_SOURCES 0x08

◆ EFI_ACPI_4_0_PM_PROFILE_APPLIANCE_PC

#define EFI_ACPI_4_0_PM_PROFILE_APPLIANCE_PC 6

◆ EFI_ACPI_4_0_PM_PROFILE_DESKTOP

#define EFI_ACPI_4_0_PM_PROFILE_DESKTOP 1

◆ EFI_ACPI_4_0_PM_PROFILE_ENTERPRISE_SERVER

#define EFI_ACPI_4_0_PM_PROFILE_ENTERPRISE_SERVER 4

◆ EFI_ACPI_4_0_PM_PROFILE_MOBILE

#define EFI_ACPI_4_0_PM_PROFILE_MOBILE 2

◆ EFI_ACPI_4_0_PM_PROFILE_PERFORMANCE_SERVER

#define EFI_ACPI_4_0_PM_PROFILE_PERFORMANCE_SERVER 7

◆ EFI_ACPI_4_0_PM_PROFILE_SOHO_SERVER

#define EFI_ACPI_4_0_PM_PROFILE_SOHO_SERVER 5

◆ EFI_ACPI_4_0_PM_PROFILE_UNSPECIFIED

#define EFI_ACPI_4_0_PM_PROFILE_UNSPECIFIED 0

◆ EFI_ACPI_4_0_PM_PROFILE_WORKSTATION

#define EFI_ACPI_4_0_PM_PROFILE_WORKSTATION 3

◆ EFI_ACPI_4_0_POLARITY

#define EFI_ACPI_4_0_POLARITY (3 << 0)

◆ EFI_ACPI_4_0_PROC_C1

#define EFI_ACPI_4_0_PROC_C1 BIT2

◆ EFI_ACPI_4_0_PROCESSOR_LOCAL_APIC

#define EFI_ACPI_4_0_PROCESSOR_LOCAL_APIC 0x00

◆ EFI_ACPI_4_0_PROCESSOR_LOCAL_APIC_SAPIC_AFFINITY

#define EFI_ACPI_4_0_PROCESSOR_LOCAL_APIC_SAPIC_AFFINITY 0x00

◆ EFI_ACPI_4_0_PROCESSOR_LOCAL_APIC_SAPIC_ENABLED

#define EFI_ACPI_4_0_PROCESSOR_LOCAL_APIC_SAPIC_ENABLED (1 << 0)

Local APIC/SAPIC Flags. All other bits are reserved and must be 0.

◆ EFI_ACPI_4_0_PROCESSOR_LOCAL_X2APIC

#define EFI_ACPI_4_0_PROCESSOR_LOCAL_X2APIC 0x09

◆ EFI_ACPI_4_0_PROCESSOR_LOCAL_X2APIC_AFFINITY

#define EFI_ACPI_4_0_PROCESSOR_LOCAL_X2APIC_AFFINITY 0x02

◆ EFI_ACPI_4_0_PWR_BUTTON

#define EFI_ACPI_4_0_PWR_BUTTON BIT4

◆ EFI_ACPI_4_0_QWORD

#define EFI_ACPI_4_0_QWORD 4

◆ EFI_ACPI_4_0_REMOTE_POWER_ON_CAPABLE

#define EFI_ACPI_4_0_REMOTE_POWER_ON_CAPABLE BIT17

◆ EFI_ACPI_4_0_RESET_REG_SUP

#define EFI_ACPI_4_0_RESET_REG_SUP BIT10

◆ EFI_ACPI_4_0_ROOT_SYSTEM_DESCRIPTION_POINTER_REVISION

#define EFI_ACPI_4_0_ROOT_SYSTEM_DESCRIPTION_POINTER_REVISION 0x02

ACPISpec (Revision 4.0a) says current value is 2.

RSD_PTR Revision (as defined in ACPI 4.0b spec.)

◆ EFI_ACPI_4_0_ROOT_SYSTEM_DESCRIPTION_POINTER_SIGNATURE

#define EFI_ACPI_4_0_ROOT_SYSTEM_DESCRIPTION_POINTER_SIGNATURE SIGNATURE_64('R', 'S', 'D', ' ', 'P', 'T', 'R', ' ')

"RSD PTR " Root System Description Pointer

◆ EFI_ACPI_4_0_ROOT_SYSTEM_DESCRIPTION_TABLE_REVISION

#define EFI_ACPI_4_0_ROOT_SYSTEM_DESCRIPTION_TABLE_REVISION 0x01

RSDT Revision (as defined in ACPI 4.0 spec.)

◆ EFI_ACPI_4_0_ROOT_SYSTEM_DESCRIPTION_TABLE_SIGNATURE

#define EFI_ACPI_4_0_ROOT_SYSTEM_DESCRIPTION_TABLE_SIGNATURE SIGNATURE_32('R', 'S', 'D', 'T')

"RSDT" Root System Description Table

◆ EFI_ACPI_4_0_RTC_S4

#define EFI_ACPI_4_0_RTC_S4 BIT7

◆ EFI_ACPI_4_0_S4_RTC_STS_VALID

#define EFI_ACPI_4_0_S4_RTC_STS_VALID BIT16

◆ EFI_ACPI_4_0_S4BIOS_F

#define EFI_ACPI_4_0_S4BIOS_F BIT0

Firmware Control Structure Feature Flags All other bits are reserved and must be set to 0.

◆ EFI_ACPI_4_0_SEALED_CASE

#define EFI_ACPI_4_0_SEALED_CASE BIT11

◆ EFI_ACPI_4_0_SECONDARY_SYSTEM_DESCRIPTION_TABLE_REVISION

#define EFI_ACPI_4_0_SECONDARY_SYSTEM_DESCRIPTION_TABLE_REVISION 0x02

◆ EFI_ACPI_4_0_SECONDARY_SYSTEM_DESCRIPTION_TABLE_SIGNATURE

#define EFI_ACPI_4_0_SECONDARY_SYSTEM_DESCRIPTION_TABLE_SIGNATURE SIGNATURE_32('S', 'S', 'D', 'T')

"SSDT" Secondary System Description Table

◆ EFI_ACPI_4_0_SERIAL_PORT_CONSOLE_REDIRECTION_TABLE_SIGNATURE

#define EFI_ACPI_4_0_SERIAL_PORT_CONSOLE_REDIRECTION_TABLE_SIGNATURE SIGNATURE_32('S', 'P', 'C', 'R')

"SPCR" Serial Port Concole Redirection Table

◆ EFI_ACPI_4_0_SERVER_PLATFORM_MANAGEMENT_INTERFACE_TABLE_SIGNATURE

#define EFI_ACPI_4_0_SERVER_PLATFORM_MANAGEMENT_INTERFACE_TABLE_SIGNATURE SIGNATURE_32('S', 'P', 'M', 'I')

"SPMI" Server Platform Management Interface Table

◆ EFI_ACPI_4_0_SIMPLE_BOOT_FLAG_TABLE_SIGNATURE

#define EFI_ACPI_4_0_SIMPLE_BOOT_FLAG_TABLE_SIGNATURE SIGNATURE_32('B', 'O', 'O', 'T')

"BOOT" MS Simple Boot Spec

◆ EFI_ACPI_4_0_SLP_BUTTON

#define EFI_ACPI_4_0_SLP_BUTTON BIT5

◆ EFI_ACPI_4_0_SMART_BATTERY_DESCRIPTION_TABLE_REVISION

#define EFI_ACPI_4_0_SMART_BATTERY_DESCRIPTION_TABLE_REVISION 0x01

SBST Version (as defined in ACPI 4.0 spec.)

◆ EFI_ACPI_4_0_SMART_BATTERY_SPECIFICATION_TABLE_SIGNATURE

#define EFI_ACPI_4_0_SMART_BATTERY_SPECIFICATION_TABLE_SIGNATURE SIGNATURE_32('S', 'B', 'S', 'T')

"SBST" Smart Battery Specification Table

◆ EFI_ACPI_4_0_SMBUS

#define EFI_ACPI_4_0_SMBUS 4

◆ EFI_ACPI_4_0_SYSTEM_IO

#define EFI_ACPI_4_0_SYSTEM_IO 1

◆ EFI_ACPI_4_0_SYSTEM_LOCALITY_DISTANCE_INFORMATION_TABLE_REVISION

#define EFI_ACPI_4_0_SYSTEM_LOCALITY_DISTANCE_INFORMATION_TABLE_REVISION 0x01

SLIT Version (as defined in ACPI 4.0 spec.)

◆ EFI_ACPI_4_0_SYSTEM_LOCALITY_INFORMATION_TABLE_SIGNATURE

#define EFI_ACPI_4_0_SYSTEM_LOCALITY_INFORMATION_TABLE_SIGNATURE SIGNATURE_32('S', 'L', 'I', 'T')

"SLIT" System Locality Information Table

◆ EFI_ACPI_4_0_SYSTEM_MEMORY

#define EFI_ACPI_4_0_SYSTEM_MEMORY 0

◆ EFI_ACPI_4_0_SYSTEM_RESOURCE_AFFINITY_TABLE_REVISION

#define EFI_ACPI_4_0_SYSTEM_RESOURCE_AFFINITY_TABLE_REVISION 0x03

SRAT Version (as defined in ACPI 4.0 spec.)

◆ EFI_ACPI_4_0_SYSTEM_RESOURCE_AFFINITY_TABLE_SIGNATURE

#define EFI_ACPI_4_0_SYSTEM_RESOURCE_AFFINITY_TABLE_SIGNATURE SIGNATURE_32('S', 'R', 'A', 'T')

"SRAT" System Resource Affinity Table

◆ EFI_ACPI_4_0_TMR_VAL_EXT

#define EFI_ACPI_4_0_TMR_VAL_EXT BIT8

◆ EFI_ACPI_4_0_TRIGGER_MODE

#define EFI_ACPI_4_0_TRIGGER_MODE (3 << 2)

◆ EFI_ACPI_4_0_TRUSTED_COMPUTING_PLATFORM_ALLIANCE_CAPABILITIES_TABLE_SIGNATURE

#define EFI_ACPI_4_0_TRUSTED_COMPUTING_PLATFORM_ALLIANCE_CAPABILITIES_TABLE_SIGNATURE SIGNATURE_32('T', 'C', 'P', 'A')

"TCPA" Trusted Computing Platform Alliance Capabilities Table

◆ EFI_ACPI_4_0_UEFI_ACPI_DATA_TABLE_SIGNATURE

#define EFI_ACPI_4_0_UEFI_ACPI_DATA_TABLE_SIGNATURE SIGNATURE_32('U', 'E', 'F', 'I')

"UEFI" UEFI ACPI Data Table

◆ EFI_ACPI_4_0_UNDEFINED

#define EFI_ACPI_4_0_UNDEFINED 0

◆ EFI_ACPI_4_0_USE_PLATFORM_CLOCK

#define EFI_ACPI_4_0_USE_PLATFORM_CLOCK BIT15

◆ EFI_ACPI_4_0_VGA_NOT_PRESENT

#define EFI_ACPI_4_0_VGA_NOT_PRESENT BIT2

◆ EFI_ACPI_4_0_WATCHDOG_ACTION_TABLE_SIGNATURE

#define EFI_ACPI_4_0_WATCHDOG_ACTION_TABLE_SIGNATURE SIGNATURE_32('W', 'D', 'A', 'T')

"WDAT" Watchdog Action Table

◆ EFI_ACPI_4_0_WATCHDOG_RESOURCE_TABLE_SIGNATURE

#define EFI_ACPI_4_0_WATCHDOG_RESOURCE_TABLE_SIGNATURE SIGNATURE_32('W', 'D', 'R', 'T')

"WDRT" Watchdog Resource Table

◆ EFI_ACPI_4_0_WBINVD

#define EFI_ACPI_4_0_WBINVD BIT0

◆ EFI_ACPI_4_0_WBINVD_FLUSH

#define EFI_ACPI_4_0_WBINVD_FLUSH BIT1

◆ EFI_ACPI_4_0_WINDOWS_ACPI_ENLIGHTENMENT_TABLE_SIGNATURE

#define EFI_ACPI_4_0_WINDOWS_ACPI_ENLIGHTENMENT_TABLE_SIGNATURE SIGNATURE_32('W', 'A', 'E', 'T')

"WAET" Windows ACPI Enlightenment Table

◆ EFI_ACPI_4_0_WORD

#define EFI_ACPI_4_0_WORD 2

Classes

Macros
