minimp4.h File Reference

#include <stdio.h>
#include <stdint.h>
#include <stdlib.h>
#include <string.h>
#include <limits.h>
#include <assert.h>

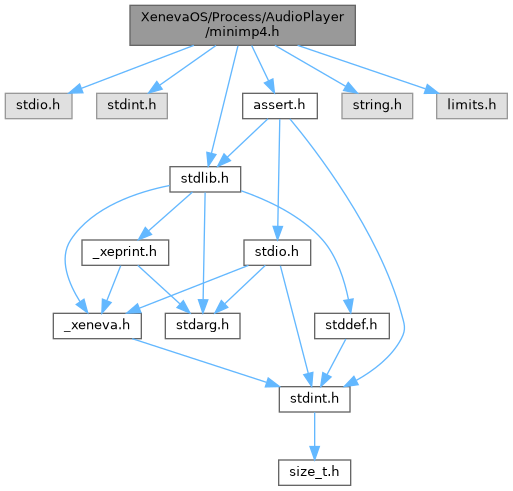

Include dependency graph for minimp4.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	MP4E_track_t
struct	MP4D_track_t
struct	MP4D_demux_tag
struct	MP4D_sample_to_chunk_t_tag
struct	h264_sps_id_patcher_t
struct	mp4_h26x_writer_tag

Macros
#define	MINIMP4_MIN(x, y)   ((x) < (y) ? (x) : (y))
#define	FIX_BAD_ANDROID_META_BOX   1
#define	MAX_CHUNKS_DEPTH   64
#define	MINIMP4_MAX_SPS   32
#define	MINIMP4_MAX_PPS   256
#define	MINIMP4_TRANSCODE_SPS_ID   1
#define	MINIMP4_ALLOW_64BIT   1
#define	MP4D_TRACE_SUPPORTED   0
#define	MP4D_TRACE_TIMESTAMPS   1
#define	MP4D_INFO_SUPPORTED   1
#define	MP4D_PRINT_INFO_SUPPORTED   0
#define	MP4D_AVC_SUPPORTED   1
#define	MP4D_HEVC_SUPPORTED   1
#define	MP4D_TIMESTAMPS_SUPPORTED   1
#define	MP4D_TFDT_SUPPORT   0
#define	MP4_OBJECT_TYPE_AUDIO_ISO_IEC_14496_3   0x40
#define	MP4_OBJECT_TYPE_AUDIO_ISO_IEC_13818_7_MAIN_PROFILE   0x66
#define	MP4_OBJECT_TYPE_AUDIO_ISO_IEC_13818_7_LC_PROFILE   0x67
#define	MP4_OBJECT_TYPE_AUDIO_ISO_IEC_13818_7_SSR_PROFILE   0x68
#define	MP4_OBJECT_TYPE_AVC   0x21
#define	MP4_OBJECT_TYPE_HEVC   0x23
#define	MP4_OBJECT_TYPE_USER_PRIVATE   0xC0
#define	MP4E_STATUS_OK   0
#define	MP4E_STATUS_BAD_ARGUMENTS   -1
#define	MP4E_STATUS_NO_MEMORY   -2
#define	MP4E_STATUS_FILE_WRITE_ERROR   -3
#define	MP4E_STATUS_ONLY_ONE_DSI_ALLOWED   -4
#define	MP4E_SAMPLE_DEFAULT   0
#define	MP4E_SAMPLE_RANDOM_ACCESS   1
#define	MP4E_SAMPLE_CONTINUATION   2
#define	MP4D_HANDLER_TYPE_VIDE   0x76696465
#define	MP4D_HANDLER_TYPE_SOUN   0x736F756E
#define	MP4E_HANDLER_TYPE_GESM   0x6765736D
#define	HEVC_NAL_VPS   32
#define	HEVC_NAL_SPS   33
#define	HEVC_NAL_PPS   34
#define	HEVC_NAL_BLA_W_LP   16
#define	HEVC_NAL_CRA_NUT   21

Typedefs
typedef uint64_t	boxsize_t
typedef boxsize_t	MP4D_file_offset_t
typedef struct MP4E_mux_tag	MP4E_mux_t
typedef struct MP4D_sample_to_chunk_t_tag	MP4D_sample_to_chunk_t
typedef struct MP4D_demux_tag	MP4D_demux_t
typedef struct mp4_h26x_writer_tag	mp4_h26x_writer_t

Enumerations
enum	track_media_kind_t { e_audio , e_video , e_private }

Functions
int	mp4_h26x_write_init (mp4_h26x_writer_t *h, MP4E_mux_t *mux, int width, int height, int is_hevc)
void	mp4_h26x_write_close (mp4_h26x_writer_t *h)
int	mp4_h26x_write_nal (mp4_h26x_writer_t *h, const unsigned char *nal, int length, unsigned timeStamp90kHz_next)
int	MP4D_open (MP4D_demux_t *mp4, int(*read_callback)(int64_t offset, void *buffer, size_t size, void *token), void *token, int64_t file_size)
MP4D_file_offset_t	MP4D_frame_offset (const MP4D_demux_t *mp4, unsigned int ntrack, unsigned int nsample, unsigned int *frame_bytes, unsigned *timestamp, unsigned *duration)
void	MP4D_close (MP4D_demux_t *mp4)
const void *	MP4D_read_sps (const MP4D_demux_t *mp4, unsigned int ntrack, int nsps, int *sps_bytes)
const void *	MP4D_read_pps (const MP4D_demux_t *mp4, unsigned int ntrack, int npps, int *pps_bytes)
MP4E_mux_t *	MP4E_open (int sequential_mode_flag, int enable_fragmentation, void *token, int(*write_callback)(int64_t offset, const void *buffer, size_t size, void *token))
int	MP4E_add_track (MP4E_mux_t *mux, const MP4E_track_t *track_data)
int	MP4E_put_sample (MP4E_mux_t *mux, int track_num, const void *data, int data_bytes, int duration, int kind)
int	MP4E_close (MP4E_mux_t *mux)
int	MP4E_set_dsi (MP4E_mux_t *mux, int track_id, const void *dsi, int bytes)
int	MP4E_set_vps (MP4E_mux_t *mux, int track_id, const void *vps, int bytes)
int	MP4E_set_sps (MP4E_mux_t *mux, int track_id, const void *sps, int bytes)
int	MP4E_set_pps (MP4E_mux_t *mux, int track_id, const void *pps, int bytes)
int	MP4E_set_text_comment (MP4E_mux_t *mux, const char *comment)

Macro Definition Documentation

FIX_BAD_ANDROID_META_BOX

#define FIX_BAD_ANDROID_META_BOX   1

HEVC_NAL_BLA_W_LP

#define HEVC_NAL_BLA_W_LP   16

HEVC_NAL_CRA_NUT

#define HEVC_NAL_CRA_NUT   21

HEVC_NAL_PPS

#define HEVC_NAL_PPS   34

HEVC_NAL_SPS

#define HEVC_NAL_SPS   33

HEVC_NAL_VPS

#define HEVC_NAL_VPS   32

MAX_CHUNKS_DEPTH

#define MAX_CHUNKS_DEPTH   64

MINIMP4_ALLOW_64BIT

#define MINIMP4_ALLOW_64BIT   1

MINIMP4_MAX_PPS

#define MINIMP4_MAX_PPS   256

MINIMP4_MAX_SPS

#define MINIMP4_MAX_SPS   32

MINIMP4_MIN

#define MINIMP4_MIN	(		x,
			y
	)		((x) < (y) ? (x) : (y))

MINIMP4_TRANSCODE_SPS_ID

#define MINIMP4_TRANSCODE_SPS_ID   1

MP4_OBJECT_TYPE_AUDIO_ISO_IEC_13818_7_LC_PROFILE

#define MP4_OBJECT_TYPE_AUDIO_ISO_IEC_13818_7_LC_PROFILE   0x67

MP4_OBJECT_TYPE_AUDIO_ISO_IEC_13818_7_MAIN_PROFILE

#define MP4_OBJECT_TYPE_AUDIO_ISO_IEC_13818_7_MAIN_PROFILE   0x66

MP4_OBJECT_TYPE_AUDIO_ISO_IEC_13818_7_SSR_PROFILE

#define MP4_OBJECT_TYPE_AUDIO_ISO_IEC_13818_7_SSR_PROFILE   0x68

MP4_OBJECT_TYPE_AUDIO_ISO_IEC_14496_3

#define MP4_OBJECT_TYPE_AUDIO_ISO_IEC_14496_3   0x40

MP4_OBJECT_TYPE_AVC

#define MP4_OBJECT_TYPE_AVC   0x21

MP4_OBJECT_TYPE_HEVC

#define MP4_OBJECT_TYPE_HEVC   0x23

MP4_OBJECT_TYPE_USER_PRIVATE

#define MP4_OBJECT_TYPE_USER_PRIVATE   0xC0

MP4D_AVC_SUPPORTED

#define MP4D_AVC_SUPPORTED   1

MP4D_HANDLER_TYPE_SOUN

#define MP4D_HANDLER_TYPE_SOUN   0x736F756E

MP4D_HANDLER_TYPE_VIDE

#define MP4D_HANDLER_TYPE_VIDE   0x76696465

MP4D_HEVC_SUPPORTED

#define MP4D_HEVC_SUPPORTED   1

MP4D_INFO_SUPPORTED

#define MP4D_INFO_SUPPORTED   1

MP4D_PRINT_INFO_SUPPORTED

#define MP4D_PRINT_INFO_SUPPORTED   0

MP4D_TFDT_SUPPORT

#define MP4D_TFDT_SUPPORT   0

MP4D_TIMESTAMPS_SUPPORTED

#define MP4D_TIMESTAMPS_SUPPORTED   1

MP4D_TRACE_SUPPORTED

#define MP4D_TRACE_SUPPORTED   0

MP4D_TRACE_TIMESTAMPS

#define MP4D_TRACE_TIMESTAMPS   1

MP4E_HANDLER_TYPE_GESM

#define MP4E_HANDLER_TYPE_GESM   0x6765736D

MP4E_SAMPLE_CONTINUATION

#define MP4E_SAMPLE_CONTINUATION   2

MP4E_SAMPLE_DEFAULT

#define MP4E_SAMPLE_DEFAULT   0

MP4E_SAMPLE_RANDOM_ACCESS

#define MP4E_SAMPLE_RANDOM_ACCESS   1

MP4E_STATUS_BAD_ARGUMENTS

#define MP4E_STATUS_BAD_ARGUMENTS   -1

MP4E_STATUS_FILE_WRITE_ERROR

#define MP4E_STATUS_FILE_WRITE_ERROR   -3

MP4E_STATUS_NO_MEMORY

#define MP4E_STATUS_NO_MEMORY   -2

MP4E_STATUS_OK

#define MP4E_STATUS_OK   0

MP4E_STATUS_ONLY_ONE_DSI_ALLOWED

#define MP4E_STATUS_ONLY_ONE_DSI_ALLOWED   -4

Typedef Documentation

boxsize_t

typedef uint64_t boxsize_t

mp4_h26x_writer_t

typedef struct mp4_h26x_writer_tag mp4_h26x_writer_t

MP4D_demux_t

typedef struct MP4D_demux_tag MP4D_demux_t

MP4D_file_offset_t

typedef boxsize_t MP4D_file_offset_t

MP4D_sample_to_chunk_t

typedef struct MP4D_sample_to_chunk_t_tag MP4D_sample_to_chunk_t

MP4E_mux_t

typedef struct MP4E_mux_tag MP4E_mux_t

Enumeration Type Documentation

track_media_kind_t

enum track_media_kind_t

Enumerator
e_audio
e_video
e_private

Function Documentation

mp4_h26x_write_close()

void mp4_h26x_write_close

(

mp4_h26x_writer_t *

h

)

mp4_h26x_write_init()

int mp4_h26x_write_init	(	mp4_h26x_writer_t *	h,
		MP4E_mux_t *	mux,
		int	width,
		int	height,
		int	is_hevc
	)

mp4_h26x_write_nal()

int mp4_h26x_write_nal	(	mp4_h26x_writer_t *	h,
		const unsigned char *	nal,
		int	length,
		unsigned	timeStamp90kHz_next
	)

MP4D_close()

void MP4D_close

(

MP4D_demux_t *

mp4

)

De-allocated memory

MP4D_frame_offset()

MP4D_file_offset_t MP4D_frame_offset	(	const MP4D_demux_t *	mp4,
		unsigned int	ntrack,
		unsigned int	nsample,
		unsigned int *	frame_bytes,
		unsigned *	timestamp,
		unsigned *	duration
	)

Return position and size for given sample from given track. The 'sample' is a MP4 term for 'frame'

frame_bytes [OUT] - return coded frame size in bytes timestamp [OUT] - return frame timestamp (in mp4->timescale units) duration [OUT] - return frame duration (in mp4->timescale units)

function return offset for the frame

MP4D_open()

int MP4D_open	(	MP4D_demux_t *	mp4,
		int(*)(int64_t offset, void *buffer, size_t size, void *token)	read_callback,
		void *	token,
		int64_t	file_size
	)

Parse given input stream as MP4 file. Allocate and store data indexes. return 1 on success, 0 on failure The MP4 indexes may be stored at the end of stream, so this function may parse all stream. It is guaranteed that function will read/seek sequentially, and will never jump back.

MP4D_read_pps()

const void * MP4D_read_pps	(	const MP4D_demux_t *	mp4,
		unsigned int	ntrack,
		int	npps,
		int *	pps_bytes
	)

MP4D_read_sps()

const void * MP4D_read_sps	(	const MP4D_demux_t *	mp4,
		unsigned int	ntrack,
		int	nsps,
		int *	sps_bytes
	)

Helper functions to parse mp4.track[ntrack].dsi for H.264 SPS/PPS Return pointer to internal mp4 memory, it must not be free()-ed

Example: process all SPS in MP4 file: while (sps = MP4D_read_sps(mp4, num_of_avc_track, sps_count, &sps_bytes)) { process(sps, sps_bytes); sps_count++; }

MP4E_add_track()

int MP4E_add_track	(	MP4E_mux_t *	mux,
		const MP4E_track_t *	track_data
	)

Add new track The track_data parameter does not referred by the multiplexer after function return, and may be allocated in short-time memory. The dsi member of track_data parameter is mandatory.

return ID of added track, or error code MP4E_STATUS_*

MP4E_close()

int MP4E_close

(

MP4E_mux_t *

mux

)

Finalize MP4 file, de-allocated memory, and closes MP4 multiplexer. The close operation takes a time and disk space, since it writes MP4 file indexes. Please note that this function does not closes file handle, which was passed to open function.

return error code MP4E_STATUS_*

MP4E_open()

MP4E_mux_t * MP4E_open	(	int	sequential_mode_flag,
		int	enable_fragmentation,
		void *	token,
		int(*)(int64_t offset, const void *buffer, size_t size, void *token)	write_callback
	)

Allocates and initialize mp4 multiplexor Given file handler is transparent to the MP4 library, and used only as argument for given fwrite_callback() function. By appropriate definition of callback function application may use any other file output API (for example C++ streams, or Win32 file functions)

return multiplexor handle on success; NULL on failure

MP4E_put_sample()

int MP4E_put_sample	(	MP4E_mux_t *	mux,
		int	track_num,
		const void *	data,
		int	data_bytes,
		int	duration,
		int	kind
	)

Add new sample to specified track The tracks numbered starting with 0, according to order of MP4E_add_track() calls 'kind' is one of MP4E_SAMPLE_... defines

return error code MP4E_STATUS_*

Example: MP4E_put_sample(mux, 0, data, data_bytes, duration, MP4E_SAMPLE_DEFAULT);

MP4E_set_dsi()

int MP4E_set_dsi	(	MP4E_mux_t *	mux,
		int	track_id,
		const void *	dsi,
		int	bytes
	)

Set Decoder Specific Info (DSI) Can be used for audio and private tracks. MUST be used for AAC track. Only one DSI can be set. It is an error to set DSI again

return error code MP4E_STATUS_*

MP4E_set_pps()

int MP4E_set_pps	(	MP4E_mux_t *	mux,
		int	track_id,
		const void *	pps,
		int	bytes
	)

Set PPS data. MUST be used for AVC (H.264) track. Up to 256 different PPS can be used in one track.

return error code MP4E_STATUS_*

MP4E_set_sps()

int MP4E_set_sps	(	MP4E_mux_t *	mux,
		int	track_id,
		const void *	sps,
		int	bytes
	)

Set SPS data. MUST be used for AVC (H.264) track. Up to 32 different SPS can be used in one track.

return error code MP4E_STATUS_*

MP4E_set_text_comment()

int MP4E_set_text_comment	(	MP4E_mux_t *	mux,
		const char *	comment
	)

Set or replace ASCII test comment for the file. Set comment to NULL to remove comment.

return error code MP4E_STATUS_*

MP4E_set_vps()

int MP4E_set_vps	(	MP4E_mux_t *	mux,
		int	track_id,
		const void *	vps,
		int	bytes
	)

Set VPS data. MUST be used for HEVC (H.265) track.

return error code MP4E_STATUS_*
