pe.h File Reference

#include <stdint.h>
#include "xnldr.h"

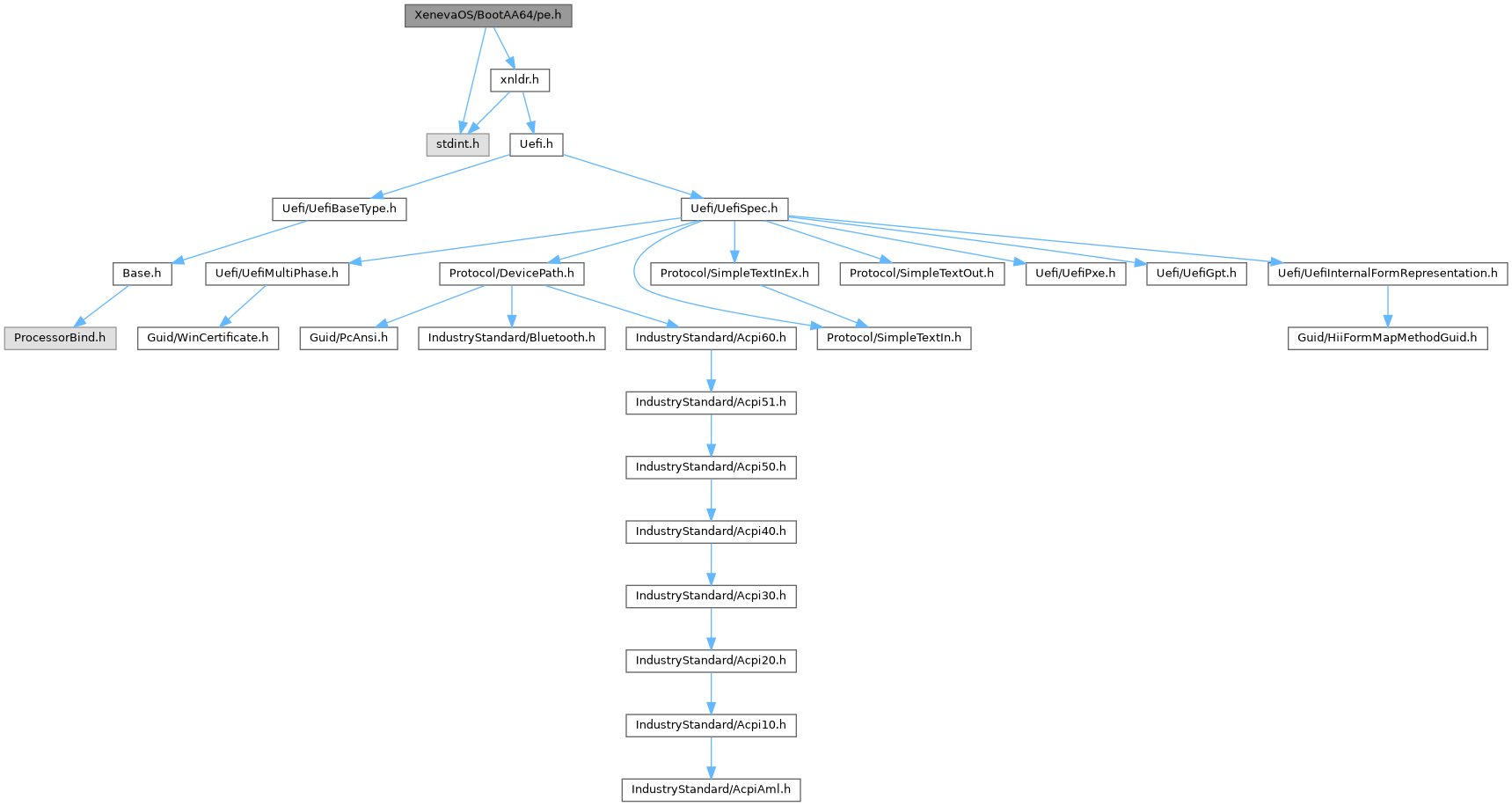

Include dependency graph for pe.h:

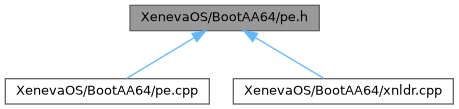

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	_IMAGE_DOS_HEADER_
struct	_IMAGE_FILE_HEADER_
struct	_IMAGE_DATA_DIRECTORY_
struct	_IMAGE_OPTIONAL_HEADER_PE32_
struct	_IMAGE_OPTIONAL_HEADER_PE32PLUS
struct	_IMAGE_NT_HEADERS_PE32
struct	_IMAGE_NT_HEADERS_PE32PLUS
struct	_IMAGE_SECTION_HEADER
struct	_IMAGE_EXPORT_DIRECTORY
struct	_IMAGE_IMPORT_DIRECTORY
struct	_IMAGE_RELOCATION_ENTRY_
struct	_IMAGE_RELOCATION_BLOCK_
struct	_IMAGE_IMPORT_HINT_TABLE

Macros
#define	IMAGE_NUMBEROF_DIRECTORY_ENTRIES   16
#define	IMAGE_NUMBEROF_DIRECTORY_ENTRIES   16
#define	IMAGE_SCN_CNT_CODE   0x00000020
#define	IMAGE_SCN_CNT_INITIALIZED_DATA   0x00000040
#define	IMAGE_SCN_CNT_UNINITIALIZED_DATA   0x00000080
#define	IMAGE_SCN_MEM_DISCARDABLE   0x02000000
#define	IMAGE_SCN_MEM_NOT_CACHED   0x04000000
#define	IMAGE_SCN_MEM_NOT_PAGED   0x08000000
#define	IMAGE_SCN_MEM_SHARED   0x10000000
#define	IMAGE_SCN_MEM_EXECUTE   0x20000000
#define	IMAGE_SCN_MEM_READ   0x40000000
#define	IMAGE_SCN_MEM_WRITE   0x80000000
#define	IMAGE_DATA_DIRECTORY_EXPORT   0
#define	IMAGE_DATA_DIRECTORY_IMPORT   1
#define	IMAGE_IMPORT_LOOKUP_TABLE_FLAG_PE32   0x80000000
#define	IMAGE_IMPORT_LOOKUP_TABLE_FLAG_PE32P   0x8000000000000000
#define	IMAGE_IMPORT_LOOKUP_TABLE_FLAG   IMAGE_IMPORT_LOOKUP_TABLE_FLAG_PE32

Typedefs
typedef struct _IMAGE_DOS_HEADER_	IMAGE_DOS_HEADER
typedef struct _IMAGE_DOS_HEADER_ *	PIMAGE_DOS_HEADER
typedef struct _IMAGE_NT_HEADERS_PE32_	IMAGE_NT_HEADERS_PE32
typedef struct _IMAGE_NT_HEADERS_PE32_ *	PIMAGE_NT_HEADERS_PE32
typedef struct _IMAGE_NT_HEADERS_PE32PLUS_	IMAGE_NT_HEADERS_PE32PLYS
typedef struct _IMAGE_NT_HEADERS_PE32PLUS_ *	PIMAGE_NT_HEADERS_PE32PLUS
typedef struct _IMAGE_FILE_HEADER_	IMAGE_FILE_HEADER
typedef struct _IMAGE_FILE_HEADER_ *	PIMAGE_FILE_HEADER
typedef struct _IMAGE_DATA_DIRECTORY_	IMAGE_DATA_DIRECTORY
typedef struct _IMAGE_DATA_DIRECTORY_ *	PIMAGE_DATA_DIRECTORY
typedef struct _IMAGE_OPTIONAL_HEADER_PE32_	IMAGE_OPTIONAL_HEADER_PE32
typedef struct _IMAGE_OPTIONAL_HEADER_PE32_ *	PIMAGE_OPTIONAL_HEADER_PE32
typedef struct _IMAGE_OPTIONAL_HEADER_PE32PLUS	IMAGE_OPTIONAL_HEADER_PE32PLUS
typedef struct _IMAGE_OPTIONAL_HEADER_PE32PLUS *	PIMAGE_OPTIONAL_HEADER_PE32PLUS
typedef struct _IMAGE_SECTION_HEADER	SECTION_HEADER
typedef struct _IMAGE_SECTION_HEADER *	PSECTION_HEADER
typedef struct _IMAGE_EXPORT_DIRECTORY	IMAGE_EXPORT_DIRECTORY
typedef struct _IMAGE_EXPORT_DIRECTORY *	PIMAGE_EXPORT_DIRECTORY
typedef struct _IMAGE_IMPORT_DIRECTORY	IMAGE_IMPORT_DIRECTORY
typedef struct _IMAGE_IMPORT_DIRECTORY *	PIMAGE_IMPORT_DIRECTORY
typedef struct _IMAGE_RELOCATION_ENTRY_	IMAGE_RELOCATION_ENTRY
typedef struct _IMAGE_RELOCATION_ENTRY_ *	PIMAGE_RELOCATION_ENTRY
typedef struct _IMAGE_RELOCATION_BLOCK_	IMAGE_RELOCATION_BLOCK
typedef struct _IMAGE_RELOCATION_BLOCK_ *	PIMAGE_RELOCATION_BLOCK
typedef struct _IMAGE_IMPORT_HINT_TABLE	IMAGE_IMPORT_HINT_TABLE
typedef struct _IMAGE_IMPORT_HINT_TABLE *	PIMAGE_IMPORT_HINT_TABLE
typedef uint32_t	IMAGE_IMPORT_LOOKUP_TABLE_PE32
typedef uint32_t *	PIMAGE_IMPORT_LOOKUP_TABLE_PE32
typedef unsigned long long	IMAGE_IMPORT_LOOKUP_TABLE_PE32P
typedef unsigned long long *	PIMAGE_IMPORT_LOOKUP_TABLE_PE32P
typedef struct _IMAGE_NT_HEADERS_PE32PLUS	IMAGE_NT_HEADERS
typedef struct _IMAGE_NT_HEADERS_PE32PLUS *	PIMAGE_NT_HEADERS
typedef IMAGE_IMPORT_LOOKUP_TABLE_PE32	IMAGE_IMPORT_LOOKUP_TABLE
typedef IMAGE_IMPORT_LOOKUP_TABLE_PE32 *	PIMAGE_IMPORT_LOOKUP_TABLE

Enumerations
enum	PeMachineType {   IMAGE_FILE_MACHINE_AMD64 = 0x8664 , IMAGE_FILE_MACHINE_ARM = 0x1C0 , IMAGE_FILE_MACHINE_EBC = 0xEBC , IMAGE_FILE_MACHINE_I386 = 0x14c ,   IMAGE_FILE_MACHINE_THUMB = 0x1c2 , IMAGE_FILE_MACHINE_ARM64 = 0xaa64 , IMAGE_FILE_MACHINE_ARMNT = 0x1c4 }
enum	PeOptionalMagic { MAGIC_PE32 = 0x10b , MAGIC_PE32P = 0x20b }

Functions
void	XEPELoadImage (void *filebuff)

Macro Definition Documentation

IMAGE_DATA_DIRECTORY_EXPORT

#define IMAGE_DATA_DIRECTORY_EXPORT   0

IMAGE_DATA_DIRECTORY_IMPORT

#define IMAGE_DATA_DIRECTORY_IMPORT   1

IMAGE_IMPORT_LOOKUP_TABLE_FLAG

#define IMAGE_IMPORT_LOOKUP_TABLE_FLAG   IMAGE_IMPORT_LOOKUP_TABLE_FLAG_PE32

IMAGE_IMPORT_LOOKUP_TABLE_FLAG_PE32

#define IMAGE_IMPORT_LOOKUP_TABLE_FLAG_PE32   0x80000000

IMAGE_IMPORT_LOOKUP_TABLE_FLAG_PE32P

#define IMAGE_IMPORT_LOOKUP_TABLE_FLAG_PE32P   0x8000000000000000

IMAGE_NUMBEROF_DIRECTORY_ENTRIES [1/2]

#define IMAGE_NUMBEROF_DIRECTORY_ENTRIES   16

IMAGE_NUMBEROF_DIRECTORY_ENTRIES [2/2]

#define IMAGE_NUMBEROF_DIRECTORY_ENTRIES   16

IMAGE_SCN_CNT_CODE

#define IMAGE_SCN_CNT_CODE   0x00000020

IMAGE_SCN_CNT_INITIALIZED_DATA

#define IMAGE_SCN_CNT_INITIALIZED_DATA   0x00000040

IMAGE_SCN_CNT_UNINITIALIZED_DATA

#define IMAGE_SCN_CNT_UNINITIALIZED_DATA   0x00000080

IMAGE_SCN_MEM_DISCARDABLE

#define IMAGE_SCN_MEM_DISCARDABLE   0x02000000

IMAGE_SCN_MEM_EXECUTE

#define IMAGE_SCN_MEM_EXECUTE   0x20000000

IMAGE_SCN_MEM_NOT_CACHED

#define IMAGE_SCN_MEM_NOT_CACHED   0x04000000

IMAGE_SCN_MEM_NOT_PAGED

#define IMAGE_SCN_MEM_NOT_PAGED   0x08000000

IMAGE_SCN_MEM_READ

#define IMAGE_SCN_MEM_READ   0x40000000

IMAGE_SCN_MEM_SHARED

#define IMAGE_SCN_MEM_SHARED   0x10000000

IMAGE_SCN_MEM_WRITE

#define IMAGE_SCN_MEM_WRITE   0x80000000

Typedef Documentation

IMAGE_DATA_DIRECTORY

typedef struct _IMAGE_DATA_DIRECTORY_ IMAGE_DATA_DIRECTORY

IMAGE_DOS_HEADER

typedef struct _IMAGE_DOS_HEADER_ IMAGE_DOS_HEADER

BSD 2-Clause License

Copyright (c) 2022-2025, Manas Kamal Choudhury All rights reserved.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

IMAGE_EXPORT_DIRECTORY

typedef struct _IMAGE_EXPORT_DIRECTORY IMAGE_EXPORT_DIRECTORY

IMAGE_FILE_HEADER

typedef struct _IMAGE_FILE_HEADER_ IMAGE_FILE_HEADER

IMAGE_IMPORT_DIRECTORY

typedef struct _IMAGE_IMPORT_DIRECTORY IMAGE_IMPORT_DIRECTORY

IMAGE_IMPORT_HINT_TABLE

typedef struct _IMAGE_IMPORT_HINT_TABLE IMAGE_IMPORT_HINT_TABLE

IMAGE_IMPORT_LOOKUP_TABLE

typedef IMAGE_IMPORT_LOOKUP_TABLE_PE32 IMAGE_IMPORT_LOOKUP_TABLE

IMAGE_IMPORT_LOOKUP_TABLE_PE32

typedef uint32_t IMAGE_IMPORT_LOOKUP_TABLE_PE32

IMAGE_IMPORT_LOOKUP_TABLE_PE32P

typedef IMAGE_IMPORT_LOOKUP_TABLE_PE32P IMAGE_IMPORT_LOOKUP_TABLE_PE32P

IMAGE_NT_HEADERS

typedef struct _IMAGE_NT_HEADERS_PE32PLUS IMAGE_NT_HEADERS

IMAGE_NT_HEADERS_PE32

typedef struct _IMAGE_NT_HEADERS_PE32_ IMAGE_NT_HEADERS_PE32

IMAGE_NT_HEADERS_PE32PLYS

typedef struct _IMAGE_NT_HEADERS_PE32PLUS_ IMAGE_NT_HEADERS_PE32PLYS

IMAGE_OPTIONAL_HEADER_PE32

typedef struct _IMAGE_OPTIONAL_HEADER_PE32_ IMAGE_OPTIONAL_HEADER_PE32

IMAGE_OPTIONAL_HEADER_PE32PLUS

typedef struct _IMAGE_OPTIONAL_HEADER_PE32PLUS IMAGE_OPTIONAL_HEADER_PE32PLUS

IMAGE_RELOCATION_BLOCK

typedef struct _IMAGE_RELOCATION_BLOCK_ IMAGE_RELOCATION_BLOCK

IMAGE_RELOCATION_ENTRY

typedef struct _IMAGE_RELOCATION_ENTRY_ IMAGE_RELOCATION_ENTRY

PIMAGE_DATA_DIRECTORY

typedef struct _IMAGE_DATA_DIRECTORY_ * PIMAGE_DATA_DIRECTORY

PIMAGE_DOS_HEADER

typedef struct _IMAGE_DOS_HEADER_ * PIMAGE_DOS_HEADER

PIMAGE_EXPORT_DIRECTORY

typedef struct _IMAGE_EXPORT_DIRECTORY * PIMAGE_EXPORT_DIRECTORY

PIMAGE_FILE_HEADER

typedef struct _IMAGE_FILE_HEADER_ * PIMAGE_FILE_HEADER

PIMAGE_IMPORT_DIRECTORY

typedef struct _IMAGE_IMPORT_DIRECTORY * PIMAGE_IMPORT_DIRECTORY

PIMAGE_IMPORT_HINT_TABLE

typedef struct _IMAGE_IMPORT_HINT_TABLE * PIMAGE_IMPORT_HINT_TABLE

PIMAGE_IMPORT_LOOKUP_TABLE

typedef IMAGE_IMPORT_LOOKUP_TABLE_PE32 * PIMAGE_IMPORT_LOOKUP_TABLE

PIMAGE_IMPORT_LOOKUP_TABLE_PE32

typedef uint32_t * PIMAGE_IMPORT_LOOKUP_TABLE_PE32

PIMAGE_IMPORT_LOOKUP_TABLE_PE32P

typedef IMAGE_IMPORT_LOOKUP_TABLE_PE32P * PIMAGE_IMPORT_LOOKUP_TABLE_PE32P

PIMAGE_NT_HEADERS

typedef struct _IMAGE_NT_HEADERS_PE32PLUS * PIMAGE_NT_HEADERS

PIMAGE_NT_HEADERS_PE32

typedef struct _IMAGE_NT_HEADERS_PE32_ * PIMAGE_NT_HEADERS_PE32

PIMAGE_NT_HEADERS_PE32PLUS

typedef struct _IMAGE_NT_HEADERS_PE32PLUS_ * PIMAGE_NT_HEADERS_PE32PLUS

PIMAGE_OPTIONAL_HEADER_PE32

typedef struct _IMAGE_OPTIONAL_HEADER_PE32_ * PIMAGE_OPTIONAL_HEADER_PE32

PIMAGE_OPTIONAL_HEADER_PE32PLUS

typedef struct _IMAGE_OPTIONAL_HEADER_PE32PLUS * PIMAGE_OPTIONAL_HEADER_PE32PLUS

PIMAGE_RELOCATION_BLOCK

typedef struct _IMAGE_RELOCATION_BLOCK_ * PIMAGE_RELOCATION_BLOCK

PIMAGE_RELOCATION_ENTRY

typedef struct _IMAGE_RELOCATION_ENTRY_ * PIMAGE_RELOCATION_ENTRY

PSECTION_HEADER

typedef struct _IMAGE_SECTION_HEADER * PSECTION_HEADER

SECTION_HEADER

typedef struct _IMAGE_SECTION_HEADER SECTION_HEADER

Enumeration Type Documentation

PeMachineType

enum PeMachineType

Enumerator
IMAGE_FILE_MACHINE_AMD64
IMAGE_FILE_MACHINE_ARM
IMAGE_FILE_MACHINE_EBC
IMAGE_FILE_MACHINE_I386
IMAGE_FILE_MACHINE_THUMB
IMAGE_FILE_MACHINE_ARM64
IMAGE_FILE_MACHINE_ARMNT

PeOptionalMagic

enum PeOptionalMagic

Enumerator
MAGIC_PE32
MAGIC_PE32P

Function Documentation

XEPELoadImage()

void XEPELoadImage ( void *  filebuff )

extern
