clip.cpp File Reference

#include "deodxr.h"
#include <stdint.h>
#include <string.h>
#include "clip.h"
#include "rect.h"

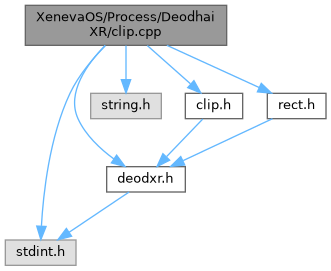

Include dependency graph for clip.cpp:

Macros
#define	CLIP_MAX_RECTS   100

Functions
bool	ClipValueInRange (int value, int min, int max)
void	clip_emit (Rect *list, int *n, int cap, int l, int t, int r, int b)
bool	ClipCheckIntersect (Rect *r1, Rect *r2)
	Check if two rectangle intersects.
void	ClipCalculateRect (Rect *sub_rect, Rect *cut_rect, Rect *list, int *count)
	ClipCalculateRect – calculate visible rectanlges of current window.
void	ClipSubtractRect (Rect *sub_rect, Rect *cut_rect, Rect *list, int r_count)
	ClipSubtractRect – calculate visible rectanlges of current window.
void	ClipGetBehindRect (Rect *sub_rect, Rect *cut_rect, Rect *list, int *r_count)
void	ClipSubtractRectList (Rect *inputList, int *inputCount, Rect *cut_rect)

Detailed Description

BSD 2-Clause License

Copyright (c) 2022-2026, Manas Kamal Choudhury All rights reserved.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

Macro Definition Documentation

CLIP_MAX_RECTS

#define CLIP_MAX_RECTS   100

Function Documentation

clip_emit()

void clip_emit	(	Rect *	list,
		int *	n,
		int	cap,
		int	l,
		int	t,
		int	r,
		int	b
	)

ClipCalculateRect()

void ClipCalculateRect	(	Rect *	sub_rect,
		Rect *	cut_rect,
		Rect *	list,
		int *	count
	)

ClipCalculateRect – calculate visible rectanlges of current window.

Parameters

sub_rect	– subject rectangle
cut_rect	– cutting rectangle
list	– pointer to the list, where to store all visible rectangles
count	– number of rectangles stored in the list

int r_count = *count;

Rect subcopy; subcopy.x = sub_rect->x; subcopy.y = sub_rect->y; subcopy.w = sub_rect->w; subcopy.h = sub_rect->h;

if (RectGetLeft(cut_rect) >= RectGetLeft(&subcopy) && RectGetLeft(cut_rect) <= RectGetRight(&subcopy)) { Rect r; memcpy(&r, &subcopy, sizeof(Rect)); int top = RectSetTop(&r, RectGetTop(&subcopy)); int left = RectSetLeft(&r, RectGetLeft(&subcopy)); int bottom = RectSetBottom(&r, RectGetBottom(&subcopy)); int right = RectSetRight(&r, RectGetLeft(cut_rect));

list[r_count].x = left; list[r_count].y = top; list[r_count].w = right - left; list[r_count].h = bottom - top; r_count++;

int n_l = RectSetLeft(&subcopy, RectGetLeft(cut_rect)); subcopy.x = n_l; }

if (RectGetTop(cut_rect) >= RectGetTop(&subcopy) && RectGetTop(cut_rect) <= RectGetBottom(&subcopy)) { Rect r; memcpy(&r, &subcopy, sizeof(Rect)); int top = RectSetTop(&r, RectGetTop(&subcopy)); int left = RectSetLeft(&r, RectGetLeft(&subcopy)); int bottom = RectSetBottom(&r, RectGetTop(cut_rect)); int right = RectSetRight(&r, RectGetRight(&subcopy));

list[r_count].x = left; list[r_count].y = top; list[r_count].w = right - left; list[r_count].h = bottom - top; r_count++; int n_t = RectSetTop(&subcopy, RectGetTop(cut_rect)); subcopy.y = n_t; }

if (RectGetRight(cut_rect) >= RectGetLeft(&subcopy) && RectGetRight(cut_rect) < RectGetRight(&subcopy)) { Rect r; memcpy(&r, &subcopy, sizeof(Rect)); int top = RectSetTop(&r, RectGetTop(&subcopy)); int left = RectSetLeft(&r, RectGetRight(cut_rect)); int bottom = RectSetBottom(&r, RectGetBottom(&subcopy)); int right = RectSetRight(&r, RectGetRight(&subcopy));

list[r_count].x = left; list[r_count].y = top; list[r_count].w = right - left; list[r_count].h = bottom - top; r_count++;

RectSetRight(&subcopy, RectGetRight(cut_rect)); }

if (RectGetBottom(cut_rect) >= RectGetTop(&subcopy) && RectGetBottom(cut_rect) <= RectGetBottom(&subcopy)) { Rect r; memcpy(&r, &subcopy, sizeof(Rect)); int top = RectSetTop(&r, RectGetBottom(cut_rect)); int left = RectSetLeft(&r, RectGetLeft(&subcopy)); int bottom = RectSetBottom(&r, RectGetBottom(&subcopy)); int right = RectSetRight(&r, RectGetRight(&subcopy));

list[r_count].x = left; list[r_count].y = top; list[r_count].w = right - left; list[r_count].h = bottom - top; r_count++; RectSetBottom(&subcopy, RectGetBottom(cut_rect)); }

count = r_count;

ClipCheckIntersect()

bool ClipCheckIntersect	(	Rect *	r1,
		Rect *	r2
	)

Check if two rectangle intersects.

Parameters

r1	– rectangle one
r2	– rectangle two

ClipGetBehindRect()

void ClipGetBehindRect	(	Rect *	sub_rect,
		Rect *	cut_rect,
		Rect *	list,
		int *	r_count
	)

ClipSubtractRect()

void ClipSubtractRect	(	Rect *	sub_rect,
		Rect *	cut_rect,
		Rect *	list,
		int	r_count
	)

ClipSubtractRect – calculate visible rectanlges of current window.

Parameters

sub_rect	– subject rectangle
cut_rect	– cutting rectangle
list	– pointer to the list, where to store all visible rectangles
count	– number of rectangles stored in the list

ClipSubtractRectList()

void ClipSubtractRectList	(	Rect *	inputList,
		int *	inputCount,
		Rect *	cut_rect
	)

ClipValueInRange()

bool ClipValueInRange	(	int	value,
		int	min,
		int	max
	)
