DriverConfiguration2.h File Reference

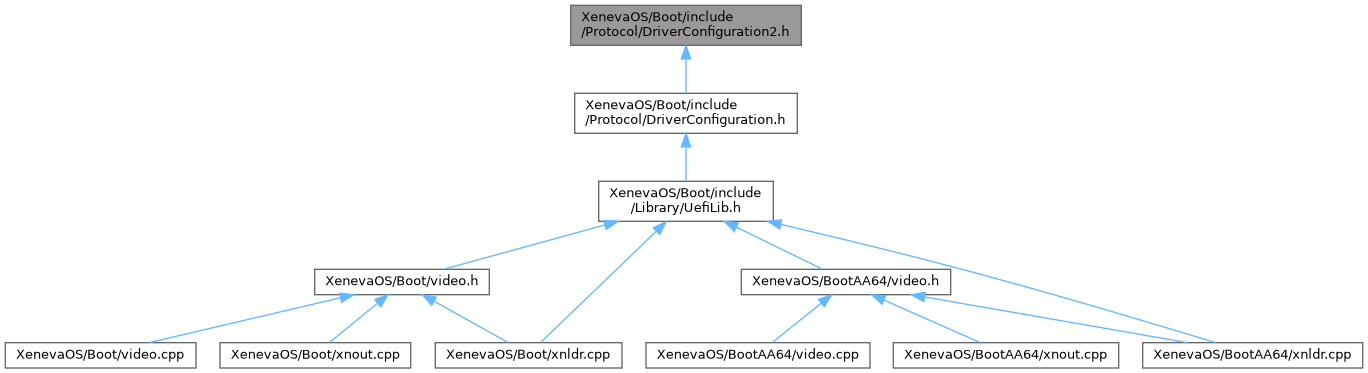

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	_EFI_DRIVER_CONFIGURATION2_PROTOCOL

Macros
#define	EFI_DRIVER_CONFIGURATION2_PROTOCOL_GUID
#define	EFI_DRIVER_CONFIGURATION_SAFE_DEFAULTS   0x00000000
#define	EFI_DRIVER_CONFIGURATION_MANUFACTURING_DEFAULTS   0x00000001
#define	EFI_DRIVER_CONFIGURATION_CUSTOM_DEFAULTS   0x00000002
#define	EFI_DRIVER_CONFIGURATION_PERORMANCE_DEFAULTS   0x00000003

Typedefs
typedef struct _EFI_DRIVER_CONFIGURATION2_PROTOCOL	EFI_DRIVER_CONFIGURATION2_PROTOCOL
typedef EFI_STATUS(EFIAPI *	EFI_DRIVER_CONFIGURATION2_SET_OPTIONS) (IN EFI_DRIVER_CONFIGURATION2_PROTOCOL *This, IN EFI_HANDLE ControllerHandle, IN EFI_HANDLE ChildHandle OPTIONAL, IN CHAR8 *Language, OUT EFI_DRIVER_CONFIGURATION_ACTION_REQUIRED *ActionRequired)
typedef EFI_STATUS(EFIAPI *	EFI_DRIVER_CONFIGURATION2_OPTIONS_VALID) (IN EFI_DRIVER_CONFIGURATION2_PROTOCOL *This, IN EFI_HANDLE ControllerHandle, IN EFI_HANDLE ChildHandle OPTIONAL)
typedef EFI_STATUS(EFIAPI *	EFI_DRIVER_CONFIGURATION2_FORCE_DEFAULTS) (IN EFI_DRIVER_CONFIGURATION2_PROTOCOL *This, IN EFI_HANDLE ControllerHandle, IN EFI_HANDLE ChildHandle OPTIONAL, IN UINT32 DefaultType, OUT EFI_DRIVER_CONFIGURATION_ACTION_REQUIRED *ActionRequired)

Enumerations
enum	EFI_DRIVER_CONFIGURATION_ACTION_REQUIRED {   EfiDriverConfigurationActionNone = 0 , EfiDriverConfigurationActionStopController = 1 , EfiDriverConfigurationActionRestartController = 2 , EfiDriverConfigurationActionRestartPlatform = 3 ,   EfiDriverConfigurationActionMaximum }

Variables
EFI_GUID	gEfiDriverConfiguration2ProtocolGuid

Detailed Description

UEFI Driver Configuration2 Protocol

Copyright (c) 2006 - 2018, Intel Corporation. All rights reserved.
This program and the accompanying materials are licensed and made available under the terms and conditions of the BSD License which accompanies this distribution. The full text of the license may be found at http://opensource.org/licenses/bsd-license.php

THE PROGRAM IS DISTRIBUTED UNDER THE BSD LICENSE ON AN "AS IS" BASIS, WITHOUT WARRANTIES OR REPRESENTATIONS OF ANY KIND, EITHER EXPRESS OR IMPLIED.

Macro Definition Documentation

EFI_DRIVER_CONFIGURATION2_PROTOCOL_GUID

#define EFI_DRIVER_CONFIGURATION2_PROTOCOL_GUID

Value:

  { \
    0xbfd7dc1d, 0x24f1, 0x40d9, {0x82, 0xe7, 0x2e, 0x09, 0xbb, 0x6b, 0x4e, 0xbe } \
  }

Global ID for the Driver Configuration Protocol defined in UEFI 2.0

EFI_DRIVER_CONFIGURATION_CUSTOM_DEFAULTS

#define EFI_DRIVER_CONFIGURATION_CUSTOM_DEFAULTS   0x00000002

EFI_DRIVER_CONFIGURATION_MANUFACTURING_DEFAULTS

#define EFI_DRIVER_CONFIGURATION_MANUFACTURING_DEFAULTS   0x00000001

EFI_DRIVER_CONFIGURATION_PERORMANCE_DEFAULTS

#define EFI_DRIVER_CONFIGURATION_PERORMANCE_DEFAULTS   0x00000003

EFI_DRIVER_CONFIGURATION_SAFE_DEFAULTS

#define EFI_DRIVER_CONFIGURATION_SAFE_DEFAULTS   0x00000000

Typedef Documentation

EFI_DRIVER_CONFIGURATION2_FORCE_DEFAULTS

typedef EFI_STATUS(EFIAPI * EFI_DRIVER_CONFIGURATION2_FORCE_DEFAULTS) (IN EFI_DRIVER_CONFIGURATION2_PROTOCOL *This, IN EFI_HANDLE ControllerHandle, IN EFI_HANDLE ChildHandle OPTIONAL, IN UINT32 DefaultType, OUT EFI_DRIVER_CONFIGURATION_ACTION_REQUIRED *ActionRequired)

Forces a driver to set the default configuration options for a controller.

Parameters

This	A pointer to the EFI_DRIVER_CONFIGURATION2_PROTOCOL instance.
ControllerHandle	The handle of the controller to force default configuration options on.
ChildHandle	The handle of the child controller to force default configuration options on This is an optional parameter that may be NULL. It will be NULL for device drivers. It will also be NULL for bus drivers that wish to force default configuration options for the bus controller. It will not be NULL for a bus driver that wishes to force default configuration options for one of its child controllers.
DefaultType	The type of default configuration options to force on the controller specified by ControllerHandle and ChildHandle. See Table 9-1 for legal values. A DefaultType of 0x00000000 must be supported by this protocol.
ActionRequired	A pointer to the action that the calling agent is required to perform when this function returns. See "Related Definitions" in Section 9.1 for a list of the actions that the calling agent is required to perform prior to accessing ControllerHandle again.

Return values

EFI_SUCCESS	The driver specified by This successfully forced the default configuration options on the controller specified by ControllerHandle and ChildHandle.
EFI_INVALID_PARAMETER	ControllerHandle is not a valid EFI_HANDLE.
EFI_INVALID_PARAMETER	ChildHandle is not NULL and it is not a valid EFI_HANDLE.
EFI_INVALID_PARAMETER	ActionRequired is NULL.
EFI_UNSUPPORTED	The driver specified by This does not support forcing the default configuration options on the controller specified by ControllerHandle and ChildHandle.
EFI_UNSUPPORTED	The driver specified by This does not support the configuration type specified by DefaultType.
EFI_DEVICE_ERROR	A device error occurred while attempt to force the default configuration options on the controller specified by ControllerHandle and ChildHandle.
EFI_OUT_RESOURCES	There are not enough resources available to force the default configuration options on the controller specified by ControllerHandle and ChildHandle.

EFI_DRIVER_CONFIGURATION2_OPTIONS_VALID

typedef EFI_STATUS(EFIAPI * EFI_DRIVER_CONFIGURATION2_OPTIONS_VALID) (IN EFI_DRIVER_CONFIGURATION2_PROTOCOL *This, IN EFI_HANDLE ControllerHandle, IN EFI_HANDLE ChildHandle OPTIONAL)

Tests to see if a controller's current configuration options are valid.

Parameters

This	A pointer to the EFI_DRIVER_CONFIGURATION2_PROTOCOL instance.
ControllerHandle	The handle of the controller to test if it's current configuration options are valid.
ChildHandle	The handle of the child controller to test if it's current configuration options are valid. This is an optional parameter that may be NULL. It will be NULL for device drivers. It will also be NULL for bus drivers that wish to test the configuration options for the bus controller. It will not be NULL for a bus driver that wishes to test configuration options for one of its child controllers.

Return values

EFI_SUCCESS	The controller specified by ControllerHandle and ChildHandle that is being managed by the driver specified by This has a valid set of configuration options.
EFI_INVALID_PARAMETER	ControllerHandle is not a valid EFI_HANDLE.
EFI_INVALID_PARAMETER	ChildHandle is not NULL and it is not a valid EFI_HANDLE.
EFI_UNSUPPORTED	The driver specified by This is not currently managing the controller specified by ControllerHandle and ChildHandle.
EFI_DEVICE_ERROR	The controller specified by ControllerHandle and ChildHandle that is being managed by the driver specified by This has an invalid set of configuration options.

EFI_DRIVER_CONFIGURATION2_PROTOCOL

typedef struct _EFI_DRIVER_CONFIGURATION2_PROTOCOL EFI_DRIVER_CONFIGURATION2_PROTOCOL

EFI_DRIVER_CONFIGURATION2_SET_OPTIONS

typedef EFI_STATUS(EFIAPI * EFI_DRIVER_CONFIGURATION2_SET_OPTIONS) (IN EFI_DRIVER_CONFIGURATION2_PROTOCOL *This, IN EFI_HANDLE ControllerHandle, IN EFI_HANDLE ChildHandle OPTIONAL, IN CHAR8 *Language, OUT EFI_DRIVER_CONFIGURATION_ACTION_REQUIRED *ActionRequired)

Allows the user to set controller specific options for a controller that a driver is currently managing.

Parameters

This	A pointer to the EFI_DRIVER_CONFIGURATION2_PROTOCOL instance.
ControllerHandle	The handle of the controller to set options on.
ChildHandle	The handle of the child controller to set options on. This is an optional parameter that may be NULL. It will be NULL for device drivers, and for bus drivers that wish to set options for the bus controller. It will not be NULL for a bus driver that wishes to set options for one of its child controllers.
Language	A Null-terminated ASCII string that contains one or more RFC 4646 language codes. This is the list of language codes that this protocol supports. The number of languages supported by a driver is up to the driver writer.
ActionRequired	A pointer to the action that the calling agent is required to perform when this function returns. See "Related Definitions" for a list of the actions that the calling agent is required to perform prior to accessing ControllerHandle again.

Return values

EFI_SUCCESS	The driver specified by This successfully set the configuration options for the controller specified by ControllerHandle.
EFI_INVALID_PARAMETER	ControllerHandle is not a valid EFI_HANDLE.
EFI_INVALID_PARAMETER	ChildHandle is not NULL and it is not a valid EFI_HANDLE.
EFI_INVALID_PARAMETER	ActionRequired is NULL.
EFI_UNSUPPORTED	The driver specified by This does not support setting configuration options for the controller specified by ControllerHandle and ChildHandle.
EFI_UNSUPPORTED	The driver specified by This does not support the language specified by Language.
EFI_DEVICE_ERROR	A device error occurred while attempting to set the configuration options for the controller specified by ControllerHandle and ChildHandle.
EFI_OUT_RESOURCES	There are not enough resources available to set the configuration options for the controller specified by ControllerHandle and ChildHandle.

Enumeration Type Documentation

EFI_DRIVER_CONFIGURATION_ACTION_REQUIRED

enum EFI_DRIVER_CONFIGURATION_ACTION_REQUIRED

Enumerator
EfiDriverConfigurationActionNone	The controller is still in a usable state. No actions are required before this controller can be used again.
EfiDriverConfigurationActionStopController	The driver has detected that the controller is not in a usable state, and it needs to be stopped.
EfiDriverConfigurationActionRestartController	This controller needs to be stopped and restarted before it can be used again.
EfiDriverConfigurationActionRestartPlatform	A configuration change has been made that requires the platform to be restarted before the controller can be used again.
EfiDriverConfigurationActionMaximum

Variable Documentation

gEfiDriverConfiguration2ProtocolGuid

EFI_GUID gEfiDriverConfiguration2ProtocolGuid

extern
