xhci.h File Reference

#include <stdint.h>
#include <list.h>

Include dependency graph for xhci.h:

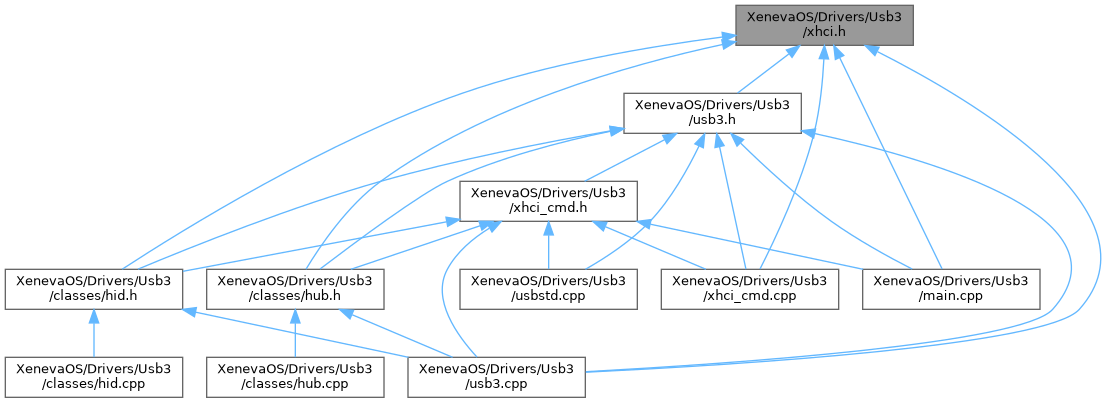

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	_xhci_cap_regs_
struct	_xhci_op_regs_
struct	_xhci_intr_reg_
struct	_xhci_runtime_regs_
struct	_xhci_doorbell_
struct	_xhci_trb_
struct	_xhci_ex_cap_
struct	_xhci_port_reg_
struct	_endp_
struct	_xhci_slot_
struct	_xhci_event_trb_
struct	_xhci_link_trb_
struct	_xhci_setup_trb_t_
struct	_xhci_data_trb_
struct	_xhci_status_trb_
struct	_xhci_ex_cap_protocol_
struct	_xhci_noop_trb_
struct	_xhci_erst_
struct	_xhci_input_ctx_

Macros
#define	XHCI_USB_CMD_INTE   (1<<2)
#define	XHCI_USB_CMD_HSEE   (1<<3)
#define	XHCI_USB_STS_HCH   (1<<0)
#define	XHCI_USB_STS_HSE   (1<<2)
#define	XHCI_USB_STS_EINT   (1<<3)
#define	XHCI_USB_STS_PCD   (1<<4)
#define	XHCI_USB_STS_SSS   (1<<8)
#define	XHCI_USB_STS_RSS   (1<<9)
#define	XHCI_USB_STS_SRE   (1<<10)
#define	XHCI_USB_STS_CNR   (1<<11)
#define	XHCI_USB_STS_HCE   (1<<12)
#define	XHCI_USB_CFG_MXSLOT_ENABLE   0xFF
#define	XHCI_USB_CFG_U3_EN   (1<<8)
#define	XHCI_USB_CFG_CINFO_EN   (1 << 9)
#define	XHCI_USB_CCR_RCS   (1<<0)
#define	XHCI_USB_CCR_CS   (1<<1)
#define	XHCI_USB_CCR_CA   (1<<2)
#define	XHCI_USB_CCR_CRR   (1<<3)
#define	XHCI_USB_CCR_PTR_LO   0xFFFFFFC0
#define	XCHI_USB_CCR_PTR   0xFFFFFFFFFFFFFFC0
#define	XHCI_PORTSC_CCS   (1<<0)
#define	XHCI_PORTSC_PED   (1<<1)
#define	XHCI_PORTSC_OCA   (1<<3)
#define	XHCI_PORTSC_PR   (1<<4)
#define	XHCI_PORTSC_PP   (1<<9)
#define	XHCI_PORTSC_CSC   (1<<17)
#define	XHCI_PORTSC_PEC   (1<<18)
#define	XHCI_PORTSC_PRC   (1<<21)
#define	XHCI_PORTSC_WPR   (1<<31)
#define	XHCI_INT_ERDP_BUSY   (1<<3)
#define	XHCI_TRB_SIZE   16
#define	XHCI_EVENT_RING_SEG_TBL_ENTRY_SIZE   16
#define	XHCI_TRB_ENT   0x200000000
#define	XHCI_TRB_ISP   0x400000000
#define	XHCI_TRB_IOC   0x2000000000
#define	XHCI_TRB_IDT   0x4000000000
#define	XHCI_TRB_TRT(x)   ((uint64_t)x << 48)
#define	XHCI_TRB_DIR_IN   ((uint64_t)1 << 48)
#define	XHCI_DOORBELL_ENDPOINT_0   1
#define	XHCI_DOORBELL_ENDPOINT_1   2
#define	USB_SPEED_RESERVED   0
#define	USB_FULL_SPEED   1
#define	USB_LOW_SPEED   2
#define	USB_HIGH_SPEED   3
#define	USB_SUPER_SPEED   4
#define	USB_SUPER_SPEED_PLUS   5

Typedefs
typedef void(*	endpoint_callback) (void *dev, void *slot, void *Endp)
typedef struct _xhci_cap_regs_	xhci_cap_regs_t
typedef struct _xhci_op_regs_	xhci_op_regs_t
typedef struct _xhci_intr_reg_	xhci_interrupter_reg_t
typedef struct _xhci_runtime_regs_	xhci_runtime_regs_t
typedef struct _xhci_doorbell_	xhci_doorbell_regs_t
typedef struct _xhci_trb_	xhci_trb_t
typedef struct _xhci_ex_cap_	xhci_ext_cap_t
typedef struct _xhci_port_reg_	xhci_port_regs_t
typedef struct _endp_	XHCIEndpoint
typedef struct _xhci_slot_	XHCISlot
typedef struct _xhci_event_trb_	xhci_event_trb_t
typedef struct _xhci_link_trb_	xhci_link_trb_t
typedef struct _xhci_setup_trb_t_	xhci_setup_trb_t
typedef struct _xhci_data_trb_	xhci_data_trb_t
typedef struct _xhci_status_trb_	xhci_status_trb_t
typedef struct _xhci_ex_cap_protocol_	xhci_ex_cap_protocol_t
typedef struct _xhci_noop_trb_	xhci_noop_cmd_trb_t
typedef struct _xhci_erst_	xhci_erst_t
typedef struct _xhci_input_ctx_	XHCIInputContext

Macro Definition Documentation

USB_FULL_SPEED

#define USB_FULL_SPEED   1

USB_HIGH_SPEED

#define USB_HIGH_SPEED   3

USB_LOW_SPEED

#define USB_LOW_SPEED   2

USB_SPEED_RESERVED

#define USB_SPEED_RESERVED   0

USB_SUPER_SPEED

#define USB_SUPER_SPEED   4

USB_SUPER_SPEED_PLUS

#define USB_SUPER_SPEED_PLUS   5

XCHI_USB_CCR_PTR

#define XCHI_USB_CCR_PTR   0xFFFFFFFFFFFFFFC0

XHCI_DOORBELL_ENDPOINT_0

#define XHCI_DOORBELL_ENDPOINT_0   1

XHCI_DOORBELL_ENDPOINT_1

#define XHCI_DOORBELL_ENDPOINT_1   2

XHCI_EVENT_RING_SEG_TBL_ENTRY_SIZE

#define XHCI_EVENT_RING_SEG_TBL_ENTRY_SIZE   16

XHCI_INT_ERDP_BUSY

#define XHCI_INT_ERDP_BUSY   (1<<3)

XHCI_PORTSC_CCS

#define XHCI_PORTSC_CCS   (1<<0)

XHCI_PORTSC_CSC

#define XHCI_PORTSC_CSC   (1<<17)

XHCI_PORTSC_OCA

#define XHCI_PORTSC_OCA   (1<<3)

XHCI_PORTSC_PEC

#define XHCI_PORTSC_PEC   (1<<18)

XHCI_PORTSC_PED

#define XHCI_PORTSC_PED   (1<<1)

XHCI_PORTSC_PP

#define XHCI_PORTSC_PP   (1<<9)

XHCI_PORTSC_PR

#define XHCI_PORTSC_PR   (1<<4)

XHCI_PORTSC_PRC

#define XHCI_PORTSC_PRC   (1<<21)

XHCI_PORTSC_WPR

#define XHCI_PORTSC_WPR   (1<<31)

XHCI_TRB_DIR_IN

#define XHCI_TRB_DIR_IN   ((uint64_t)1 << 48)

XHCI_TRB_ENT

#define XHCI_TRB_ENT   0x200000000

XHCI_TRB_IDT

#define XHCI_TRB_IDT   0x4000000000

XHCI_TRB_IOC

#define XHCI_TRB_IOC   0x2000000000

XHCI_TRB_ISP

#define XHCI_TRB_ISP   0x400000000

XHCI_TRB_SIZE

#define XHCI_TRB_SIZE   16

XHCI_TRB_TRT

#define XHCI_TRB_TRT

(

x

)

((uint64_t)x << 48)

XHCI_USB_CCR_CA

#define XHCI_USB_CCR_CA   (1<<2)

XHCI_USB_CCR_CRR

#define XHCI_USB_CCR_CRR   (1<<3)

XHCI_USB_CCR_CS

#define XHCI_USB_CCR_CS   (1<<1)

XHCI_USB_CCR_PTR_LO

#define XHCI_USB_CCR_PTR_LO   0xFFFFFFC0

XHCI_USB_CCR_RCS

#define XHCI_USB_CCR_RCS   (1<<0)

XHCI_USB_CFG_CINFO_EN

#define XHCI_USB_CFG_CINFO_EN   (1 << 9)

XHCI_USB_CFG_MXSLOT_ENABLE

#define XHCI_USB_CFG_MXSLOT_ENABLE   0xFF

XHCI_USB_CFG_U3_EN

#define XHCI_USB_CFG_U3_EN   (1<<8)

XHCI_USB_CMD_HSEE

#define XHCI_USB_CMD_HSEE   (1<<3)

XHCI_USB_CMD_INTE

#define XHCI_USB_CMD_INTE   (1<<2)
