Fat.h File Reference

#include <stdint.h>
#include <Fs/vdisk.h>
#include <Fs/vfs.h>

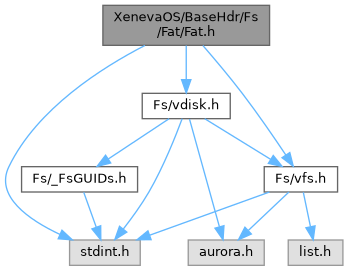

Include dependency graph for Fat.h:

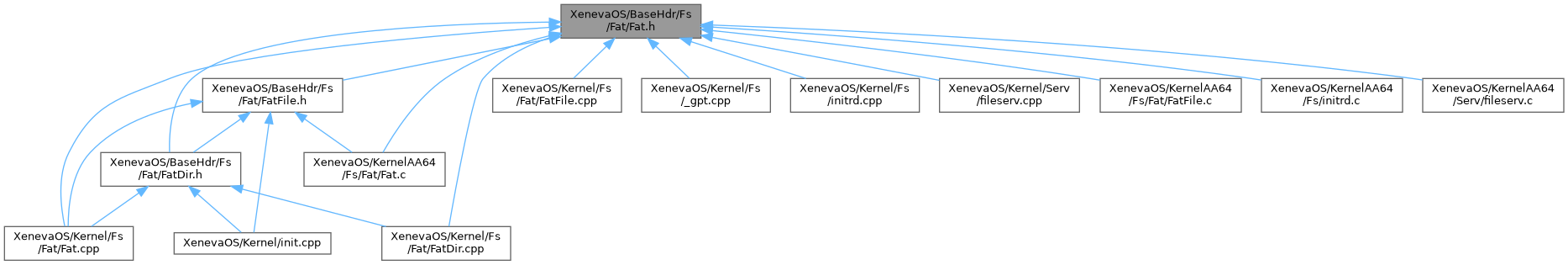

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	_FAT_BPB_
struct	_fat_dir_
struct	_fat_lfn_
struct	_FatFS_

Macros
#define	FAT_ATTRIBUTE_MASK   0x3F
#define	FAT_ATTRIBUTE_READ_ONLY   0x01
#define	FAT_ATTRIBUTE_HIDDEN   0x02
#define	FAT_ATTRIBUTE_SYSTEM   0x04
#define	FAT_ATTRIBUTE_VOLUME   0x08
#define	FAT_ATTRIBUTE_DIRECTORY   0x10
#define	FAT_ATTRIBUTE_ARCHIVE   0x20
#define	FAT_ATTRIBUTE_LONG_NAME   0x0F
#define	FAT_EOC_MARK   0xFFFFFFF8
#define	FAT_BAD_CLUSTER   0xFFFFFFF7
#define	FSTYPE_FAT12   1
#define	FSTYPE_FAT16   2
#define	FSTYPE_FAT32   3

Typedefs
typedef struct _FAT_BPB_	FatBPB
typedef struct _fat_dir_	FatDir
typedef struct _fat_lfn_	FatLFN
typedef struct _FatFS_	FatFS

Functions
AuVFSNode *	FatInitialise (AuVDisk *vdisk, char *mountpoint)
uint64_t	FatClusterToSector32 (FatFS *fs, uint64_t cluster)
void	FatToDOSFilename (const char *filename, char *fname, unsigned int fname_length)
uint8_t	FatCalculateCheckSum (uint8_t *filename)
uint8_t	FatCheckDotCount (char *filename)
uint32_t	FatFindFreeCluster (AuVFSNode *node)
void	FatAllocCluster (AuVFSNode *fsys, int position, uint32_t n_value)
void	FatClearCluster (AuVFSNode *node, uint32_t cluster)
uint32_t	FatReadFAT (AuVFSNode *node, uint64_t cluster_index)
AuVFSNode *	FatOpen (AuVFSNode *fsys, char *filename)
uint16_t	FatFormatDate ()
uint16_t	FatFormatTime ()
AuVFSNode *	FatLocateDir (AuVFSNode *fsys, const char *dir)
AuVFSNode *	FatLocateSubDir (AuVFSNode *fsys, AuVFSNode *kfile, const char *filename)
void	FatFromDosToFilename (char *filename, char *dirfname)

Macro Definition Documentation

FAT_ATTRIBUTE_ARCHIVE

#define FAT_ATTRIBUTE_ARCHIVE   0x20

FAT_ATTRIBUTE_DIRECTORY

#define FAT_ATTRIBUTE_DIRECTORY   0x10

FAT_ATTRIBUTE_HIDDEN

#define FAT_ATTRIBUTE_HIDDEN   0x02

FAT_ATTRIBUTE_LONG_NAME

#define FAT_ATTRIBUTE_LONG_NAME   0x0F

FAT_ATTRIBUTE_MASK

#define FAT_ATTRIBUTE_MASK   0x3F

BSD 2-Clause License

Copyright (c) 2022-2023, Manas Kamal Choudhury All rights reserved.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

FAT_ATTRIBUTE_READ_ONLY

#define FAT_ATTRIBUTE_READ_ONLY   0x01

FAT_ATTRIBUTE_SYSTEM

#define FAT_ATTRIBUTE_SYSTEM   0x04

FAT_ATTRIBUTE_VOLUME

#define FAT_ATTRIBUTE_VOLUME   0x08

FAT_BAD_CLUSTER

#define FAT_BAD_CLUSTER   0xFFFFFFF7

FAT_EOC_MARK

#define FAT_EOC_MARK   0xFFFFFFF8

FSTYPE_FAT12

#define FSTYPE_FAT12   1

FSTYPE_FAT16

#define FSTYPE_FAT16   2

FSTYPE_FAT32

#define FSTYPE_FAT32   3

Typedef Documentation

FatBPB

typedef struct _FAT_BPB_ FatBPB

FatDir

typedef struct _fat_dir_ FatDir

fat32_dir – 32 byte fat directory structure

FatFS

typedef struct _FatFS_ FatFS

FatLFN

typedef struct _fat_lfn_ FatLFN

Function Documentation

FatAllocCluster()

void FatAllocCluster ( AuVFSNode *  fsys, int  position, uint32_t  n_value  )

extern

FatCalculateCheckSum()

uint8_t FatCalculateCheckSum ( uint8_t *  filename )

extern

FatCheckDotCount()

uint8_t FatCheckDotCount ( char *  filename )

extern

FatClearCluster()

void FatClearCluster ( AuVFSNode *  node, uint32_t  cluster  )

extern

FatClearCluster – clears a cluster to 0

Parameters

cluster

– cluster to clear

FatClusterToSector32()

uint64_t FatClusterToSector32 ( FatFS *  fs, uint64_t  cluster  )

extern

FatFindFreeCluster()

uint32_t FatFindFreeCluster ( AuVFSNode *  node )

extern

FatFormatDate()

uint16_t FatFormatDate ( )

extern

FatFormatTime()

uint16_t FatFormatTime ( )

extern

FatFromDosToFilename()

void FatFromDosToFilename ( char *  filename, char *  dirfname  )

extern

FatInitialise()

AuVFSNode * FatInitialise ( AuVDisk *  vdisk, char *  mountpoint  )

extern

FatLocateDir()

AuVFSNode * FatLocateDir	(	AuVFSNode *	fsys,
		const char *	dir
	)

FatLocateSubDir()

AuVFSNode * FatLocateSubDir	(	AuVFSNode *	fsys,
		AuVFSNode *	kfile,
		const char *	filename
	)

FatOpen()

AuVFSNode * FatOpen ( AuVFSNode *  fsys, char *  filename  )

extern

any '\'s in path ?

nope, must be in root directory, search it

found file ?

unable to find

go to next character after first '\'

get pathname

if another '\' or end of line is reached, we are done

copy character

open subdirectory or file

search root dir – open pathname

search a sub directory instead for pathname

found directory or file?

find next '\'

found file?

unable to find

any '\'s in path ?

nope, must be in root directory, search it

found file ?

unable to find

go to next character after first '\'

get pathname

if another '\' or end of line is reached, we are done

copy character

open subdirectory or file

search root dir – open pathname

search a sub directory instead for pathname

found directory or file?

find next '\'

found file?

unable to find

FatReadFAT()

uint32_t FatReadFAT ( AuVFSNode *  node, uint64_t  cluster_index  )

extern

FatToDOSFilename()

void FatToDOSFilename ( const char *  filename, char *  fname, unsigned int  fname_length  )

extern

FatToDOSFilename – converts a given filename to MSDOS file name format

Parameters

filename	– filename for conversion
fname	– pointer to the buffer to store the conversion
fname_length	– manly 11 buffer[0-8] – filename, buffer[9-11] – file extension
