Hash.h File Reference

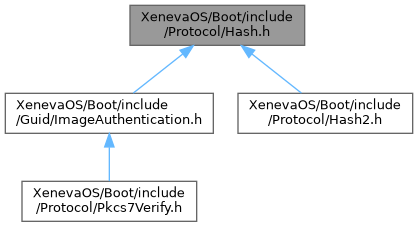

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes

union  EFI_HASH_OUTPUT

struct  _EFI_HASH_PROTOCOL


Macros

#define EFI_HASH_SERVICE_BINDING_PROTOCOL_GUID

#define EFI_HASH_PROTOCOL_GUID

#define EFI_HASH_ALGORITHM_SHA1_GUID

#define EFI_HASH_ALGORITHM_SHA224_GUID

#define EFI_HASH_ALGORITHM_SHA256_GUID

#define EFI_HASH_ALGORITHM_SHA384_GUID

#define EFI_HASH_ALGORITHM_SHA512_GUID

#define EFI_HASH_ALGORTIHM_MD5_GUID

#define EFI_HASH_ALGORITHM_SHA1_NOPAD_GUID

#define EFI_HASH_ALGORITHM_SHA256_NOPAD_GUID


Typedefs

typedef struct _EFI_HASH_PROTOCOL EFI_HASH_PROTOCOL

typedef UINT8 EFI_MD5_HASH[16]

typedef UINT8 EFI_SHA1_HASH[20]

typedef UINT8 EFI_SHA224_HASH[28]

typedef UINT8 EFI_SHA256_HASH[32]

typedef UINT8 EFI_SHA384_HASH[48]

typedef UINT8 EFI_SHA512_HASH[64]

typedef EFI_STATUS(EFIAPI * EFI_HASH_GET_HASH_SIZE) (IN CONST EFI_HASH_PROTOCOL *This, IN CONST EFI_GUID *HashAlgorithm, OUT UINTN *HashSize)

typedef EFI_STATUS(EFIAPI * EFI_HASH_HASH) (IN CONST EFI_HASH_PROTOCOL *This, IN CONST EFI_GUID *HashAlgorithm, IN BOOLEAN Extend, IN CONST UINT8 *Message, IN UINT64 MessageSize, IN OUT EFI_HASH_OUTPUT *Hash)


Variables

EFI_GUID gEfiHashServiceBindingProtocolGuid

EFI_GUID gEfiHashProtocolGuid

EFI_GUID gEfiHashAlgorithmSha1Guid

EFI_GUID gEfiHashAlgorithmSha224Guid

EFI_GUID gEfiHashAlgorithmSha256Guid

EFI_GUID gEfiHashAlgorithmSha384Guid

EFI_GUID gEfiHashAlgorithmSha512Guid

EFI_GUID gEfiHashAlgorithmMD5Guid

EFI_GUID gEfiHashAlgorithmSha1NoPadGuid

EFI_GUID gEfiHashAlgorithmSha256NoPadGuid


Detailed Description

EFI_HASH_SERVICE_BINDING_PROTOCOL as defined in UEFI 2.0. EFI_HASH_PROTOCOL as defined in UEFI 2.0. The EFI Hash Service Binding Protocol is used to locate hashing services support provided by a driver and to create and destroy instances of the EFI Hash Protocol so that a multiple drivers can use the underlying hashing services.

Copyright (c) 2006 - 2018, Intel Corporation. All rights reserved.
This program and the accompanying materials are licensed and made available under the terms and conditions of the BSD License that accompanies this distribution. The full text of the license may be found at http://opensource.org/licenses/bsd-license.php.

THE PROGRAM IS DISTRIBUTED UNDER THE BSD LICENSE ON AN "AS IS" BASIS, WITHOUT WARRANTIES OR REPRESENTATIONS OF ANY KIND, EITHER EXPRESS OR IMPLIED.

Macro Definition Documentation

◆ EFI_HASH_ALGORITHM_SHA1_GUID

#define EFI_HASH_ALGORITHM_SHA1_GUID
Value:
{ \
0x2ae9d80f, 0x3fb2, 0x4095, {0xb7, 0xb1, 0xe9, 0x31, 0x57, 0xb9, 0x46, 0xb6 } \
}

◆ EFI_HASH_ALGORITHM_SHA1_NOPAD_GUID

#define EFI_HASH_ALGORITHM_SHA1_NOPAD_GUID
Value:
{ \
0x24c5dc2f, 0x53e2, 0x40ca, {0x9e, 0xd6, 0xa5, 0xd9, 0xa4, 0x9f, 0x46, 0x3b } \
}

◆ EFI_HASH_ALGORITHM_SHA224_GUID

#define EFI_HASH_ALGORITHM_SHA224_GUID
Value:
{ \
0x8df01a06, 0x9bd5, 0x4bf7, {0xb0, 0x21, 0xdb, 0x4f, 0xd9, 0xcc, 0xf4, 0x5b } \
}

◆ EFI_HASH_ALGORITHM_SHA256_GUID

#define EFI_HASH_ALGORITHM_SHA256_GUID
Value:
{ \
0x51aa59de, 0xfdf2, 0x4ea3, {0xbc, 0x63, 0x87, 0x5f, 0xb7, 0x84, 0x2e, 0xe9 } \
}

◆ EFI_HASH_ALGORITHM_SHA256_NOPAD_GUID

#define EFI_HASH_ALGORITHM_SHA256_NOPAD_GUID
Value:
{ \
0x8628752a, 0x6cb7, 0x4814, {0x96, 0xfc, 0x24, 0xa8, 0x15, 0xac, 0x22, 0x26 } \
}

◆ EFI_HASH_ALGORITHM_SHA384_GUID

#define EFI_HASH_ALGORITHM_SHA384_GUID
Value:
{ \
0xefa96432, 0xde33, 0x4dd2, {0xae, 0xe6, 0x32, 0x8c, 0x33, 0xdf, 0x77, 0x7a } \
}

◆ EFI_HASH_ALGORITHM_SHA512_GUID

#define EFI_HASH_ALGORITHM_SHA512_GUID
Value:
{ \
0xcaa4381e, 0x750c, 0x4770, {0xb8, 0x70, 0x7a, 0x23, 0xb4, 0xe4, 0x21, 0x30 } \
}

◆ EFI_HASH_ALGORTIHM_MD5_GUID

#define EFI_HASH_ALGORTIHM_MD5_GUID
Value:
{ \
0xaf7c79c, 0x65b5, 0x4319, {0xb0, 0xae, 0x44, 0xec, 0x48, 0x4e, 0x4a, 0xd7 } \
}

◆ EFI_HASH_PROTOCOL_GUID

#define EFI_HASH_PROTOCOL_GUID
Value:
{ \
0xc5184932, 0xdba5, 0x46db, {0xa5, 0xba, 0xcc, 0x0b, 0xda, 0x9c, 0x14, 0x35 } \
}

◆ EFI_HASH_SERVICE_BINDING_PROTOCOL_GUID

#define EFI_HASH_SERVICE_BINDING_PROTOCOL_GUID
Value:
{ \
0x42881c98, 0xa4f3, 0x44b0, {0xa3, 0x9d, 0xdf, 0xa1, 0x86, 0x67, 0xd8, 0xcd } \
}

Typedef Documentation

◆ EFI_HASH_GET_HASH_SIZE

typedef EFI_STATUS(EFIAPI * EFI_HASH_GET_HASH_SIZE) (IN CONST EFI_HASH_PROTOCOL *This, IN CONST EFI_GUID *HashAlgorithm, OUT UINTN *HashSize)

Returns the size of the hash which results from a specific algorithm.

Parameters
[in]ThisPoints to this instance of EFI_HASH_PROTOCOL.
[in]HashAlgorithmPoints to the EFI_GUID which identifies the algorithm to use.
[out]HashSizeHolds the returned size of the algorithm's hash.
Return values
EFI_SUCCESSHash size returned successfully.
EFI_INVALID_PARAMETERHashSize is NULL or HashAlgorithm is NULL.
EFI_UNSUPPORTEDThe algorithm specified by HashAlgorithm is not supported by this driver.

◆ EFI_HASH_HASH

typedef EFI_STATUS(EFIAPI * EFI_HASH_HASH) (IN CONST EFI_HASH_PROTOCOL *This, IN CONST EFI_GUID *HashAlgorithm, IN BOOLEAN Extend, IN CONST UINT8 *Message, IN UINT64 MessageSize, IN OUT EFI_HASH_OUTPUT *Hash)

Creates a hash for the specified message text.

Parameters
[in]ThisPoints to this instance of EFI_HASH_PROTOCOL.
[in]HashAlgorithmPoints to the EFI_GUID which identifies the algorithm to use.
[in]ExtendSpecifies whether to create a new hash (FALSE) or extend the specified existing hash (TRUE).
[in]MessagePoints to the start of the message.
[in]MessageSizeThe size of Message, in bytes.
[in,out]HashOn input, if Extend is TRUE, then this parameter holds a pointer to a pointer to an array containing the hash to extend. If Extend is FALSE, then this parameter holds a pointer to a pointer to a caller-allocated array that will receive the result of the hash computation. On output (regardless of the value of Extend), the array will contain the result of the hash computation.
Return values
EFI_SUCCESSHash returned successfully.
EFI_INVALID_PARAMETERMessage or Hash, HashAlgorithm is NULL or MessageSize is 0. MessageSize is not an integer multiple of block size.
EFI_UNSUPPORTEDThe algorithm specified by HashAlgorithm is not supported by this driver. Or, Extend is TRUE, and the algorithm doesn't support extending the hash.

◆ EFI_HASH_PROTOCOL

typedef struct _EFI_HASH_PROTOCOL EFI_HASH_PROTOCOL

◆ EFI_MD5_HASH

typedef UINT8 EFI_MD5_HASH[16]

◆ EFI_SHA1_HASH

typedef UINT8 EFI_SHA1_HASH[20]

◆ EFI_SHA224_HASH

typedef UINT8 EFI_SHA224_HASH[28]

◆ EFI_SHA256_HASH

typedef UINT8 EFI_SHA256_HASH[32]

◆ EFI_SHA384_HASH

typedef UINT8 EFI_SHA384_HASH[48]

◆ EFI_SHA512_HASH

typedef UINT8 EFI_SHA512_HASH[64]

Variable Documentation

◆ gEfiHashAlgorithmMD5Guid

EFI_GUID gEfiHashAlgorithmMD5Guid
extern

◆ gEfiHashAlgorithmSha1Guid

EFI_GUID gEfiHashAlgorithmSha1Guid
extern

◆ gEfiHashAlgorithmSha1NoPadGuid

EFI_GUID gEfiHashAlgorithmSha1NoPadGuid
extern

◆ gEfiHashAlgorithmSha224Guid

EFI_GUID gEfiHashAlgorithmSha224Guid
extern

◆ gEfiHashAlgorithmSha256Guid

EFI_GUID gEfiHashAlgorithmSha256Guid
extern

◆ gEfiHashAlgorithmSha256NoPadGuid

EFI_GUID gEfiHashAlgorithmSha256NoPadGuid
extern

◆ gEfiHashAlgorithmSha384Guid

EFI_GUID gEfiHashAlgorithmSha384Guid
extern

◆ gEfiHashAlgorithmSha512Guid

EFI_GUID gEfiHashAlgorithmSha512Guid
extern

◆ gEfiHashProtocolGuid

EFI_GUID gEfiHashProtocolGuid
extern

◆ gEfiHashServiceBindingProtocolGuid

EFI_GUID gEfiHashServiceBindingProtocolGuid
extern
