#include <IndustryStandard/Acpi.h>

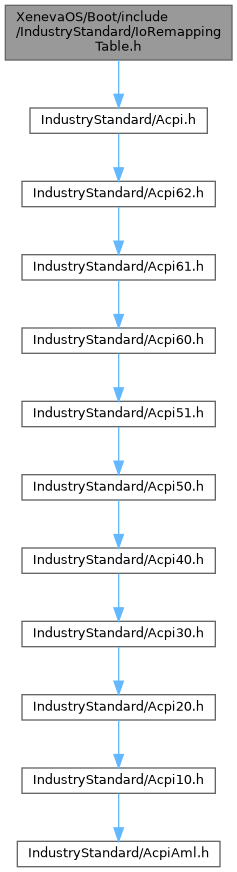

Include dependency graph for IoRemappingTable.h:

Classes
struct	EFI_ACPI_6_0_IO_REMAPPING_TABLE

struct	EFI_ACPI_6_0_IO_REMAPPING_ID_TABLE

struct	EFI_ACPI_6_0_IO_REMAPPING_NODE

struct	EFI_ACPI_6_0_IO_REMAPPING_ITS_NODE

struct	EFI_ACPI_6_0_IO_REMAPPING_RC_NODE

struct	EFI_ACPI_6_0_IO_REMAPPING_NAMED_COMP_NODE

struct	EFI_ACPI_6_0_IO_REMAPPING_SMMU_INT

struct	EFI_ACPI_6_0_IO_REMAPPING_SMMU_NODE

struct	EFI_ACPI_6_0_IO_REMAPPING_SMMU3_NODE

struct	EFI_ACPI_6_0_IO_REMAPPING_PMCG_NODE

Macros
#define	EFI_ACPI_IO_REMAPPING_TABLE_REVISION 0x0

#define	EFI_ACPI_IORT_TYPE_ITS_GROUP 0x0

#define	EFI_ACPI_IORT_TYPE_NAMED_COMP 0x1

#define	EFI_ACPI_IORT_TYPE_ROOT_COMPLEX 0x2

#define	EFI_ACPI_IORT_TYPE_SMMUv1v2 0x3

#define	EFI_ACPI_IORT_TYPE_SMMUv3 0x4

#define	EFI_ACPI_IORT_TYPE_PMCG 0x5

#define	EFI_ACPI_IORT_MEM_ACCESS_PROP_CCA BIT0

#define	EFI_ACPI_IORT_MEM_ACCESS_PROP_AH_TR BIT0

#define	EFI_ACPI_IORT_MEM_ACCESS_PROP_AH_WA BIT1

#define	EFI_ACPI_IORT_MEM_ACCESS_PROP_AH_RA BIT2

#define	EFI_ACPI_IORT_MEM_ACCESS_PROP_AH_AHO BIT3

#define	EFI_ACPI_IORT_MEM_ACCESS_FLAGS_CPM BIT0

#define	EFI_ACPI_IORT_MEM_ACCESS_FLAGS_DACS BIT1

#define	EFI_ACPI_IORT_SMMUv1v2_MODEL_v1 0x0

#define	EFI_ACPI_IORT_SMMUv1v2_MODEL_v2 0x1

#define	EFI_ACPI_IORT_SMMUv1v2_MODEL_MMU400 0x2

#define	EFI_ACPI_IORT_SMMUv1v2_MODEL_MMU500 0x3

#define	EFI_ACPI_IORT_SMMUv1v2_MODEL_MMU401 0x4

#define	EFI_ACPI_IORT_SMMUv1v2_MODEL_CAVIUM_THX_v2 0x5

#define	EFI_ACPI_IORT_SMMUv1v2_FLAG_DVM BIT0

#define	EFI_ACPI_IORT_SMMUv1v2_FLAG_COH_WALK BIT1

#define	EFI_ACPI_IORT_SMMUv1v2_INT_FLAG_LEVEL 0x0

#define	EFI_ACPI_IORT_SMMUv1v2_INT_FLAG_EDGE 0x1

#define	EFI_ACPI_IORT_SMMUv3_FLAG_COHAC_OVERRIDE BIT0

#define	EFI_ACPI_IORT_SMMUv3_FLAG_HTTU_OVERRIDE BIT1

#define	EFI_ACPI_IORT_SMMUv3_FLAG_PROXIMITY_DOMAIN BIT3

#define	EFI_ACPI_IORT_SMMUv3_MODEL_GENERIC 0x0

#define	EFI_ACPI_IORT_SMMUv3_MODEL_HISILICON_HI161X 0x1

#define	EFI_ACPI_IORT_SMMUv3_MODEL_CAVIUM_CN99XX 0x2

#define	EFI_ACPI_IORT_ROOT_COMPLEX_ATS_UNSUPPORTED 0x0

#define	EFI_ACPI_IORT_ROOT_COMPLEX_ATS_SUPPORTED 0x1

#define	EFI_ACPI_IORT_ID_MAPPING_FLAGS_SINGLE BIT0

Detailed Description

ACPI IO Remapping Table (IORT) as specified in ARM spec DEN0049D

http://infocenter.arm.com/help/topic/com.arm.doc.den0049d/DEN0049D_IO_Remapping_Table.pdf

This program and the accompanying materials are licensed and made available under the terms and conditions of the BSD License which accompanies this distribution. The full text of the license may be found at http://opensource.org/licenses/bsd-license.php

THE PROGRAM IS DISTRIBUTED UNDER THE BSD LICENSE ON AN "AS IS" BASIS, WITHOUT WARRANTIES OR REPRESENTATIONS OF ANY KIND, EITHER EXPRESS OR IMPLIED.

Macro Definition Documentation

◆ EFI_ACPI_IO_REMAPPING_TABLE_REVISION

#define EFI_ACPI_IO_REMAPPING_TABLE_REVISION 0x0

◆ EFI_ACPI_IORT_ID_MAPPING_FLAGS_SINGLE

#define EFI_ACPI_IORT_ID_MAPPING_FLAGS_SINGLE BIT0

◆ EFI_ACPI_IORT_MEM_ACCESS_FLAGS_CPM

#define EFI_ACPI_IORT_MEM_ACCESS_FLAGS_CPM BIT0

◆ EFI_ACPI_IORT_MEM_ACCESS_FLAGS_DACS

#define EFI_ACPI_IORT_MEM_ACCESS_FLAGS_DACS BIT1

◆ EFI_ACPI_IORT_MEM_ACCESS_PROP_AH_AHO

#define EFI_ACPI_IORT_MEM_ACCESS_PROP_AH_AHO BIT3

◆ EFI_ACPI_IORT_MEM_ACCESS_PROP_AH_RA

#define EFI_ACPI_IORT_MEM_ACCESS_PROP_AH_RA BIT2

◆ EFI_ACPI_IORT_MEM_ACCESS_PROP_AH_TR

#define EFI_ACPI_IORT_MEM_ACCESS_PROP_AH_TR BIT0

◆ EFI_ACPI_IORT_MEM_ACCESS_PROP_AH_WA

#define EFI_ACPI_IORT_MEM_ACCESS_PROP_AH_WA BIT1

◆ EFI_ACPI_IORT_MEM_ACCESS_PROP_CCA

#define EFI_ACPI_IORT_MEM_ACCESS_PROP_CCA BIT0

◆ EFI_ACPI_IORT_ROOT_COMPLEX_ATS_SUPPORTED

#define EFI_ACPI_IORT_ROOT_COMPLEX_ATS_SUPPORTED 0x1

◆ EFI_ACPI_IORT_ROOT_COMPLEX_ATS_UNSUPPORTED

#define EFI_ACPI_IORT_ROOT_COMPLEX_ATS_UNSUPPORTED 0x0

◆ EFI_ACPI_IORT_SMMUv1v2_FLAG_COH_WALK

#define EFI_ACPI_IORT_SMMUv1v2_FLAG_COH_WALK BIT1

◆ EFI_ACPI_IORT_SMMUv1v2_FLAG_DVM

#define EFI_ACPI_IORT_SMMUv1v2_FLAG_DVM BIT0

◆ EFI_ACPI_IORT_SMMUv1v2_INT_FLAG_EDGE

#define EFI_ACPI_IORT_SMMUv1v2_INT_FLAG_EDGE 0x1

◆ EFI_ACPI_IORT_SMMUv1v2_INT_FLAG_LEVEL

#define EFI_ACPI_IORT_SMMUv1v2_INT_FLAG_LEVEL 0x0

◆ EFI_ACPI_IORT_SMMUv1v2_MODEL_CAVIUM_THX_v2

#define EFI_ACPI_IORT_SMMUv1v2_MODEL_CAVIUM_THX_v2 0x5

◆ EFI_ACPI_IORT_SMMUv1v2_MODEL_MMU400

#define EFI_ACPI_IORT_SMMUv1v2_MODEL_MMU400 0x2

◆ EFI_ACPI_IORT_SMMUv1v2_MODEL_MMU401

#define EFI_ACPI_IORT_SMMUv1v2_MODEL_MMU401 0x4

◆ EFI_ACPI_IORT_SMMUv1v2_MODEL_MMU500

#define EFI_ACPI_IORT_SMMUv1v2_MODEL_MMU500 0x3

◆ EFI_ACPI_IORT_SMMUv1v2_MODEL_v1

#define EFI_ACPI_IORT_SMMUv1v2_MODEL_v1 0x0

◆ EFI_ACPI_IORT_SMMUv1v2_MODEL_v2

#define EFI_ACPI_IORT_SMMUv1v2_MODEL_v2 0x1

◆ EFI_ACPI_IORT_SMMUv3_FLAG_COHAC_OVERRIDE

#define EFI_ACPI_IORT_SMMUv3_FLAG_COHAC_OVERRIDE BIT0

◆ EFI_ACPI_IORT_SMMUv3_FLAG_HTTU_OVERRIDE

#define EFI_ACPI_IORT_SMMUv3_FLAG_HTTU_OVERRIDE BIT1

◆ EFI_ACPI_IORT_SMMUv3_FLAG_PROXIMITY_DOMAIN

#define EFI_ACPI_IORT_SMMUv3_FLAG_PROXIMITY_DOMAIN BIT3

◆ EFI_ACPI_IORT_SMMUv3_MODEL_CAVIUM_CN99XX

#define EFI_ACPI_IORT_SMMUv3_MODEL_CAVIUM_CN99XX 0x2

◆ EFI_ACPI_IORT_SMMUv3_MODEL_GENERIC

#define EFI_ACPI_IORT_SMMUv3_MODEL_GENERIC 0x0

◆ EFI_ACPI_IORT_SMMUv3_MODEL_HISILICON_HI161X

#define EFI_ACPI_IORT_SMMUv3_MODEL_HISILICON_HI161X 0x1

◆ EFI_ACPI_IORT_TYPE_ITS_GROUP

#define EFI_ACPI_IORT_TYPE_ITS_GROUP 0x0

◆ EFI_ACPI_IORT_TYPE_NAMED_COMP

#define EFI_ACPI_IORT_TYPE_NAMED_COMP 0x1

◆ EFI_ACPI_IORT_TYPE_PMCG

#define EFI_ACPI_IORT_TYPE_PMCG 0x5

◆ EFI_ACPI_IORT_TYPE_ROOT_COMPLEX

#define EFI_ACPI_IORT_TYPE_ROOT_COMPLEX 0x2

◆ EFI_ACPI_IORT_TYPE_SMMUv1v2

#define EFI_ACPI_IORT_TYPE_SMMUv1v2 0x3

◆ EFI_ACPI_IORT_TYPE_SMMUv3

#define EFI_ACPI_IORT_TYPE_SMMUv3 0x4
