#include <Pi/PiMmCis.h>

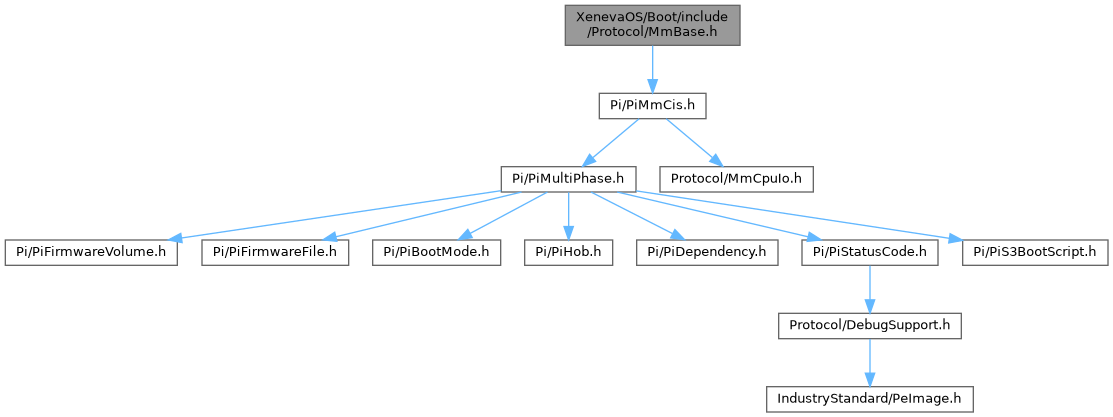

Include dependency graph for MmBase.h:

This graph shows which files directly or indirectly include this file:

Classes
struct	_EFI_MM_BASE_PROTOCOL

Macros
#define	EFI_MM_BASE_PROTOCOL_GUID

Typedefs
typedef struct _EFI_MM_BASE_PROTOCOL	EFI_MM_BASE_PROTOCOL

typedef EFI_STATUS(EFIAPI *	EFI_MM_INSIDE_OUT) (IN CONST EFI_MM_BASE_PROTOCOL This, OUT BOOLEAN InMmram)

typedef EFI_STATUS(EFIAPI *	EFI_MM_GET_MMST_LOCATION) (IN CONST EFI_MM_BASE_PROTOCOL This, IN OUT EFI_MM_SYSTEM_TABLE *Mmst)

Variables
EFI_GUID	gEfiMmBaseProtocolGuid

Detailed Description

EFI MM Base Protocol as defined in the PI 1.5 specification.

This protocol is utilized by all MM drivers to locate the MM infrastructure services and determine whether the driver is being invoked inside MMRAM or outside of MMRAM.

Copyright (c) 2017, Intel Corporation. All rights reserved.
This program and the accompanying materials are licensed and made available under the terms and conditions of the BSD License which accompanies this distribution. The full text of the license may be found at http://opensource.org/licenses/bsd-license.php

THE PROGRAM IS DISTRIBUTED UNDER THE BSD LICENSE ON AN "AS IS" BASIS, WITHOUT WARRANTIES OR REPRESENTATIONS OF ANY KIND, EITHER EXPRESS OR IMPLIED.

Macro Definition Documentation

◆ EFI_MM_BASE_PROTOCOL_GUID

#define EFI_MM_BASE_PROTOCOL_GUID

Value:

  { \
    0xf4ccbfb7, 0xf6e0, 0x47fd, {0x9d, 0xd4, 0x10, 0xa8, 0xf1, 0x50, 0xc1, 0x91 }  \
  }

Typedef Documentation

◆ EFI_MM_BASE_PROTOCOL

typedef struct _EFI_MM_BASE_PROTOCOL EFI_MM_BASE_PROTOCOL

◆ EFI_MM_GET_MMST_LOCATION

typedef EFI_STATUS(EFIAPI * EFI_MM_GET_MMST_LOCATION) (IN CONST EFI_MM_BASE_PROTOCOL *This, IN OUT EFI_MM_SYSTEM_TABLE **Mmst)

Returns the location of the Management Mode Service Table (MMST).

This function returns the location of the Management Mode Service Table (MMST). The use of the API is such that a driver can discover the location of the MMST in its entry point and then cache it in some driver global variable so that the MMST can be invoked in subsequent handlers.

Parameters

[in]	This	The EFI_MM_BASE_PROTOCOL instance.
[in,out]	Mmst	On return, points to a pointer to the Management Mode Service Table (MMST).

Return values

EFI_SUCCESS	The operation was successful.
EFI_INVALID_PARAMETER	Mmst was invalid.
EFI_UNSUPPORTED	Not in MM.

◆ EFI_MM_INSIDE_OUT

typedef EFI_STATUS(EFIAPI * EFI_MM_INSIDE_OUT) (IN CONST EFI_MM_BASE_PROTOCOL *This, OUT BOOLEAN *InMmram)

Service to indicate whether the driver is currently executing in the MM Initialization phase.

This service is used to indicate whether the driver is currently executing in the MM Initialization phase. For MM drivers, this will return TRUE in InMmram while inside the driver's entry point and otherwise FALSE. For combination MM/DXE drivers, this will return FALSE in the DXE launch. For the MM launch, it behaves as an MM driver.

Parameters

[in]	This	The EFI_MM_BASE_PROTOCOL instance.
[out]	InMmram	Pointer to a Boolean which, on return, indicates that the driver is currently executing inside of MMRAM (TRUE) or outside of MMRAM (FALSE).

Return values

EFI_SUCCESS	The call returned successfully.
EFI_INVALID_PARAMETER	InMmram was NULL.

Variable Documentation

◆ gEfiMmBaseProtocolGuid

EFI_GUID gEfiMmBaseProtocolGuid

extern
