#include <Pi/PiMmCis.h>

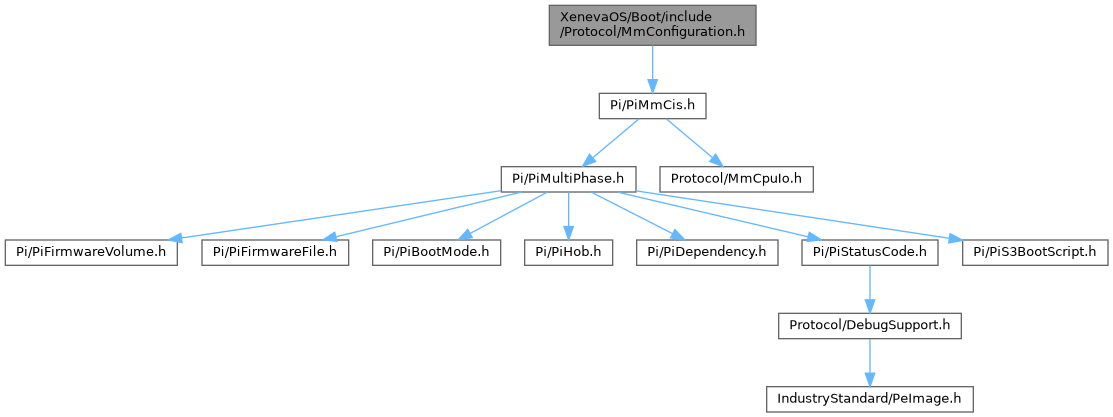

Include dependency graph for MmConfiguration.h:

This graph shows which files directly or indirectly include this file:

Classes
struct	_EFI_MM_RESERVED_MMRAM_REGION

struct	_EFI_MM_CONFIGURATION_PROTOCOL

Macros
#define	EFI_MM_CONFIGURATION_PROTOCOL_GUID

Typedefs
typedef struct _EFI_MM_RESERVED_MMRAM_REGION	EFI_MM_RESERVED_MMRAM_REGION

typedef struct _EFI_MM_CONFIGURATION_PROTOCOL	EFI_MM_CONFIGURATION_PROTOCOL

typedef EFI_STATUS(EFIAPI *	EFI_MM_REGISTER_MM_ENTRY) (IN CONST EFI_MM_CONFIGURATION_PROTOCOL *This, IN EFI_MM_ENTRY_POINT MmEntryPoint)

Variables
EFI_GUID	gEfiMmConfigurationProtocolGuid

Detailed Description

EFI MM Configuration Protocol as defined in the PI 1.5 specification.

This protocol is used to: 1) report the portions of MMRAM regions which cannot be used for the MMRAM heap. 2) register the MM Foundation entry point with the processor code. The entry point will be invoked by the MM processor entry code.

Copyright (c) 2017, Intel Corporation. All rights reserved.
This program and the accompanying materials are licensed and made available under the terms and conditions of the BSD License which accompanies this distribution. The full text of the license may be found at http://opensource.org/licenses/bsd-license.php

THE PROGRAM IS DISTRIBUTED UNDER THE BSD LICENSE ON AN "AS IS" BASIS, WITHOUT WARRANTIES OR REPRESENTATIONS OF ANY KIND, EITHER EXPRESS OR IMPLIED.

Macro Definition Documentation

◆ EFI_MM_CONFIGURATION_PROTOCOL_GUID

#define EFI_MM_CONFIGURATION_PROTOCOL_GUID

Value:

  { \
    0x26eeb3de, 0xb689, 0x492e, {0x80, 0xf0, 0xbe, 0x8b, 0xd7, 0xda, 0x4b, 0xa7 }  \
  }

Typedef Documentation

◆ EFI_MM_CONFIGURATION_PROTOCOL

typedef struct _EFI_MM_CONFIGURATION_PROTOCOL EFI_MM_CONFIGURATION_PROTOCOL

◆ EFI_MM_REGISTER_MM_ENTRY

typedef EFI_STATUS(EFIAPI * EFI_MM_REGISTER_MM_ENTRY) (IN CONST EFI_MM_CONFIGURATION_PROTOCOL *This, IN EFI_MM_ENTRY_POINT MmEntryPoint)

Register the MM Foundation entry point.

This function registers the MM Foundation entry point with the processor code. This entry point will be invoked by the MM Processor entry code.

Parameters

[in]	This	The EFI_MM_CONFIGURATION_PROTOCOL instance.
[in]	MmEntryPoint	MM Foundation entry point.

Return values

EFI_SUCCESS	Success to register MM Entry Point.
EFI_INVALID_PARAMETER	MmEntryPoint is NULL.

◆ EFI_MM_RESERVED_MMRAM_REGION

typedef struct _EFI_MM_RESERVED_MMRAM_REGION EFI_MM_RESERVED_MMRAM_REGION

Structure describing a MMRAM region which cannot be used for the MMRAM heap.

Variable Documentation

◆ gEfiMmConfigurationProtocolGuid

EFI_GUID gEfiMmConfigurationProtocolGuid

extern
