#include <PiDxe.h>

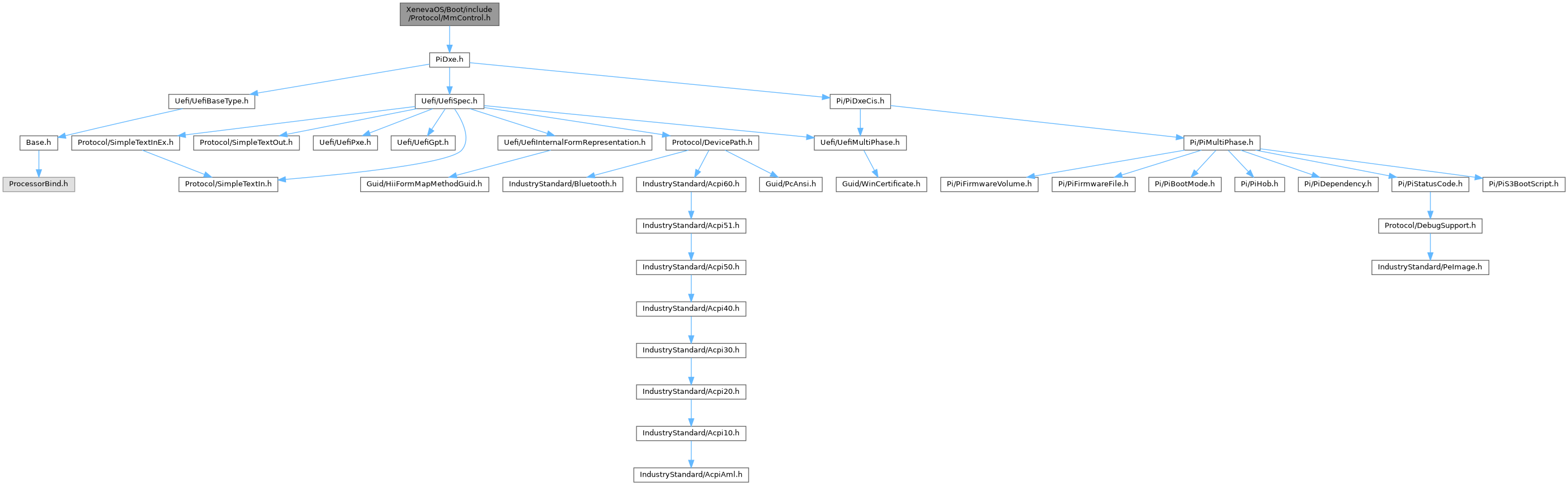

Include dependency graph for MmControl.h:

This graph shows which files directly or indirectly include this file:

Classes
struct	_EFI_MM_CONTROL_PROTOCOL

Macros
#define	EFI_MM_CONTROL_PROTOCOL_GUID

Typedefs
typedef struct _EFI_MM_CONTROL_PROTOCOL	EFI_MM_CONTROL_PROTOCOL

typedef UINTN	EFI_MM_PERIOD

typedef EFI_STATUS(EFIAPI *	EFI_MM_ACTIVATE) (IN CONST EFI_MM_CONTROL_PROTOCOL This, IN OUT UINT8 CommandPort OPTIONAL, IN OUT UINT8 *DataPort OPTIONAL, IN BOOLEAN Periodic OPTIONAL, IN UINTN ActivationInterval OPTIONAL)

typedef EFI_STATUS(EFIAPI *	EFI_MM_DEACTIVATE) (IN CONST EFI_MM_CONTROL_PROTOCOL *This, IN BOOLEAN Periodic OPTIONAL)

Variables
EFI_GUID	gEfiMmControlProtocolGuid

Detailed Description

EFI MM Control Protocol as defined in the PI 1.5 specification.

This protocol is used initiate synchronous MMI activations. This protocol could be published by a processor driver to abstract the MMI IPI or a driver which abstracts the ASIC that is supporting the APM port. Because of the possibility of performing MMI IPI transactions, the ability to generate this event from a platform chipset agent is an optional capability for both IA-32 and x64-based systems.

The EFI_MM_CONTROL_PROTOCOL is produced by a runtime driver. It provides an abstraction of the platform hardware that generates an MMI. There are often I/O ports that, when accessed, will generate the MMI. Also, the hardware optionally supports the periodic generation of these signals.

Copyright (c) 2017, Intel Corporation. All rights reserved.
This program and the accompanying materials are licensed and made available under the terms and conditions of the BSD License which accompanies this distribution. The full text of the license may be found at http://opensource.org/licenses/bsd-license.php

THE PROGRAM IS DISTRIBUTED UNDER THE BSD LICENSE ON AN "AS IS" BASIS, WITHOUT WARRANTIES OR REPRESENTATIONS OF ANY KIND, EITHER EXPRESS OR IMPLIED.

Macro Definition Documentation

◆ EFI_MM_CONTROL_PROTOCOL_GUID

#define EFI_MM_CONTROL_PROTOCOL_GUID

Value:

  { \
    0x843dc720, 0xab1e, 0x42cb, {0x93, 0x57, 0x8a, 0x0, 0x78, 0xf3, 0x56, 0x1b}  \
  }

Typedef Documentation

◆ EFI_MM_ACTIVATE

typedef EFI_STATUS(EFIAPI * EFI_MM_ACTIVATE) (IN CONST EFI_MM_CONTROL_PROTOCOL *This, IN OUT UINT8 *CommandPort OPTIONAL, IN OUT UINT8 *DataPort OPTIONAL, IN BOOLEAN Periodic OPTIONAL, IN UINTN ActivationInterval OPTIONAL)

Invokes MMI activation from either the preboot or runtime environment.

This function generates an MMI.

Parameters

[in]	This	The EFI_MM_CONTROL_PROTOCOL instance.
[in,out]	CommandPort	The value written to the command port.
[in,out]	DataPort	The value written to the data port.
[in]	Periodic	Optional mechanism to engender a periodic stream.
[in]	ActivationInterval	Optional parameter to repeat at this period one time or, if the Periodic Boolean is set, periodically.

Return values

EFI_SUCCESS	The MMI/PMI has been engendered.
EFI_DEVICE_ERROR	The timing is unsupported.
EFI_INVALID_PARAMETER	The activation period is unsupported.
EFI_INVALID_PARAMETER	The last periodic activation has not been cleared.
EFI_NOT_STARTED	The MM base service has not been initialized.

◆ EFI_MM_CONTROL_PROTOCOL

typedef struct _EFI_MM_CONTROL_PROTOCOL EFI_MM_CONTROL_PROTOCOL

◆ EFI_MM_DEACTIVATE

typedef EFI_STATUS(EFIAPI * EFI_MM_DEACTIVATE) (IN CONST EFI_MM_CONTROL_PROTOCOL *This, IN BOOLEAN Periodic OPTIONAL)

Clears any system state that was created in response to the Trigger() call.

This function acknowledges and causes the deassertion of the MMI activation source.

Parameters

[in]	This	The EFI_MM_CONTROL_PROTOCOL instance.
[in]	Periodic	Optional parameter to repeat at this period one time

Return values

EFI_SUCCESS	The MMI/PMI has been engendered.
EFI_DEVICE_ERROR	The source could not be cleared.
EFI_INVALID_PARAMETER	The service did not support the Periodic input argument.

◆ EFI_MM_PERIOD

typedef UINTN EFI_MM_PERIOD

Variable Documentation

◆ gEfiMmControlProtocolGuid

EFI_GUID gEfiMmControlProtocolGuid

extern
