#include <Protocol/PciPlatform.h>

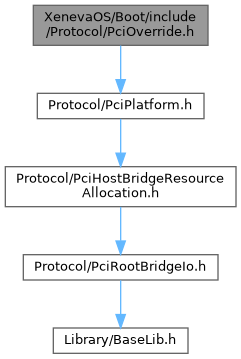

Include dependency graph for PciOverride.h:

Macros
#define	EFI_PCI_OVERRIDE_GUID

Typedefs
typedef EFI_PCI_PLATFORM_PROTOCOL	EFI_PCI_OVERRIDE_PROTOCOL

Variables
EFI_GUID	gEfiPciOverrideProtocolGuid

Detailed Description

This file declares EFI PCI Override protocol which provides the interface between the PCI bus driver/PCI Host Bridge Resource Allocation driver and an implementation's driver to describe the unique features of a platform. This protocol is optional.

Copyright (c) 2009, Intel Corporation. All rights reserved.
This program and the accompanying materials are licensed and made available under the terms and conditions of the BSD License which accompanies this distribution. The full text of the license may be found at http://opensource.org/licenses/bsd-license.php

THE PROGRAM IS DISTRIBUTED UNDER THE BSD LICENSE ON AN "AS IS" BASIS, WITHOUT WARRANTIES OR REPRESENTATIONS OF ANY KIND, EITHER EXPRESS OR IMPLIED.

Revision Reference:: This Protocol is defined in UEFI Platform Initialization Specification 1.2 Volume 5: Standards

Macro Definition Documentation

◆ EFI_PCI_OVERRIDE_GUID

#define EFI_PCI_OVERRIDE_GUID

Value:

  { \
    0xb5b35764, 0x460c, 0x4a06, {0x99, 0xfc, 0x77, 0xa1, 0x7c, 0x1b, 0x5c, 0xeb} \
  }

EFI_PCI_OVERRIDE_PROTOCOL has the same structure with EFI_PCI_PLATFORM_PROTOCOL Global ID for the EFI_PCI_OVERRIDE_PROTOCOL

Typedef Documentation

◆ EFI_PCI_OVERRIDE_PROTOCOL

typedef EFI_PCI_PLATFORM_PROTOCOL EFI_PCI_OVERRIDE_PROTOCOL

Declaration for EFI_PCI_OVERRIDE_PROTOCOL

Variable Documentation

◆ gEfiPciOverrideProtocolGuid

EFI_GUID gEfiPciOverrideProtocolGuid

extern
