#include <Pi/PiFirmwareVolume.h>
#include <Pi/PiFirmwareFile.h>
#include <Pi/PiBootMode.h>
#include <Pi/PiHob.h>
#include <Pi/PiDependency.h>
#include <Pi/PiStatusCode.h>
#include <Pi/PiS3BootScript.h>

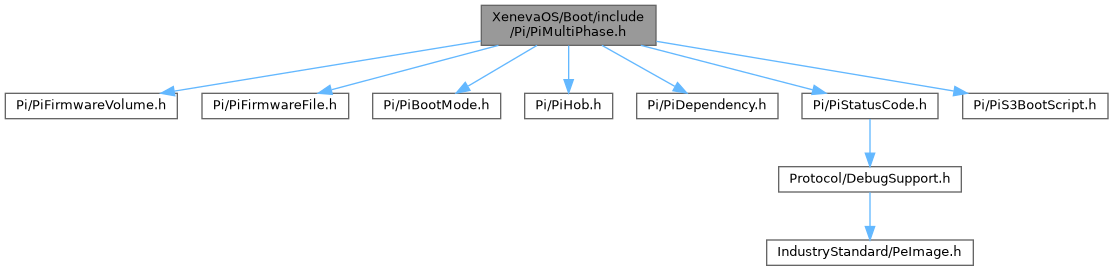

Include dependency graph for PiMultiPhase.h:

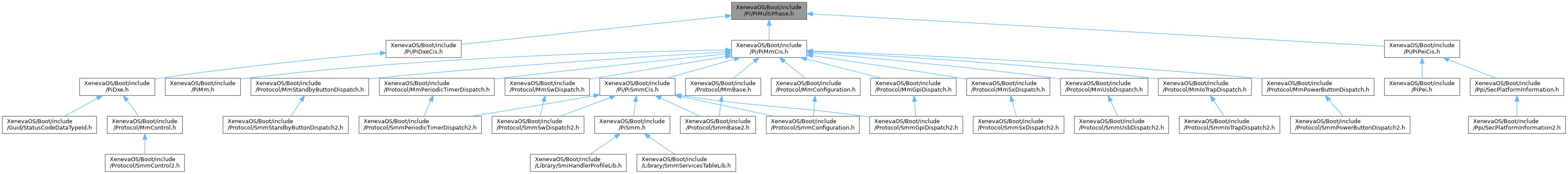

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	EFI_MMRAM_DESCRIPTOR

struct	EFI_PCD_INFO

Macros
#define	DXE_ERROR(StatusCode) (MAX_BIT \| (MAX_BIT >> 2) \| StatusCode)

#define	EFI_REQUEST_UNLOAD_IMAGE DXE_ERROR (1)

#define	EFI_NOT_AVAILABLE_YET DXE_ERROR (2)

#define	PI_ENCODE_WARNING(a) ((MAX_BIT >> 2) \| (a))

#define	PI_ENCODE_ERROR(a) (MAX_BIT \| (MAX_BIT >> 2) \| (a))

#define	EFI_INTERRUPT_PENDING PI_ENCODE_ERROR (0)

#define	EFI_WARN_INTERRUPT_SOURCE_PENDING PI_ENCODE_WARNING (0)

#define	EFI_WARN_INTERRUPT_SOURCE_QUIESCED PI_ENCODE_WARNING (1)

#define	EFI_MMRAM_OPEN 0x00000001

#define	EFI_MMRAM_CLOSED 0x00000002

#define	EFI_MMRAM_LOCKED 0x00000004

#define	EFI_CACHEABLE 0x00000008

#define	EFI_ALLOCATED 0x00000010

#define	EFI_NEEDS_TESTING 0x00000020

#define	EFI_NEEDS_ECC_INITIALIZATION 0x00000040

#define	EFI_SMRAM_OPEN EFI_MMRAM_OPEN

#define	EFI_SMRAM_CLOSED EFI_MMRAM_CLOSED

#define	EFI_SMRAM_LOCKED EFI_MMRAM_LOCKED


#define	EFI_AUTH_STATUS_PLATFORM_OVERRIDE 0x01

#define	EFI_AUTH_STATUS_IMAGE_SIGNED 0x02

#define	EFI_AUTH_STATUS_NOT_TESTED 0x04

#define	EFI_AUTH_STATUS_TEST_FAILED 0x08

#define	EFI_AUTH_STATUS_ALL 0x0f

Typedefs
typedef EFI_MMRAM_DESCRIPTOR	EFI_SMRAM_DESCRIPTOR

typedef VOID(EFIAPI *	EFI_AP_PROCEDURE) (IN OUT VOID *Buffer)

Enumerations
enum	EFI_PCD_TYPE { EFI_PCD_TYPE_8 , EFI_PCD_TYPE_16 , EFI_PCD_TYPE_32 , EFI_PCD_TYPE_64 , EFI_PCD_TYPE_BOOL , EFI_PCD_TYPE_PTR }

Detailed Description

Include file matches things in PI for multiple module types.

Copyright (c) 2006 - 2018, Intel Corporation. All rights reserved.
This program and the accompanying materials are licensed and made available under the terms and conditions of the BSD License that accompanies this distribution. The full text of the license may be found at http://opensource.org/licenses/bsd-license.php.

THE PROGRAM IS DISTRIBUTED UNDER THE BSD LICENSE ON AN "AS IS" BASIS, WITHOUT WARRANTIES OR REPRESENTATIONS OF ANY KIND, EITHER EXPRESS OR IMPLIED.

Revision Reference:: These elements are defined in UEFI Platform Initialization Specification 1.2.

Macro Definition Documentation

◆ DXE_ERROR

#define DXE_ERROR ( StatusCode ) (MAX_BIT | (MAX_BIT >> 2) | StatusCode)

Produces an error code in the range reserved for use by the Platform Initialization Architecture Specification.

The supported 32-bit range is 0xA0000000-0xBFFFFFFF The supported 64-bit range is 0xA000000000000000-0xBFFFFFFFFFFFFFFF

Parameters

StatusCode The status code value to convert into a warning code. StatusCode must be in the range 0x00000000..0x1FFFFFFF.

Returns: The value specified by StatusCode in the PI reserved range.

◆ EFI_ALLOCATED

#define EFI_ALLOCATED 0x00000010

◆ EFI_AUTH_STATUS_ALL

#define EFI_AUTH_STATUS_ALL 0x0f

◆ EFI_AUTH_STATUS_IMAGE_SIGNED

#define EFI_AUTH_STATUS_IMAGE_SIGNED 0x02

◆ EFI_AUTH_STATUS_NOT_TESTED

#define EFI_AUTH_STATUS_NOT_TESTED 0x04

◆ EFI_AUTH_STATUS_PLATFORM_OVERRIDE

#define EFI_AUTH_STATUS_PLATFORM_OVERRIDE 0x01

Bitmask of values for Authentication Status. Authentication Status is returned from EFI_GUIDED_SECTION_EXTRACTION_PROTOCOL and the EFI_PEI_GUIDED_SECTION_EXTRACTION_PPI

xx00 Image was not signed. xxx1 Platform security policy override. Assumes the same meaning as 0010 (the image was signed, the signature was tested, and the signature passed authentication test). 0010 Image was signed, the signature was tested, and the signature passed authentication test. 0110 Image was signed and the signature was not tested. 1010 Image was signed, the signature was tested, and the signature failed the authentication test.

◆ EFI_AUTH_STATUS_TEST_FAILED

#define EFI_AUTH_STATUS_TEST_FAILED 0x08

◆ EFI_CACHEABLE

#define EFI_CACHEABLE 0x00000008

◆ EFI_INTERRUPT_PENDING

#define EFI_INTERRUPT_PENDING PI_ENCODE_ERROR (0)

Return status codes defined in SMM CIS.

◆ EFI_MMRAM_CLOSED

#define EFI_MMRAM_CLOSED 0x00000002

◆ EFI_MMRAM_LOCKED

#define EFI_MMRAM_LOCKED 0x00000004

◆ EFI_MMRAM_OPEN

#define EFI_MMRAM_OPEN 0x00000001

MMRAM states and capabilities

◆ EFI_NEEDS_ECC_INITIALIZATION

#define EFI_NEEDS_ECC_INITIALIZATION 0x00000040

◆ EFI_NEEDS_TESTING

#define EFI_NEEDS_TESTING 0x00000020

◆ EFI_NOT_AVAILABLE_YET

#define EFI_NOT_AVAILABLE_YET DXE_ERROR (2)

If this value is returned by an API, it means the capability is not yet installed/available/ready to use.

◆ EFI_REQUEST_UNLOAD_IMAGE

#define EFI_REQUEST_UNLOAD_IMAGE DXE_ERROR (1)

If this value is returned by an EFI image, then the image should be unloaded.

◆ EFI_SMRAM_CLOSED

#define EFI_SMRAM_CLOSED EFI_MMRAM_CLOSED

◆ EFI_SMRAM_LOCKED

#define EFI_SMRAM_LOCKED EFI_MMRAM_LOCKED

◆ EFI_SMRAM_OPEN

#define EFI_SMRAM_OPEN EFI_MMRAM_OPEN

◆ EFI_WARN_INTERRUPT_SOURCE_PENDING

#define EFI_WARN_INTERRUPT_SOURCE_PENDING PI_ENCODE_WARNING (0)

◆ EFI_WARN_INTERRUPT_SOURCE_QUIESCED

#define EFI_WARN_INTERRUPT_SOURCE_QUIESCED PI_ENCODE_WARNING (1)

◆ PI_ENCODE_ERROR

#define PI_ENCODE_ERROR ( a ) (MAX_BIT | (MAX_BIT >> 2) | (a))

Error codes reserved for use by PI. Supported 32-bit range is 0xa0000000-0xbfffffff. Supported 64-bit range is 0xa000000000000000-0xbfffffffffffffff.

◆ PI_ENCODE_WARNING

#define PI_ENCODE_WARNING ( a ) ((MAX_BIT >> 2) | (a))

Success and warning codes reserved for use by PI. Supported 32-bit range is 0x20000000-0x3fffffff. Supported 64-bit range is 0x2000000000000000-0x3fffffffffffffff.

Typedef Documentation

◆ EFI_AP_PROCEDURE

typedef VOID(EFIAPI * EFI_AP_PROCEDURE) (IN OUT VOID *Buffer)

The function prototype for invoking a function on an Application Processor.

This definition is used by the UEFI MP Serices Protocol, and the PI SMM System Table.
