#include <Pi/PiMmCis.h>
#include <Protocol/SmmCpuIo2.h>

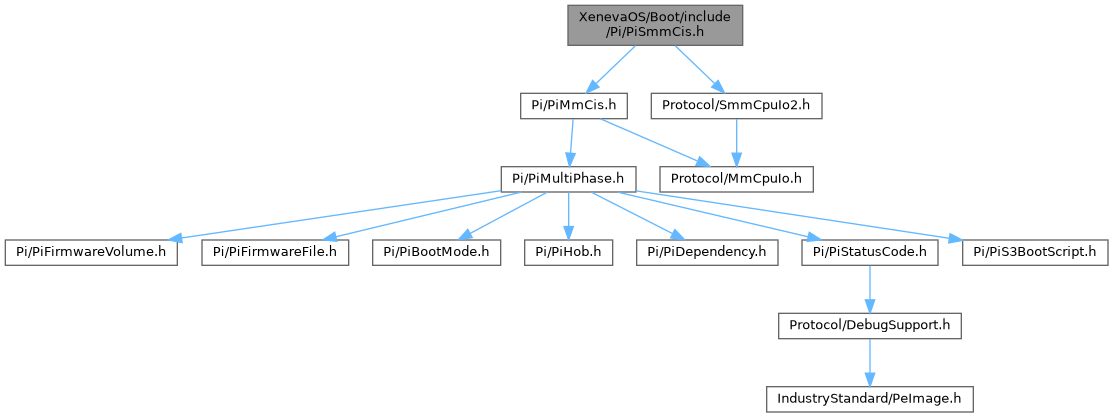

Include dependency graph for PiSmmCis.h:

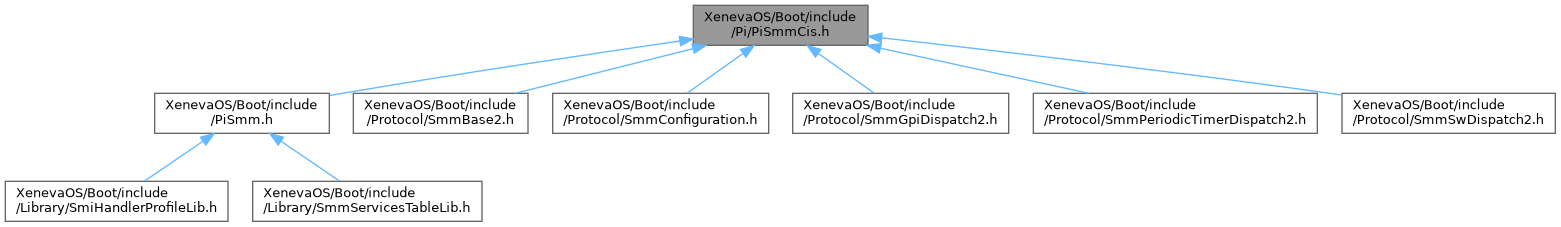

This graph shows which files directly or indirectly include this file:

Classes
struct	_EFI_SMM_ENTRY_CONTEXT

struct	_EFI_SMM_SYSTEM_TABLE2

Macros
#define	SMM_SMST_SIGNATURE MM_MMST_SIGNATURE

#define	SMM_SPECIFICATION_MAJOR_REVISION MM_SPECIFICATION_MAJOR_REVISION

#define	SMM_SPECIFICATION_MINOR_REVISION MM_SPECIFICATION_MINOR_REVISION

#define	EFI_SMM_SYSTEM_TABLE2_REVISION EFI_MM_SYSTEM_TABLE_REVISION

Typedefs
typedef struct _EFI_SMM_SYSTEM_TABLE2	EFI_SMM_SYSTEM_TABLE2

typedef EFI_STATUS(EFIAPI *	EFI_SMM_INSTALL_CONFIGURATION_TABLE2) (IN CONST EFI_SMM_SYSTEM_TABLE2 SystemTable, IN CONST EFI_GUID Guid, IN VOID *Table, IN UINTN TableSize)

typedef EFI_MM_STARTUP_THIS_AP	EFI_SMM_STARTUP_THIS_AP

typedef EFI_MM_NOTIFY_FN	EFI_SMM_NOTIFY_FN

typedef EFI_MM_REGISTER_PROTOCOL_NOTIFY	EFI_SMM_REGISTER_PROTOCOL_NOTIFY

typedef EFI_MM_INTERRUPT_MANAGE	EFI_SMM_INTERRUPT_MANAGE

typedef EFI_MM_HANDLER_ENTRY_POINT	EFI_SMM_HANDLER_ENTRY_POINT2

typedef EFI_MM_INTERRUPT_REGISTER	EFI_SMM_INTERRUPT_REGISTER

typedef EFI_MM_INTERRUPT_UNREGISTER	EFI_SMM_INTERRUPT_UNREGISTER

typedef struct _EFI_SMM_ENTRY_CONTEXT	EFI_SMM_ENTRY_CONTEXT

typedef VOID(EFIAPI *	EFI_SMM_ENTRY_POINT) (IN CONST EFI_SMM_ENTRY_CONTEXT *SmmEntryContext)

Detailed Description

Common definitions in the Platform Initialization Specification version 1.4a VOLUME 4 System Management Mode Core Interface version.

Copyright (c) 2009 - 2018, Intel Corporation. All rights reserved.
This program and the accompanying materials are licensed and made available under the terms and conditions of the BSD License which accompanies this distribution. The full text of the license may be found at http://opensource.org/licenses/bsd-license.php

THE PROGRAM IS DISTRIBUTED UNDER THE BSD LICENSE ON AN "AS IS" BASIS, WITHOUT WARRANTIES OR REPRESENTATIONS OF ANY KIND, EITHER EXPRESS OR IMPLIED.

Macro Definition Documentation

◆ EFI_SMM_SYSTEM_TABLE2_REVISION

#define EFI_SMM_SYSTEM_TABLE2_REVISION EFI_MM_SYSTEM_TABLE_REVISION

◆ SMM_SMST_SIGNATURE

#define SMM_SMST_SIGNATURE MM_MMST_SIGNATURE

◆ SMM_SPECIFICATION_MAJOR_REVISION

#define SMM_SPECIFICATION_MAJOR_REVISION MM_SPECIFICATION_MAJOR_REVISION

◆ SMM_SPECIFICATION_MINOR_REVISION

#define SMM_SPECIFICATION_MINOR_REVISION MM_SPECIFICATION_MINOR_REVISION

Typedef Documentation

◆ EFI_SMM_ENTRY_CONTEXT

typedef struct _EFI_SMM_ENTRY_CONTEXT EFI_SMM_ENTRY_CONTEXT

Processor information and functionality needed by SMM Foundation.

◆ EFI_SMM_ENTRY_POINT

typedef VOID(EFIAPI * EFI_SMM_ENTRY_POINT) (IN CONST EFI_SMM_ENTRY_CONTEXT *SmmEntryContext)

This function is the main entry point to the SMM Foundation.

Parameters

[in] SmmEntryContext Processor information and functionality needed by SMM Foundation.

◆ EFI_SMM_HANDLER_ENTRY_POINT2

typedef EFI_MM_HANDLER_ENTRY_POINT EFI_SMM_HANDLER_ENTRY_POINT2

◆ EFI_SMM_INSTALL_CONFIGURATION_TABLE2

typedef EFI_STATUS(EFIAPI * EFI_SMM_INSTALL_CONFIGURATION_TABLE2) (IN CONST EFI_SMM_SYSTEM_TABLE2 *SystemTable, IN CONST EFI_GUID *Guid, IN VOID *Table, IN UINTN TableSize)

Adds, updates, or removes a configuration table entry from the System Management System Table.

The SmmInstallConfigurationTable() function is used to maintain the list of configuration tables that are stored in the System Management System Table. The list is stored as an array of (GUID, Pointer) pairs. The list must be allocated from pool memory with PoolType set to EfiRuntimeServicesData.

Parameters

[in]	SystemTable	A pointer to the SMM System Table (SMST).
[in]	Guid	A pointer to the GUID for the entry to add, update, or remove.
[in]	Table	A pointer to the buffer of the table to add.
[in]	TableSize	The size of the table to install.

Return values

EFI_SUCCESS	The (Guid, Table) pair was added, updated, or removed.
EFI_INVALID_PARAMETER	Guid is not valid.
EFI_NOT_FOUND	An attempt was made to delete a non-existent entry.
EFI_OUT_OF_RESOURCES	There is not enough memory available to complete the operation.
