#include <IndustryStandard/Acpi.h>

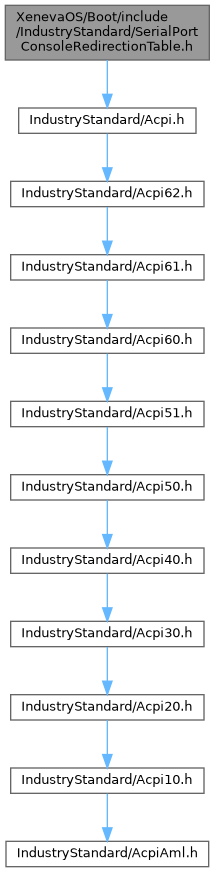

Include dependency graph for SerialPortConsoleRedirectionTable.h:

Classes
struct	EFI_ACPI_SERIAL_PORT_CONSOLE_REDIRECTION_TABLE

Macros
#define	EFI_ACPI_SERIAL_PORT_CONSOLE_REDIRECTION_TABLE_REVISION 0x02

#define	EFI_ACPI_SERIAL_PORT_CONSOLE_REDIRECTION_TABLE_INTERFACE_TYPE_16550 0

#define	EFI_ACPI_SERIAL_PORT_CONSOLE_REDIRECTION_TABLE_INTERFACE_TYPE_16450 1

#define	EFI_ACPI_SERIAL_PORT_CONSOLE_REDIRECTION_TABLE_INTERFACE_TYPE_ARM_PL011_UART 0x03

#define	EFI_ACPI_SERIAL_PORT_CONSOLE_REDIRECTION_TABLE_INTERFACE_TYPE_ARM_SBSA_GENERIC_UART_2X 0x0d

#define	EFI_ACPI_SERIAL_PORT_CONSOLE_REDIRECTION_TABLE_INTERFACE_TYPE_ARM_SBSA_GENERIC_UART 0x0e

#define	EFI_ACPI_SERIAL_PORT_CONSOLE_REDIRECTION_TABLE_INTERRUPT_TYPE_8259 0x1

#define	EFI_ACPI_SERIAL_PORT_CONSOLE_REDIRECTION_TABLE_INTERRUPT_TYPE_APIC 0x2

#define	EFI_ACPI_SERIAL_PORT_CONSOLE_REDIRECTION_TABLE_INTERRUPT_TYPE_SAPIC 0x4

#define	EFI_ACPI_SERIAL_PORT_CONSOLE_REDIRECTION_TABLE_INTERRUPT_TYPE_GIC 0x8

#define	EFI_ACPI_SERIAL_PORT_CONSOLE_REDIRECTION_TABLE_BAUD_RATE_9600 3

#define	EFI_ACPI_SERIAL_PORT_CONSOLE_REDIRECTION_TABLE_BAUD_RATE_19200 4

#define	EFI_ACPI_SERIAL_PORT_CONSOLE_REDIRECTION_TABLE_BAUD_RATE_57600 6

#define	EFI_ACPI_SERIAL_PORT_CONSOLE_REDIRECTION_TABLE_BAUD_RATE_115200 7

#define	EFI_ACPI_SERIAL_PORT_CONSOLE_REDIRECTION_TABLE_PARITY_NO_PARITY 0

#define	EFI_ACPI_SERIAL_PORT_CONSOLE_REDIRECTION_TABLE_STOP_BITS_1 1

#define	EFI_ACPI_SERIAL_PORT_CONSOLE_REDIRECTION_TABLE_FLOW_CONTROL_DCD 0x1

#define	EFI_ACPI_SERIAL_PORT_CONSOLE_REDIRECTION_TABLE_FLOW_CONTROL_RTS_CTS 0x2

#define	EFI_ACPI_SERIAL_PORT_CONSOLE_REDIRECTION_TABLE_FLOW_CONTROL_XON_XOFF 0x4

#define	EFI_ACPI_SERIAL_PORT_CONSOLE_REDIRECTION_TABLE_TERMINAL_TYPE_VT100 0

#define	EFI_ACPI_SERIAL_PORT_CONSOLE_REDIRECTION_TABLE_TERMINAL_TYPE_VT100_PLUS 1

#define	EFI_ACPI_SERIAL_PORT_CONSOLE_REDIRECTION_TABLE_TERMINAL_TYPE_VT_UTF8 2

#define	EFI_ACPI_SERIAL_PORT_CONSOLE_REDIRECTION_TABLE_TERMINAL_TYPE_ANSI 3

Detailed Description

ACPI Serial Port Console Redirection Table as defined by Microsoft in http://www.microsoft.com/whdc/system/platform/server/spcr.mspx

Copyright (c) 2007 - 2018, Intel Corporation. All rights reserved.
(C) Copyright 2015 Hewlett Packard Enterprise Development LP
Copyright (c) 2014 - 2016, ARM Limited. All rights reserved.
This program and the accompanying materials are licensed and made available under the terms and conditions of the BSD License which accompanies this distribution. The full text of the license may be found at http://opensource.org/licenses/bsd-license.php

THE PROGRAM IS DISTRIBUTED UNDER THE BSD LICENSE ON AN "AS IS" BASIS, WITHOUT WARRANTIES OR REPRESENTATIONS OF ANY KIND, EITHER EXPRESS OR IMPLIED.

Macro Definition Documentation

◆ EFI_ACPI_SERIAL_PORT_CONSOLE_REDIRECTION_TABLE_BAUD_RATE_115200

#define EFI_ACPI_SERIAL_PORT_CONSOLE_REDIRECTION_TABLE_BAUD_RATE_115200 7

◆ EFI_ACPI_SERIAL_PORT_CONSOLE_REDIRECTION_TABLE_BAUD_RATE_19200

#define EFI_ACPI_SERIAL_PORT_CONSOLE_REDIRECTION_TABLE_BAUD_RATE_19200 4

◆ EFI_ACPI_SERIAL_PORT_CONSOLE_REDIRECTION_TABLE_BAUD_RATE_57600

#define EFI_ACPI_SERIAL_PORT_CONSOLE_REDIRECTION_TABLE_BAUD_RATE_57600 6

◆ EFI_ACPI_SERIAL_PORT_CONSOLE_REDIRECTION_TABLE_BAUD_RATE_9600

#define EFI_ACPI_SERIAL_PORT_CONSOLE_REDIRECTION_TABLE_BAUD_RATE_9600 3

◆ EFI_ACPI_SERIAL_PORT_CONSOLE_REDIRECTION_TABLE_FLOW_CONTROL_DCD

#define EFI_ACPI_SERIAL_PORT_CONSOLE_REDIRECTION_TABLE_FLOW_CONTROL_DCD 0x1

DCD required for transmit

◆ EFI_ACPI_SERIAL_PORT_CONSOLE_REDIRECTION_TABLE_FLOW_CONTROL_RTS_CTS

#define EFI_ACPI_SERIAL_PORT_CONSOLE_REDIRECTION_TABLE_FLOW_CONTROL_RTS_CTS 0x2

RTS/CTS hardware flow control

◆ EFI_ACPI_SERIAL_PORT_CONSOLE_REDIRECTION_TABLE_FLOW_CONTROL_XON_XOFF

#define EFI_ACPI_SERIAL_PORT_CONSOLE_REDIRECTION_TABLE_FLOW_CONTROL_XON_XOFF 0x4

XON/XOFF software control

◆ EFI_ACPI_SERIAL_PORT_CONSOLE_REDIRECTION_TABLE_INTERFACE_TYPE_16450

#define EFI_ACPI_SERIAL_PORT_CONSOLE_REDIRECTION_TABLE_INTERFACE_TYPE_16450 1

Full 16450 interface

◆ EFI_ACPI_SERIAL_PORT_CONSOLE_REDIRECTION_TABLE_INTERFACE_TYPE_16550

#define EFI_ACPI_SERIAL_PORT_CONSOLE_REDIRECTION_TABLE_INTERFACE_TYPE_16550 0

Full 16550 interface

◆ EFI_ACPI_SERIAL_PORT_CONSOLE_REDIRECTION_TABLE_INTERFACE_TYPE_ARM_PL011_UART

#define EFI_ACPI_SERIAL_PORT_CONSOLE_REDIRECTION_TABLE_INTERFACE_TYPE_ARM_PL011_UART 0x03

ARM PL011 UART

◆ EFI_ACPI_SERIAL_PORT_CONSOLE_REDIRECTION_TABLE_INTERFACE_TYPE_ARM_SBSA_GENERIC_UART

#define EFI_ACPI_SERIAL_PORT_CONSOLE_REDIRECTION_TABLE_INTERFACE_TYPE_ARM_SBSA_GENERIC_UART 0x0e

ARM SBSA Generic UART

◆ EFI_ACPI_SERIAL_PORT_CONSOLE_REDIRECTION_TABLE_INTERFACE_TYPE_ARM_SBSA_GENERIC_UART_2X

#define EFI_ACPI_SERIAL_PORT_CONSOLE_REDIRECTION_TABLE_INTERFACE_TYPE_ARM_SBSA_GENERIC_UART_2X 0x0d

ARM SBSA Generic UART (2.x) supporting 32-bit only accesses [deprecated]

◆ EFI_ACPI_SERIAL_PORT_CONSOLE_REDIRECTION_TABLE_INTERRUPT_TYPE_8259

#define EFI_ACPI_SERIAL_PORT_CONSOLE_REDIRECTION_TABLE_INTERRUPT_TYPE_8259 0x1

PC-AT-compatible dual-8259 IRQ interrupt

◆ EFI_ACPI_SERIAL_PORT_CONSOLE_REDIRECTION_TABLE_INTERRUPT_TYPE_APIC

#define EFI_ACPI_SERIAL_PORT_CONSOLE_REDIRECTION_TABLE_INTERRUPT_TYPE_APIC 0x2

I/O APIC interrupt (Global System Interrupt)

◆ EFI_ACPI_SERIAL_PORT_CONSOLE_REDIRECTION_TABLE_INTERRUPT_TYPE_GIC

#define EFI_ACPI_SERIAL_PORT_CONSOLE_REDIRECTION_TABLE_INTERRUPT_TYPE_GIC 0x8

ARMH GIC interrupt (Global System Interrupt)

◆ EFI_ACPI_SERIAL_PORT_CONSOLE_REDIRECTION_TABLE_INTERRUPT_TYPE_SAPIC

#define EFI_ACPI_SERIAL_PORT_CONSOLE_REDIRECTION_TABLE_INTERRUPT_TYPE_SAPIC 0x4

I/O SAPIC interrupt (Global System Interrupt)

◆ EFI_ACPI_SERIAL_PORT_CONSOLE_REDIRECTION_TABLE_PARITY_NO_PARITY

#define EFI_ACPI_SERIAL_PORT_CONSOLE_REDIRECTION_TABLE_PARITY_NO_PARITY 0

◆ EFI_ACPI_SERIAL_PORT_CONSOLE_REDIRECTION_TABLE_REVISION

#define EFI_ACPI_SERIAL_PORT_CONSOLE_REDIRECTION_TABLE_REVISION 0x02

SPCR Revision (defined in spec)

◆ EFI_ACPI_SERIAL_PORT_CONSOLE_REDIRECTION_TABLE_STOP_BITS_1

#define EFI_ACPI_SERIAL_PORT_CONSOLE_REDIRECTION_TABLE_STOP_BITS_1 1

◆ EFI_ACPI_SERIAL_PORT_CONSOLE_REDIRECTION_TABLE_TERMINAL_TYPE_ANSI

#define EFI_ACPI_SERIAL_PORT_CONSOLE_REDIRECTION_TABLE_TERMINAL_TYPE_ANSI 3

◆ EFI_ACPI_SERIAL_PORT_CONSOLE_REDIRECTION_TABLE_TERMINAL_TYPE_VT100

#define EFI_ACPI_SERIAL_PORT_CONSOLE_REDIRECTION_TABLE_TERMINAL_TYPE_VT100 0

◆ EFI_ACPI_SERIAL_PORT_CONSOLE_REDIRECTION_TABLE_TERMINAL_TYPE_VT100_PLUS

#define EFI_ACPI_SERIAL_PORT_CONSOLE_REDIRECTION_TABLE_TERMINAL_TYPE_VT100_PLUS 1

◆ EFI_ACPI_SERIAL_PORT_CONSOLE_REDIRECTION_TABLE_TERMINAL_TYPE_VT_UTF8

#define EFI_ACPI_SERIAL_PORT_CONSOLE_REDIRECTION_TABLE_TERMINAL_TYPE_VT_UTF8 2
