SmmIoTrapDispatch2.h File Reference

#include <Protocol/MmIoTrapDispatch.h>

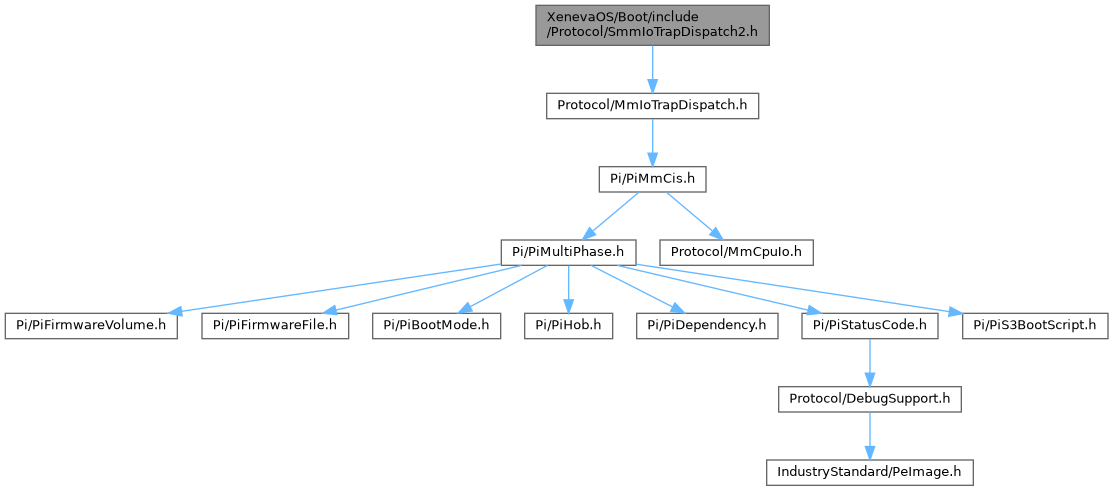

Include dependency graph for SmmIoTrapDispatch2.h:

Go to the source code of this file.

Macros
#define	EFI_SMM_IO_TRAP_DISPATCH2_PROTOCOL_GUID   EFI_MM_IO_TRAP_DISPATCH_PROTOCOL_GUID

Typedefs
typedef EFI_MM_IO_TRAP_DISPATCH_TYPE	EFI_SMM_IO_TRAP_DISPATCH_TYPE
typedef EFI_MM_IO_TRAP_REGISTER_CONTEXT	EFI_SMM_IO_TRAP_REGISTER_CONTEXT
typedef EFI_MM_IO_TRAP_CONTEXT	EFI_SMM_IO_TRAP_CONTEXT
typedef EFI_MM_IO_TRAP_DISPATCH_PROTOCOL	EFI_SMM_IO_TRAP_DISPATCH2_PROTOCOL
typedef EFI_MM_IO_TRAP_DISPATCH_REGISTER	EFI_SMM_IO_TRAP_DISPATCH2_REGISTER
typedef EFI_MM_IO_TRAP_DISPATCH_UNREGISTER	EFI_SMM_IO_TRAP_DISPATCH2_UNREGISTER

Variables
EFI_GUID	gEfiSmmIoTrapDispatch2ProtocolGuid

Detailed Description

SMM IO Trap Dispatch2 Protocol as defined in PI 1.1 Specification Volume 4 System Management Mode Core Interface.

This protocol provides a parent dispatch service for IO trap SMI sources.

Copyright (c) 2009 - 2017, Intel Corporation. All rights reserved.
This program and the accompanying materials are licensed and made available under the terms and conditions of the BSD License which accompanies this distribution. The full text of the license may be found at http://opensource.org/licenses/bsd-license.php

THE PROGRAM IS DISTRIBUTED UNDER THE BSD LICENSE ON AN "AS IS" BASIS, WITHOUT WARRANTIES OR REPRESENTATIONS OF ANY KIND, EITHER EXPRESS OR IMPLIED.

Revision Reference:

This protocol is from PI Version 1.1.

Macro Definition Documentation

EFI_SMM_IO_TRAP_DISPATCH2_PROTOCOL_GUID

#define EFI_SMM_IO_TRAP_DISPATCH2_PROTOCOL_GUID   EFI_MM_IO_TRAP_DISPATCH_PROTOCOL_GUID

Typedef Documentation

EFI_SMM_IO_TRAP_CONTEXT

typedef EFI_MM_IO_TRAP_CONTEXT EFI_SMM_IO_TRAP_CONTEXT

IO Trap context structure containing information about the IO trap that occurred

EFI_SMM_IO_TRAP_DISPATCH2_PROTOCOL

typedef EFI_MM_IO_TRAP_DISPATCH_PROTOCOL EFI_SMM_IO_TRAP_DISPATCH2_PROTOCOL

EFI_SMM_IO_TRAP_DISPATCH2_REGISTER

typedef EFI_MM_IO_TRAP_DISPATCH_REGISTER EFI_SMM_IO_TRAP_DISPATCH2_REGISTER

EFI_SMM_IO_TRAP_DISPATCH2_UNREGISTER

typedef EFI_MM_IO_TRAP_DISPATCH_UNREGISTER EFI_SMM_IO_TRAP_DISPATCH2_UNREGISTER

EFI_SMM_IO_TRAP_DISPATCH_TYPE

typedef EFI_MM_IO_TRAP_DISPATCH_TYPE EFI_SMM_IO_TRAP_DISPATCH_TYPE

IO Trap valid types

EFI_SMM_IO_TRAP_REGISTER_CONTEXT

typedef EFI_MM_IO_TRAP_REGISTER_CONTEXT EFI_SMM_IO_TRAP_REGISTER_CONTEXT

IO Trap context structure containing information about the IO trap event that should invoke the handler

Variable Documentation

gEfiSmmIoTrapDispatch2ProtocolGuid

EFI_GUID gEfiSmmIoTrapDispatch2ProtocolGuid

extern
