#include <Protocol/SpiConfiguration.h>

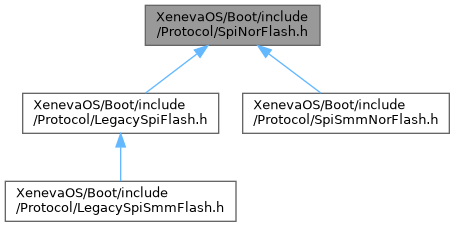

Go to the source code of this file.
Classes | |
| struct | _EFI_SPI_NOR_FLASH_PROTOCOL |
Macros | |
| #define | EFI_SPI_NOR_FLASH_PROTOCOL_GUID |
Variables | |
| EFI_GUID | gEfiSpiNorFlashProtocolGuid |
Detailed Description
This file defines the SPI NOR Flash Protocol.
Copyright (c) 2017, Intel Corporation. All rights reserved.
This program and the accompanying materials are licensed and made available under the terms and conditions of the BSD License which accompanies this distribution. The full text of the license may be found at http://opensource.org/licenses/bsd-license.php
THE PROGRAM IS DISTRIBUTED UNDER THE BSD LICENSE ON AN "AS IS" BASIS, WITHOUT WARRANTIES OR REPRESENTATIONS OF ANY KIND, EITHER EXPRESS OR IMPLIED.
- Revision Reference:
- This Protocol was introduced in UEFI PI Specification 1.6.
Macro Definition Documentation
◆ EFI_SPI_NOR_FLASH_PROTOCOL_GUID
| #define EFI_SPI_NOR_FLASH_PROTOCOL_GUID |
Global ID for the SPI NOR Flash Protocol
Typedef Documentation
◆ EFI_SPI_NOR_FLASH_PROTOCOL
| typedef struct _EFI_SPI_NOR_FLASH_PROTOCOL EFI_SPI_NOR_FLASH_PROTOCOL |
◆ EFI_SPI_NOR_FLASH_PROTOCOL_ERASE
| typedef EFI_STATUS(EFIAPI * EFI_SPI_NOR_FLASH_PROTOCOL_ERASE) (IN CONST EFI_SPI_NOR_FLASH_PROTOCOL *This, IN UINT32 FlashAddress, IN UINT32 BlockCount) |
Efficiently erases one or more 4KiB regions in the SPI flash.
This routine must be called at or below TPL_NOTIFY. This routine uses a combination of 4 KiB and larger blocks to erase the specified area.
- Parameters
-
[in] This Pointer to an EFI_SPI_NOR_FLASH_PROTOCOL data structure. [in] FlashAddress Address within a 4 KiB block to start erasing [in] BlockCount Number of 4 KiB blocks to erase
- Return values
-
EFI_SUCCESS The erase was completed successfully. EFI_INVALID_PARAMETER FlashAddress >= This->FlashSize, or BlockCount * 4 KiB > This->FlashSize - FlashAddress
◆ EFI_SPI_NOR_FLASH_PROTOCOL_GET_FLASH_ID
| typedef EFI_STATUS(EFIAPI * EFI_SPI_NOR_FLASH_PROTOCOL_GET_FLASH_ID) (IN CONST EFI_SPI_NOR_FLASH_PROTOCOL *This, OUT UINT8 *Buffer) |
Read the 3 byte manufacture and device ID from the SPI flash.
This routine must be called at or below TPL_NOTIFY. This routine reads the 3 byte manufacture and device ID from the flash part filling the buffer provided.
- Parameters
-
[in] This Pointer to an EFI_SPI_NOR_FLASH_PROTOCOL data structure. [out] Buffer Pointer to a 3 byte buffer to receive the manufacture and device ID.
- Return values
-
EFI_SUCCESS The manufacture and device ID was read successfully. EFI_INVALID_PARAMETER Buffer is NULL EFI_DEVICE_ERROR Invalid data received from SPI flash part.
◆ EFI_SPI_NOR_FLASH_PROTOCOL_READ_DATA
| typedef EFI_STATUS(EFIAPI * EFI_SPI_NOR_FLASH_PROTOCOL_READ_DATA) (IN CONST EFI_SPI_NOR_FLASH_PROTOCOL *This, IN UINT32 FlashAddress, IN UINT32 LengthInBytes, OUT UINT8 *Buffer) |
Read data from the SPI flash.
This routine must be called at or below TPL_NOTIFY. This routine reads data from the SPI part in the buffer provided.
- Parameters
-
[in] This Pointer to an EFI_SPI_NOR_FLASH_PROTOCOL data structure. [in] FlashAddress Address in the flash to start reading [in] LengthInBytes Read length in bytes [out] Buffer Address of a buffer to receive the data
- Return values
-
EFI_SUCCESS The data was read successfully. EFI_INVALID_PARAMETER Buffer is NULL, or FlashAddress >= This->FlashSize, or LengthInBytes > This->FlashSize - FlashAddress
◆ EFI_SPI_NOR_FLASH_PROTOCOL_READ_STATUS
| typedef EFI_STATUS(EFIAPI * EFI_SPI_NOR_FLASH_PROTOCOL_READ_STATUS) (IN CONST EFI_SPI_NOR_FLASH_PROTOCOL *This, IN UINT32 LengthInBytes, OUT UINT8 *FlashStatus) |
Read the flash status register.
This routine must be called at or below TPL_NOTIFY. This routine reads the flash part status register.
- Parameters
-
[in] This Pointer to an EFI_SPI_NOR_FLASH_PROTOCOL data structure. [in] LengthInBytes Number of status bytes to read. [out] FlashStatus Pointer to a buffer to receive the flash status.
- Return values
-
EFI_SUCCESS The status register was read successfully.
◆ EFI_SPI_NOR_FLASH_PROTOCOL_WRITE_DATA
| typedef EFI_STATUS(EFIAPI * EFI_SPI_NOR_FLASH_PROTOCOL_WRITE_DATA) (IN CONST EFI_SPI_NOR_FLASH_PROTOCOL *This, IN UINT32 FlashAddress, IN UINT32 LengthInBytes, IN UINT8 *Buffer) |
Write data to the SPI flash.
This routine must be called at or below TPL_NOTIFY. This routine breaks up the write operation as necessary to write the data to the SPI part.
- Parameters
-
[in] This Pointer to an EFI_SPI_NOR_FLASH_PROTOCOL data structure. [in] FlashAddress Address in the flash to start writing [in] LengthInBytes Write length in bytes [in] Buffer Address of a buffer containing the data
- Return values
-
EFI_SUCCESS The data was written successfully. EFI_INVALID_PARAMETER Buffer is NULL, or FlashAddress >= This->FlashSize, or LengthInBytes > This->FlashSize - FlashAddress EFI_OUT_OF_RESOURCES Insufficient memory to copy buffer.
◆ EFI_SPI_NOR_FLASH_PROTOCOL_WRITE_STATUS
| typedef EFI_STATUS(EFIAPI * EFI_SPI_NOR_FLASH_PROTOCOL_WRITE_STATUS) (IN CONST EFI_SPI_NOR_FLASH_PROTOCOL *This, IN UINT32 LengthInBytes, IN UINT8 *FlashStatus) |
Write the flash status register.
This routine must be called at or below TPL_N OTIFY. This routine writes the flash part status register.
- Parameters
-
[in] This Pointer to an EFI_SPI_NOR_FLASH_PROTOCOL data structure. [in] LengthInBytes Number of status bytes to write. [in] FlashStatus Pointer to a buffer containing the new status.
- Return values
-
EFI_SUCCESS The status write was successful. EFI_OUT_OF_RESOURCES Failed to allocate the write buffer.
Variable Documentation
◆ gEfiSpiNorFlashProtocolGuid
|
extern |
