audrv.h File Reference

#include <stdint.h>
#include <Fs\vfs.h>

Include dependency graph for audrv.h:

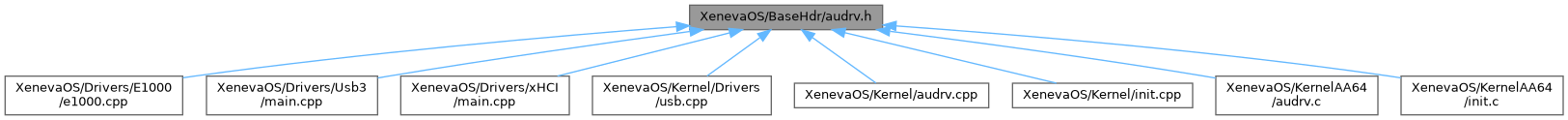

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	_aurora_driver_
struct	_aurora_device_

Macros
#define	DRIVER_CLASS_AUDIO   1
#define	DRIVER_CLASS_VIDEO   2
#define	DRIVER_CLASS_NETWORK   3
#define	DRIVER_CLASS_CONNECTIVITY_BLUETOOTH   4
#define	DRIVER_CLASS_CONNECTIVITY_WIFI   5
#define	DRIVER_CLASS_STORAGE   6
#define	DRIVER_CLASS_USB   7
#define	DRIVER_CLASS_HID   8
#define	DRIVER_CLASS_UNKNOWN   9
#define	DEVICE_CLASS_ETHERNET   1
#define	DEVICE_CLASS_HD_AUDIO   2
#define	DEVICE_CLASS_USB3   3
#define	AURORA_MAX_DRIVERS   256

Typedefs
typedef int(*	au_drv_entry) ()
typedef int(*	au_drv_unload) ()
typedef struct _aurora_driver_	AuDriver
typedef struct _aurora_device_	AuDevice

Functions
void	AuDrvMngrInitialize (KERNEL_BOOT_INFO *info)
	AuDrvMngrInitialize – Initialize the driver manager.
AU_EXTERN AU_EXPORT void	AuRegisterDevice (AuDevice *dev)
	AuRegisterDevice – register a new device to aurora system.
AU_EXTERN AU_EXPORT bool	AuCheckDevice (uint16_t classC, uint16_t subclassC, uint8_t progIF)
	AuCheckDevice – checks an aurora device if it's already present.
AU_EXTERN AU_EXPORT void	AuBootDriverInitialise (KERNEL_BOOT_INFO *info)
	AuBootDriverInitialise – Initialise and load all boot time drivers.
uint64_t	AuDrvMgrGetBaseAddress ()
	AuDrvMgrGetBaseAddress – returns the current driver load base address.
void	AuDrvMgrSetBaseAddress (uint64_t base_address)
	AuDrvMgrSetBaseAddress – sets a new base address for driver to load it's highly risky because, if we set it to kernel stack location, kernel will crash.
char *	AuGetConfEntry (uint32_t vendor_id, uint32_t device_id, uint8_t *buffer, int entryoff)
	AuGetConfEntry – Get an entry offset in the file for required device.
void	AuGetDriverName (uint32_t vendor_id, uint32_t device_id, uint8_t *buffer, int entryoff)
	AuGetDriverName – Extract the driver path from its entry offset.

Macro Definition Documentation

AURORA_MAX_DRIVERS

#define AURORA_MAX_DRIVERS   256

DEVICE_CLASS_ETHERNET

#define DEVICE_CLASS_ETHERNET   1

DEVICE_CLASS_HD_AUDIO

#define DEVICE_CLASS_HD_AUDIO   2

DEVICE_CLASS_USB3

#define DEVICE_CLASS_USB3   3

DRIVER_CLASS_AUDIO

#define DRIVER_CLASS_AUDIO   1

BSD 2-Clause License

Copyright (c) 2022-2023, Manas Kamal Choudhury All rights reserved.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

DRIVER_CLASS_CONNECTIVITY_BLUETOOTH

#define DRIVER_CLASS_CONNECTIVITY_BLUETOOTH   4

DRIVER_CLASS_CONNECTIVITY_WIFI

#define DRIVER_CLASS_CONNECTIVITY_WIFI   5

DRIVER_CLASS_HID

#define DRIVER_CLASS_HID   8

DRIVER_CLASS_NETWORK

#define DRIVER_CLASS_NETWORK   3

DRIVER_CLASS_STORAGE

#define DRIVER_CLASS_STORAGE   6

DRIVER_CLASS_UNKNOWN

#define DRIVER_CLASS_UNKNOWN   9

DRIVER_CLASS_USB

#define DRIVER_CLASS_USB   7

DRIVER_CLASS_VIDEO

#define DRIVER_CLASS_VIDEO   2

Typedef Documentation

au_drv_entry

typedef int(* au_drv_entry) ()

au_drv_unload

typedef int(* au_drv_unload) ()

AuDevice

typedef struct _aurora_device_ AuDevice

AuDriver

typedef struct _aurora_driver_ AuDriver

Function Documentation

AuBootDriverInitialise()

AU_EXTERN AU_EXPORT void AuBootDriverInitialise

(

KERNEL_BOOT_INFO *

info

)

AuBootDriverInitialise – Initialise and load all boot time drivers.

Parameters

info	– Kernel boot information passed by XNLDR [TODO] : Everything is hard coded for now

AuCheckDevice()

AU_EXTERN AU_EXPORT bool AuCheckDevice	(	uint16_t	classC,
		uint16_t	subclassC,
		uint8_t	progIF
	)

AuCheckDevice – checks an aurora device if it's already present.

Parameters

classC	– class code of the device to check
subclassC	– sub class code of the device to check
progIF	– programming interface of the device

AuDrvMgrGetBaseAddress()

uint64_t AuDrvMgrGetBaseAddress ( )

extern

AuDrvMgrGetBaseAddress – returns the current driver load base address.

AuDrvMgrSetBaseAddress()

void AuDrvMgrSetBaseAddress ( uint64_t  base_address )

extern

AuDrvMgrSetBaseAddress – sets a new base address for driver to load it's highly risky because, if we set it to kernel stack location, kernel will crash.

AuDrvMngrInitialize()

void AuDrvMngrInitialize ( KERNEL_BOOT_INFO *  info )

extern

AuDrvMngrInitialize – Initialize the driver manager.

Parameters

info	– kernel boot info

AuGetConfEntry()

char * AuGetConfEntry ( uint32_t  vendor_id, uint32_t  device_id, uint8_t *  buffer, int  entryoff  )

extern

AuGetConfEntry – Get an entry offset in the file for required device.

Parameters

vendor_id	– vendor id of the product
device_id	– device id of the product
buffer	– configuration file buffer
entryoff	– entry offset from where search begins

AuGetDriverName()

void AuGetDriverName ( uint32_t  vendor_id, uint32_t  device_id, uint8_t *  buffer, int  entryoff  )

extern

AuGetDriverName – Extract the driver path from its entry offset.

Parameters

vendor_id	– vendor id of the product
device_id	– device id of the product
buffer	– configuration file buffer
entryoff	– entry offset from where search begins

AuRegisterDevice()

AU_EXTERN AU_EXPORT void AuRegisterDevice

(

AuDevice *

dev

)

AuRegisterDevice – register a new device to aurora system.

Parameters

dev	– Pointer to device to add
