dma.h File Reference

#include <Mm/pmmngr.h>
#include <Mm/vmmngr.h>
#include <aurora.h>

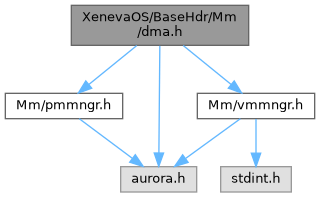

Include dependency graph for dma.h:

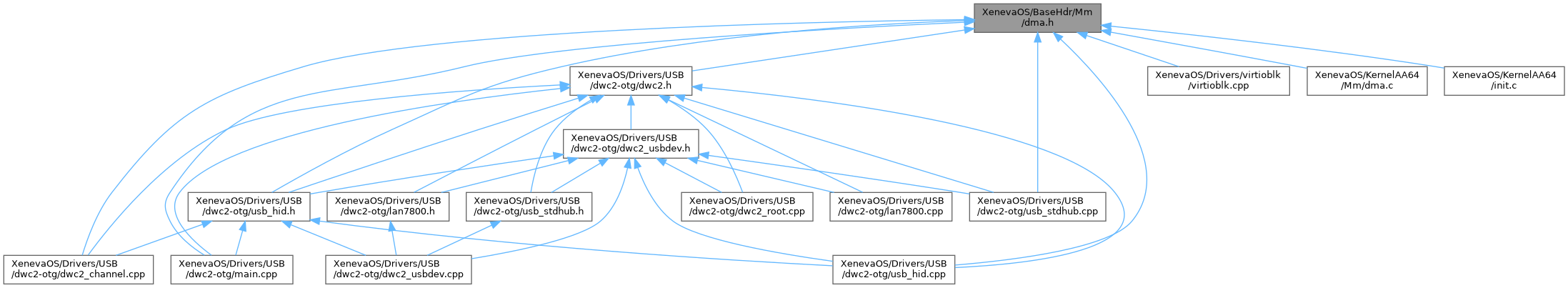

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	_au_dma_page_
struct	_au_dma_pool_
struct	_au_dma_global_class_

Macros
#define	DMA_NUM_CLASSES   7
#define	DMA_MAX_POOL_SIZE   512

Typedefs
typedef struct _au_dma_page_	AuDMAPage
typedef struct _au_dma_pool_	AuDMAPool
typedef struct _au_dma_global_class_	AuDMAGlobalClass

Functions
AU_EXTERN AU_EXPORT AuDMAPool *	AuDMAPoolCreate (const char *name, size_t alloc_sz, size_t align, size_t boundary)
	AuDMAPoolCreate – create a new pool.
AU_EXTERN AU_EXPORT void *	AuDMAPoolAlloc (AuDMAPool *pool, uint64_t *phys_out)
	AuDMAPoolAlloc – allocate a slot from desired pool.
AU_EXTERN AU_EXPORT void	AuDMAPoolFree (AuDMAPool *pool, void *virt, uint64_t phys)
	AuDMAPoolFree – free up a slot within the pool.
AU_EXTERN AU_EXPORT void	AuDMAPoolDestroy (AuDMAPool *pool)
	AuDMAPoolDestroy – completely destroy a pool.
AU_EXTERN AU_EXPORT void	AuDMAGlobalClassInitialize (AuDMAGlobalClass *gclass, char *name)
	AuDMAGlobalClassInitialize – initialize and populate global class structure.
AU_EXTERN AU_EXPORT void *	AuDMAGClassAlloc (AuDMAGlobalClass *gClass, size_t sz, uint64_t *physOut)
	AuDMAGClassAlloc – allocate memory from DMA Global Class.
AU_EXTERN AU_EXPORT void	AuDMAGClassFree (AuDMAGlobalClass *gClass, void *virt, uint64_t physOut, size_t sz)
	AuDMAGClassFree – free a memory and put it to gclass pool.
AU_EXTERN AU_EXPORT void	AuDMAGClassDestroy (AuDMAGlobalClass *gClass)
	AuDMAGClassDestroy – destroy entire dma global class.

Macro Definition Documentation

DMA_MAX_POOL_SIZE

#define DMA_MAX_POOL_SIZE   512

DMA_NUM_CLASSES

#define DMA_NUM_CLASSES   7

Typedef Documentation

AuDMAGlobalClass

typedef struct _au_dma_global_class_ AuDMAGlobalClass

AuDMAPage

typedef struct _au_dma_page_ AuDMAPage

AuDMAPool

typedef struct _au_dma_pool_ AuDMAPool

Function Documentation

AuDMAGClassAlloc()

AU_EXTERN AU_EXPORT void * AuDMAGClassAlloc	(	AuDMAGlobalClass *	gClass,
		size_t	sz,
		uint64_t *	physOut
	)

AuDMAGClassAlloc – allocate memory from DMA Global Class.

Parameters

gClass	– pointer to gClass
sz	– size to allocate
physOut	– where to put the physical output

return a full 4KiB page for larger than MAX_POOL_SZ

or allocate it using pool allocator

AuDMAGClassDestroy()

AU_EXTERN AU_EXPORT void AuDMAGClassDestroy

(

AuDMAGlobalClass *

gClass

)

AuDMAGClassDestroy – destroy entire dma global class.

Parameters

gClass

– pointer to gClass

AuDMAGClassFree()

AU_EXTERN AU_EXPORT void AuDMAGClassFree	(	AuDMAGlobalClass *	gClass,
		void *	virt,
		uint64_t	physOut,
		size_t	sz
	)

AuDMAGClassFree – free a memory and put it to gclass pool.

Parameters

gClass	– pointer to global class
virt	– virtual address
physOut	– physical address to put
sz	– size of the allocated memory

AuDMAGlobalClassInitialize()

AU_EXTERN AU_EXPORT void AuDMAGlobalClassInitialize	(	AuDMAGlobalClass *	gclass,
		char *	name
	)

AuDMAGlobalClassInitialize – initialize and populate global class structure.

Parameters

gclass	– Pointer to allocated gclass
name	– suitable gclass name

AuDMAPoolAlloc()

AU_EXTERN AU_EXPORT void * AuDMAPoolAlloc	(	AuDMAPool *	pool,
		uint64_t *	phys_out
	)

AuDMAPoolAlloc – allocate a slot from desired pool.

Parameters

pool	– pointer to pool memory
phys_out	– where to store the physical address

AuDMAPoolCreate()

AU_EXTERN AU_EXPORT AuDMAPool * AuDMAPoolCreate	(	const char *	name,
		size_t	alloc_sz,
		size_t	align,
		size_t	boundary
	)

AuDMAPoolCreate – create a new pool.

Parameters

name	– name of the pool
alloc_sz	– allocation unit size
align	– alignment to check
boundary	– ofcourse page boundary

AuDMAPoolDestroy()

AU_EXTERN AU_EXPORT void AuDMAPoolDestroy

(

AuDMAPool *

pool

)

AuDMAPoolDestroy – completely destroy a pool.

Parameters

pool	– pointer to pool

AuDMAPoolFree()

AU_EXTERN AU_EXPORT void AuDMAPoolFree	(	AuDMAPool *	pool,
		void *	virt,
		uint64_t	phys
	)

AuDMAPoolFree – free up a slot within the pool.

Parameters

pool	– pointer to dma pool
virt	– virtual address to free
phys	– physical address to free
