dwhci.h File Reference

#include "uspi/bcm2835.h"

Include dependency graph for dwhci.h:

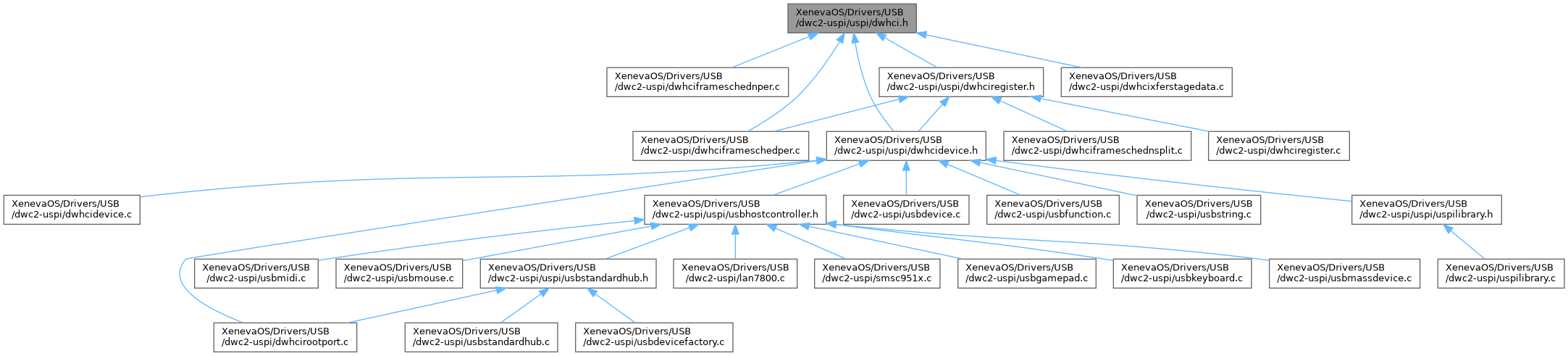

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros
#define	DWHCI_MAX_CHANNELS   16
#define	DWHCI_DATA_FIFO_SIZE   0x1000
#define	DWHCI_CORE_OTG_CTRL   (ARM_USB_CORE_BASE + 0x000)
#define	DWHCI_CORE_OTG_CTRL_HST_SET_HNP_EN   (1 << 10)
#define	DWHCI_CORE_OTG_INT   (ARM_USB_CORE_BASE + 0x004)
#define	DWHCI_CORE_AHB_CFG   (ARM_USB_CORE_BASE + 0x008)
#define	DWHCI_CORE_AHB_CFG_GLOBALINT_MASK   (1 << 0)
#define	DWHCI_CORE_AHB_CFG_MAX_AXI_BURST__SHIFT   1
#define	DWHCI_CORE_AHB_CFG_MAX_AXI_BURST__MASK   (3 << 1)
#define	DWHCI_CORE_AHB_CFG_WAIT_AXI_WRITES   (1 << 4)
#define	DWHCI_CORE_AHB_CFG_DMAENABLE   (1 << 5)
#define	DWHCI_CORE_AHB_CFG_AHB_SINGLE   (1 << 23)
#define	DWHCI_CORE_USB_CFG   (ARM_USB_CORE_BASE + 0x00C)
#define	DWHCI_CORE_USB_CFG_PHYIF   (1 << 3)
#define	DWHCI_CORE_USB_CFG_ULPI_UTMI_SEL   (1 << 4)
#define	DWHCI_CORE_USB_CFG_SRP_CAPABLE   (1 << 8)
#define	DWHCI_CORE_USB_CFG_HNP_CAPABLE   (1 << 9)
#define	DWHCI_CORE_USB_CFG_ULPI_FSLS   (1 << 17)
#define	DWHCI_CORE_USB_CFG_ULPI_CLK_SUS_M   (1 << 19)
#define	DWHCI_CORE_USB_CFG_ULPI_EXT_VBUS_DRV   (1 << 20)
#define	DWHCI_CORE_USB_CFG_TERM_SEL_DL_PULSE   (1 << 22)
#define	DWHCI_CORE_RESET   (ARM_USB_CORE_BASE + 0x010)
#define	DWHCI_CORE_RESET_SOFT_RESET   (1 << 0)
#define	DWHCI_CORE_RESET_RX_FIFO_FLUSH   (1 << 4)
#define	DWHCI_CORE_RESET_TX_FIFO_FLUSH   (1 << 5)
#define	DWHCI_CORE_RESET_TX_FIFO_NUM__SHIFT   6
#define	DWHCI_CORE_RESET_TX_FIFO_NUM__MASK   (0x1F << 6)
#define	DWHCI_CORE_RESET_AHB_IDLE   (1 << 31)
#define	DWHCI_CORE_INT_STAT   (ARM_USB_CORE_BASE + 0x014)
#define	DWHCI_CORE_INT_STAT_SOF_INTR   (1 << 3)
#define	DWHCI_CORE_INT_STAT_PORT_INTR   (1 << 24)
#define	DWHCI_CORE_INT_STAT_HC_INTR   (1 << 25)
#define	DWHCI_CORE_INT_MASK   (ARM_USB_CORE_BASE + 0x018)
#define	DWHCI_CORE_INT_MASK_MODE_MISMATCH   (1 << 1)
#define	DWHCI_CORE_INT_MASK_SOF_INTR   (1 << 3)
#define	DWHCI_CORE_INT_MASK_RX_STS_Q_LVL   (1 << 4)
#define	DWHCI_CORE_INT_MASK_USB_SUSPEND   (1 << 11)
#define	DWHCI_CORE_INT_MASK_PORT_INTR   (1 << 24)
#define	DWHCI_CORE_INT_MASK_HC_INTR   (1 << 25)
#define	DWHCI_CORE_INT_MASK_CON_ID_STS_CHNG   (1 << 28)
#define	DWHCI_CORE_INT_MASK_DISCONNECT   (1 << 29)
#define	DWHCI_CORE_INT_MASK_SESS_REQ_INTR   (1 << 30)
#define	DWHCI_CORE_INT_MASK_WKUP_INTR   (1 << 31)
#define	DWHCI_CORE_RX_STAT_RD   (ARM_USB_CORE_BASE + 0x01C)
#define	DWHCI_CORE_RX_STAT_POP   (ARM_USB_CORE_BASE + 0x020)
#define	DWHCI_CORE_RX_STAT_CHAN_NUMBER__MASK   0xF
#define	DWHCI_CORE_RX_STAT_BYTE_COUNT__SHIFT   4
#define	DWHCI_CORE_RX_STAT_BYTE_COUNT__MASK   (0x7FF << 4)
#define	DWHCI_CORE_RX_STAT_PACKET_STATUS__SHIFT   17
#define	DWHCI_CORE_RX_STAT_PACKET_STATUS__MASK   (0xF << 17)
#define	DWHCI_CORE_RX_STAT_PACKET_STATUS_IN   2
#define	DWHCI_CORE_RX_STAT_PACKET_STATUS_IN_XFER_COMP   3
#define	DWHCI_CORE_RX_STAT_PACKET_STATUS_DATA_TOGGLE_ERR   5
#define	DWHCI_CORE_RX_STAT_PACKET_STATUS_CHAN_HALTED   7
#define	DWHCI_CORE_RX_FIFO_SIZ   (ARM_USB_CORE_BASE + 0x024)
#define	DWHCI_CORE_NPER_TX_FIFO_SIZ   (ARM_USB_CORE_BASE + 0x028)
#define	DWHCI_CORE_NPER_TX_STAT   (ARM_USB_CORE_BASE + 0x02C)
#define	DWHCI_CORE_NPER_TX_STAT_QUEUE_SPACE_AVL(reg)   (((reg) >> 16) & 0xFF)
#define	DWHCI_CORE_I2C_CTRL   (ARM_USB_CORE_BASE + 0x030)
#define	DWHCI_CORE_PHY_VENDOR_CTRL   (ARM_USB_CORE_BASE + 0x034)
#define	DWHCI_CORE_GPIO   (ARM_USB_CORE_BASE + 0x038)
#define	DWHCI_CORE_USER_ID   (ARM_USB_CORE_BASE + 0x03C)
#define	DWHCI_CORE_VENDOR_ID   (ARM_USB_CORE_BASE + 0x040)
#define	DWHCI_CORE_HW_CFG1   (ARM_USB_CORE_BASE + 0x044)
#define	DWHCI_CORE_HW_CFG2   (ARM_USB_CORE_BASE + 0x048)
#define	DWHCI_CORE_HW_CFG2_OP_MODE(reg)   (((reg) >> 0) & 7)
#define	DWHCI_CORE_HW_CFG2_ARCHITECTURE(reg)   (((reg) >> 3) & 3)
#define	DWHCI_CORE_HW_CFG2_HS_PHY_TYPE(reg)   (((reg) >> 6) & 3)
#define	DWHCI_CORE_HW_CFG2_HS_PHY_TYPE_NOT_SUPPORTED   0
#define	DWHCI_CORE_HW_CFG2_HS_PHY_TYPE_UTMI   1
#define	DWHCI_CORE_HW_CFG2_HS_PHY_TYPE_ULPI   2
#define	DWHCI_CORE_HW_CFG2_HS_PHY_TYPE_UTMI_ULPI   3
#define	DWHCI_CORE_HW_CFG2_FS_PHY_TYPE(reg)   (((reg) >> 8) & 3)
#define	DWHCI_CORE_HW_CFG2_FS_PHY_TYPE_DEDICATED   1
#define	DWHCI_CORE_HW_CFG2_NUM_HOST_CHANNELS(reg)   ((((reg) >> 14) & 0xF) + 1)
#define	DWHCI_CORE_HW_CFG3   (ARM_USB_CORE_BASE + 0x04C)
#define	DWHCI_CORE_HW_CFG3_DFIFO_DEPTH(reg)   (((reg) >> 16) & 0xFFFF)
#define	DWHCI_CORE_HW_CFG4   (ARM_USB_CORE_BASE + 0x050)
#define	DWHCI_CORE_HW_CFG4_DED_FIFO_EN   (1 << 25)
#define	DWHCI_CORE_HW_CFG4_NUM_IN_EPS(reg)   (((reg) >> 26) & 0xF)
#define	DWHCI_CORE_LPM_CFG   (ARM_USB_CORE_BASE + 0x054)
#define	DWHCI_CORE_POWER_DOWN   (ARM_USB_CORE_BASE + 0x058)
#define	DWHCI_CORE_DFIFO_CFG   (ARM_USB_CORE_BASE + 0x05C)
#define	DWHCI_CORE_DFIFO_CFG_EPINFO_BASE__SHIFT   16
#define	DWHCI_CORE_DFIFO_CFG_EPINFO_BASE__MASK   (0xFFFF << 16)
#define	DWHCI_CORE_ADP_CTRL   (ARM_USB_CORE_BASE + 0x060)
#define	DWHCI_VENDOR_MDIO_CTRL   (ARM_USB_CORE_BASE + 0x080)
#define	DWHCI_VENDOR_MDIO_DATA   (ARM_USB_CORE_BASE + 0x084)
#define	DWHCI_VENDOR_VBUS_DRV   (ARM_USB_CORE_BASE + 0x088)
#define	DWHCI_CORE_HOST_PER_TX_FIFO_SIZ   (ARM_USB_CORE_BASE + 0x100)
#define	DWHCI_CORE_DEV_PER_TX_FIFO(fifo)   (ARM_USB_CORE_BASE + 0x104 + (fifo)*4)
#define	DWHCI_CORE_DEV_TX_FIFO(fifo)   (ARM_USB_CORE_BASE + 0x104 + (fifo)*4)
#define	DWHCI_HOST_CFG   (ARM_USB_HOST_BASE + 0x000)
#define	DWHCI_HOST_CFG_FSLS_PCLK_SEL__SHIFT   0
#define	DWHCI_HOST_CFG_FSLS_PCLK_SEL__MASK   (3 << 0)
#define	DWHCI_HOST_CFG_FSLS_PCLK_SEL_30_60_MHZ   0
#define	DWHCI_HOST_CFG_FSLS_PCLK_SEL_48_MHZ   1
#define	DWHCI_HOST_CFG_FSLS_PCLK_SEL_6_MHZ   2
#define	DWHCI_HOST_FRM_INTERVAL   (ARM_USB_HOST_BASE + 0x004)
#define	DWHCI_HOST_FRM_NUM   (ARM_USB_HOST_BASE + 0x008)
#define	DWHCI_HOST_FRM_NUM_NUMBER(reg)   ((reg) & 0xFFFF)
#define	DWHCI_MAX_FRAME_NUMBER   0x3FFF
#define	DWHCI_HOST_FRM_NUM_REMAINING(reg)   (((reg) >> 16) & 0xFFFF)
#define	DWHCI_HOST_PER_TX_FIFO_STAT   (ARM_USB_HOST_BASE + 0x010)
#define	DWHCI_HOST_ALLCHAN_INT   (ARM_USB_HOST_BASE + 0x014)
#define	DWHCI_HOST_ALLCHAN_INT_MASK   (ARM_USB_HOST_BASE + 0x018)
#define	DWHCI_HOST_FRMLST_BASE   (ARM_USB_HOST_BASE + 0x01C)
#define	DWHCI_HOST_PORT   (ARM_USB_HOST_BASE + 0x040)
#define	DWHCI_HOST_PORT_CONNECT   (1 << 0)
#define	DWHCI_HOST_PORT_CONNECT_CHANGED   (1 << 1)
#define	DWHCI_HOST_PORT_ENABLE   (1 << 2)
#define	DWHCI_HOST_PORT_ENABLE_CHANGED   (1 << 3)
#define	DWHCI_HOST_PORT_OVERCURRENT   (1 << 4)
#define	DWHCI_HOST_PORT_OVERCURRENT_CHANGED   (1 << 5)
#define	DWHCI_HOST_PORT_RESET   (1 << 8)
#define	DWHCI_HOST_PORT_POWER   (1 << 12)
#define	DWHCI_HOST_PORT_SPEED(reg)   (((reg) >> 17) & 3)
#define	DWHCI_HOST_PORT_SPEED_HIGH   0
#define	DWHCI_HOST_PORT_SPEED_FULL   1
#define	DWHCI_HOST_PORT_SPEED_LOW   2
#define	DWHCI_HOST_PORT_DEFAULT_MASK
#define	DWHCI_HOST_CHAN_CHARACTER(chan)   (ARM_USB_HOST_BASE + 0x100 + (chan)*0x20)
#define	DWHCI_HOST_CHAN_CHARACTER_MAX_PKT_SIZ__MASK   0x7FF
#define	DWHCI_HOST_CHAN_CHARACTER_EP_NUMBER__SHIFT   11
#define	DWHCI_HOST_CHAN_CHARACTER_EP_NUMBER__MASK   (0xF << 11)
#define	DWHCI_HOST_CHAN_CHARACTER_EP_DIRECTION_IN   (1 << 15)
#define	DWHCI_HOST_CHAN_CHARACTER_LOW_SPEED_DEVICE   (1 << 17)
#define	DWHCI_HOST_CHAN_CHARACTER_EP_TYPE__SHIFT   18
#define	DWHCI_HOST_CHAN_CHARACTER_EP_TYPE__MASK   (3 << 18)
#define	DWHCI_HOST_CHAN_CHARACTER_EP_TYPE_CONTROL   0
#define	DWHCI_HOST_CHAN_CHARACTER_EP_TYPE_ISO   1
#define	DWHCI_HOST_CHAN_CHARACTER_EP_TYPE_BULK   2
#define	DWHCI_HOST_CHAN_CHARACTER_EP_TYPE_INTERRUPT   3
#define	DWHCI_HOST_CHAN_CHARACTER_MULTI_CNT__SHIFT   20
#define	DWHCI_HOST_CHAN_CHARACTER_MULTI_CNT__MASK   (3 << 20)
#define	DWHCI_HOST_CHAN_CHARACTER_DEVICE_ADDRESS__SHIFT   22
#define	DWHCI_HOST_CHAN_CHARACTER_DEVICE_ADDRESS__MASK   (0x7F << 22)
#define	DWHCI_HOST_CHAN_CHARACTER_PER_ODD_FRAME   (1 << 29)
#define	DWHCI_HOST_CHAN_CHARACTER_DISABLE   (1 << 30)
#define	DWHCI_HOST_CHAN_CHARACTER_ENABLE   (1 << 31)
#define	DWHCI_HOST_CHAN_SPLIT_CTRL(chan)   (ARM_USB_HOST_BASE + 0x104 + (chan)*0x20)
#define	DWHCI_HOST_CHAN_SPLIT_CTRL_PORT_ADDRESS__MASK   0x7F
#define	DWHCI_HOST_CHAN_SPLIT_CTRL_HUB_ADDRESS__SHIFT   7
#define	DWHCI_HOST_CHAN_SPLIT_CTRL_HUB_ADDRESS__MASK   (0x7F << 7)
#define	DWHCI_HOST_CHAN_SPLIT_CTRL_XACT_POS__SHIFT   14
#define	DWHCI_HOST_CHAN_SPLIT_CTRL_XACT_POS__MASK   (3 << 14)
#define	DWHCI_HOST_CHAN_SPLIT_CTRL_ALL   3
#define	DWHCI_HOST_CHAN_SPLIT_CTRL_COMPLETE_SPLIT   (1 << 16)
#define	DWHCI_HOST_CHAN_SPLIT_CTRL_SPLIT_ENABLE   (1 << 31)
#define	DWHCI_HOST_CHAN_INT(chan)   (ARM_USB_HOST_BASE + 0x108 + (chan)*0x20)
#define	DWHCI_HOST_CHAN_INT_XFER_COMPLETE   (1 << 0)
#define	DWHCI_HOST_CHAN_INT_HALTED   (1 << 1)
#define	DWHCI_HOST_CHAN_INT_AHB_ERROR   (1 << 2)
#define	DWHCI_HOST_CHAN_INT_STALL   (1 << 3)
#define	DWHCI_HOST_CHAN_INT_NAK   (1 << 4)
#define	DWHCI_HOST_CHAN_INT_ACK   (1 << 5)
#define	DWHCI_HOST_CHAN_INT_NYET   (1 << 6)
#define	DWHCI_HOST_CHAN_INT_XACT_ERROR   (1 << 7)
#define	DWHCI_HOST_CHAN_INT_BABBLE_ERROR   (1 << 8)
#define	DWHCI_HOST_CHAN_INT_FRAME_OVERRUN   (1 << 9)
#define	DWHCI_HOST_CHAN_INT_DATA_TOGGLE_ERROR   (1 << 10)
#define	DWHCI_HOST_CHAN_INT_ERROR_MASK
#define	DWHCI_HOST_CHAN_INT_MASK(chan)   (ARM_USB_HOST_BASE + 0x10C + (chan)*0x20)
#define	DWHCI_HOST_CHAN_XFER_SIZ(chan)   (ARM_USB_HOST_BASE + 0x110 + (chan)*0x20)
#define	DWHCI_HOST_CHAN_XFER_SIZ_BYTES__MASK   0x7FFFF
#define	DWHCI_HOST_CHAN_XFER_SIZ_PACKETS__SHIFT   19
#define	DWHCI_HOST_CHAN_XFER_SIZ_PACKETS__MASK   (0x3FF << 19)
#define	DWHCI_HOST_CHAN_XFER_SIZ_PACKETS(reg)   (((reg) >> 19) & 0x3FF)
#define	DWHCI_HOST_CHAN_XFER_SIZ_PID__SHIFT   29
#define	DWHCI_HOST_CHAN_XFER_SIZ_PID__MASK   (3 << 29)
#define	DWHCI_HOST_CHAN_XFER_SIZ_PID(reg)   (((reg) >> 29) & 3)
#define	DWHCI_HOST_CHAN_XFER_SIZ_PID_DATA0   0
#define	DWHCI_HOST_CHAN_XFER_SIZ_PID_DATA1   2
#define	DWHCI_HOST_CHAN_XFER_SIZ_PID_DATA2   1
#define	DWHCI_HOST_CHAN_XFER_SIZ_PID_MDATA   3
#define	DWHCI_HOST_CHAN_XFER_SIZ_PID_SETUP   3
#define	DWHCI_HOST_CHAN_DMA_ADDR(chan)   (ARM_USB_HOST_BASE + 0x114 + (chan)*0x20)
#define	DWHCI_HOST_CHAN_DMA_BUF(chan)   (ARM_USB_HOST_BASE + 0x11C + (chan)*0x20)
#define	DWHCI_DATA_FIFO(chan)   (ARM_USB_HOST_BASE + 0x1000 + (chan)*DWHCI_DATA_FIFO_SIZE)

Macro Definition Documentation

DWHCI_CORE_ADP_CTRL

#define DWHCI_CORE_ADP_CTRL   (ARM_USB_CORE_BASE + 0x060)

DWHCI_CORE_AHB_CFG

#define DWHCI_CORE_AHB_CFG   (ARM_USB_CORE_BASE + 0x008)

DWHCI_CORE_AHB_CFG_AHB_SINGLE

#define DWHCI_CORE_AHB_CFG_AHB_SINGLE   (1 << 23)

DWHCI_CORE_AHB_CFG_DMAENABLE

#define DWHCI_CORE_AHB_CFG_DMAENABLE   (1 << 5)

DWHCI_CORE_AHB_CFG_GLOBALINT_MASK

#define DWHCI_CORE_AHB_CFG_GLOBALINT_MASK   (1 << 0)

DWHCI_CORE_AHB_CFG_MAX_AXI_BURST__MASK

#define DWHCI_CORE_AHB_CFG_MAX_AXI_BURST__MASK   (3 << 1)

DWHCI_CORE_AHB_CFG_MAX_AXI_BURST__SHIFT

#define DWHCI_CORE_AHB_CFG_MAX_AXI_BURST__SHIFT   1

DWHCI_CORE_AHB_CFG_WAIT_AXI_WRITES

#define DWHCI_CORE_AHB_CFG_WAIT_AXI_WRITES   (1 << 4)

DWHCI_CORE_DEV_PER_TX_FIFO

#define DWHCI_CORE_DEV_PER_TX_FIFO

(

fifo

)

(ARM_USB_CORE_BASE + 0x104 + (fifo)*4)

DWHCI_CORE_DEV_TX_FIFO

#define DWHCI_CORE_DEV_TX_FIFO

(

fifo

)

(ARM_USB_CORE_BASE + 0x104 + (fifo)*4)

DWHCI_CORE_DFIFO_CFG

#define DWHCI_CORE_DFIFO_CFG   (ARM_USB_CORE_BASE + 0x05C)

DWHCI_CORE_DFIFO_CFG_EPINFO_BASE__MASK

#define DWHCI_CORE_DFIFO_CFG_EPINFO_BASE__MASK   (0xFFFF << 16)

DWHCI_CORE_DFIFO_CFG_EPINFO_BASE__SHIFT

#define DWHCI_CORE_DFIFO_CFG_EPINFO_BASE__SHIFT   16

DWHCI_CORE_GPIO

#define DWHCI_CORE_GPIO   (ARM_USB_CORE_BASE + 0x038)

DWHCI_CORE_HOST_PER_TX_FIFO_SIZ

#define DWHCI_CORE_HOST_PER_TX_FIFO_SIZ   (ARM_USB_CORE_BASE + 0x100)

DWHCI_CORE_HW_CFG1

#define DWHCI_CORE_HW_CFG1   (ARM_USB_CORE_BASE + 0x044)

DWHCI_CORE_HW_CFG2

#define DWHCI_CORE_HW_CFG2   (ARM_USB_CORE_BASE + 0x048)

DWHCI_CORE_HW_CFG2_ARCHITECTURE

#define DWHCI_CORE_HW_CFG2_ARCHITECTURE

(

reg

)

(((reg) >> 3) & 3)

DWHCI_CORE_HW_CFG2_FS_PHY_TYPE

#define DWHCI_CORE_HW_CFG2_FS_PHY_TYPE

(

reg

)

(((reg) >> 8) & 3)

DWHCI_CORE_HW_CFG2_FS_PHY_TYPE_DEDICATED

#define DWHCI_CORE_HW_CFG2_FS_PHY_TYPE_DEDICATED   1

DWHCI_CORE_HW_CFG2_HS_PHY_TYPE

#define DWHCI_CORE_HW_CFG2_HS_PHY_TYPE

(

reg

)

(((reg) >> 6) & 3)

DWHCI_CORE_HW_CFG2_HS_PHY_TYPE_NOT_SUPPORTED

#define DWHCI_CORE_HW_CFG2_HS_PHY_TYPE_NOT_SUPPORTED   0

DWHCI_CORE_HW_CFG2_HS_PHY_TYPE_ULPI

#define DWHCI_CORE_HW_CFG2_HS_PHY_TYPE_ULPI   2

DWHCI_CORE_HW_CFG2_HS_PHY_TYPE_UTMI

#define DWHCI_CORE_HW_CFG2_HS_PHY_TYPE_UTMI   1

DWHCI_CORE_HW_CFG2_HS_PHY_TYPE_UTMI_ULPI

#define DWHCI_CORE_HW_CFG2_HS_PHY_TYPE_UTMI_ULPI   3

DWHCI_CORE_HW_CFG2_NUM_HOST_CHANNELS

#define DWHCI_CORE_HW_CFG2_NUM_HOST_CHANNELS

(

reg

)

((((reg) >> 14) & 0xF) + 1)

DWHCI_CORE_HW_CFG2_OP_MODE

#define DWHCI_CORE_HW_CFG2_OP_MODE

(

reg

)

(((reg) >> 0) & 7)

DWHCI_CORE_HW_CFG3

#define DWHCI_CORE_HW_CFG3   (ARM_USB_CORE_BASE + 0x04C)

DWHCI_CORE_HW_CFG3_DFIFO_DEPTH

#define DWHCI_CORE_HW_CFG3_DFIFO_DEPTH

(

reg

)

(((reg) >> 16) & 0xFFFF)

DWHCI_CORE_HW_CFG4

#define DWHCI_CORE_HW_CFG4   (ARM_USB_CORE_BASE + 0x050)

DWHCI_CORE_HW_CFG4_DED_FIFO_EN

#define DWHCI_CORE_HW_CFG4_DED_FIFO_EN   (1 << 25)

DWHCI_CORE_HW_CFG4_NUM_IN_EPS

#define DWHCI_CORE_HW_CFG4_NUM_IN_EPS

(

reg

)

(((reg) >> 26) & 0xF)

DWHCI_CORE_I2C_CTRL

#define DWHCI_CORE_I2C_CTRL   (ARM_USB_CORE_BASE + 0x030)

DWHCI_CORE_INT_MASK

#define DWHCI_CORE_INT_MASK   (ARM_USB_CORE_BASE + 0x018)

DWHCI_CORE_INT_MASK_CON_ID_STS_CHNG

#define DWHCI_CORE_INT_MASK_CON_ID_STS_CHNG   (1 << 28)

DWHCI_CORE_INT_MASK_DISCONNECT

#define DWHCI_CORE_INT_MASK_DISCONNECT   (1 << 29)

DWHCI_CORE_INT_MASK_HC_INTR

#define DWHCI_CORE_INT_MASK_HC_INTR   (1 << 25)

DWHCI_CORE_INT_MASK_MODE_MISMATCH

#define DWHCI_CORE_INT_MASK_MODE_MISMATCH   (1 << 1)

DWHCI_CORE_INT_MASK_PORT_INTR

#define DWHCI_CORE_INT_MASK_PORT_INTR   (1 << 24)

DWHCI_CORE_INT_MASK_RX_STS_Q_LVL

#define DWHCI_CORE_INT_MASK_RX_STS_Q_LVL   (1 << 4)

DWHCI_CORE_INT_MASK_SESS_REQ_INTR

#define DWHCI_CORE_INT_MASK_SESS_REQ_INTR   (1 << 30)

DWHCI_CORE_INT_MASK_SOF_INTR

#define DWHCI_CORE_INT_MASK_SOF_INTR   (1 << 3)

DWHCI_CORE_INT_MASK_USB_SUSPEND

#define DWHCI_CORE_INT_MASK_USB_SUSPEND   (1 << 11)

DWHCI_CORE_INT_MASK_WKUP_INTR

#define DWHCI_CORE_INT_MASK_WKUP_INTR   (1 << 31)

DWHCI_CORE_INT_STAT

#define DWHCI_CORE_INT_STAT   (ARM_USB_CORE_BASE + 0x014)

DWHCI_CORE_INT_STAT_HC_INTR

#define DWHCI_CORE_INT_STAT_HC_INTR   (1 << 25)

DWHCI_CORE_INT_STAT_PORT_INTR

#define DWHCI_CORE_INT_STAT_PORT_INTR   (1 << 24)

DWHCI_CORE_INT_STAT_SOF_INTR

#define DWHCI_CORE_INT_STAT_SOF_INTR   (1 << 3)

DWHCI_CORE_LPM_CFG

#define DWHCI_CORE_LPM_CFG   (ARM_USB_CORE_BASE + 0x054)

DWHCI_CORE_NPER_TX_FIFO_SIZ

#define DWHCI_CORE_NPER_TX_FIFO_SIZ   (ARM_USB_CORE_BASE + 0x028)

DWHCI_CORE_NPER_TX_STAT

#define DWHCI_CORE_NPER_TX_STAT   (ARM_USB_CORE_BASE + 0x02C)

DWHCI_CORE_NPER_TX_STAT_QUEUE_SPACE_AVL

#define DWHCI_CORE_NPER_TX_STAT_QUEUE_SPACE_AVL

(

reg

)

(((reg) >> 16) & 0xFF)

DWHCI_CORE_OTG_CTRL

#define DWHCI_CORE_OTG_CTRL   (ARM_USB_CORE_BASE + 0x000)

DWHCI_CORE_OTG_CTRL_HST_SET_HNP_EN

#define DWHCI_CORE_OTG_CTRL_HST_SET_HNP_EN   (1 << 10)

DWHCI_CORE_OTG_INT

#define DWHCI_CORE_OTG_INT   (ARM_USB_CORE_BASE + 0x004)

DWHCI_CORE_PHY_VENDOR_CTRL

#define DWHCI_CORE_PHY_VENDOR_CTRL   (ARM_USB_CORE_BASE + 0x034)

DWHCI_CORE_POWER_DOWN

#define DWHCI_CORE_POWER_DOWN   (ARM_USB_CORE_BASE + 0x058)

DWHCI_CORE_RESET

#define DWHCI_CORE_RESET   (ARM_USB_CORE_BASE + 0x010)

DWHCI_CORE_RESET_AHB_IDLE

#define DWHCI_CORE_RESET_AHB_IDLE   (1 << 31)

DWHCI_CORE_RESET_RX_FIFO_FLUSH

#define DWHCI_CORE_RESET_RX_FIFO_FLUSH   (1 << 4)

DWHCI_CORE_RESET_SOFT_RESET

#define DWHCI_CORE_RESET_SOFT_RESET   (1 << 0)

DWHCI_CORE_RESET_TX_FIFO_FLUSH

#define DWHCI_CORE_RESET_TX_FIFO_FLUSH   (1 << 5)

DWHCI_CORE_RESET_TX_FIFO_NUM__MASK

#define DWHCI_CORE_RESET_TX_FIFO_NUM__MASK   (0x1F << 6)

DWHCI_CORE_RESET_TX_FIFO_NUM__SHIFT

#define DWHCI_CORE_RESET_TX_FIFO_NUM__SHIFT   6

DWHCI_CORE_RX_FIFO_SIZ

#define DWHCI_CORE_RX_FIFO_SIZ   (ARM_USB_CORE_BASE + 0x024)

DWHCI_CORE_RX_STAT_BYTE_COUNT__MASK

#define DWHCI_CORE_RX_STAT_BYTE_COUNT__MASK   (0x7FF << 4)

DWHCI_CORE_RX_STAT_BYTE_COUNT__SHIFT

#define DWHCI_CORE_RX_STAT_BYTE_COUNT__SHIFT   4

DWHCI_CORE_RX_STAT_CHAN_NUMBER__MASK

#define DWHCI_CORE_RX_STAT_CHAN_NUMBER__MASK   0xF

DWHCI_CORE_RX_STAT_PACKET_STATUS__MASK

#define DWHCI_CORE_RX_STAT_PACKET_STATUS__MASK   (0xF << 17)

DWHCI_CORE_RX_STAT_PACKET_STATUS__SHIFT

#define DWHCI_CORE_RX_STAT_PACKET_STATUS__SHIFT   17

DWHCI_CORE_RX_STAT_PACKET_STATUS_CHAN_HALTED

#define DWHCI_CORE_RX_STAT_PACKET_STATUS_CHAN_HALTED   7

DWHCI_CORE_RX_STAT_PACKET_STATUS_DATA_TOGGLE_ERR

#define DWHCI_CORE_RX_STAT_PACKET_STATUS_DATA_TOGGLE_ERR   5

DWHCI_CORE_RX_STAT_PACKET_STATUS_IN

#define DWHCI_CORE_RX_STAT_PACKET_STATUS_IN   2

DWHCI_CORE_RX_STAT_PACKET_STATUS_IN_XFER_COMP

#define DWHCI_CORE_RX_STAT_PACKET_STATUS_IN_XFER_COMP   3

DWHCI_CORE_RX_STAT_POP

#define DWHCI_CORE_RX_STAT_POP   (ARM_USB_CORE_BASE + 0x020)

DWHCI_CORE_RX_STAT_RD

#define DWHCI_CORE_RX_STAT_RD   (ARM_USB_CORE_BASE + 0x01C)

DWHCI_CORE_USB_CFG

#define DWHCI_CORE_USB_CFG   (ARM_USB_CORE_BASE + 0x00C)

DWHCI_CORE_USB_CFG_HNP_CAPABLE

#define DWHCI_CORE_USB_CFG_HNP_CAPABLE   (1 << 9)

DWHCI_CORE_USB_CFG_PHYIF

#define DWHCI_CORE_USB_CFG_PHYIF   (1 << 3)

DWHCI_CORE_USB_CFG_SRP_CAPABLE

#define DWHCI_CORE_USB_CFG_SRP_CAPABLE   (1 << 8)

DWHCI_CORE_USB_CFG_TERM_SEL_DL_PULSE

#define DWHCI_CORE_USB_CFG_TERM_SEL_DL_PULSE   (1 << 22)

DWHCI_CORE_USB_CFG_ULPI_CLK_SUS_M

#define DWHCI_CORE_USB_CFG_ULPI_CLK_SUS_M   (1 << 19)

DWHCI_CORE_USB_CFG_ULPI_EXT_VBUS_DRV

#define DWHCI_CORE_USB_CFG_ULPI_EXT_VBUS_DRV   (1 << 20)

DWHCI_CORE_USB_CFG_ULPI_FSLS

#define DWHCI_CORE_USB_CFG_ULPI_FSLS   (1 << 17)

DWHCI_CORE_USB_CFG_ULPI_UTMI_SEL

#define DWHCI_CORE_USB_CFG_ULPI_UTMI_SEL   (1 << 4)

DWHCI_CORE_USER_ID

#define DWHCI_CORE_USER_ID   (ARM_USB_CORE_BASE + 0x03C)

DWHCI_CORE_VENDOR_ID

#define DWHCI_CORE_VENDOR_ID   (ARM_USB_CORE_BASE + 0x040)

DWHCI_DATA_FIFO

#define DWHCI_DATA_FIFO

(

chan

)

(ARM_USB_HOST_BASE + 0x1000 + (chan)*DWHCI_DATA_FIFO_SIZE)

DWHCI_DATA_FIFO_SIZE

#define DWHCI_DATA_FIFO_SIZE   0x1000

DWHCI_HOST_ALLCHAN_INT

#define DWHCI_HOST_ALLCHAN_INT   (ARM_USB_HOST_BASE + 0x014)

DWHCI_HOST_ALLCHAN_INT_MASK

#define DWHCI_HOST_ALLCHAN_INT_MASK   (ARM_USB_HOST_BASE + 0x018)

DWHCI_HOST_CFG

#define DWHCI_HOST_CFG   (ARM_USB_HOST_BASE + 0x000)

DWHCI_HOST_CFG_FSLS_PCLK_SEL_30_60_MHZ

#define DWHCI_HOST_CFG_FSLS_PCLK_SEL_30_60_MHZ   0

DWHCI_HOST_CFG_FSLS_PCLK_SEL_48_MHZ

#define DWHCI_HOST_CFG_FSLS_PCLK_SEL_48_MHZ   1

DWHCI_HOST_CFG_FSLS_PCLK_SEL_6_MHZ

#define DWHCI_HOST_CFG_FSLS_PCLK_SEL_6_MHZ   2

DWHCI_HOST_CFG_FSLS_PCLK_SEL__MASK

#define DWHCI_HOST_CFG_FSLS_PCLK_SEL__MASK   (3 << 0)

DWHCI_HOST_CFG_FSLS_PCLK_SEL__SHIFT

#define DWHCI_HOST_CFG_FSLS_PCLK_SEL__SHIFT   0

DWHCI_HOST_CHAN_CHARACTER

#define DWHCI_HOST_CHAN_CHARACTER

(

chan

)

(ARM_USB_HOST_BASE + 0x100 + (chan)*0x20)

DWHCI_HOST_CHAN_CHARACTER_DEVICE_ADDRESS__MASK

#define DWHCI_HOST_CHAN_CHARACTER_DEVICE_ADDRESS__MASK   (0x7F << 22)

DWHCI_HOST_CHAN_CHARACTER_DEVICE_ADDRESS__SHIFT

#define DWHCI_HOST_CHAN_CHARACTER_DEVICE_ADDRESS__SHIFT   22

DWHCI_HOST_CHAN_CHARACTER_DISABLE

#define DWHCI_HOST_CHAN_CHARACTER_DISABLE   (1 << 30)

DWHCI_HOST_CHAN_CHARACTER_ENABLE

#define DWHCI_HOST_CHAN_CHARACTER_ENABLE   (1 << 31)

DWHCI_HOST_CHAN_CHARACTER_EP_DIRECTION_IN

#define DWHCI_HOST_CHAN_CHARACTER_EP_DIRECTION_IN   (1 << 15)

DWHCI_HOST_CHAN_CHARACTER_EP_NUMBER__MASK

#define DWHCI_HOST_CHAN_CHARACTER_EP_NUMBER__MASK   (0xF << 11)

DWHCI_HOST_CHAN_CHARACTER_EP_NUMBER__SHIFT

#define DWHCI_HOST_CHAN_CHARACTER_EP_NUMBER__SHIFT   11

DWHCI_HOST_CHAN_CHARACTER_EP_TYPE__MASK

#define DWHCI_HOST_CHAN_CHARACTER_EP_TYPE__MASK   (3 << 18)

DWHCI_HOST_CHAN_CHARACTER_EP_TYPE__SHIFT

#define DWHCI_HOST_CHAN_CHARACTER_EP_TYPE__SHIFT   18

DWHCI_HOST_CHAN_CHARACTER_EP_TYPE_BULK

#define DWHCI_HOST_CHAN_CHARACTER_EP_TYPE_BULK   2

DWHCI_HOST_CHAN_CHARACTER_EP_TYPE_CONTROL

#define DWHCI_HOST_CHAN_CHARACTER_EP_TYPE_CONTROL   0

DWHCI_HOST_CHAN_CHARACTER_EP_TYPE_INTERRUPT

#define DWHCI_HOST_CHAN_CHARACTER_EP_TYPE_INTERRUPT   3

DWHCI_HOST_CHAN_CHARACTER_EP_TYPE_ISO

#define DWHCI_HOST_CHAN_CHARACTER_EP_TYPE_ISO   1

DWHCI_HOST_CHAN_CHARACTER_LOW_SPEED_DEVICE

#define DWHCI_HOST_CHAN_CHARACTER_LOW_SPEED_DEVICE   (1 << 17)

DWHCI_HOST_CHAN_CHARACTER_MAX_PKT_SIZ__MASK

#define DWHCI_HOST_CHAN_CHARACTER_MAX_PKT_SIZ__MASK   0x7FF

DWHCI_HOST_CHAN_CHARACTER_MULTI_CNT__MASK

#define DWHCI_HOST_CHAN_CHARACTER_MULTI_CNT__MASK   (3 << 20)

DWHCI_HOST_CHAN_CHARACTER_MULTI_CNT__SHIFT

#define DWHCI_HOST_CHAN_CHARACTER_MULTI_CNT__SHIFT   20

DWHCI_HOST_CHAN_CHARACTER_PER_ODD_FRAME

#define DWHCI_HOST_CHAN_CHARACTER_PER_ODD_FRAME   (1 << 29)

DWHCI_HOST_CHAN_DMA_ADDR

#define DWHCI_HOST_CHAN_DMA_ADDR

(

chan

)

(ARM_USB_HOST_BASE + 0x114 + (chan)*0x20)

DWHCI_HOST_CHAN_DMA_BUF

#define DWHCI_HOST_CHAN_DMA_BUF

(

chan

)

(ARM_USB_HOST_BASE + 0x11C + (chan)*0x20)

DWHCI_HOST_CHAN_INT

#define DWHCI_HOST_CHAN_INT

(

chan

)

(ARM_USB_HOST_BASE + 0x108 + (chan)*0x20)

DWHCI_HOST_CHAN_INT_ACK

#define DWHCI_HOST_CHAN_INT_ACK   (1 << 5)

DWHCI_HOST_CHAN_INT_AHB_ERROR

#define DWHCI_HOST_CHAN_INT_AHB_ERROR   (1 << 2)

DWHCI_HOST_CHAN_INT_BABBLE_ERROR

#define DWHCI_HOST_CHAN_INT_BABBLE_ERROR   (1 << 8)

DWHCI_HOST_CHAN_INT_DATA_TOGGLE_ERROR

#define DWHCI_HOST_CHAN_INT_DATA_TOGGLE_ERROR   (1 << 10)

DWHCI_HOST_CHAN_INT_ERROR_MASK

#define DWHCI_HOST_CHAN_INT_ERROR_MASK

Value:

                                 (  DWHCI_HOST_CHAN_INT_AHB_ERROR     \
                                 | DWHCI_HOST_CHAN_INT_STALL         \
                                 | DWHCI_HOST_CHAN_INT_XACT_ERROR    \
                                 | DWHCI_HOST_CHAN_INT_BABBLE_ERROR  \
                                 | DWHCI_HOST_CHAN_INT_FRAME_OVERRUN \
                                 | DWHCI_HOST_CHAN_INT_DATA_TOGGLE_ERROR)

DWHCI_HOST_CHAN_INT_FRAME_OVERRUN

#define DWHCI_HOST_CHAN_INT_FRAME_OVERRUN   (1 << 9)

DWHCI_HOST_CHAN_INT_HALTED

#define DWHCI_HOST_CHAN_INT_HALTED   (1 << 1)

DWHCI_HOST_CHAN_INT_MASK

#define DWHCI_HOST_CHAN_INT_MASK

(

chan

)

(ARM_USB_HOST_BASE + 0x10C + (chan)*0x20)

DWHCI_HOST_CHAN_INT_NAK

#define DWHCI_HOST_CHAN_INT_NAK   (1 << 4)

DWHCI_HOST_CHAN_INT_NYET

#define DWHCI_HOST_CHAN_INT_NYET   (1 << 6)

DWHCI_HOST_CHAN_INT_STALL

#define DWHCI_HOST_CHAN_INT_STALL   (1 << 3)

DWHCI_HOST_CHAN_INT_XACT_ERROR

#define DWHCI_HOST_CHAN_INT_XACT_ERROR   (1 << 7)

DWHCI_HOST_CHAN_INT_XFER_COMPLETE

#define DWHCI_HOST_CHAN_INT_XFER_COMPLETE   (1 << 0)

DWHCI_HOST_CHAN_SPLIT_CTRL

#define DWHCI_HOST_CHAN_SPLIT_CTRL

(

chan

)

(ARM_USB_HOST_BASE + 0x104 + (chan)*0x20)

DWHCI_HOST_CHAN_SPLIT_CTRL_ALL

#define DWHCI_HOST_CHAN_SPLIT_CTRL_ALL   3

DWHCI_HOST_CHAN_SPLIT_CTRL_COMPLETE_SPLIT

#define DWHCI_HOST_CHAN_SPLIT_CTRL_COMPLETE_SPLIT   (1 << 16)

DWHCI_HOST_CHAN_SPLIT_CTRL_HUB_ADDRESS__MASK

#define DWHCI_HOST_CHAN_SPLIT_CTRL_HUB_ADDRESS__MASK   (0x7F << 7)

DWHCI_HOST_CHAN_SPLIT_CTRL_HUB_ADDRESS__SHIFT

#define DWHCI_HOST_CHAN_SPLIT_CTRL_HUB_ADDRESS__SHIFT   7

DWHCI_HOST_CHAN_SPLIT_CTRL_PORT_ADDRESS__MASK

#define DWHCI_HOST_CHAN_SPLIT_CTRL_PORT_ADDRESS__MASK   0x7F

DWHCI_HOST_CHAN_SPLIT_CTRL_SPLIT_ENABLE

#define DWHCI_HOST_CHAN_SPLIT_CTRL_SPLIT_ENABLE   (1 << 31)

DWHCI_HOST_CHAN_SPLIT_CTRL_XACT_POS__MASK

#define DWHCI_HOST_CHAN_SPLIT_CTRL_XACT_POS__MASK   (3 << 14)

DWHCI_HOST_CHAN_SPLIT_CTRL_XACT_POS__SHIFT

#define DWHCI_HOST_CHAN_SPLIT_CTRL_XACT_POS__SHIFT   14

DWHCI_HOST_CHAN_XFER_SIZ

#define DWHCI_HOST_CHAN_XFER_SIZ

(

chan

)

(ARM_USB_HOST_BASE + 0x110 + (chan)*0x20)

DWHCI_HOST_CHAN_XFER_SIZ_BYTES__MASK

#define DWHCI_HOST_CHAN_XFER_SIZ_BYTES__MASK   0x7FFFF

DWHCI_HOST_CHAN_XFER_SIZ_PACKETS

#define DWHCI_HOST_CHAN_XFER_SIZ_PACKETS

(

reg

)

(((reg) >> 19) & 0x3FF)

DWHCI_HOST_CHAN_XFER_SIZ_PACKETS__MASK

#define DWHCI_HOST_CHAN_XFER_SIZ_PACKETS__MASK   (0x3FF << 19)

DWHCI_HOST_CHAN_XFER_SIZ_PACKETS__SHIFT

#define DWHCI_HOST_CHAN_XFER_SIZ_PACKETS__SHIFT   19

DWHCI_HOST_CHAN_XFER_SIZ_PID

#define DWHCI_HOST_CHAN_XFER_SIZ_PID

(

reg

)

(((reg) >> 29) & 3)

DWHCI_HOST_CHAN_XFER_SIZ_PID__MASK

#define DWHCI_HOST_CHAN_XFER_SIZ_PID__MASK   (3 << 29)

DWHCI_HOST_CHAN_XFER_SIZ_PID__SHIFT

#define DWHCI_HOST_CHAN_XFER_SIZ_PID__SHIFT   29

DWHCI_HOST_CHAN_XFER_SIZ_PID_DATA0

#define DWHCI_HOST_CHAN_XFER_SIZ_PID_DATA0   0

DWHCI_HOST_CHAN_XFER_SIZ_PID_DATA1

#define DWHCI_HOST_CHAN_XFER_SIZ_PID_DATA1   2

DWHCI_HOST_CHAN_XFER_SIZ_PID_DATA2

#define DWHCI_HOST_CHAN_XFER_SIZ_PID_DATA2   1

DWHCI_HOST_CHAN_XFER_SIZ_PID_MDATA

#define DWHCI_HOST_CHAN_XFER_SIZ_PID_MDATA   3

DWHCI_HOST_CHAN_XFER_SIZ_PID_SETUP

#define DWHCI_HOST_CHAN_XFER_SIZ_PID_SETUP   3

DWHCI_HOST_FRM_INTERVAL

#define DWHCI_HOST_FRM_INTERVAL   (ARM_USB_HOST_BASE + 0x004)

DWHCI_HOST_FRM_NUM

#define DWHCI_HOST_FRM_NUM   (ARM_USB_HOST_BASE + 0x008)

DWHCI_HOST_FRM_NUM_NUMBER

#define DWHCI_HOST_FRM_NUM_NUMBER

(

reg

)

((reg) & 0xFFFF)

DWHCI_HOST_FRM_NUM_REMAINING

#define DWHCI_HOST_FRM_NUM_REMAINING

(

reg

)

(((reg) >> 16) & 0xFFFF)

DWHCI_HOST_FRMLST_BASE

#define DWHCI_HOST_FRMLST_BASE   (ARM_USB_HOST_BASE + 0x01C)

DWHCI_HOST_PER_TX_FIFO_STAT

#define DWHCI_HOST_PER_TX_FIFO_STAT   (ARM_USB_HOST_BASE + 0x010)

DWHCI_HOST_PORT

#define DWHCI_HOST_PORT   (ARM_USB_HOST_BASE + 0x040)

DWHCI_HOST_PORT_CONNECT

#define DWHCI_HOST_PORT_CONNECT   (1 << 0)

DWHCI_HOST_PORT_CONNECT_CHANGED

#define DWHCI_HOST_PORT_CONNECT_CHANGED   (1 << 1)

DWHCI_HOST_PORT_DEFAULT_MASK

#define DWHCI_HOST_PORT_DEFAULT_MASK

Value:

                                 (  DWHCI_HOST_PORT_CONNECT_CHANGED \
                                 | DWHCI_HOST_PORT_ENABLE      \
                                 | DWHCI_HOST_PORT_ENABLE_CHANGED  \
                                 | DWHCI_HOST_PORT_OVERCURRENT_CHANGED)

DWHCI_HOST_PORT_ENABLE

#define DWHCI_HOST_PORT_ENABLE   (1 << 2)

DWHCI_HOST_PORT_ENABLE_CHANGED

#define DWHCI_HOST_PORT_ENABLE_CHANGED   (1 << 3)

DWHCI_HOST_PORT_OVERCURRENT

#define DWHCI_HOST_PORT_OVERCURRENT   (1 << 4)

DWHCI_HOST_PORT_OVERCURRENT_CHANGED

#define DWHCI_HOST_PORT_OVERCURRENT_CHANGED   (1 << 5)

DWHCI_HOST_PORT_POWER

#define DWHCI_HOST_PORT_POWER   (1 << 12)

DWHCI_HOST_PORT_RESET

#define DWHCI_HOST_PORT_RESET   (1 << 8)

DWHCI_HOST_PORT_SPEED

#define DWHCI_HOST_PORT_SPEED

(

reg

)

(((reg) >> 17) & 3)

DWHCI_HOST_PORT_SPEED_FULL

#define DWHCI_HOST_PORT_SPEED_FULL   1

DWHCI_HOST_PORT_SPEED_HIGH

#define DWHCI_HOST_PORT_SPEED_HIGH   0

DWHCI_HOST_PORT_SPEED_LOW

#define DWHCI_HOST_PORT_SPEED_LOW   2

DWHCI_MAX_CHANNELS

#define DWHCI_MAX_CHANNELS   16

DWHCI_MAX_FRAME_NUMBER

#define DWHCI_MAX_FRAME_NUMBER   0x3FFF

DWHCI_VENDOR_MDIO_CTRL

#define DWHCI_VENDOR_MDIO_CTRL   (ARM_USB_CORE_BASE + 0x080)

DWHCI_VENDOR_MDIO_DATA

#define DWHCI_VENDOR_MDIO_DATA   (ARM_USB_CORE_BASE + 0x084)

DWHCI_VENDOR_VBUS_DRV

#define DWHCI_VENDOR_VBUS_DRV   (ARM_USB_CORE_BASE + 0x088)
