listview.h File Reference

#include "base.h"
#include "../chitralekha.h"
#include "window.h"
#include "scrollbar.h"
#include <_xeneva.h>
#include "icon.h"

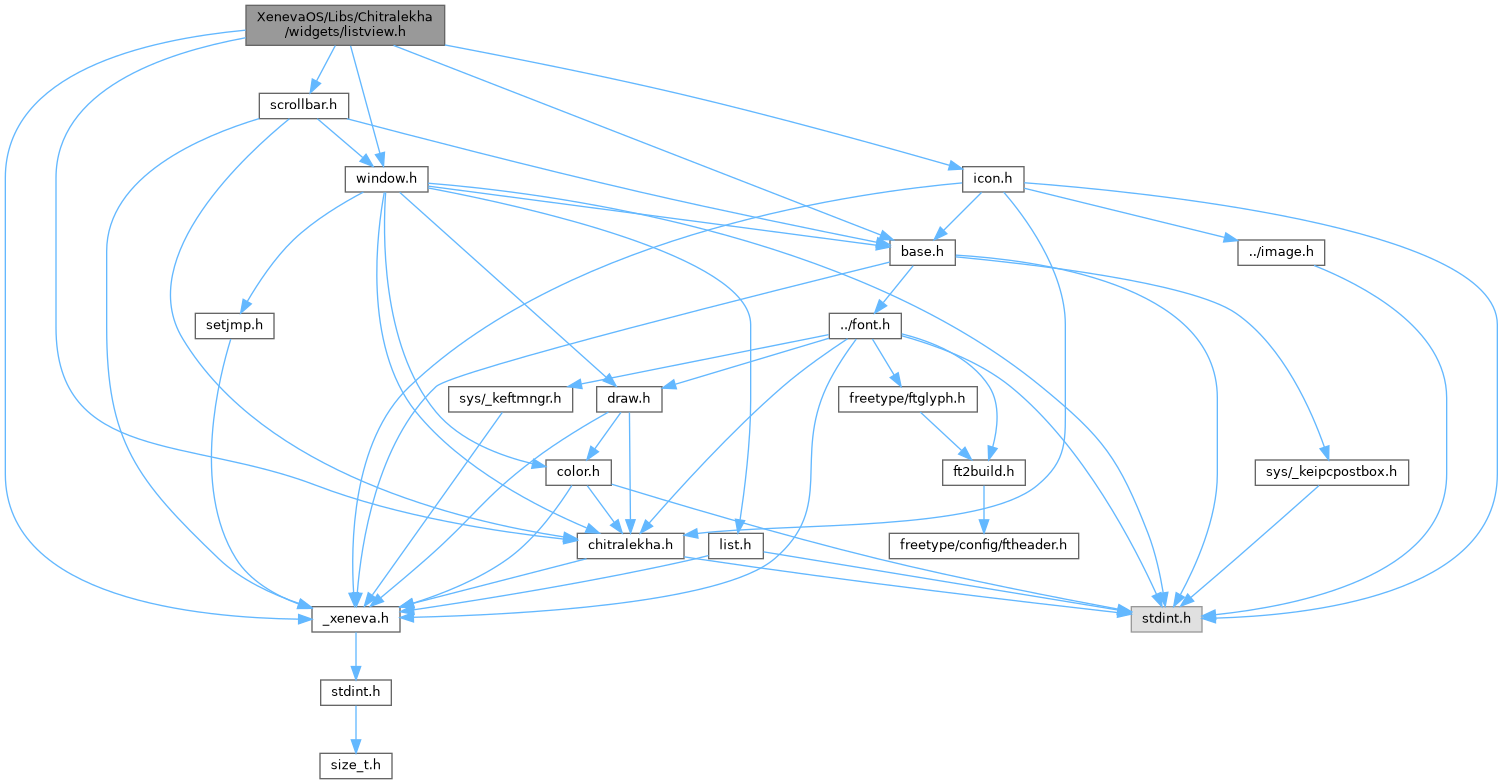

Include dependency graph for listview.h:

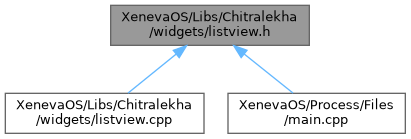

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	_list_column_
struct	_ListItem_
struct	_List_View_

Macros
#define	LIST_VIEW_MAX_TEXT   64
#define	LIST_VIEW_MAX_COMUMNS   8
#define	LIST_VIEW_ICON_COLUMN_DEFAULT_W   20
#define	LIST_VIEW_ICON_PADDING   4

Typedefs
typedef struct _list_column_	ListColumn
typedef struct _ListItem_	ListItem
typedef struct _List_View_	ListView

Functions
XE_EXPORT ListView *	ChListViewCreate (int x, int y, int w, int h, int itemHeight)
	ChListViewCreate – create a new list view.
XE_EXPORT ListItem *	ListViewAddItem (ListView *lv, const char **cell_texts, int cell_count, void *user_data)
	ListViewAddItem – add a new item to the listview.
XE_EXPORT void	ListViewSetItemIcon (ListView *lv, int index, ChIcon *icon, int iconW, int iconH)
	ListViewSetItemIcon – add a icon to the item.
XE_EXPORT void	ListViewAddColumn (ListView *lv, const char *header, int width, int minWidth)
XE_EXPORT void	ListViewRemoveItem (ListView *lv, int index)
XE_EXPORT void	ListViewClear (ListView *lv)

Detailed Description

BSD 2-Clause License

Copyright (c) 2022-2026, Manas Kamal Choudhury All rights reserved.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

Macro Definition Documentation

LIST_VIEW_ICON_COLUMN_DEFAULT_W

#define LIST_VIEW_ICON_COLUMN_DEFAULT_W   20

LIST_VIEW_ICON_PADDING

#define LIST_VIEW_ICON_PADDING   4

LIST_VIEW_MAX_COMUMNS

#define LIST_VIEW_MAX_COMUMNS   8

LIST_VIEW_MAX_TEXT

#define LIST_VIEW_MAX_TEXT   64

Typedef Documentation

ListColumn

typedef struct _list_column_ ListColumn

ListItem

typedef struct _ListItem_ ListItem

ListView

typedef struct _List_View_ ListView

Function Documentation

ChListViewCreate()

XE_EXPORT ListView * ChListViewCreate	(	int	x,
		int	y,
		int	w,
		int	h,
		int	itemHeight
	)

ChListViewCreate – create a new list view.

Parameters

x	– X location within the window
y	– Y location within the window
w	– Width of the view
h	– Height of the view
itemHeight	– each row item height

ListViewAddColumn()

XE_EXPORT void ListViewAddColumn	(	ListView *	lv,
		const char *	header,
		int	width,
		int	minWidth
	)

ListViewAddItem()

XE_EXPORT ListItem * ListViewAddItem	(	ListView *	lv,
		const char **	cell_texts,
		int	cell_count,
		void *	user_data
	)

ListViewAddItem – add a new item to the listview.

Parameters

lv	– pointer to the list view
cell_texts	– item text with each column details
cell_count	– number of cells
user_data	– any data that this item holds

ListViewClear()

XE_EXPORT void ListViewClear

(

ListView *

lv

)

ListViewRemoveItem()

XE_EXPORT void ListViewRemoveItem	(	ListView *	lv,
		int	index
	)

ListViewSetItemIcon()

XE_EXPORT void ListViewSetItemIcon	(	ListView *	lv,
		int	index,
		ChIcon *	icon,
		int	iconW,
		int	iconH
	)

ListViewSetItemIcon – add a icon to the item.

Parameters

lv	– pointer to the list view
index	– item index number
icon	– icon to add
iconW	– icon width
iconH	– icon height
