mman.h File Reference

#include <stdint.h>
#include <_xeneva.h>

Include dependency graph for mman.h:

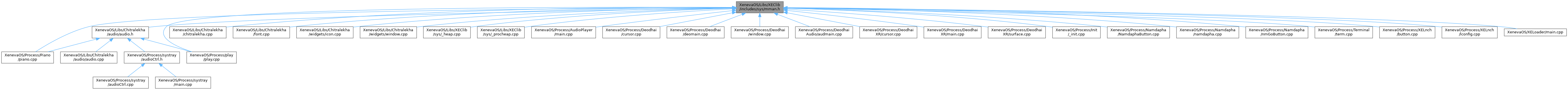

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros
#define	PAGE_SIZE   4096
#define	MEMMAP_NO_FILEDESC   -1
#define	PROTECTION_FLAG_READONLY   1<<0
#define	PROTECTION_FLAG_WRITE   1<<1
#define	PROTECTION_FLAG_NO_EXEC   1<<2
#define	PROTECTION_FLAG_NO_CACHE   1<<3
#define	MEMMAP_FLAG_SHARED   1<<0
#define	MEMMAP_FLAG_COW   1<<1
#define	MEMMAP_FLAG_PRIVATE   1<<2
#define	MEMMAP_FLAG_DISCARD_FILE_READ   1<<3

Functions
XE_LIB void *	_KeMemMap (void *address, size_t length, int protect, int flags, int filedesc, uint64_t offset)
	_KeMemMap – memory map
XE_LIB void	_KeMemUnmap (void *address, size_t len)
	_KeMemUnmap – unmaps a memory segment
XE_LIB int	_KeCreateSharedMem (uint16_t key, size_t sz, uint8_t flags)
	_KeCreateSharedMem – create a shared memory chunk
XE_LIB void *	_KeObtainSharedMem (uint16_t id, void *shmaddr, int shmflg)
	_KeObtainSharedMem – obtain a shared memory
XE_LIB void	_KeUnmapSharedMem (uint16_t key)
	_KeUnmapSharedMem – unmap shared memory segment
XE_LIB uint64_t	_KeGetProcessHeapMem (size_t sz)
	_KeGetProcessHeapMem – request a new memory from process heap
XE_LIB void	_KeMemMapDirty (void *startAddr, size_t len, int flags, int prot)
	_KeMemMapDirty – dirty update previously allocated memory map
XE_LIB int	_KeProcessHeapUnmap (void *ptr, size_t sz)
	_KeProcessHeapUnmap – unmaps previosly allocated heap memory

Detailed Description

BSD 2-Clause License

Copyright (c) 2022-2023, Manas Kamal Choudhury All rights reserved.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

Macro Definition Documentation

MEMMAP_FLAG_COW

#define MEMMAP_FLAG_COW   1<<1

MEMMAP_FLAG_DISCARD_FILE_READ

#define MEMMAP_FLAG_DISCARD_FILE_READ   1<<3

MEMMAP_FLAG_PRIVATE

#define MEMMAP_FLAG_PRIVATE   1<<2

MEMMAP_FLAG_SHARED

#define MEMMAP_FLAG_SHARED   1<<0

MEMMAP_NO_FILEDESC

#define MEMMAP_NO_FILEDESC   -1

PAGE_SIZE

#define PAGE_SIZE   4096

PROTECTION_FLAG_NO_CACHE

#define PROTECTION_FLAG_NO_CACHE   1<<3

PROTECTION_FLAG_NO_EXEC

#define PROTECTION_FLAG_NO_EXEC   1<<2

PROTECTION_FLAG_READONLY

#define PROTECTION_FLAG_READONLY   1<<0

PROTECTION_FLAG_WRITE

#define PROTECTION_FLAG_WRITE   1<<1

Function Documentation

_KeCreateSharedMem()

XE_LIB int _KeCreateSharedMem	(	uint16_t	key,
		size_t	sz,
		uint8_t	flags
	)

_KeCreateSharedMem – create a shared memory chunk

Parameters

key	– key to use
sz	– memory size
flags	– shared memory flags

_KeGetProcessHeapMem()

XE_LIB uint64_t _KeGetProcessHeapMem

(

size_t

sz

)

_KeGetProcessHeapMem – request a new memory from process heap

Parameters

sz	– size in bytes

_KeMemMap()

XE_LIB void * _KeMemMap	(	void *	address,
		size_t	length,
		int	protect,
		int	flags,
		int	filedesc,
		uint64_t	offset
	)

_KeMemMap – memory map

Parameters

address	– starting address
length	– length of the mappings
protect	– protection flags
flags	– memory map flags
filedesc	– file descriptor to map
offset	– offset from where to begin, it should be multiple of PAGE_SIZE

_KeMemMapDirty()

XE_LIB void _KeMemMapDirty	(	void *	startAddr,
		size_t	len,
		int	flags,
		int	prot
	)

_KeMemMapDirty – dirty update previously allocated memory map

Parameters

startAddr	– starting address
len	– length in bytes
flags	– memory map flags
prot	– protection flags

_KeMemUnmap()

XE_LIB void _KeMemUnmap	(	void *	address,
		size_t	len
	)

_KeMemUnmap – unmaps a memory segment

Parameters

address	– starting address of mapped address range
len	– length of the address mapped range

_KeObtainSharedMem()

XE_LIB void * _KeObtainSharedMem	(	uint16_t	id,
		void *	shmaddr,
		int	shmflg
	)

_KeObtainSharedMem – obtain a shared memory

Parameters

id	– segment id
shmaddr	– user specified address
shmflg	– flags to use for protection

_KeProcessHeapUnmap()

XE_LIB int _KeProcessHeapUnmap	(	void *	ptr,
		size_t	sz
	)

_KeProcessHeapUnmap – unmaps previosly allocated heap memory

Parameters

ptr	– Pointer to freeable address
sz	– size in bytes to unallocate

_KeUnmapSharedMem()

XE_LIB void _KeUnmapSharedMem

(

uint16_t

key

)

_KeUnmapSharedMem – unmap shared memory segment

Parameters

key	– key to search
