#include <stdint.h>
#include <list.h>
#include <Fs/vfs.h>
#include <aurora.h>

Include dependency graph for nvme.h:

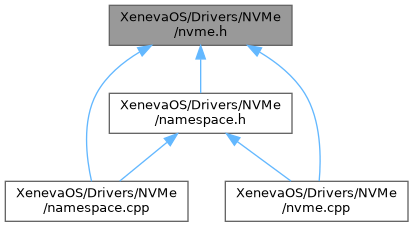

This graph shows which files directly or indirectly include this file:

Classes
struct	_nvme_identify_cmd_

struct	_nvme_create_io_comp_queue_cmd_

struct	_nvme_create_io_sub_queue_

struct	_nvme_delete_io_queue_cmd_

struct	_nvme_set_features_cmd_

struct	_NVMeReadCommand_

struct	_NVMeWriteCommand_

struct	_nvme_cmd_

struct	_nvme_completion_

struct	_controller_identity_

union	NVMeLBAFormat

struct	_namespace_id_

struct	_nvme_queue_

struct	_nvme_dev_

Macros
#define	NVME_REGISTER_CAP 0x00

#define	NVME_REGISTER_VS 0x08

#define	NVME_REGISTER_INTMS 0x0C

#define	NVME_REGISTER_INTMC 0x10

#define	NVME_REGISTER_CC 0x14

#define	NVME_REGISTER_CSTS 0x1C

#define	NVME_REGISTER_AQA 0x24

#define	NVME_REGISTER_ASQ 0x28

#define	NVME_REGISTER_ACQ 0x30

#define	NVME_CC_DISABLE 0

#define	NVME_CC_EN 0x1

#define	NVME_CC_EN_MASK 0x1

#define	NVME_CC_CSNVME 0x0

#define	NVME_CC_CSS_MASK 0x70

#define	NVME_CC_MPS_MASK 0x780

#define	NVME_CC_MPS_SHIFT 7

#define	NVME_CC_AMS_ROUNDROBIN 0

#define	NVME_CC_AMS_WIGHTED (1<<11)

#define	NVME_CC_AMS_MASK (0x7 << 11)

#define	NVME_CAP_MPS_MASK 0xfU

#define	NVME_CAP_MPSMAX(x) ((x >> 52) & NVME_CAP_MPS_MASK)

#define	NVME_CAP_MPSMIN(x) ((x >> 48) & NVME_CAP_MPS_MASK)

#define	NVME_CAP_MQES_MASK 0xffffU

#define	NVME_CAP_MQES(x) ((x) & NVME_CAP_MQES_MASK)

#define	NVME_CFG_MPS_MASK 0xfUL

#define	NVME_CFG_MPS(x) (((x) & NVME_CFG_MPS_MASK) << 7)

#define	NVME_CFG_CSS_MASK 0x7

#define	NVME_CFG_CSS(x) (((x) & NVME_CFG_CSS_MASK) << 4)

#define	NVME_CFG_ENABLE (1<<0)

#define	NVME_CONFIG_COMMAND_SET_NVM 0x0

#define	NVME_CONFIG_COMMAND_ALL_SUPPORTED_IO 0x6

#define	NVME_CONFIG_COMMAND_SET_ADMIN_ONLY 0x7

#define	NVME_CFG_DEFAULT_IOCQES (4<<20)

#define	NVME_CFG_DEFAULT_IOSQES (6<<16)

#define	NVME_AQA_AQS_MASK 0xfffU

#define	NVME_AQA_ACQS(x) (((x) & NVME_AQA_AQS_MASK) << 16)

#define	NVME_AQA_ASQS(x) (((x) & NVME_AQA_AQS_MASK) << 0)

#define	NVME_CAP_DSTRD_MASK 0xfU

#define	NVME_CAP_DSTRD(x) (((x) >> 32) & NVME_CAP_DSTRD_MASK)

#define	NVME_NSSR_RESET_VALUE 0x4e564d65

Typedefs
typedef struct _nvme_identify_cmd_	NVMeIdentifyCommand

typedef struct _nvme_create_io_comp_queue_cmd_	NVMeCreateIOCompletionQueueCommand

typedef struct _nvme_create_io_sub_queue_	NVMeCreateIOSubmissionQueueCommand

typedef struct _nvme_delete_io_queue_cmd_	NVMeDeleteIOQueueCommand

typedef struct _nvme_set_features_cmd_	NVMeSetFeatureCommand

typedef struct _NVMeReadCommand_	NVMeReadCommand

typedef struct _NVMeWriteCommand_	NVMeWriteCommand

typedef struct _nvme_cmd_	NVMeCommand

typedef struct _nvme_completion_	NVMeCompletion

typedef volatile struct _controller_identity_	NVMeControllerIdentity

typedef struct _namespace_id_	NamespaceIdentity

typedef struct _nvme_queue_	NVMeQueue

typedef struct _nvme_dev_	NVMeDev

Enumerations
enum	AdminCommands { AdminCmdDeleteIOSubmissionQueue = 0x0 , AdminCmdCreateIOSubmissionQueue = 0x1 , AdminCmdGetLogPage = 0x2 , AdminCmdDeleteIOCompletionQueue = 0x4 , AdminCmdCreateIOCompletionQueue = 0x5 , AdminCmdIdentify = 0x6 , AdminCmdSetFeatures = 0x9 }

Functions
NVMeQueue *	NVMeGetQueue (uint16_t queueid)

void	NVMeSubmitCommand (NVMeQueue queue, NVMeCommand cmd, NVMeCompletion *comp)

Macro Definition Documentation

◆ NVME_AQA_ACQS

#define NVME_AQA_ACQS ( x ) (((x) & NVME_AQA_AQS_MASK) << 16)

◆ NVME_AQA_AQS_MASK

#define NVME_AQA_AQS_MASK 0xfffU

◆ NVME_AQA_ASQS

#define NVME_AQA_ASQS ( x ) (((x) & NVME_AQA_AQS_MASK) << 0)

◆ NVME_CAP_DSTRD

#define NVME_CAP_DSTRD ( x ) (((x) >> 32) & NVME_CAP_DSTRD_MASK)

◆ NVME_CAP_DSTRD_MASK

#define NVME_CAP_DSTRD_MASK 0xfU

◆ NVME_CAP_MPS_MASK

#define NVME_CAP_MPS_MASK 0xfU

◆ NVME_CAP_MPSMAX

#define NVME_CAP_MPSMAX ( x ) ((x >> 52) & NVME_CAP_MPS_MASK)

◆ NVME_CAP_MPSMIN

#define NVME_CAP_MPSMIN ( x ) ((x >> 48) & NVME_CAP_MPS_MASK)

◆ NVME_CAP_MQES

#define NVME_CAP_MQES ( x ) ((x) & NVME_CAP_MQES_MASK)

◆ NVME_CAP_MQES_MASK

#define NVME_CAP_MQES_MASK 0xffffU

◆ NVME_CC_AMS_MASK

#define NVME_CC_AMS_MASK (0x7 << 11)

◆ NVME_CC_AMS_ROUNDROBIN

#define NVME_CC_AMS_ROUNDROBIN 0

◆ NVME_CC_AMS_WIGHTED

#define NVME_CC_AMS_WIGHTED (1<<11)

◆ NVME_CC_CSNVME

#define NVME_CC_CSNVME 0x0

◆ NVME_CC_CSS_MASK

#define NVME_CC_CSS_MASK 0x70

◆ NVME_CC_DISABLE

#define NVME_CC_DISABLE 0

◆ NVME_CC_EN

#define NVME_CC_EN 0x1

◆ NVME_CC_EN_MASK

#define NVME_CC_EN_MASK 0x1

◆ NVME_CC_MPS_MASK

#define NVME_CC_MPS_MASK 0x780

◆ NVME_CC_MPS_SHIFT

#define NVME_CC_MPS_SHIFT 7

◆ NVME_CFG_CSS

#define NVME_CFG_CSS ( x ) (((x) & NVME_CFG_CSS_MASK) << 4)

◆ NVME_CFG_CSS_MASK

#define NVME_CFG_CSS_MASK 0x7

◆ NVME_CFG_DEFAULT_IOCQES

#define NVME_CFG_DEFAULT_IOCQES (4<<20)

◆ NVME_CFG_DEFAULT_IOSQES

#define NVME_CFG_DEFAULT_IOSQES (6<<16)

◆ NVME_CFG_ENABLE

#define NVME_CFG_ENABLE (1<<0)

◆ NVME_CFG_MPS

#define NVME_CFG_MPS ( x ) (((x) & NVME_CFG_MPS_MASK) << 7)

◆ NVME_CFG_MPS_MASK

#define NVME_CFG_MPS_MASK 0xfUL

◆ NVME_CONFIG_COMMAND_ALL_SUPPORTED_IO

#define NVME_CONFIG_COMMAND_ALL_SUPPORTED_IO 0x6

◆ NVME_CONFIG_COMMAND_SET_ADMIN_ONLY

#define NVME_CONFIG_COMMAND_SET_ADMIN_ONLY 0x7

◆ NVME_CONFIG_COMMAND_SET_NVM

#define NVME_CONFIG_COMMAND_SET_NVM 0x0

◆ NVME_NSSR_RESET_VALUE

#define NVME_NSSR_RESET_VALUE 0x4e564d65

◆ NVME_REGISTER_ACQ

#define NVME_REGISTER_ACQ 0x30

◆ NVME_REGISTER_AQA

#define NVME_REGISTER_AQA 0x24

◆ NVME_REGISTER_ASQ

#define NVME_REGISTER_ASQ 0x28

◆ NVME_REGISTER_CAP

#define NVME_REGISTER_CAP 0x00

◆ NVME_REGISTER_CC

#define NVME_REGISTER_CC 0x14

◆ NVME_REGISTER_CSTS

#define NVME_REGISTER_CSTS 0x1C

◆ NVME_REGISTER_INTMC

#define NVME_REGISTER_INTMC 0x10

◆ NVME_REGISTER_INTMS

#define NVME_REGISTER_INTMS 0x0C

◆ NVME_REGISTER_VS

#define NVME_REGISTER_VS 0x08

Typedef Documentation

◆ NamespaceIdentity

typedef struct _namespace_id_ NamespaceIdentity

◆ NVMeCommand

typedef struct _nvme_cmd_ NVMeCommand

◆ NVMeCompletion

typedef struct _nvme_completion_ NVMeCompletion

◆ NVMeControllerIdentity

typedef volatile struct _controller_identity_ NVMeControllerIdentity

◆ NVMeCreateIOCompletionQueueCommand

typedef struct _nvme_create_io_comp_queue_cmd_ NVMeCreateIOCompletionQueueCommand

◆ NVMeCreateIOSubmissionQueueCommand

typedef struct _nvme_create_io_sub_queue_ NVMeCreateIOSubmissionQueueCommand

◆ NVMeDeleteIOQueueCommand

typedef struct _nvme_delete_io_queue_cmd_ NVMeDeleteIOQueueCommand

◆ NVMeDev

typedef struct _nvme_dev_ NVMeDev

◆ NVMeIdentifyCommand

typedef struct _nvme_identify_cmd_ NVMeIdentifyCommand

BSD 2-Clause License

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

◆ NVMeQueue

typedef struct _nvme_queue_ NVMeQueue

◆ NVMeReadCommand

typedef struct _NVMeReadCommand_ NVMeReadCommand

◆ NVMeSetFeatureCommand

typedef struct _nvme_set_features_cmd_ NVMeSetFeatureCommand

◆ NVMeWriteCommand

typedef struct _NVMeWriteCommand_ NVMeWriteCommand

Enumeration Type Documentation

◆ AdminCommands

enum AdminCommands

Enumerator
AdminCmdDeleteIOSubmissionQueue
AdminCmdCreateIOSubmissionQueue
AdminCmdGetLogPage
AdminCmdDeleteIOCompletionQueue
AdminCmdCreateIOCompletionQueue
AdminCmdIdentify
AdminCmdSetFeatures

Function Documentation

◆ NVMeGetQueue()

NVMeQueue * NVMeGetQueue ( uint16_t queueid )

extern

◆ NVMeSubmitCommand()

void NVMeSubmitCommand	(	NVMeQueue *	queue,
		NVMeCommand *	cmd,
		NVMeCompletion *	comp
	)
