pcie.h File Reference

#include <stdint.h>
#include <Hal\basicacpi.h>
#include <Hal\hal.h>

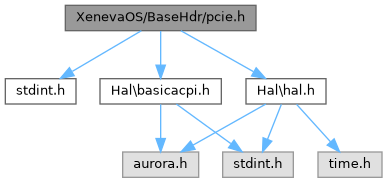

Include dependency graph for pcie.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros
#define	PCI_VENDOR_ID   0x00
#define	PCI_DEVICE_ID   0x02
#define	PCI_COMMAND   0x04
#define	PCI_STATUS   0x06
#define	PCI_REVISION_ID   0x08
#define	PCI_PROG_IF   0x09
#define	PCI_SUBCLASS   0x0a
#define	PCI_CLASS   0x0b
#define	PCI_CACHE_LINE_SIZE   0x0c
#define	PCI_LATENCY_TIMER   0x0d
#define	PCI_HEADER_TYPE   0x0e
#define	PCI_BIST   0x0f
#define	PCI_BAR0   0x10
#define	PCI_BAR1   0x14
#define	PCI_BAR2   0x18
#define	PCI_BAR3   0x1C
#define	PCI_BAR4   0x20
#define	PCI_BAR5   0x24
#define	PCI_CAPABILITIES_PTR   0x34
#define	PCI_INTERRUPT_LINE   0x3C
#define	PCI_INTERRUPT_PIN   0x3D
#define	PCI_MAX_BUS   0x20
#define	PCI_DEVICE_PER_BUS   32
#define	PCI_FUNCTION_PER_DEVICE   8

Functions
uint64_t	AuPCIEGetDevice (uint16_t seg, int bus, int dev, int func)
	AuPCIEGetDevice – gets a device address from its bus dev and func.
AU_EXTERN AU_EXPORT bool	AuPCIEAllocMSI (uint64_t device, size_t vector, int bus, int dev, int func)
	AuPCIEAllocMSI – Allocate MSI/MSI-X for interrupt.
AU_EXTERN AU_EXPORT uint64_t	AuPCIEScanClassIF (uint8_t classCode, uint8_t subClassCode, uint8_t progIf, int *bus_, int *dev_, int *func_)
	AuPCIEScanClassIF – scans and return pcie device with given class code and sub class code.
AU_EXTERN AU_EXPORT uint64_t	AuPCIEScanVendorDevice (uint16_t vendor, uint16_t device, int *bus_, int *dev_, int *func_)
	AuPCIEScanVendorDevice – scans and return pcie device with given vendor id and device id.
AU_EXTERN AU_EXPORT uint64_t	AuPCIEScanClass (uint8_t classCode, uint8_t subClassCode, int *bus_, int *dev_, int *func_)
	AuPCIEScanClass – scans and return pcie device with given class code and sub class code.
AU_EXTERN AU_EXPORT void	AuPCIEWrite (uint64_t device, int reg, uint32_t val, int bus, int dev, int func)
	AuPCIEWrite – writes to a register.
AU_EXTERN AU_EXPORT uint32_t	AuPCIERead (uint64_t device, int reg, int bus, int dev, int func)
	AuPCIERead – reads a register from pci express.
AU_EXTERN AU_EXPORT uint64_t	AuPCIERead64 (uint64_t device, int reg, int size, int bus, int dev, int func)
	AuPCIERead64 – reads in 64.
AU_EXTERN AU_EXPORT void	AuPCIEWrite64 (uint64_t device, int reg, int size, uint64_t val, int bus, int dev, int func)

Macro Definition Documentation

PCI_BAR0

#define PCI_BAR0   0x10

PCI_BAR1

#define PCI_BAR1   0x14

PCI_BAR2

#define PCI_BAR2   0x18

PCI_BAR3

#define PCI_BAR3   0x1C

PCI_BAR4

#define PCI_BAR4   0x20

PCI_BAR5

#define PCI_BAR5   0x24

PCI_BIST

#define PCI_BIST   0x0f

PCI_CACHE_LINE_SIZE

#define PCI_CACHE_LINE_SIZE   0x0c

PCI_CAPABILITIES_PTR

#define PCI_CAPABILITIES_PTR   0x34

PCI_CLASS

#define PCI_CLASS   0x0b

PCI_COMMAND

#define PCI_COMMAND   0x04

PCI_DEVICE_ID

#define PCI_DEVICE_ID   0x02

PCI_DEVICE_PER_BUS

#define PCI_DEVICE_PER_BUS   32

PCI_FUNCTION_PER_DEVICE

#define PCI_FUNCTION_PER_DEVICE   8

PCI_HEADER_TYPE

#define PCI_HEADER_TYPE   0x0e

PCI_INTERRUPT_LINE

#define PCI_INTERRUPT_LINE   0x3C

PCI_INTERRUPT_PIN

#define PCI_INTERRUPT_PIN   0x3D

PCI_LATENCY_TIMER

#define PCI_LATENCY_TIMER   0x0d

PCI_MAX_BUS

#define PCI_MAX_BUS   0x20

PCI_PROG_IF

#define PCI_PROG_IF   0x09

PCI_REVISION_ID

#define PCI_REVISION_ID   0x08

PCI_STATUS

#define PCI_STATUS   0x06

PCI_SUBCLASS

#define PCI_SUBCLASS   0x0a

PCI_VENDOR_ID

#define PCI_VENDOR_ID   0x00

BSD 2-Clause License

Copyright (c) 2022-2023, Manas Kamal Choudhury All rights reserved.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

Function Documentation

AuPCIEAllocMSI()

AU_EXTERN AU_EXPORT bool AuPCIEAllocMSI	(	uint64_t	device,
		size_t	vector,
		int	bus,
		int	dev,
		int	func
	)

AuPCIEAllocMSI – Allocate MSI/MSI-X for interrupt.

Todo:

– MSIX not implemented yet

Parameters

device	– PCIe device address
vector	– interrupt vector
bus	– PCIe device bus number
dev	– PCIe device dev number
func	– PCIe device function number

AuPCIEGetDevice()

uint64_t AuPCIEGetDevice ( uint16_t  seg, int  bus, int  dev, int  func  )

extern

AuPCIEGetDevice – gets a device address from its bus dev and func.

BSD 2-Clause License

Copyright (c) 2022-2023, Manas Kamal Choudhury All rights reserved.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

Parameters

seg	– device segment
bus	– bus of the device
dev	– device number
func	– function number

Returns

return the composited device address

AuPCIERead()

AU_EXTERN AU_EXPORT uint32_t AuPCIERead	(	uint64_t	device,
		int	reg,
		int	bus,
		int	dev,
		int	func
	)

AuPCIERead – reads a register from pci express.

Parameters

device	– device address
reg	– register to read
bus	– bus number
dev	– device number
func	– function number

Returns

return the result in DWORD

AuPCIERead64()

AU_EXTERN AU_EXPORT uint64_t AuPCIERead64	(	uint64_t	device,
		int	reg,
		int	size,
		int	bus,
		int	dev,
		int	func
	)

AuPCIERead64 – reads in 64.

Parameters

device	– device address
reg	– register
size	– size to read
bus	– bus num
dev	– device number
func	– func number

Returns

return the read result in QWORD

AuPCIEScanClass()

AU_EXTERN AU_EXPORT uint64_t AuPCIEScanClass	(	uint8_t	classCode,
		uint8_t	subClassCode,
		int *	bus_,
		int *	dev_,
		int *	func_
	)

AuPCIEScanClass – scans and return pcie device with given class code and sub class code.

Parameters

classCode	– class code
subClassCode	– sub class code
bus	– address, where bus number will be stored
dev	– address, where device number will be stored
func	– address, where function number will be stored

AuPCIEScanClassIF()

AU_EXTERN AU_EXPORT uint64_t AuPCIEScanClassIF	(	uint8_t	classCode,
		uint8_t	subClassCode,
		uint8_t	progIf,
		int *	bus_,
		int *	dev_,
		int *	func_
	)

AuPCIEScanClassIF – scans and return pcie device with given class code and sub class code.

Parameters

classCode	– class code
subClassCode	– sub class code
bus	– address, where bus number will be stored
dev	– address, where device number will be stored
func	– address, where function number will be stored
progIf	– Programming interface

Returns

pcie device address

AuPCIEScanVendorDevice()

AU_EXTERN AU_EXPORT uint64_t AuPCIEScanVendorDevice	(	uint16_t	vendor,
		uint16_t	device,
		int *	bus_,
		int *	dev_,
		int *	func_
	)

AuPCIEScanVendorDevice – scans and return pcie device with given vendor id and device id.

Parameters

vendor	– vendor id
device	– device id
bus	– address, where bus number will be stored
dev	– address, where device number will be stored
func	– address, where function number will be stored

AuPCIEWrite()

AU_EXTERN AU_EXPORT void AuPCIEWrite	(	uint64_t	device,
		int	reg,
		uint32_t	val,
		int	bus,
		int	dev,
		int	func
	)

AuPCIEWrite – writes to a register.

Parameters

device	– device address
reg	– register
size	– size to read
bus	– bus num
dev	– device number
func	– func number

AuPCIEWrite64()

AU_EXTERN AU_EXPORT void AuPCIEWrite64	(	uint64_t	device,
		int	reg,
		int	size,
		uint64_t	val,
		int	bus,
		int	dev,
		int	func
	)
