pipe.c File Reference

#include <Fs\pipe.h>
#include <Mm\kmalloc.h>
#include <Fs\vfs.h>
#include <_null.h>
#include <string.h>
#include <list.h>

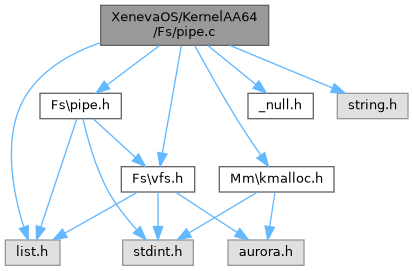

Include dependency graph for pipe.c:

Functions
size_t	AuPipeUnread (AuPipe *pipe)
	AuPipeUnread – get the available read space from the pipe.
size_t	AuPipeGetAvailableBytes (AuPipe *pipe)
	AuPipeGetAvailableBytes – returns total available bytes of the pipe.
void	AuPipeIncrementRead (AuPipe *pipe)
	AuPipeIncrementRead – increment the read pointer of the pipe.
void	AuPipeIncrementWrite (AuPipe *pipe)
	AuPipeIncrementWrite – increment the write pointer of the given pipe.
void	AuPipeIncrementWriteAmount (AuPipe *pipe, size_t amount)
	AuPipeIncrementWriteAmount – increments the write ptr by amount in bytes.
size_t	AuPipeRead (AuVFSNode *fs, AuVFSNode *file, uint64_t *buffer, uint32_t length)
	AuPipeRead – reads from pipe.
size_t	AuPipeWrite (AuVFSNode *fs, AuVFSNode *file, uint64_t *buffer, uint32_t length)
	AuPipeWrite – write to pipe.
AuVFSNode *	AuPipeOpen (AuVFSNode *node, char *path)
int	AuPipeFSAddFile (AuVFSNode *fs, char *path, AuVFSNode *file)
	AuPipeFSAddFile – adds a file/directory.
int	AuPipeFSRemoveFile (AuVFSNode *fs, char *path)
	AuDevFSRemoveFile – remove a file from device file system.
int	AuPipeClose (AuVFSNode *fs, AuVFSNode *file)
	AuPipeClose – closes the pipe.
int	AuCreatePipe (char *name, size_t sz)
	AuCreatePipe – creates a new pipe.
AuVFSNode *	AuPipeFSOpen (AuVFSNode *fs, char *path)
	AuPipeFSOpen – open a pipe file and return to the caller.
void	AuPipeFSInitialise ()
	AuPipeFSInitialise – initialise the pipe filesystem.

Variables
AuVFSNode *	pipeFS

Detailed Description

BSD 2-Clause License

Copyright (c) 2022-2023, Manas Kamal Choudhury All rights reserved.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

Function Documentation

AuCreatePipe()

int AuCreatePipe	(	char *	name,
		size_t	sz
	)

AuCreatePipe – creates a new pipe.

Parameters

name	– name of the pipe
sz	– Size of the pipe

AuPipeClose()

int AuPipeClose	(	AuVFSNode *	fs,
		AuVFSNode *	file
	)

AuPipeClose – closes the pipe.

Parameters

fs	– Pointer to the pipe
file	– Pointer to file, not needed

AuPipeFSAddFile()

int AuPipeFSAddFile	(	AuVFSNode *	fs,
		char *	path,
		AuVFSNode *	file
	)

AuPipeFSAddFile – adds a file/directory.

Parameters

fs	– pointer to device file system
path	– path of the file
file	– file to add to dev fs

AuPipeFSInitialise()

void AuPipeFSInitialise

(

)

AuPipeFSInitialise – initialise the pipe filesystem.

AuPipeFSOpen()

AuVFSNode * AuPipeFSOpen	(	AuVFSNode *	fs,
		char *	path
	)

AuPipeFSOpen – open a pipe file and return to the caller.

Parameters

fs	– file system node
path	– path of the pipe file

AuPipeFSRemoveFile()

int AuPipeFSRemoveFile	(	AuVFSNode *	fs,
		char *	path
	)

AuDevFSRemoveFile – remove a file from device file system.

Parameters

fs	– pointer to the file system
path	– path of the file

AuPipeGetAvailableBytes()

size_t AuPipeGetAvailableBytes

(

AuPipe *

pipe

)

AuPipeGetAvailableBytes – returns total available bytes of the pipe.

Parameters

pipe	– Pointer to pipe to get total available bytes

Returns

number of bytes available in the pipe

AuPipeIncrementRead()

void AuPipeIncrementRead

(

AuPipe *

pipe

)

AuPipeIncrementRead – increment the read pointer of the pipe.

Parameters

pipe	– Pointer to pipe to increment its read pointer

AuPipeIncrementWrite()

void AuPipeIncrementWrite

(

AuPipe *

pipe

)

AuPipeIncrementWrite – increment the write pointer of the given pipe.

Parameters

pipe	– Pointer to pipe to increment its write pointer

AuPipeIncrementWriteAmount()

void AuPipeIncrementWriteAmount	(	AuPipe *	pipe,
		size_t	amount
	)

AuPipeIncrementWriteAmount – increments the write ptr by amount in bytes.

Parameters

pipe	– Pointer to the pipe device
amount	– amount of bytes

AuPipeOpen()

AuVFSNode * AuPipeOpen	(	AuVFSNode *	node,
		char *	path
	)

AuPipeRead()

size_t AuPipeRead	(	AuVFSNode *	fs,
		AuVFSNode *	file,
		uint64_t *	buffer,
		uint32_t	length
	)

AuPipeRead – reads from pipe.

Parameters

fs	– Pointer to the file system node
file	– Pointer to the file, here we don't need it
buffer	– Pointer to buffer where to put the data
length	– length to read

AuPipeUnread()

size_t AuPipeUnread

(

AuPipe *

pipe

)

AuPipeUnread – get the available read space from the pipe.

Parameters

pipe	– Pointer to the pipe

AuPipeWrite()

size_t AuPipeWrite	(	AuVFSNode *	fs,
		AuVFSNode *	file,
		uint64_t *	buffer,
		uint32_t	length
	)

AuPipeWrite – write to pipe.

Parameters

fs	– Pointer to the file system node
file	– Pointer to the file, here we don't need it
buffer	– Pointer to buffer where to put the data
length	– length to read

Variable Documentation

pipeFS

AuVFSNode* pipeFS
