postbox.h File Reference

#include <stdint.h>
#include <Fs/vfs.h>

Include dependency graph for postbox.h:

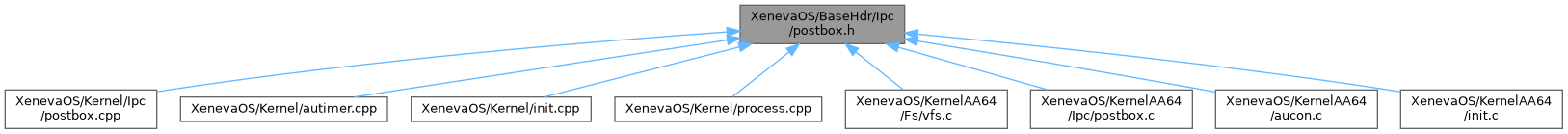

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	_post_event_
struct	_postbox_

Macros
#define	POSTBOX_CREATE   401
#define	POSTBOX_DESTROY   402
#define	POSTBOX_PUT_EVENT   403
#define	POSTBOX_GET_EVENT   404
#define	POSTBOX_CREATE_ROOT   405
#define	POSTBOX_GET_EVENT_ROOT   406
#define	POSTBOX_NO_EVENT   -1
#define	POSTBOX_ROOT_ID   1

Typedefs
typedef struct _post_event_	PostEvent
typedef struct _postbox_	PostBox

Functions
void	AuIPCPostBoxInitialise ()
	AuIPCPostBoxInitialise – initialise the post box ipc manager.
void	PostBoxPutEvent (PostEvent *event)
	PostBoxPutEvent – put an event to a specific post box.
AuVFSNode *	AuPostBOXGetNode ()
void	PostBoxCreate (bool root, uint16_t tid)
	PostBoxCreate – creates a postbox.
void	PostBoxDestroyByID (uint16_t id)
	PostBoxDestroyByID – destroys a post box identified by an id.
int	PostBoxIOControl (AuVFSNode *file, int code, void *arg)
	PostBoxIOControl – I/O Control function for post box manager.

Detailed Description

BSD 2-Clause License

Copyright (c) 2022-2023, Manas Kamal Choudhury All rights reserved.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

Macro Definition Documentation

POSTBOX_CREATE

#define POSTBOX_CREATE   401

POSTBOX_CREATE_ROOT

#define POSTBOX_CREATE_ROOT   405

POSTBOX_DESTROY

#define POSTBOX_DESTROY   402

POSTBOX_GET_EVENT

#define POSTBOX_GET_EVENT   404

POSTBOX_GET_EVENT_ROOT

#define POSTBOX_GET_EVENT_ROOT   406

POSTBOX_NO_EVENT

#define POSTBOX_NO_EVENT   -1

POSTBOX_PUT_EVENT

#define POSTBOX_PUT_EVENT   403

POSTBOX_ROOT_ID

#define POSTBOX_ROOT_ID   1

Typedef Documentation

PostBox

typedef struct _postbox_ PostBox

PostEvent

typedef struct _post_event_ PostEvent

Function Documentation

AuIPCPostBoxInitialise()

void AuIPCPostBoxInitialise ( )

extern

AuIPCPostBoxInitialise – initialise the post box ipc manager.

create the postbox file

I dont know, but the sixth item in the device fs list is the postbox file node, but miraculously 6th item disappers from the list when opened from user space that's why we are creating a dummy node in the dev list

AuPostBOXGetNode()

AuVFSNode * AuPostBOXGetNode ( )

extern

PostBoxCreate()

void PostBoxCreate ( bool  root, uint16_t  tid  )

extern

PostBoxCreate – creates a postbox.

Parameters

root	– is this post box root ?
tid	– thread id

PostBoxDestroyByID()

void PostBoxDestroyByID ( uint16_t  id )

extern

PostBoxDestroyByID – destroys a post box identified by an id.

Parameters

id	– id of the postbox

PostBoxIOControl()

int PostBoxIOControl ( AuVFSNode *  file, int  code, void *  arg  )

extern

PostBoxIOControl – I/O Control function for post box manager.

Parameters

file	– Pointer to postbox file
code	– Post Box command
arg	– extra data

PostBoxPutEvent()

void PostBoxPutEvent ( PostEvent *  event )

extern

PostBoxPutEvent – put an event to a specific post box.

Parameters

event

– Event to put
