sndcore.c File Reference

#include <Sound/sound.h>
#include <Mm/kmalloc.h>
#include <Fs/vfs.h>
#include <Fs/Dev/devfs.h>
#include <Cred/cred.h>
#include <Cred/group.h>
#include <aucon.h>
#include <_null.h>
#include <Drivers/uart.h>
#include <Mm/vmmngr.h>
#include <Mm/pmmngr.h>
#include <string.h>

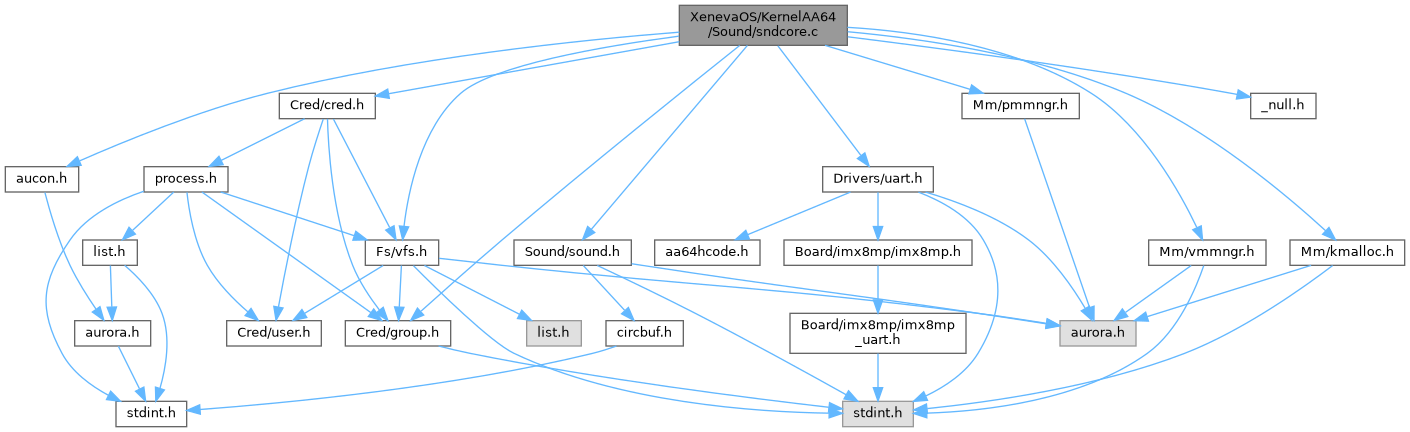

Include dependency graph for sndcore.c:

Classes
struct	_sound_card_list

Macros
#define	AURORA_MAX_SOUND_CARDS   256
#define	SOUND_REGISTER_SNDPLR   100
#define	SOUND_START_OUTPUT   102
#define	SOUND_STOP_OUTPUT   103
#define	SOUND_START_INPUT   104
#define	SOUND_STOP_INPUT   105
#define	SOUND_SET_VOLUME   106
#define	SOUND_GET_VOLUME   107
#define	SOUND_MUTE_ENABLE   108
#define	SOUND_MUTE_DISABLE   109
#define	SOUND_READ_AVAIL   110
#define	SOUND_UNREGISTER_SNDPLR   111
#define	SOUND_REGISTER_CARD   112
#define	SOUND_GET_CARD_LIST   113
#define	SOUND_GET_CARD_TOTALNUM   114
#define	SND_BUFF_SZ   PAGE_SIZE

Typedefs
typedef struct _sound_card_list	aurora_snd_card_list

Functions
void	AuSoundAddDSP (AuDSP *dsp)
	AuSoundAddDSP – adds a dsp to the dsp list.
void	AuRemoveDSP (AuDSP *dsp)
	AuRemoveDSP – removes a dsp from the dsp list.
AuDSP *	AuSoundGetDSP (uint16_t id)
int	AuSoundIOControl (AuVFSNode *node, int code, void *arg)
	AuSoundIOControl – io control for sound file.
size_t	AuSoundRead (AuVFSNode *fsys, AuVFSNode *file, uint64_t *buffer, uint32_t length)
size_t	AuSoundWrite (AuVFSNode *fsys, AuVFSNode *file, uint64_t *buffer, uint32_t length)
void	AuSoundInitialise ()
	AuSoundInitialize – Initialized the Aurora sound system.
void	AuSoundRemoveDSP (uint16_t id)
	AuSoundRemoveDSP – remove the dsp from dsp list.
int	AuSoundUnregisterCard (AuSound *snd)
	AuSoundRegisterCard – register a new sound card to sound layer.
int	AuSoundRegisterCard (AuSound *snd)
	AuSoundRegisterCard – register a new sound card to sound layer.

Variables
AuSound *	_cards [AURORA_MAX_SOUND_CARDS]
int	au_sound_last_id = -1
	au_sound_last_id – card index assigned by last AuSoundRegisterCard call

Detailed Description

BSD 2-Clause License

Copyright (c) 2022-2026, Manas Kamal Choudhury All rights reserved.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

Macro Definition Documentation

AURORA_MAX_SOUND_CARDS

#define AURORA_MAX_SOUND_CARDS   256

SND_BUFF_SZ

#define SND_BUFF_SZ   PAGE_SIZE

SOUND_GET_CARD_LIST

#define SOUND_GET_CARD_LIST   113

SOUND_GET_CARD_TOTALNUM

#define SOUND_GET_CARD_TOTALNUM   114

SOUND_GET_VOLUME

#define SOUND_GET_VOLUME   107

SOUND_MUTE_DISABLE

#define SOUND_MUTE_DISABLE   109

SOUND_MUTE_ENABLE

#define SOUND_MUTE_ENABLE   108

SOUND_READ_AVAIL

#define SOUND_READ_AVAIL   110

SOUND_REGISTER_CARD

#define SOUND_REGISTER_CARD   112

SOUND_REGISTER_SNDPLR

#define SOUND_REGISTER_SNDPLR   100

SOUND_SET_VOLUME

#define SOUND_SET_VOLUME   106

SOUND_START_INPUT

#define SOUND_START_INPUT   104

SOUND_START_OUTPUT

#define SOUND_START_OUTPUT   102

SOUND_STOP_INPUT

#define SOUND_STOP_INPUT   105

SOUND_STOP_OUTPUT

#define SOUND_STOP_OUTPUT   103

SOUND_UNREGISTER_SNDPLR

#define SOUND_UNREGISTER_SNDPLR   111

Typedef Documentation

aurora_snd_card_list

typedef struct _sound_card_list aurora_snd_card_list

TODO: Support for controlling jack pins ADC/DAC add removal support

Function Documentation

AuRemoveDSP()

void AuRemoveDSP

(

AuDSP *

dsp

)

AuRemoveDSP – removes a dsp from the dsp list.

Parameters

dsp	– dsp to remove

AuSoundAddDSP()

void AuSoundAddDSP

(

AuDSP *

dsp

)

AuSoundAddDSP – adds a dsp to the dsp list.

Parameters

dsp	– dsp to add

AuSoundGetDSP()

AuDSP * AuSoundGetDSP

(

uint16_t

id

)

AuSoundInitialise()

void AuSoundInitialise

(

)

AuSoundInitialize – Initialized the Aurora sound system.

clear up the card data structure

AuSoundIOControl()

int AuSoundIOControl	(	AuVFSNode *	node,
		int	code,
		void *	arg
	)

AuSoundIOControl – io control for sound file.

AuSoundRead()

size_t AuSoundRead	(	AuVFSNode *	fsys,
		AuVFSNode *	file,
		uint64_t *	buffer,
		uint32_t	length
	)

NOT implemented yet

AuSoundRegisterCard()

int AuSoundRegisterCard

(

AuSound *

snd

)

AuSoundRegisterCard – register a new sound card to sound layer.

Parameters

snd	– pointer to sound card

AuSoundRemoveDSP()

void AuSoundRemoveDSP

(

uint16_t

id

)

AuSoundRemoveDSP – remove the dsp from dsp list.

AuSoundUnregisterCard()

int AuSoundUnregisterCard

(

AuSound *

snd

)

AuSoundRegisterCard – register a new sound card to sound layer.

AuSoundUnregisterCard – remove a sound card (hot-unplug); DSP clients bound to it are detached. Non-zero only if the card was not registered.

Parameters

snd	– pointer to sound card

AuSoundUnregisterCard – remove a card from the registry (hot-unplug). DSP clients bound to the card are detached (_cardID = -1) rather than the removal being refused: a client such as init holds its binding for the whole uptime, so refusing would make a sound driver permanently un-unloadable. Detached clients fall back to the software buffer path and must re-select a card after the driver is loaded again. Every user of _cards[] already tolerates an empty slot. Returns 0, or non-zero if snd was not registered.

AuSoundWrite()

size_t AuSoundWrite	(	AuVFSNode *	fsys,
		AuVFSNode *	file,
		uint64_t *	buffer,
		uint32_t	length
	)

see if dps has card attached to it, also verify if the card is in force write mode

Variable Documentation

_cards

AuSound* _cards[AURORA_MAX_SOUND_CARDS]

au_sound_last_id

int au_sound_last_id = -1

au_sound_last_id – card index assigned by last AuSoundRegisterCard call
