#include <WiFi.h>

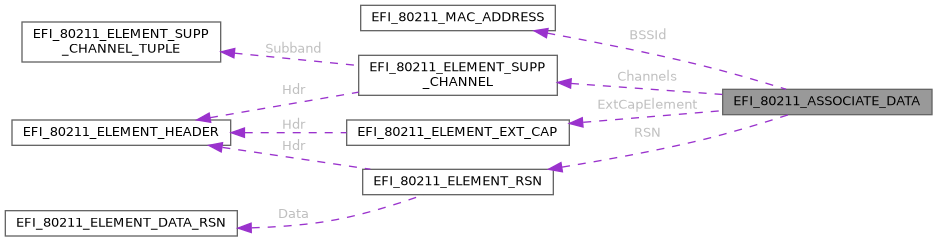

Collaboration diagram for EFI_80211_ASSOCIATE_DATA:
Detailed Description
Member Data Documentation
◆ BSSId
| EFI_80211_MAC_ADDRESS EFI_80211_ASSOCIATE_DATA::BSSId |
Specifies the address of the peer MAC entity to associate with.
◆ CapabilityInfo
| UINT16 EFI_80211_ASSOCIATE_DATA::CapabilityInfo |
Specifies the requested operational capabilities to the AP in 2 octets.
◆ Channels
| EFI_80211_ELEMENT_SUPP_CHANNEL* EFI_80211_ASSOCIATE_DATA::Channels |
Indicates a list of channels in which the STA is capable of operating.
◆ ExtCapElement
| EFI_80211_ELEMENT_EXT_CAP* EFI_80211_ASSOCIATE_DATA::ExtCapElement |
Specifies the parameters within the Extended Capabilities element that are supported by the MAC entity. This is an optional parameter and may be NULL.
◆ FailureTimeout
| UINT32 EFI_80211_ASSOCIATE_DATA::FailureTimeout |
Specifies a time limit in TU, after which the associate procedure is terminated.
◆ ListenInterval
| UINT32 EFI_80211_ASSOCIATE_DATA::ListenInterval |
Specifies if in power save mode, how often the STA awakes and listens for the next beacon frame in TU.
◆ RSN
| EFI_80211_ELEMENT_RSN EFI_80211_ASSOCIATE_DATA::RSN |
The cipher suites and AKM suites selected by the STA.
◆ VendorSpecificInfo
| UINT8* EFI_80211_ASSOCIATE_DATA::VendorSpecificInfo |
Specifies zero or more elements. This is an optional parameter and may be NULL.
The documentation for this struct was generated from the following file:
- XenevaOS/Boot/include/Protocol/WiFi.h
