#include <WiFi.h>

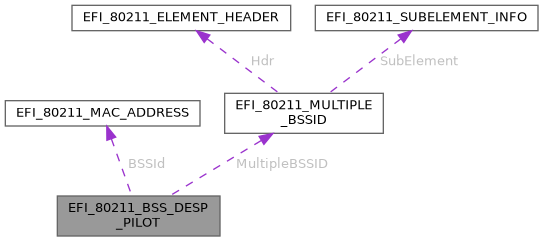

Collaboration diagram for EFI_80211_BSS_DESP_PILOT:

[legend]

Public Attributes
EFI_80211_MAC_ADDRESS	BSSId

EFI_80211_BSS_TYPE	BSSType

UINT8	ConCapInfo

UINT8	ConCountryStr [2]

UINT8	OperatingClass

UINT8	Channel

UINT8	Interval

EFI_80211_MULTIPLE_BSSID *	MultipleBSSID

UINT8	RCPIMeasurement

UINT8	RSNIMeasurement

Detailed Description

EFI_80211_BSS_DESP_PILOT

Member Data Documentation

◆ BSSId

EFI_80211_MAC_ADDRESS EFI_80211_BSS_DESP_PILOT::BSSId

Indicates a specific BSSID of the found BSS.

◆ BSSType

EFI_80211_BSS_TYPE EFI_80211_BSS_DESP_PILOT::BSSType

Specifies the type of the found BSS.

◆ Channel

UINT8 EFI_80211_BSS_DESP_PILOT::Channel

Indicates the operating channel.

◆ ConCapInfo

UINT8 EFI_80211_BSS_DESP_PILOT::ConCapInfo

One octet field to report condensed capability information.

◆ ConCountryStr

UINT8 EFI_80211_BSS_DESP_PILOT::ConCountryStr[2]

Two octet's field to report condensed country string.

◆ Interval

UINT8 EFI_80211_BSS_DESP_PILOT::Interval

Indicates the measurement pilot interval in TU.

◆ MultipleBSSID

EFI_80211_MULTIPLE_BSSID* EFI_80211_BSS_DESP_PILOT::MultipleBSSID

Indicates that the BSS is within a multiple BSSID set.

◆ OperatingClass

UINT8 EFI_80211_BSS_DESP_PILOT::OperatingClass

Indicates the operating class value for the operating channel.

◆ RCPIMeasurement

UINT8 EFI_80211_BSS_DESP_PILOT::RCPIMeasurement

Specifies the RCPI of the received frame.

◆ RSNIMeasurement

UINT8 EFI_80211_BSS_DESP_PILOT::RSNIMeasurement

Specifies the RSNI of the received frame.

The documentation for this struct was generated from the following file:

XenevaOS/Boot/include/Protocol/WiFi.h
