EFI_ACPI_WATCHDOG_RESOURCE_1_0_TABLE Struct Reference

#include <WatchdogResourceTable.h>

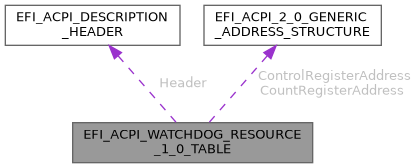

Collaboration diagram for EFI_ACPI_WATCHDOG_RESOURCE_1_0_TABLE:

Public Attributes
EFI_ACPI_DESCRIPTION_HEADER	Header
EFI_ACPI_2_0_GENERIC_ADDRESS_STRUCTURE	ControlRegisterAddress
EFI_ACPI_2_0_GENERIC_ADDRESS_STRUCTURE	CountRegisterAddress
UINT16	PCIDeviceID
UINT16	PCIVendorID
UINT8	PCIBusNumber
UINT8	PCIDeviceNumber
UINT8	PCIFunctionNumber
UINT8	PCISegment
UINT16	MaxCount
UINT8	Units

Detailed Description

Watchdog Resource Table definition.

Member Data Documentation

ControlRegisterAddress

EFI_ACPI_2_0_GENERIC_ADDRESS_STRUCTURE EFI_ACPI_WATCHDOG_RESOURCE_1_0_TABLE::ControlRegisterAddress

CountRegisterAddress

EFI_ACPI_2_0_GENERIC_ADDRESS_STRUCTURE EFI_ACPI_WATCHDOG_RESOURCE_1_0_TABLE::CountRegisterAddress

Header

EFI_ACPI_DESCRIPTION_HEADER EFI_ACPI_WATCHDOG_RESOURCE_1_0_TABLE::Header

MaxCount

UINT16 EFI_ACPI_WATCHDOG_RESOURCE_1_0_TABLE::MaxCount

PCIBusNumber

UINT8 EFI_ACPI_WATCHDOG_RESOURCE_1_0_TABLE::PCIBusNumber

PCIDeviceID

UINT16 EFI_ACPI_WATCHDOG_RESOURCE_1_0_TABLE::PCIDeviceID

PCIDeviceNumber

UINT8 EFI_ACPI_WATCHDOG_RESOURCE_1_0_TABLE::PCIDeviceNumber

PCIFunctionNumber

UINT8 EFI_ACPI_WATCHDOG_RESOURCE_1_0_TABLE::PCIFunctionNumber

PCISegment

UINT8 EFI_ACPI_WATCHDOG_RESOURCE_1_0_TABLE::PCISegment

PCIVendorID

UINT16 EFI_ACPI_WATCHDOG_RESOURCE_1_0_TABLE::PCIVendorID

Units

UINT8 EFI_ACPI_WATCHDOG_RESOURCE_1_0_TABLE::Units

---

The documentation for this struct was generated from the following file:

• XenevaOS/Boot/include/IndustryStandard/WatchdogResourceTable.h
