#include <StatusCodeDataTypeId.h>

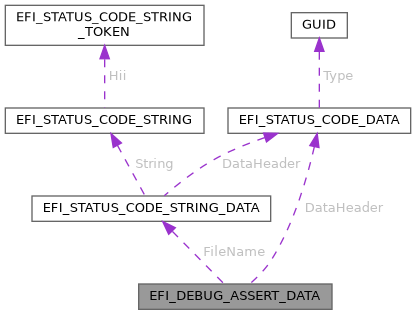

Collaboration diagram for EFI_DEBUG_ASSERT_DATA:

[legend]

Public Attributes
EFI_STATUS_CODE_DATA	DataHeader

UINT32	LineNumber

UINT32	FileNameSize

EFI_STATUS_CODE_STRING_DATA *	FileName

Detailed Description

This structure provides the assert information that is typically associated with a debug assertion failing.

The data indicates the location of the assertion that failed in the source code. This information includes the file name and line number that are necessary to find the failing assertion in source code.

Member Data Documentation

◆ DataHeader

EFI_STATUS_CODE_DATA EFI_DEBUG_ASSERT_DATA::DataHeader

The data header identifying the data. DataHeader.HeaderSize should be sizeof (EFI_STATUS_CODE_DATA), DataHeader.Size should be sizeof (EFI_DEBUG_ASSERT_DATA) - HeaderSize , and DataHeader.Type should be EFI_STATUS_CODE_SPECIFIC_DATA_GUID.

◆ FileName

EFI_STATUS_CODE_STRING_DATA* EFI_DEBUG_ASSERT_DATA::FileName

A pointer to a NULL-terminated ASCII or Unicode string that represents the file name of the source file where the fault was generated.

◆ FileNameSize

UINT32 EFI_DEBUG_ASSERT_DATA::FileNameSize

The size in bytes of FileName.

◆ LineNumber

UINT32 EFI_DEBUG_ASSERT_DATA::LineNumber

The line number of the source file where the fault was generated.

The documentation for this struct was generated from the following file:
