#include <Dns4.h>

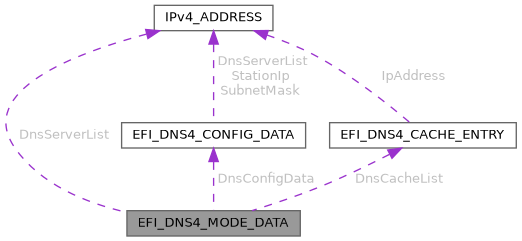

Collaboration diagram for EFI_DNS4_MODE_DATA:
Public Attributes | |
| EFI_DNS4_CONFIG_DATA | DnsConfigData |
| UINT32 | DnsServerCount |
| EFI_IPv4_ADDRESS * | DnsServerList |
| UINT32 | DnsCacheCount |
| EFI_DNS4_CACHE_ENTRY * | DnsCacheList |
Detailed Description
Member Data Documentation
◆ DnsCacheCount
| UINT32 EFI_DNS4_MODE_DATA::DnsCacheCount |
Number of DNS Cache entries. The DNS Cache is shared among all DNS instances.
◆ DnsCacheList
| EFI_DNS4_CACHE_ENTRY* EFI_DNS4_MODE_DATA::DnsCacheList |
Pointer to a buffer containing DnsCacheCount DNS Cache entry structures. The storage for this list is allocated by the driver publishing this protocol and must be freed by caller.
◆ DnsConfigData
| EFI_DNS4_CONFIG_DATA EFI_DNS4_MODE_DATA::DnsConfigData |
The configuration data of this instance.
◆ DnsServerCount
| UINT32 EFI_DNS4_MODE_DATA::DnsServerCount |
Number of configured DNS server. Each DNS instance has its own DNS server configuration.
◆ DnsServerList
| EFI_IPv4_ADDRESS* EFI_DNS4_MODE_DATA::DnsServerList |
Pointer to common list of addresses of all configured DNS server used by EFI_DNS4_PROTOCOL instances. List will include DNS servers configured by this or any other EFI_DNS4_PROTOCOL instance. The storage for this list is allocated by the driver publishing this protocol, and must be freed by the caller.
The documentation for this struct was generated from the following file:
- XenevaOS/Boot/include/Protocol/Dns4.h
