#include <PiHob.h>

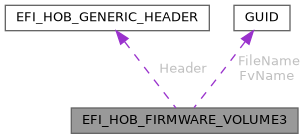

Collaboration diagram for EFI_HOB_FIRMWARE_VOLUME3:
Public Attributes | |
| EFI_HOB_GENERIC_HEADER | Header |
| EFI_PHYSICAL_ADDRESS | BaseAddress |
| UINT64 | Length |
| UINT32 | AuthenticationStatus |
| BOOLEAN | ExtractedFv |
| EFI_GUID | FvName |
| EFI_GUID | FileName |
Detailed Description
Details the location of a firmware volume that was extracted from a file within another firmware volume.
Member Data Documentation
◆ AuthenticationStatus
| UINT32 EFI_HOB_FIRMWARE_VOLUME3::AuthenticationStatus |
The authentication status.
◆ BaseAddress
| EFI_PHYSICAL_ADDRESS EFI_HOB_FIRMWARE_VOLUME3::BaseAddress |
The physical memory-mapped base address of the firmware volume.
◆ ExtractedFv
| BOOLEAN EFI_HOB_FIRMWARE_VOLUME3::ExtractedFv |
TRUE if the FV was extracted as a file within another firmware volume. FALSE otherwise.
◆ FileName
| EFI_GUID EFI_HOB_FIRMWARE_VOLUME3::FileName |
The name of the firmware file that contained this firmware volume. Valid only if IsExtractedFv is TRUE.
◆ FvName
| EFI_GUID EFI_HOB_FIRMWARE_VOLUME3::FvName |
The name of the firmware volume. Valid only if IsExtractedFv is TRUE.
◆ Header
| EFI_HOB_GENERIC_HEADER EFI_HOB_FIRMWARE_VOLUME3::Header |
The HOB generic header. Header.HobType = EFI_HOB_TYPE_FV3.
◆ Length
| UINT64 EFI_HOB_FIRMWARE_VOLUME3::Length |
The length in bytes of the firmware volume.
The documentation for this struct was generated from the following file:
- XenevaOS/Boot/include/Pi/PiHob.h
