#include <Ip4.h>

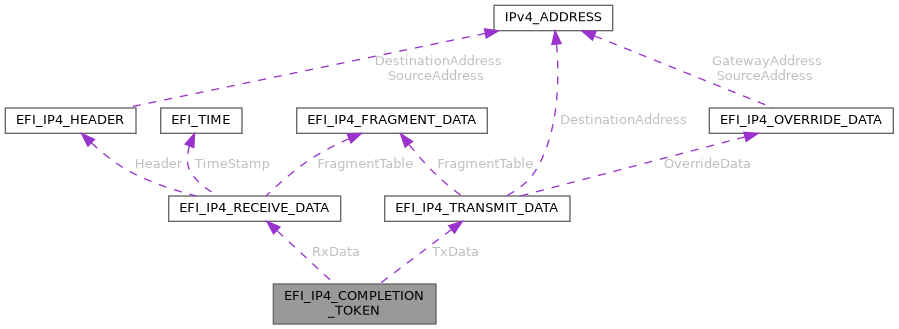

Collaboration diagram for EFI_IP4_COMPLETION_TOKEN:
Public Attributes | ||
| EFI_EVENT | Event | |
| EFI_STATUS | Status | |
| union { | ||
| EFI_IP4_RECEIVE_DATA * RxData | ||
| EFI_IP4_TRANSMIT_DATA * TxData | ||
| } | Packet | |
Member Data Documentation
◆ Event
| EFI_EVENT EFI_IP4_COMPLETION_TOKEN::Event |
This Event will be signaled after the Status field is updated by the EFI IPv4 Protocol driver. The type of Event must be EFI_NOTIFY_SIGNAL. The Task Priority Level (TPL) of Event must be lower than or equal to TPL_CALLBACK.
◆ [union]
| union { ... } EFI_IP4_COMPLETION_TOKEN::Packet |
◆ RxData
| EFI_IP4_RECEIVE_DATA* EFI_IP4_COMPLETION_TOKEN::RxData |
When this token is used for receiving, RxData is a pointer to the EFI_IP4_RECEIVE_DATA.
◆ Status
| EFI_STATUS EFI_IP4_COMPLETION_TOKEN::Status |
The status that is returned to the caller at the end of the operation to indicate whether this operation completed successfully.
◆ TxData
| EFI_IP4_TRANSMIT_DATA* EFI_IP4_COMPLETION_TOKEN::TxData |
When this token is used for transmitting, TxData is a pointer to the EFI_IP4_TRANSMIT_DATA.
The documentation for this struct was generated from the following file:
- XenevaOS/Boot/include/Protocol/Ip4.h
