#include <Ip4Config2.h>

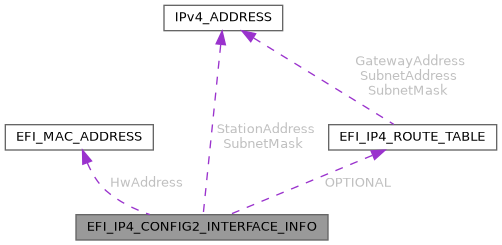

Collaboration diagram for EFI_IP4_CONFIG2_INTERFACE_INFO:

[legend]

Public Attributes
CHAR16	Name [EFI_IP4_CONFIG2_INTERFACE_INFO_NAME_SIZE]

UINT8	IfType

UINT32	HwAddressSize

EFI_MAC_ADDRESS	HwAddress

EFI_IPv4_ADDRESS	StationAddress

EFI_IPv4_ADDRESS	SubnetMask

UINT32	RouteTableSize

EFI_IP4_ROUTE_TABLE *RouteTable	OPTIONAL

Detailed Description

Member Data Documentation

EFI_MAC_ADDRESS EFI_IP4_CONFIG2_INTERFACE_INFO::HwAddress

The hardware address for the network interface.

UINT32 EFI_IP4_CONFIG2_INTERFACE_INFO::HwAddressSize

The size, in bytes, of the network interface's hardware address.

UINT8 EFI_IP4_CONFIG2_INTERFACE_INFO::IfType

The interface type of the network interface. See RFC 1700, section "Number Hardware Type".

The name of the interface. It is a NULL-terminated Unicode string.

EFI_IP4_ROUTE_TABLE* RouteTable EFI_IP4_CONFIG2_INTERFACE_INFO::OPTIONAL

The route table of the IPv4 network stack runs on this interface. Set to NULL if RouteTableSize is zero. Type EFI_IP4_ROUTE_TABLE is defined in EFI_IP4_PROTOCOL.GetModeData().

UINT32 EFI_IP4_CONFIG2_INTERFACE_INFO::RouteTableSize

Size of the following RouteTable, in bytes. May be zero.

EFI_IPv4_ADDRESS EFI_IP4_CONFIG2_INTERFACE_INFO::StationAddress

The station IPv4 address of this EFI IPv4 network stack.

EFI_IPv4_ADDRESS EFI_IP4_CONFIG2_INTERFACE_INFO::SubnetMask

The subnet address mask that is associated with the station address.

The documentation for this struct was generated from the following file:
