#include <Ip4Config.h>

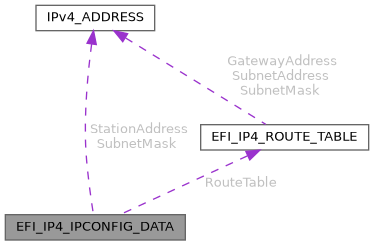

Collaboration diagram for EFI_IP4_IPCONFIG_DATA:
Public Attributes | |
| EFI_IPv4_ADDRESS | StationAddress |
| EFI_IPv4_ADDRESS | SubnetMask |
| UINT32 | RouteTableSize |
| EFI_IP4_ROUTE_TABLE * | RouteTable |
Detailed Description
EFI_IP4_IPCONFIG_DATA contains the minimum IPv4 configuration data that is needed to start basic network communication. The StationAddress and SubnetMask must be a valid unicast IP address and subnet mask. If RouteTableSize is not zero, then RouteTable contains a properly formatted routing table for the StationAddress/SubnetMask, with the last entry in the table being the default route.
Member Data Documentation
◆ RouteTable
| EFI_IP4_ROUTE_TABLE* EFI_IP4_IPCONFIG_DATA::RouteTable |
Default routing table data (stored in network byte order). Ignored if RouteTableSize is zero.
◆ RouteTableSize
| UINT32 EFI_IP4_IPCONFIG_DATA::RouteTableSize |
Number of entries in the following RouteTable. May be zero.
◆ StationAddress
| EFI_IPv4_ADDRESS EFI_IP4_IPCONFIG_DATA::StationAddress |
Default station IP address, stored in network byte order.
◆ SubnetMask
| EFI_IPv4_ADDRESS EFI_IP4_IPCONFIG_DATA::SubnetMask |
Default subnet mask, stored in network byte order.
The documentation for this struct was generated from the following file:
- XenevaOS/Boot/include/Protocol/Ip4Config.h
