EFI_IP4_MODE_DATA Struct Reference

#include <Ip4.h>

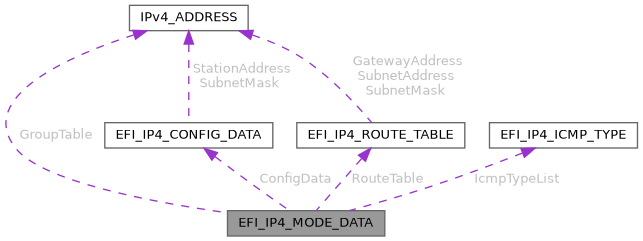

Collaboration diagram for EFI_IP4_MODE_DATA:

Public Attributes
BOOLEAN	IsStarted
UINT32	MaxPacketSize
EFI_IP4_CONFIG_DATA	ConfigData
BOOLEAN	IsConfigured
UINT32	GroupCount
EFI_IPv4_ADDRESS *	GroupTable
UINT32	RouteCount
EFI_IP4_ROUTE_TABLE *	RouteTable
UINT32	IcmpTypeCount
EFI_IP4_ICMP_TYPE *	IcmpTypeList

Member Data Documentation

ConfigData

EFI_IP4_CONFIG_DATA EFI_IP4_MODE_DATA::ConfigData

Current configuration settings.

GroupCount

UINT32 EFI_IP4_MODE_DATA::GroupCount

Number of joined multicast groups.

GroupTable

EFI_IPv4_ADDRESS* EFI_IP4_MODE_DATA::GroupTable

List of joined multicast group addresses.

IcmpTypeCount

UINT32 EFI_IP4_MODE_DATA::IcmpTypeCount

Number of entries in the supported ICMP types list.

IcmpTypeList

EFI_IP4_ICMP_TYPE* EFI_IP4_MODE_DATA::IcmpTypeList

Array of ICMP types and codes that are supported by this EFI IPv4 Protocol driver

IsConfigured

BOOLEAN EFI_IP4_MODE_DATA::IsConfigured

Set to TRUE when the EFI IPv4 Protocol instance has a station address and subnet mask.

IsStarted

BOOLEAN EFI_IP4_MODE_DATA::IsStarted

Set to TRUE after this EFI IPv4 Protocol instance has been successfully configured.

MaxPacketSize

UINT32 EFI_IP4_MODE_DATA::MaxPacketSize

The maximum packet size, in bytes, of the packet which the upper layer driver could feed.

RouteCount

UINT32 EFI_IP4_MODE_DATA::RouteCount

Number of entries in the routing table.

RouteTable

EFI_IP4_ROUTE_TABLE* EFI_IP4_MODE_DATA::RouteTable

Routing table entries.

---

The documentation for this struct was generated from the following file:

• XenevaOS/Boot/include/Protocol/Ip4.h
