#include <Ip6.h>

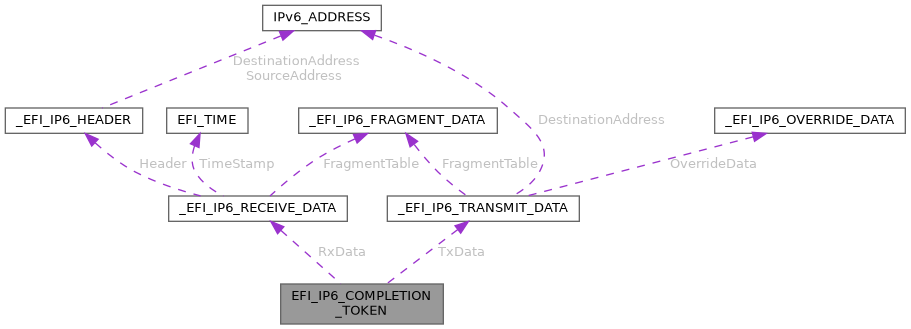

Collaboration diagram for EFI_IP6_COMPLETION_TOKEN:
Public Attributes | ||
| EFI_EVENT | Event | |
| EFI_STATUS | Status | |
| union { | ||
| EFI_IP6_RECEIVE_DATA * RxData | ||
| EFI_IP6_TRANSMIT_DATA * TxData | ||
| } | Packet | |
Detailed Description
EFI_IP6_COMPLETION_TOKEN structures are used for both transmit and receive operations.
Member Data Documentation
◆ Event
| EFI_EVENT EFI_IP6_COMPLETION_TOKEN::Event |
This Event will be signaled after the Status field is updated by the EFI IPv6 Protocol driver. The type of Event must be EFI_NOTIFY_SIGNAL.
◆ [union]
| union { ... } EFI_IP6_COMPLETION_TOKEN::Packet |
◆ RxData
| EFI_IP6_RECEIVE_DATA* EFI_IP6_COMPLETION_TOKEN::RxData |
When the Token is used for receiving, RxData is a pointer to the EFI_IP6_RECEIVE_DATA.
◆ Status
| EFI_STATUS EFI_IP6_COMPLETION_TOKEN::Status |
Will be set to one of the following values:
- EFI_SUCCESS: The receive or transmit completed successfully.
- EFI_ABORTED: The receive or transmit was aborted
- EFI_TIMEOUT: The transmit timeout expired.
- EFI_ICMP_ERROR: An ICMP error packet was received.
- EFI_DEVICE_ERROR: An unexpected system or network error occurred.
- EFI_SECURITY_VIOLATION: The transmit or receive was failed because of an IPsec policy check.
- EFI_NO_MEDIA: There was a media error.
◆ TxData
| EFI_IP6_TRANSMIT_DATA* EFI_IP6_COMPLETION_TOKEN::TxData |
When the Token is used for transmitting, TxData is a pointer to the EFI_IP6_TRANSMIT_DATA.
The documentation for this struct was generated from the following file:
- XenevaOS/Boot/include/Protocol/Ip6.h
