#include <Udp6.h>

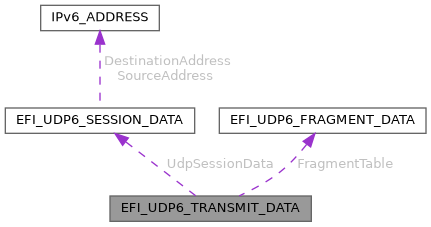

Collaboration diagram for EFI_UDP6_TRANSMIT_DATA:
Public Attributes | |
| EFI_UDP6_SESSION_DATA * | UdpSessionData |
| UINT32 | DataLength |
| UINT32 | FragmentCount |
| EFI_UDP6_FRAGMENT_DATA | FragmentTable [1] |
Detailed Description
The EFI UDPv6 Protocol client must fill this data structure before sending a packet. The packet may contain multiple buffers that may be not in a continuous memory location.
Member Data Documentation
◆ DataLength
| UINT32 EFI_UDP6_TRANSMIT_DATA::DataLength |
Sum of the fragment data length. Must not exceed the maximum UDP packet size.
◆ FragmentCount
| UINT32 EFI_UDP6_TRANSMIT_DATA::FragmentCount |
Number of fragments.
◆ FragmentTable
| EFI_UDP6_FRAGMENT_DATA EFI_UDP6_TRANSMIT_DATA::FragmentTable[1] |
Array of fragment descriptors.
◆ UdpSessionData
| EFI_UDP6_SESSION_DATA* EFI_UDP6_TRANSMIT_DATA::UdpSessionData |
If not NULL, the data that is used to override the transmitting settings.Only the two filed UdpSessionData.DestinationAddress and UdpSessionData.DestionPort can be used as the transmitting setting filed.
The documentation for this struct was generated from the following file:
- XenevaOS/Boot/include/Protocol/Udp6.h
