PCI_EXPRESS_EXTENDED_CAPABILITIES_VIRTUAL_CHANNEL_CAPABILITY Struct Reference

#include <PciExpress21.h>

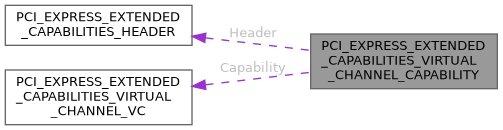

Collaboration diagram for PCI_EXPRESS_EXTENDED_CAPABILITIES_VIRTUAL_CHANNEL_CAPABILITY:

Public Attributes
PCI_EXPRESS_EXTENDED_CAPABILITIES_HEADER	Header
UINT32	ExtendedVcCount:3
UINT32	PortVcCapability1:29
UINT32	PortVcCapability2:24
UINT32	VcArbTableOffset:8
UINT16	PortVcControl
UINT16	PortVcStatus
PCI_EXPRESS_EXTENDED_CAPABILITIES_VIRTUAL_CHANNEL_VC	Capability [1]

Member Data Documentation

Capability

PCI_EXPRESS_EXTENDED_CAPABILITIES_VIRTUAL_CHANNEL_VC PCI_EXPRESS_EXTENDED_CAPABILITIES_VIRTUAL_CHANNEL_CAPABILITY::Capability[1]

ExtendedVcCount

UINT32 PCI_EXPRESS_EXTENDED_CAPABILITIES_VIRTUAL_CHANNEL_CAPABILITY::ExtendedVcCount

Header

PCI_EXPRESS_EXTENDED_CAPABILITIES_HEADER PCI_EXPRESS_EXTENDED_CAPABILITIES_VIRTUAL_CHANNEL_CAPABILITY::Header

PortVcCapability1

UINT32 PCI_EXPRESS_EXTENDED_CAPABILITIES_VIRTUAL_CHANNEL_CAPABILITY::PortVcCapability1

PortVcCapability2

UINT32 PCI_EXPRESS_EXTENDED_CAPABILITIES_VIRTUAL_CHANNEL_CAPABILITY::PortVcCapability2

PortVcControl

UINT16 PCI_EXPRESS_EXTENDED_CAPABILITIES_VIRTUAL_CHANNEL_CAPABILITY::PortVcControl

PortVcStatus

UINT16 PCI_EXPRESS_EXTENDED_CAPABILITIES_VIRTUAL_CHANNEL_CAPABILITY::PortVcStatus

VcArbTableOffset

UINT32 PCI_EXPRESS_EXTENDED_CAPABILITIES_VIRTUAL_CHANNEL_CAPABILITY::VcArbTableOffset

---

The documentation for this struct was generated from the following file:

• XenevaOS/Boot/include/IndustryStandard/PciExpress21.h
