SMBIOS_TABLE_TYPE17 Struct Reference

#include <SmBios.h>

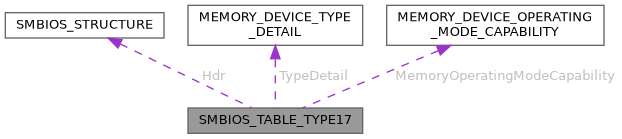

Collaboration diagram for SMBIOS_TABLE_TYPE17:

Public Attributes
SMBIOS_STRUCTURE	Hdr
UINT16	MemoryArrayHandle
UINT16	MemoryErrorInformationHandle
UINT16	TotalWidth
UINT16	DataWidth
UINT16	Size
UINT8	FormFactor
	The enumeration value from MEMORY_FORM_FACTOR.
UINT8	DeviceSet
SMBIOS_TABLE_STRING	DeviceLocator
SMBIOS_TABLE_STRING	BankLocator
UINT8	MemoryType
	The enumeration value from MEMORY_DEVICE_TYPE.
MEMORY_DEVICE_TYPE_DETAIL	TypeDetail
UINT16	Speed
SMBIOS_TABLE_STRING	Manufacturer
SMBIOS_TABLE_STRING	SerialNumber
SMBIOS_TABLE_STRING	AssetTag
SMBIOS_TABLE_STRING	PartNumber
UINT8	Attributes
UINT32	ExtendedSize
UINT16	ConfiguredMemoryClockSpeed
UINT16	MinimumVoltage
UINT16	MaximumVoltage
UINT16	ConfiguredVoltage
UINT8	MemoryTechnology
	The enumeration value from MEMORY_DEVICE_TECHNOLOGY.
MEMORY_DEVICE_OPERATING_MODE_CAPABILITY	MemoryOperatingModeCapability
SMBIOS_TABLE_STRING	FirwareVersion
UINT16	ModuleManufacturerID
UINT16	ModuleProductID
UINT16	MemorySubsystemControllerManufacturerID
UINT16	MemorySubsystemControllerProductID
UINT64	NonVolatileSize
UINT64	VolatileSize
UINT64	CacheSize
UINT64	LogicalSize

Detailed Description

Memory Device (Type 17).

This structure describes a single memory device that is part of a larger Physical Memory Array (Type 16). Note: If a system includes memory-device sockets, the SMBIOS implementation includes a Memory Device structure instance for each slot, whether or not the socket is currently populated.

Member Data Documentation

AssetTag

SMBIOS_TABLE_STRING SMBIOS_TABLE_TYPE17::AssetTag

Attributes

UINT8 SMBIOS_TABLE_TYPE17::Attributes

BankLocator

SMBIOS_TABLE_STRING SMBIOS_TABLE_TYPE17::BankLocator

CacheSize

UINT64 SMBIOS_TABLE_TYPE17::CacheSize

ConfiguredMemoryClockSpeed

UINT16 SMBIOS_TABLE_TYPE17::ConfiguredMemoryClockSpeed

ConfiguredVoltage

UINT16 SMBIOS_TABLE_TYPE17::ConfiguredVoltage

DataWidth

UINT16 SMBIOS_TABLE_TYPE17::DataWidth

DeviceLocator

SMBIOS_TABLE_STRING SMBIOS_TABLE_TYPE17::DeviceLocator

DeviceSet

UINT8 SMBIOS_TABLE_TYPE17::DeviceSet

ExtendedSize

UINT32 SMBIOS_TABLE_TYPE17::ExtendedSize

FirwareVersion

SMBIOS_TABLE_STRING SMBIOS_TABLE_TYPE17::FirwareVersion

FormFactor

UINT8 SMBIOS_TABLE_TYPE17::FormFactor

The enumeration value from MEMORY_FORM_FACTOR.

Hdr

SMBIOS_STRUCTURE SMBIOS_TABLE_TYPE17::Hdr

LogicalSize

UINT64 SMBIOS_TABLE_TYPE17::LogicalSize

Manufacturer

SMBIOS_TABLE_STRING SMBIOS_TABLE_TYPE17::Manufacturer

MaximumVoltage

UINT16 SMBIOS_TABLE_TYPE17::MaximumVoltage

MemoryArrayHandle

UINT16 SMBIOS_TABLE_TYPE17::MemoryArrayHandle

MemoryErrorInformationHandle

UINT16 SMBIOS_TABLE_TYPE17::MemoryErrorInformationHandle

MemoryOperatingModeCapability

MEMORY_DEVICE_OPERATING_MODE_CAPABILITY SMBIOS_TABLE_TYPE17::MemoryOperatingModeCapability

MemorySubsystemControllerManufacturerID

UINT16 SMBIOS_TABLE_TYPE17::MemorySubsystemControllerManufacturerID

MemorySubsystemControllerProductID

UINT16 SMBIOS_TABLE_TYPE17::MemorySubsystemControllerProductID

MemoryTechnology

UINT8 SMBIOS_TABLE_TYPE17::MemoryTechnology

The enumeration value from MEMORY_DEVICE_TECHNOLOGY.

MemoryType

UINT8 SMBIOS_TABLE_TYPE17::MemoryType

The enumeration value from MEMORY_DEVICE_TYPE.

MinimumVoltage

UINT16 SMBIOS_TABLE_TYPE17::MinimumVoltage

ModuleManufacturerID

UINT16 SMBIOS_TABLE_TYPE17::ModuleManufacturerID

ModuleProductID

UINT16 SMBIOS_TABLE_TYPE17::ModuleProductID

NonVolatileSize

UINT64 SMBIOS_TABLE_TYPE17::NonVolatileSize

PartNumber

SMBIOS_TABLE_STRING SMBIOS_TABLE_TYPE17::PartNumber

SerialNumber

SMBIOS_TABLE_STRING SMBIOS_TABLE_TYPE17::SerialNumber

Size

UINT16 SMBIOS_TABLE_TYPE17::Size

Speed

UINT16 SMBIOS_TABLE_TYPE17::Speed

TotalWidth

UINT16 SMBIOS_TABLE_TYPE17::TotalWidth

TypeDetail

MEMORY_DEVICE_TYPE_DETAIL SMBIOS_TABLE_TYPE17::TypeDetail

VolatileSize

UINT64 SMBIOS_TABLE_TYPE17::VolatileSize

---

The documentation for this struct was generated from the following file:

• XenevaOS/Boot/include/IndustryStandard/SmBios.h
