#include <SmBios.h>

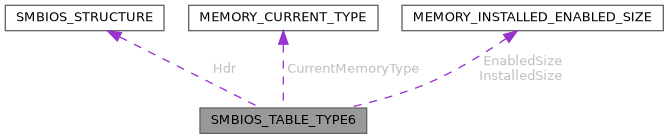

Collaboration diagram for SMBIOS_TABLE_TYPE6:
Detailed Description
Memory Module Information (Type 6, Obsolete)
One Memory Module Information structure is included for each memory-module socket in the system. The structure describes the speed, type, size, and error status of each system memory module. The supported attributes of each module are described by the "owning" Memory Controller Information structure. Note: This structure, and its companion Memory Controller Information (Type 5, Obsolete), are obsolete starting with version 2.1 of this specification. The Physical Memory Array (Type 16) and Memory Device (Type 17) structures should be used instead.
Member Data Documentation
◆ BankConnections
| UINT8 SMBIOS_TABLE_TYPE6::BankConnections |
◆ CurrentMemoryType
| MEMORY_CURRENT_TYPE SMBIOS_TABLE_TYPE6::CurrentMemoryType |
◆ CurrentSpeed
| UINT8 SMBIOS_TABLE_TYPE6::CurrentSpeed |
◆ EnabledSize
| MEMORY_INSTALLED_ENABLED_SIZE SMBIOS_TABLE_TYPE6::EnabledSize |
◆ ErrorStatus
| UINT8 SMBIOS_TABLE_TYPE6::ErrorStatus |
◆ Hdr
| SMBIOS_STRUCTURE SMBIOS_TABLE_TYPE6::Hdr |
◆ InstalledSize
| MEMORY_INSTALLED_ENABLED_SIZE SMBIOS_TABLE_TYPE6::InstalledSize |
◆ SocketDesignation
| SMBIOS_TABLE_STRING SMBIOS_TABLE_TYPE6::SocketDesignation |
The documentation for this struct was generated from the following file:
- XenevaOS/Boot/include/IndustryStandard/SmBios.h
