#include <SdramSpdDdr3.h>

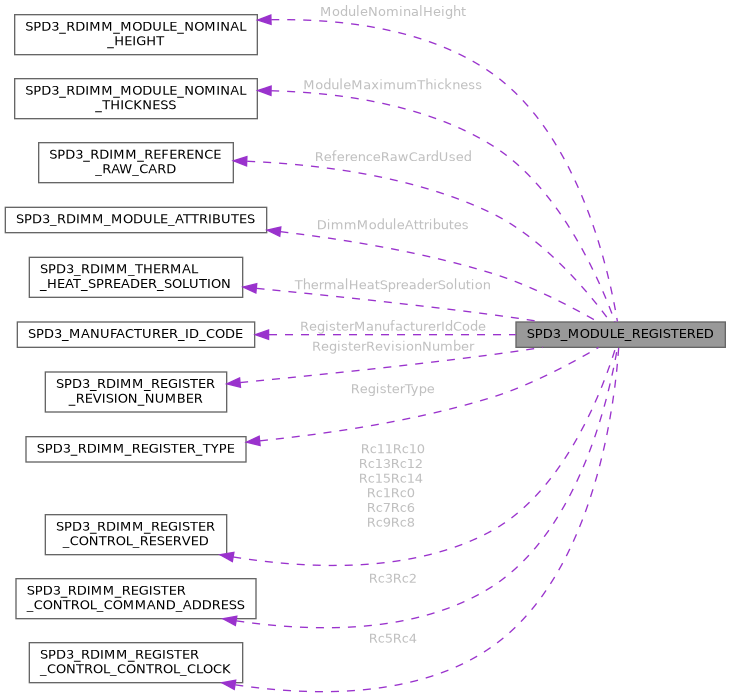

Collaboration diagram for SPD3_MODULE_REGISTERED:

[legend]

Public Attributes
SPD3_RDIMM_MODULE_NOMINAL_HEIGHT	ModuleNominalHeight
	60 Module Nominal Height

SPD3_RDIMM_MODULE_NOMINAL_THICKNESS	ModuleMaximumThickness
	61 Module Maximum Thickness

SPD3_RDIMM_REFERENCE_RAW_CARD	ReferenceRawCardUsed
	62 Reference Raw Card Used

SPD3_RDIMM_MODULE_ATTRIBUTES	DimmModuleAttributes
	63 DIMM Module Attributes

SPD3_RDIMM_THERMAL_HEAT_SPREADER_SOLUTION	ThermalHeatSpreaderSolution
	64 RDIMM Thermal Heat Spreader Solution

SPD3_MANUFACTURER_ID_CODE	RegisterManufacturerIdCode
	65-66 Register Manufacturer ID Code

SPD3_RDIMM_REGISTER_REVISION_NUMBER	RegisterRevisionNumber
	67 Register Revision Number

SPD3_RDIMM_REGISTER_TYPE	RegisterType
	68 Register Type

SPD3_RDIMM_REGISTER_CONTROL_RESERVED	Rc1Rc0
	69 RC1 (MS Nibble) / RC0 (LS Nibble) - Reserved

SPD3_RDIMM_REGISTER_CONTROL_COMMAND_ADDRESS	Rc3Rc2
	70 RC3 (MS Nibble) / RC2 (LS Nibble) - Drive Strength, Command/Address

SPD3_RDIMM_REGISTER_CONTROL_CONTROL_CLOCK	Rc5Rc4
	71 RC5 (MS Nibble) / RC4 (LS Nibble) - Drive Strength, Control and Clock

SPD3_RDIMM_REGISTER_CONTROL_RESERVED	Rc7Rc6
	72 RC7 (MS Nibble) / RC6 (LS Nibble) - Reserved for Register Vendor

SPD3_RDIMM_REGISTER_CONTROL_RESERVED	Rc9Rc8
	73 RC9 (MS Nibble) / RC8 (LS Nibble) - Reserved

SPD3_RDIMM_REGISTER_CONTROL_RESERVED	Rc11Rc10
	74 RC11 (MS Nibble) / RC10 (LS Nibble) - Reserved

SPD3_RDIMM_REGISTER_CONTROL_RESERVED	Rc13Rc12
	75 RC12 (MS Nibble) / RC12 (LS Nibble) - Reserved

SPD3_RDIMM_REGISTER_CONTROL_RESERVED	Rc15Rc14
	76 RC15 (MS Nibble) / RC14 (LS Nibble) - Reserved

UINT8	Reserved [116 - 77+1]
	77-116 Reserved

Member Data Documentation

◆ DimmModuleAttributes

SPD3_RDIMM_MODULE_ATTRIBUTES SPD3_MODULE_REGISTERED::DimmModuleAttributes

63 DIMM Module Attributes

◆ ModuleMaximumThickness

SPD3_RDIMM_MODULE_NOMINAL_THICKNESS SPD3_MODULE_REGISTERED::ModuleMaximumThickness

61 Module Maximum Thickness

◆ ModuleNominalHeight

SPD3_RDIMM_MODULE_NOMINAL_HEIGHT SPD3_MODULE_REGISTERED::ModuleNominalHeight

60 Module Nominal Height

◆ Rc11Rc10

SPD3_RDIMM_REGISTER_CONTROL_RESERVED SPD3_MODULE_REGISTERED::Rc11Rc10

74 RC11 (MS Nibble) / RC10 (LS Nibble) - Reserved

◆ Rc13Rc12

SPD3_RDIMM_REGISTER_CONTROL_RESERVED SPD3_MODULE_REGISTERED::Rc13Rc12

75 RC12 (MS Nibble) / RC12 (LS Nibble) - Reserved

◆ Rc15Rc14

SPD3_RDIMM_REGISTER_CONTROL_RESERVED SPD3_MODULE_REGISTERED::Rc15Rc14

76 RC15 (MS Nibble) / RC14 (LS Nibble) - Reserved

◆ Rc1Rc0

SPD3_RDIMM_REGISTER_CONTROL_RESERVED SPD3_MODULE_REGISTERED::Rc1Rc0

69 RC1 (MS Nibble) / RC0 (LS Nibble) - Reserved

◆ Rc3Rc2

SPD3_RDIMM_REGISTER_CONTROL_COMMAND_ADDRESS SPD3_MODULE_REGISTERED::Rc3Rc2

70 RC3 (MS Nibble) / RC2 (LS Nibble) - Drive Strength, Command/Address

◆ Rc5Rc4

SPD3_RDIMM_REGISTER_CONTROL_CONTROL_CLOCK SPD3_MODULE_REGISTERED::Rc5Rc4

71 RC5 (MS Nibble) / RC4 (LS Nibble) - Drive Strength, Control and Clock

◆ Rc7Rc6

SPD3_RDIMM_REGISTER_CONTROL_RESERVED SPD3_MODULE_REGISTERED::Rc7Rc6

72 RC7 (MS Nibble) / RC6 (LS Nibble) - Reserved for Register Vendor

◆ Rc9Rc8

SPD3_RDIMM_REGISTER_CONTROL_RESERVED SPD3_MODULE_REGISTERED::Rc9Rc8

73 RC9 (MS Nibble) / RC8 (LS Nibble) - Reserved

◆ ReferenceRawCardUsed

SPD3_RDIMM_REFERENCE_RAW_CARD SPD3_MODULE_REGISTERED::ReferenceRawCardUsed

62 Reference Raw Card Used

◆ RegisterManufacturerIdCode

SPD3_MANUFACTURER_ID_CODE SPD3_MODULE_REGISTERED::RegisterManufacturerIdCode

65-66 Register Manufacturer ID Code

◆ RegisterRevisionNumber

SPD3_RDIMM_REGISTER_REVISION_NUMBER SPD3_MODULE_REGISTERED::RegisterRevisionNumber

67 Register Revision Number

◆ RegisterType

SPD3_RDIMM_REGISTER_TYPE SPD3_MODULE_REGISTERED::RegisterType

68 Register Type

◆ Reserved

UINT8 SPD3_MODULE_REGISTERED::Reserved[116 - 77+1]

77-116 Reserved

◆ ThermalHeatSpreaderSolution

SPD3_RDIMM_THERMAL_HEAT_SPREADER_SOLUTION SPD3_MODULE_REGISTERED::ThermalHeatSpreaderSolution

64 RDIMM Thermal Heat Spreader Solution

The documentation for this struct was generated from the following file:

XenevaOS/Boot/include/IndustryStandard/SdramSpdDdr3.h
