#include <SdramSpdDdr3.h>

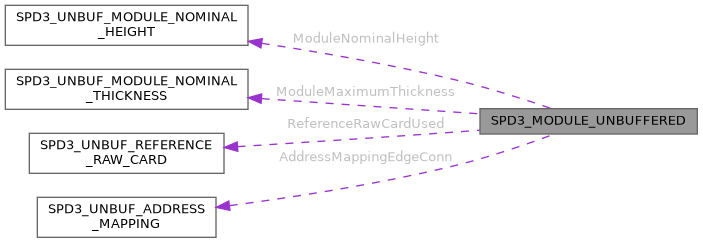

Collaboration diagram for SPD3_MODULE_UNBUFFERED:
Public Attributes | |
| SPD3_UNBUF_MODULE_NOMINAL_HEIGHT | ModuleNominalHeight |
| 60 Module Nominal Height | |
| SPD3_UNBUF_MODULE_NOMINAL_THICKNESS | ModuleMaximumThickness |
| 61 Module Maximum Thickness | |
| SPD3_UNBUF_REFERENCE_RAW_CARD | ReferenceRawCardUsed |
| 62 Reference Raw Card Used | |
| SPD3_UNBUF_ADDRESS_MAPPING | AddressMappingEdgeConn |
| 63 Address Mapping from Edge Connector to DRAM | |
| UINT8 | Reserved [116 - 64+1] |
| 64-116 Reserved | |
Member Data Documentation
◆ AddressMappingEdgeConn
| SPD3_UNBUF_ADDRESS_MAPPING SPD3_MODULE_UNBUFFERED::AddressMappingEdgeConn |
63 Address Mapping from Edge Connector to DRAM
◆ ModuleMaximumThickness
| SPD3_UNBUF_MODULE_NOMINAL_THICKNESS SPD3_MODULE_UNBUFFERED::ModuleMaximumThickness |
61 Module Maximum Thickness
◆ ModuleNominalHeight
| SPD3_UNBUF_MODULE_NOMINAL_HEIGHT SPD3_MODULE_UNBUFFERED::ModuleNominalHeight |
60 Module Nominal Height
◆ ReferenceRawCardUsed
| SPD3_UNBUF_REFERENCE_RAW_CARD SPD3_MODULE_UNBUFFERED::ReferenceRawCardUsed |
62 Reference Raw Card Used
◆ Reserved
| UINT8 SPD3_MODULE_UNBUFFERED::Reserved[116 - 64+1] |
64-116 Reserved
The documentation for this struct was generated from the following file:
- XenevaOS/Boot/include/IndustryStandard/SdramSpdDdr3.h
