#include <BlockIo2.h>

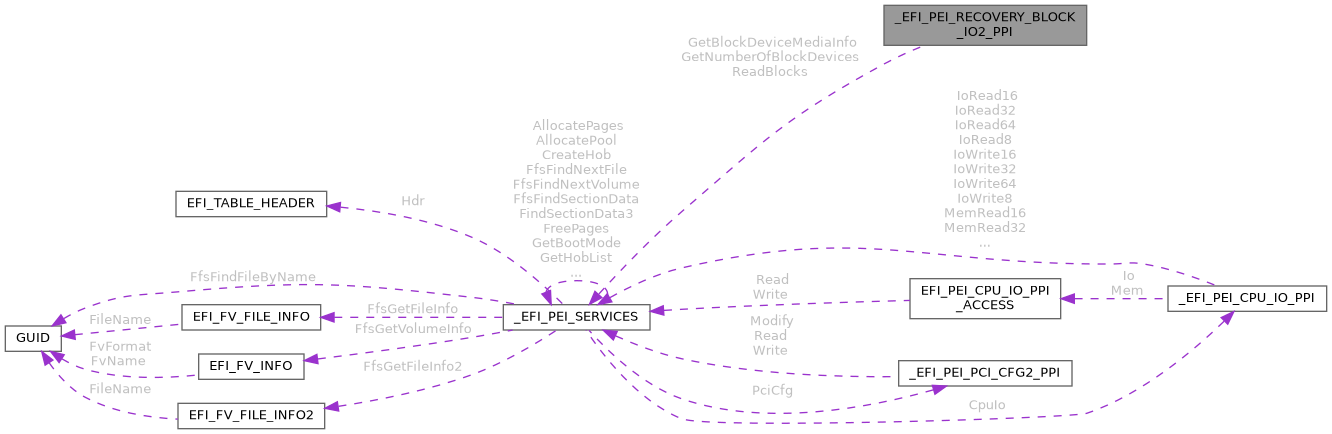

Collaboration diagram for _EFI_PEI_RECOVERY_BLOCK_IO2_PPI:
Public Attributes | |
| UINT64 | Revision |
| EFI_PEI_GET_NUMBER_BLOCK_DEVICES2 | GetNumberOfBlockDevices |
| EFI_PEI_GET_DEVICE_MEDIA_INFORMATION2 | GetBlockDeviceMediaInfo |
| EFI_PEI_READ_BLOCKS2 | ReadBlocks |
Detailed Description
EFI_PEI_RECOVERY_BLOCK_IO_PPI provides the services that are required to access a block I/O device during PEI recovery boot mode.
Member Data Documentation
◆ GetBlockDeviceMediaInfo
| EFI_PEI_GET_DEVICE_MEDIA_INFORMATION2 _EFI_PEI_RECOVERY_BLOCK_IO2_PPI::GetBlockDeviceMediaInfo |
Gets the specified media information.
◆ GetNumberOfBlockDevices
| EFI_PEI_GET_NUMBER_BLOCK_DEVICES2 _EFI_PEI_RECOVERY_BLOCK_IO2_PPI::GetNumberOfBlockDevices |
Gets the number of block I/O devices that the specific block driver manages.
◆ ReadBlocks
| EFI_PEI_READ_BLOCKS2 _EFI_PEI_RECOVERY_BLOCK_IO2_PPI::ReadBlocks |
Reads the requested number of blocks from the specified block device.
◆ Revision
| UINT64 _EFI_PEI_RECOVERY_BLOCK_IO2_PPI::Revision |
The revision to which the interface adheres. All future revisions must be backwards compatible.
The documentation for this struct was generated from the following file:
- XenevaOS/Boot/include/Ppi/BlockIo2.h
