#include <PxeBaseCode.h>

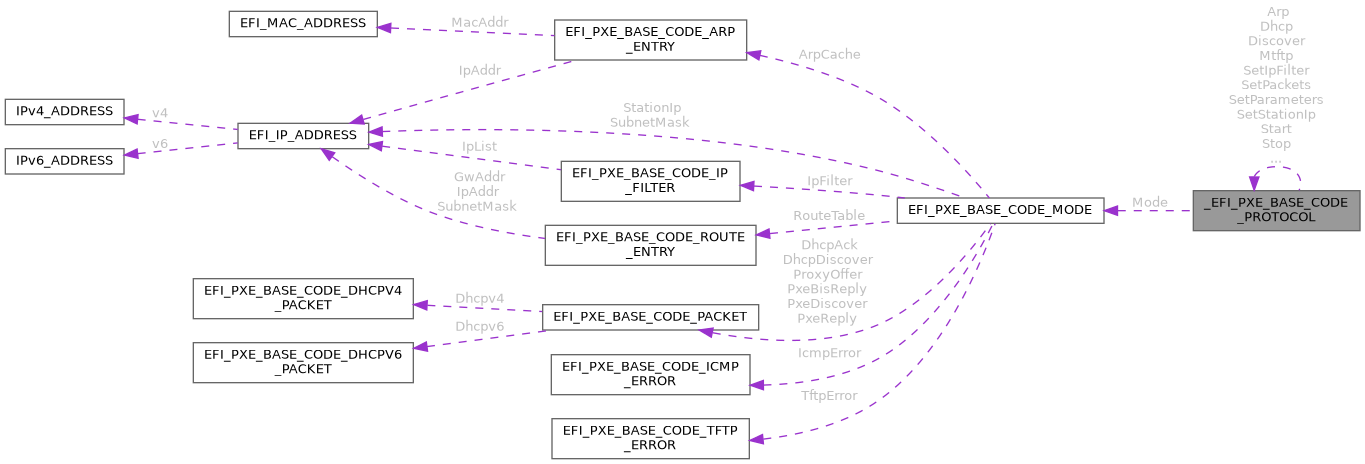

Collaboration diagram for _EFI_PXE_BASE_CODE_PROTOCOL:
Detailed Description
The EFI_PXE_BASE_CODE_PROTOCOL is used to control PXE-compatible devices. An EFI_PXE_BASE_CODE_PROTOCOL will be layered on top of an EFI_MANAGED_NETWORK_PROTOCOL protocol in order to perform packet level transactions. The EFI_PXE_BASE_CODE_PROTOCOL handle also supports the EFI_LOAD_FILE_PROTOCOL protocol. This provides a clean way to obtain control from the boot manager if the boot path is from the remote device.
Member Data Documentation
◆ Arp
| EFI_PXE_BASE_CODE_ARP _EFI_PXE_BASE_CODE_PROTOCOL::Arp |
◆ Dhcp
| EFI_PXE_BASE_CODE_DHCP _EFI_PXE_BASE_CODE_PROTOCOL::Dhcp |
◆ Discover
| EFI_PXE_BASE_CODE_DISCOVER _EFI_PXE_BASE_CODE_PROTOCOL::Discover |
◆ Mode
| EFI_PXE_BASE_CODE_MODE* _EFI_PXE_BASE_CODE_PROTOCOL::Mode |
The pointer to the EFI_PXE_BASE_CODE_MODE data for this device.
◆ Mtftp
| EFI_PXE_BASE_CODE_MTFTP _EFI_PXE_BASE_CODE_PROTOCOL::Mtftp |
◆ Revision
| UINT64 _EFI_PXE_BASE_CODE_PROTOCOL::Revision |
The revision of the EFI_PXE_BASE_CODE_PROTOCOL. All future revisions must be backwards compatible. If a future version is not backwards compatible it is not the same GUID.
◆ SetIpFilter
| EFI_PXE_BASE_CODE_SET_IP_FILTER _EFI_PXE_BASE_CODE_PROTOCOL::SetIpFilter |
◆ SetPackets
| EFI_PXE_BASE_CODE_SET_PACKETS _EFI_PXE_BASE_CODE_PROTOCOL::SetPackets |
◆ SetParameters
| EFI_PXE_BASE_CODE_SET_PARAMETERS _EFI_PXE_BASE_CODE_PROTOCOL::SetParameters |
◆ SetStationIp
| EFI_PXE_BASE_CODE_SET_STATION_IP _EFI_PXE_BASE_CODE_PROTOCOL::SetStationIp |
◆ Start
| EFI_PXE_BASE_CODE_START _EFI_PXE_BASE_CODE_PROTOCOL::Start |
◆ Stop
| EFI_PXE_BASE_CODE_STOP _EFI_PXE_BASE_CODE_PROTOCOL::Stop |
◆ UdpRead
| EFI_PXE_BASE_CODE_UDP_READ _EFI_PXE_BASE_CODE_PROTOCOL::UdpRead |
◆ UdpWrite
| EFI_PXE_BASE_CODE_UDP_WRITE _EFI_PXE_BASE_CODE_PROTOCOL::UdpWrite |
The documentation for this struct was generated from the following file:
- XenevaOS/Boot/include/Protocol/PxeBaseCode.h
