#include <SerialIo.h>

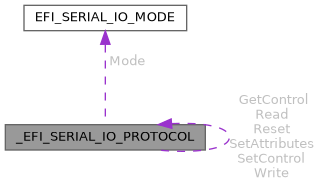

Collaboration diagram for _EFI_SERIAL_IO_PROTOCOL:
Detailed Description
The Serial I/O protocol is used to communicate with UART-style serial devices. These can be standard UART serial ports in PC-AT systems, serial ports attached to a USB interface, or potentially any character-based I/O device.
Member Data Documentation
◆ GetControl
| EFI_SERIAL_GET_CONTROL_BITS _EFI_SERIAL_IO_PROTOCOL::GetControl |
◆ Mode
| EFI_SERIAL_IO_MODE* _EFI_SERIAL_IO_PROTOCOL::Mode |
Pointer to SERIAL_IO_MODE data.
◆ Read
| EFI_SERIAL_READ _EFI_SERIAL_IO_PROTOCOL::Read |
◆ Reset
| EFI_SERIAL_RESET _EFI_SERIAL_IO_PROTOCOL::Reset |
◆ Revision
| UINT32 _EFI_SERIAL_IO_PROTOCOL::Revision |
The revision to which the EFI_SERIAL_IO_PROTOCOL adheres. All future revisions must be backwards compatible. If a future version is not backwards compatible, it is not the same GUID.
◆ SetAttributes
| EFI_SERIAL_SET_ATTRIBUTES _EFI_SERIAL_IO_PROTOCOL::SetAttributes |
◆ SetControl
| EFI_SERIAL_SET_CONTROL_BITS _EFI_SERIAL_IO_PROTOCOL::SetControl |
◆ Write
| EFI_SERIAL_WRITE _EFI_SERIAL_IO_PROTOCOL::Write |
The documentation for this struct was generated from the following file:
- XenevaOS/Boot/include/Protocol/SerialIo.h
