_EFI_SIMPLE_NETWORK_PROTOCOL Struct Reference

#include <SimpleNetwork.h>

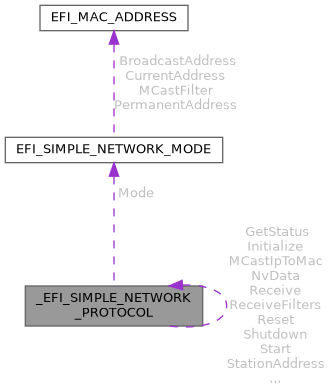

Collaboration diagram for _EFI_SIMPLE_NETWORK_PROTOCOL:

Public Attributes
UINT64	Revision
EFI_SIMPLE_NETWORK_START	Start
EFI_SIMPLE_NETWORK_STOP	Stop
EFI_SIMPLE_NETWORK_INITIALIZE	Initialize
EFI_SIMPLE_NETWORK_RESET	Reset
EFI_SIMPLE_NETWORK_SHUTDOWN	Shutdown
EFI_SIMPLE_NETWORK_RECEIVE_FILTERS	ReceiveFilters
EFI_SIMPLE_NETWORK_STATION_ADDRESS	StationAddress
EFI_SIMPLE_NETWORK_STATISTICS	Statistics
EFI_SIMPLE_NETWORK_MCAST_IP_TO_MAC	MCastIpToMac
EFI_SIMPLE_NETWORK_NVDATA	NvData
EFI_SIMPLE_NETWORK_GET_STATUS	GetStatus
EFI_SIMPLE_NETWORK_TRANSMIT	Transmit
EFI_SIMPLE_NETWORK_RECEIVE	Receive
EFI_EVENT	WaitForPacket
EFI_SIMPLE_NETWORK_MODE *	Mode

Detailed Description

The EFI_SIMPLE_NETWORK_PROTOCOL protocol is used to initialize access to a network adapter. Once the network adapter initializes, the EFI_SIMPLE_NETWORK_PROTOCOL protocol provides services that allow packets to be transmitted and received.

Member Data Documentation

GetStatus

EFI_SIMPLE_NETWORK_GET_STATUS _EFI_SIMPLE_NETWORK_PROTOCOL::GetStatus

Initialize

EFI_SIMPLE_NETWORK_INITIALIZE _EFI_SIMPLE_NETWORK_PROTOCOL::Initialize

MCastIpToMac

EFI_SIMPLE_NETWORK_MCAST_IP_TO_MAC _EFI_SIMPLE_NETWORK_PROTOCOL::MCastIpToMac

Mode

EFI_SIMPLE_NETWORK_MODE* _EFI_SIMPLE_NETWORK_PROTOCOL::Mode

Pointer to the EFI_SIMPLE_NETWORK_MODE data for the device.

NvData

EFI_SIMPLE_NETWORK_NVDATA _EFI_SIMPLE_NETWORK_PROTOCOL::NvData

Receive

EFI_SIMPLE_NETWORK_RECEIVE _EFI_SIMPLE_NETWORK_PROTOCOL::Receive

ReceiveFilters

EFI_SIMPLE_NETWORK_RECEIVE_FILTERS _EFI_SIMPLE_NETWORK_PROTOCOL::ReceiveFilters

Reset

EFI_SIMPLE_NETWORK_RESET _EFI_SIMPLE_NETWORK_PROTOCOL::Reset

Revision

UINT64 _EFI_SIMPLE_NETWORK_PROTOCOL::Revision

Revision of the EFI_SIMPLE_NETWORK_PROTOCOL. All future revisions must be backwards compatible. If a future version is not backwards compatible it is not the same GUID.

Shutdown

EFI_SIMPLE_NETWORK_SHUTDOWN _EFI_SIMPLE_NETWORK_PROTOCOL::Shutdown

Start

EFI_SIMPLE_NETWORK_START _EFI_SIMPLE_NETWORK_PROTOCOL::Start

StationAddress

EFI_SIMPLE_NETWORK_STATION_ADDRESS _EFI_SIMPLE_NETWORK_PROTOCOL::StationAddress

Statistics

EFI_SIMPLE_NETWORK_STATISTICS _EFI_SIMPLE_NETWORK_PROTOCOL::Statistics

Stop

EFI_SIMPLE_NETWORK_STOP _EFI_SIMPLE_NETWORK_PROTOCOL::Stop

Transmit

EFI_SIMPLE_NETWORK_TRANSMIT _EFI_SIMPLE_NETWORK_PROTOCOL::Transmit

WaitForPacket

EFI_EVENT _EFI_SIMPLE_NETWORK_PROTOCOL::WaitForPacket

Event used with WaitForEvent() to wait for a packet to be received.

---

The documentation for this struct was generated from the following file:

• XenevaOS/Boot/include/Protocol/SimpleNetwork.h
